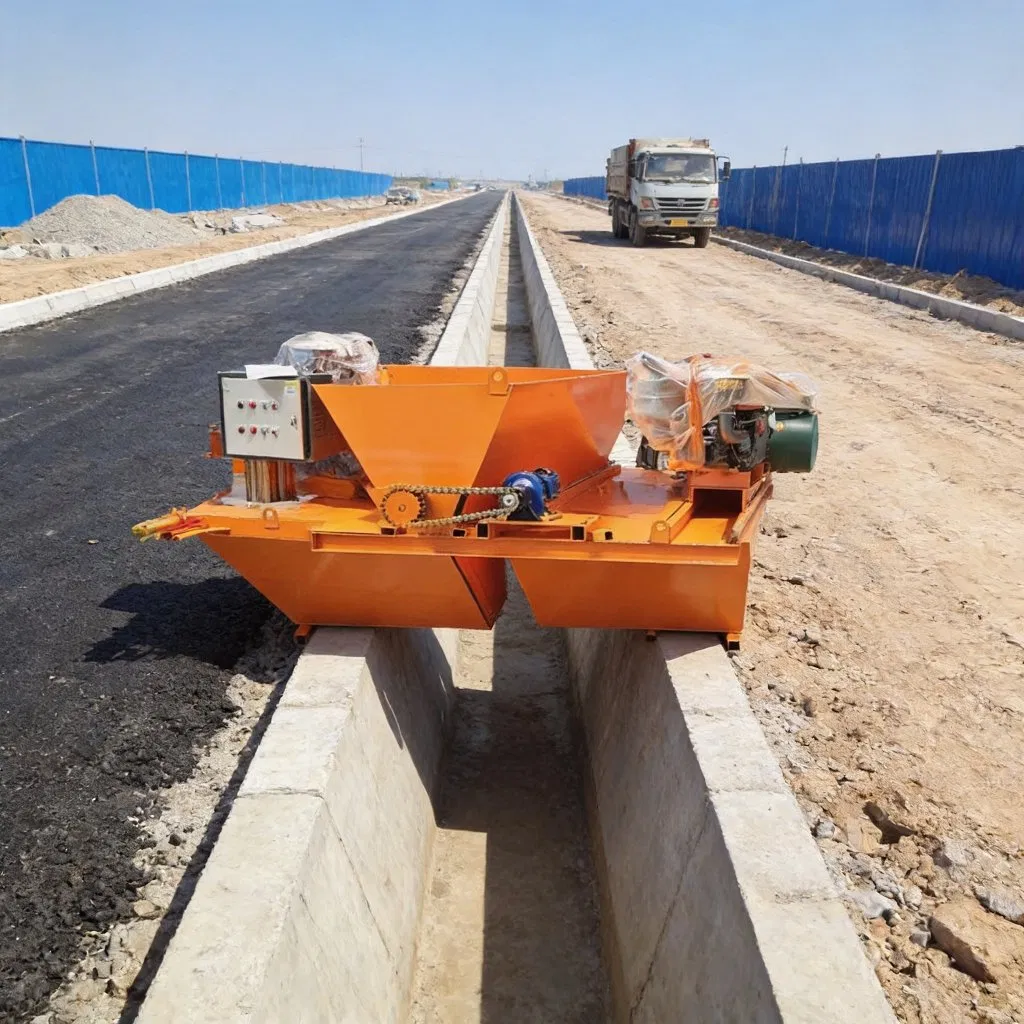

U-Shaped Ditch Slipform Machine for Highway Drainage Works
U-Shaped Ditch Slipform Machine for Highway Drainage Works
U-Shaped Ditch Slipform Machine for Highway Drainage Works
U-Shaped Ditch Slipform Machine for Highway Drainage Works
U-Shaped Ditch Slipform Machine for Highway Drainage Works
1 / 5
U-Shaped Ditch Slipform Machine for Highway Drainage Works
U-Shaped Ditch Slipform Machine for Highway Drainage Works
U-Shaped Ditch Slipform Machine for Highway Drainage Works
U-Shaped Ditch Slipform Machine for Highway Drainage Works
U-Shaped Ditch Slipform Machine for Highway Drainage Works

U-Shaped Ditch Slipform Machine for Highway Drainage Works

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model
2500mm
Application Field
Agriculture
Max Trenching Depth
1500mm
Structure
Double-Disc
Power Source
Diesel
Moving way
Crawler Loader
Operation Speed
150-500m/h
Certification
ECE, EU, CE, EPA
Working Depth
30-150cm
Rated Power
24kw
Product Description
⚙️
Introduction to Machines for Building Water Ditches
Trapezoidal channel automatic vibrating concrete lining machine and U-shaped concrete automatic ditch channel lining device are designed for various terrains including canal bottoms, slopes, and highways. The equipment length can be customized based on the working surface width.
Working Principle: The machine uses hydraulic or mechanical propulsion to feed concrete into specific shaped molds. High-frequency vibrators achieve compaction while the self-propelled system ensures continuous, one-time forming of the water channel.

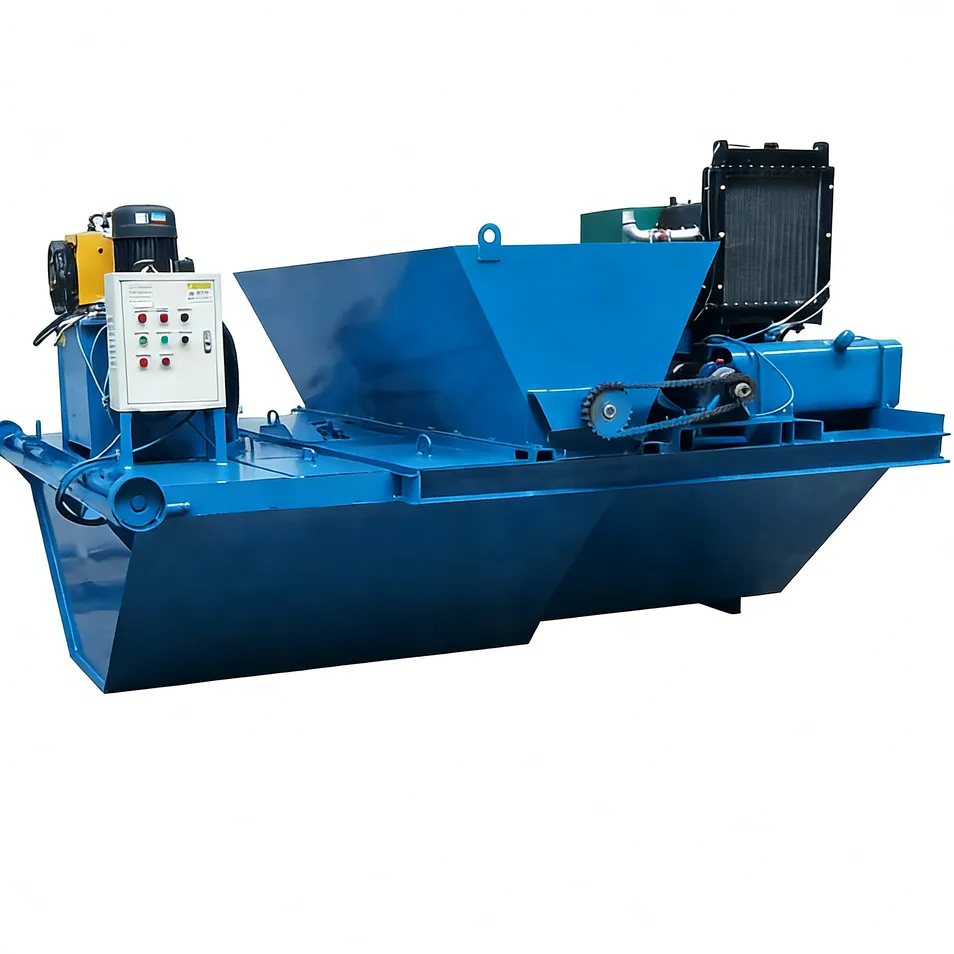

Ditch Slipform Machine
Video Cover
Key Advantages
💰
Cost Efficiency: Reduces template and labor costs significantly. Saves 200-600 cubic meters of water per acre by effectively reducing leakage.
⏱️
Time Saving: Construction speeds reach 40 to 50 meters per hour, far exceeding manual capabilities.
🌍
Land Conservation: Compact canal structure saves approximately 40% of land compared to earthen canals.
Equipment Showcase
Front Elevation

Front Elevation

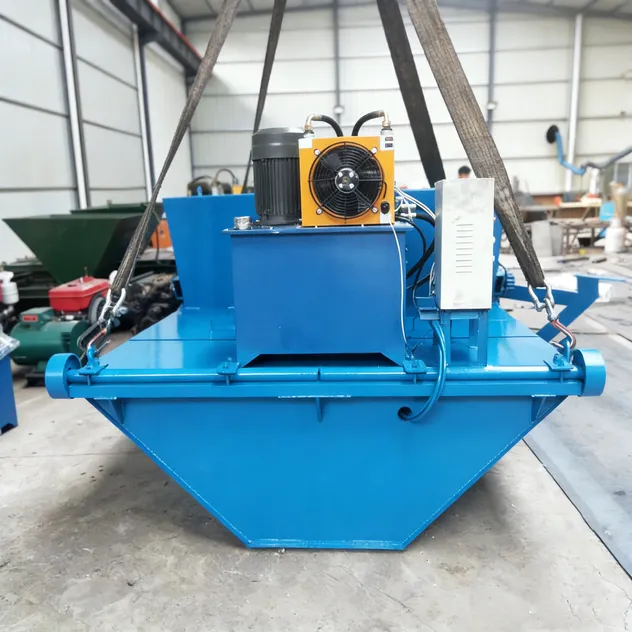

Left Elevation

Left Elevation

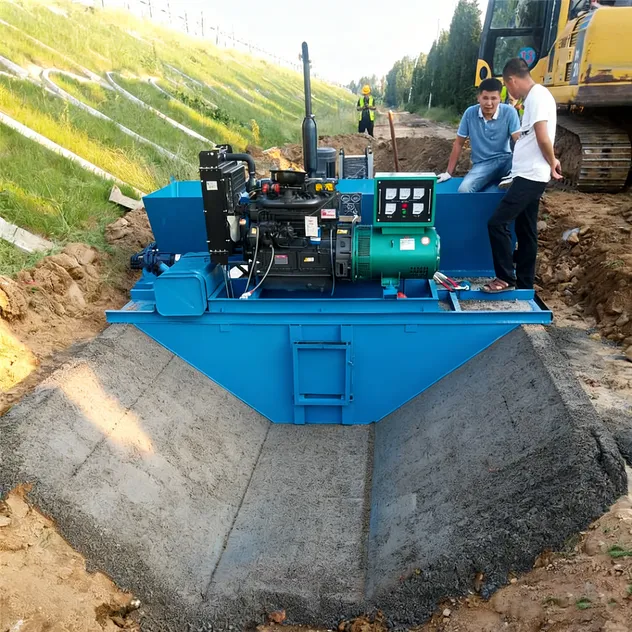

Right Elevation

Right Elevation

Technical Specifications
Model U-shaped Ladder type Custom type
Operating Weight (kg) 20,000 30,500 45,000
Engine Power (kW) 24 15 30
Work ability (m/h) 40-50 40-50 40-50
Standard Length (m) 3.5 3.4 3.7
Width (meters) Customized Customized Customized
Service & Profile
Manufacturing Facility

We are a leading manufacturer of construction equipment with over 20 years of expertise. Certified with ISO 9001, CE, and GOST, we offer reliable machinery backed by R&D innovation and strict quality control. Our products are exported to over 50 countries worldwide.

Standard Warranty: 12 months or 2,000 operating hours. Global support and 24/7 technical assistance available.
Customization: OEM/ODM capabilities to meet specific project requirements including tailored bucket sizes and attachments.
Frequently Asked Questions
What types of water channels can this machine form?
The machine is versatile and can be customized to form U-shaped, trapezoidal, rectangular, and other self-defined ditch profiles based on your project needs.
What is the standard construction speed per hour?
Under standard operating conditions, the machine can achieve a forming speed of 40 to 50 meters per hour.
How many personnel are required to operate the equipment?
Typically, only 2 personnel are required for basic operation, significantly reducing labor costs compared to manual lining.
What is the lead time for a customized order?
Standard models ship within 15–30 days, while customized units tailored to specific CAD drawings require 30–45 days.
Does the machine support different power standards?
Yes, our equipment primarily uses reliable diesel power sources suitable for field work in agriculture and infrastructure projects.
What documents are provided for international shipping?
We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and necessary certifications (CE/COC) to ensure smooth customs clearance.
