Double Chain Trencher Ditcher Tractor Cable Digging Farm Plough Drainage Ditching Saw Blade Ridging Road Orchard Paddy Field Pipeline Water Pipe Cable Fence

Customization:	Available
After-sales Service:	1-3 Years
Type:	Chain Trencher

Send Inquiry

Product Description

Basic Specifications

Model:LKJ200 - LKJ1000 Series

Application Field:Agriculture

Max Trench Depth:500-2200mm

Structure:Chain Ditching Machine

Power Source:Tractor

Moving Way:Wheel

Operation Speed:100-500m/h

Certification:CE

Warranty:1-3 Years

Color:Red, Black

Product Description

Versatile, Easy, Affordable, Powerful, Reliable

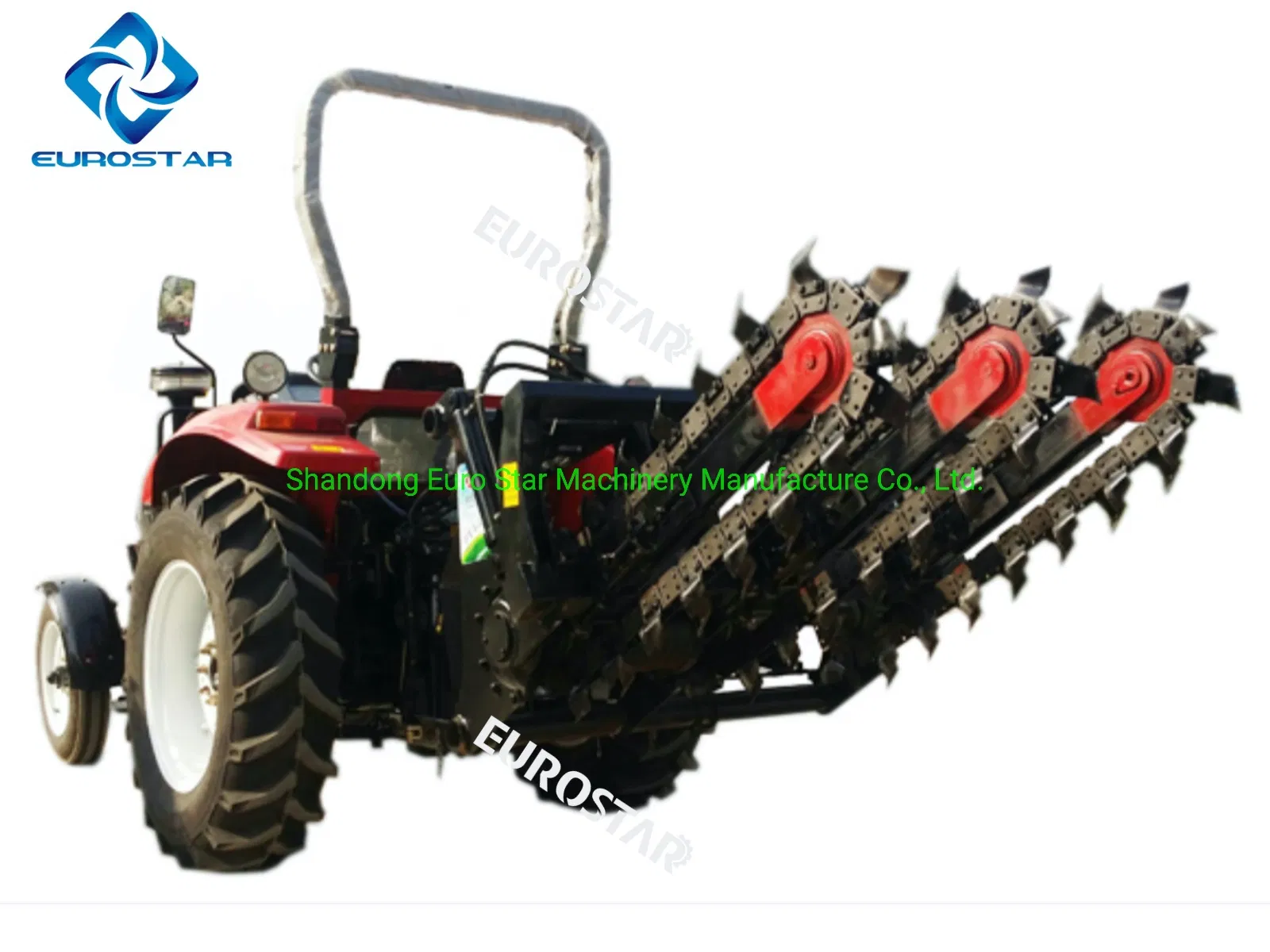

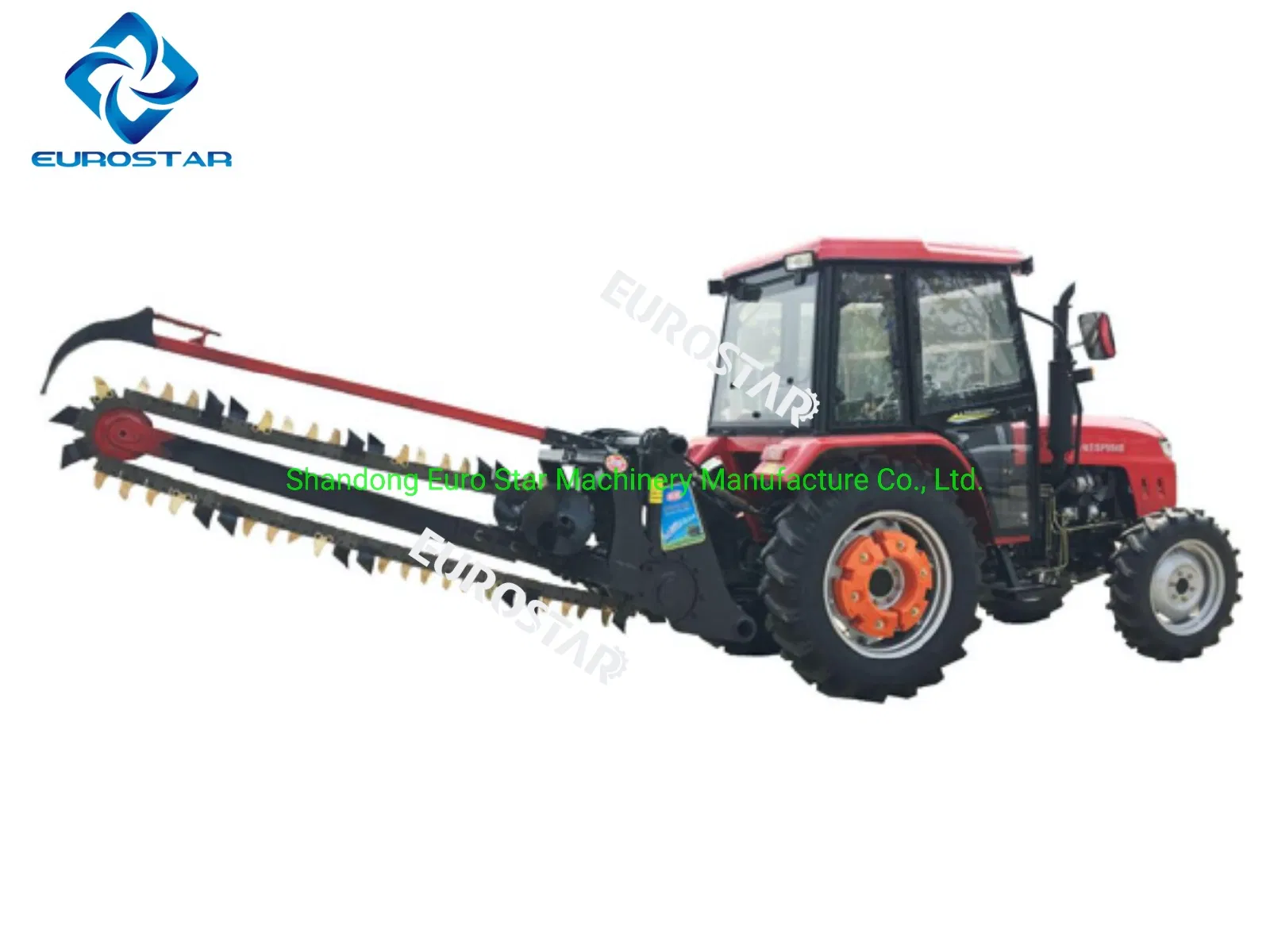

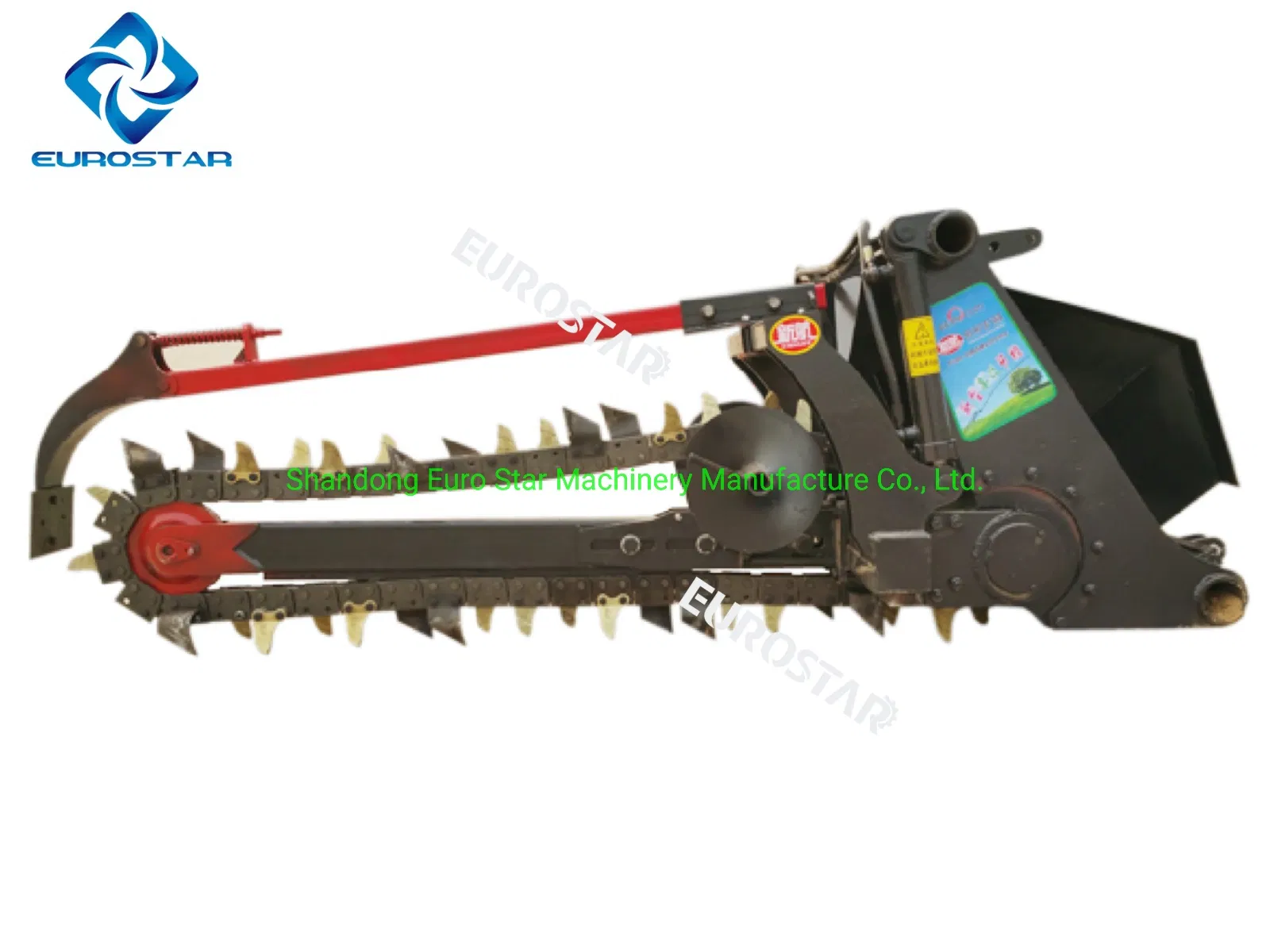

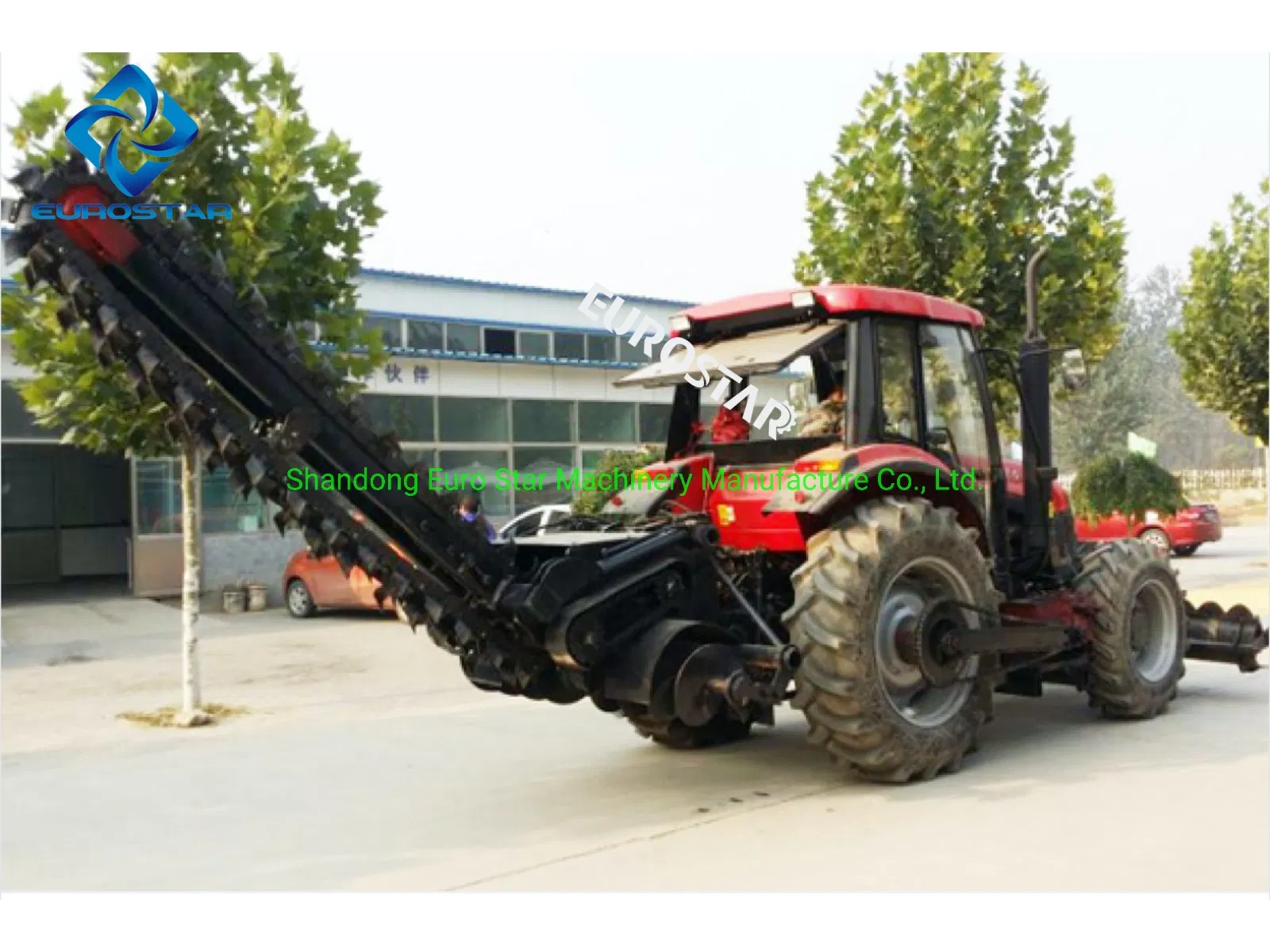

The LKJ series chain ditch digger operates flexibly and is suitable for narrow working width road surfaces. Ditching width and depth can be adjusted according to work requirements. The narrowest trench width is 120mm, and the depth can reach 1500mm, effectively replacing manual and excavator operations in various environments.

Product Selling Points

Remarkable Economical Benefit: One ditcher equals the work of dozens of people or several small excavators.
High Precision Performance: Vertical and even ditches, superior to human labor.
Durability: Blades and chains use special materials for an extended life span.
High Efficiency: Specifically designed for digging deep and narrow ditches for pipes or cables (3-5 times faster than excavators).

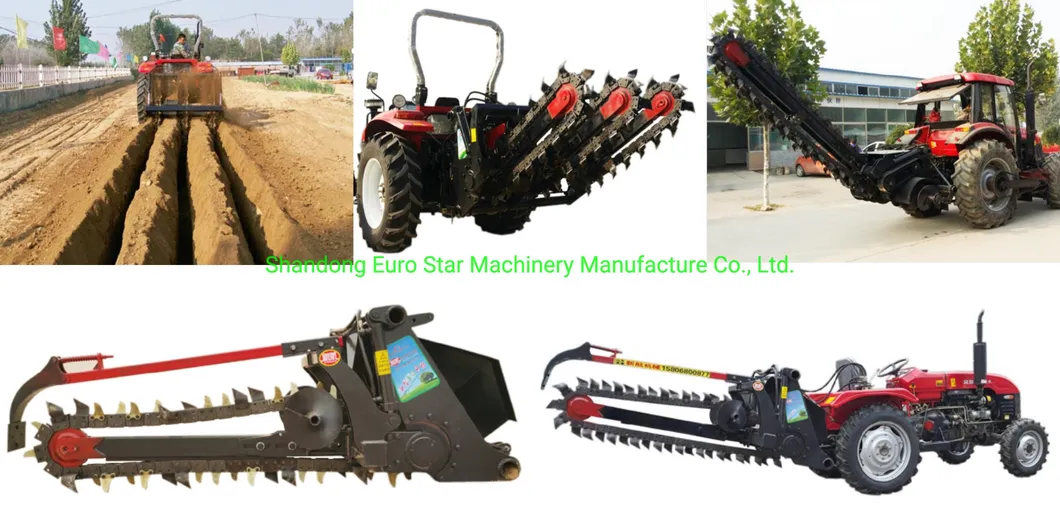

Chain Trencher Technical Parameters

Model	Supporting Power	PTO Speed (r/min)	Trenching Width (mm)	Trenching Depth (mm)	Efficiency
LKJ200	50-80HP	500-1000	⩽150-200	⩽1500	120-500M/h
LKJ300	50-80HP	500-1000	⩽300	⩽100	120-500M/h
LKJ500	50-80HP	500-1000	⩽500	⩽500	120-500M/h
LKJ200K	90-110HP	500-1000	⩽150-200	⩽1800	120-500M/h
LKJ600K	90-110HP	500-1000	⩽600	⩽800	120-500M/h
LKJ1000KD	120-220HP	500-1000	⩽1000	⩽1000	120-500M/h

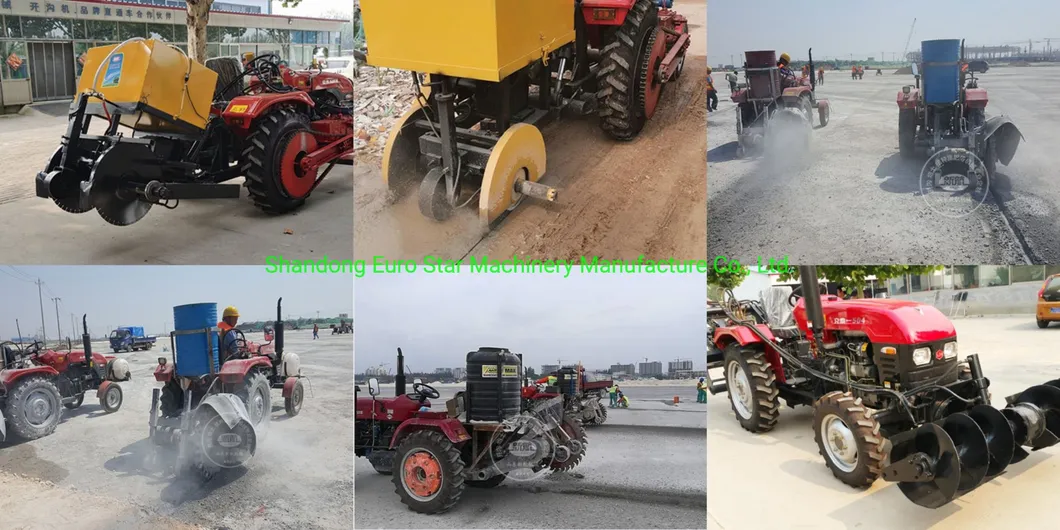

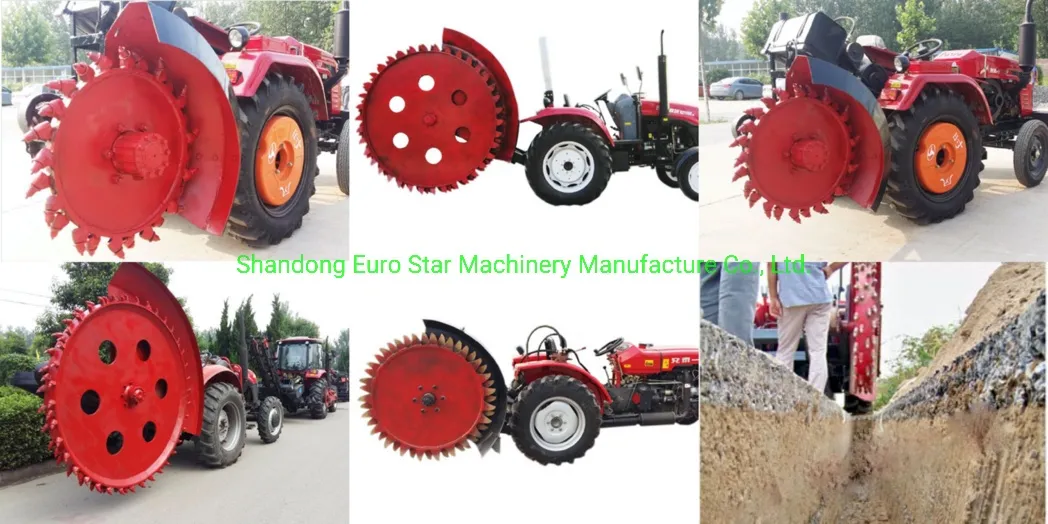

Disc Trencher Technical Parameters

Parameter	PKJ500	PKJ800	PKJ1000	PKJ1200
Supporting Power	50-90HP	50-90HP	100-220HP	100-220HP
Trenching Width (mm)	250-300	80-150	200-250	80-150
Trenching Depth (mm)	⩽500	⩽800	⩽1000	⩽1200
Cement Road Efficiency	50-100M/h	50-100M/h	50-150M/h	50-150M/h
Asphalt Efficiency	120-200M/h	120-200M/h	120-200M/h	120-200M/h

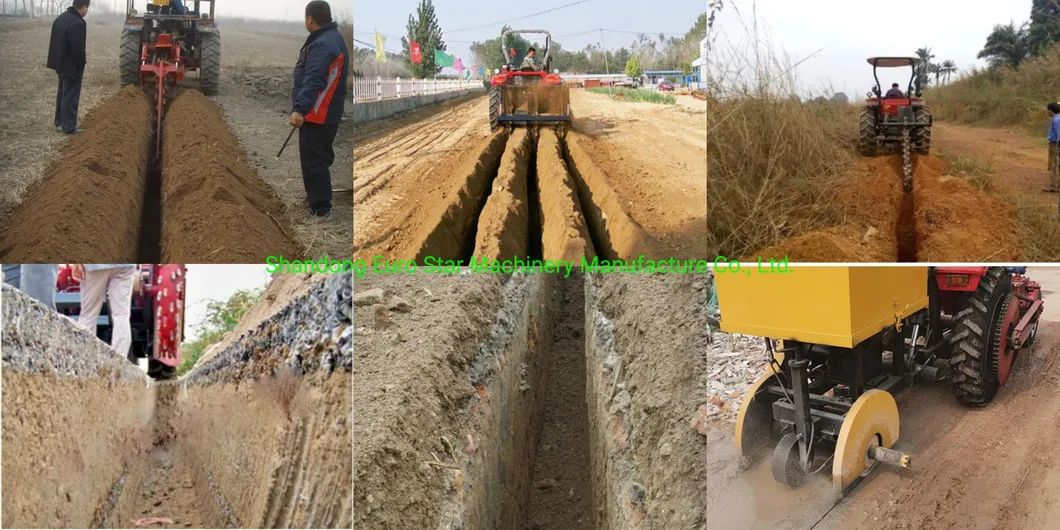

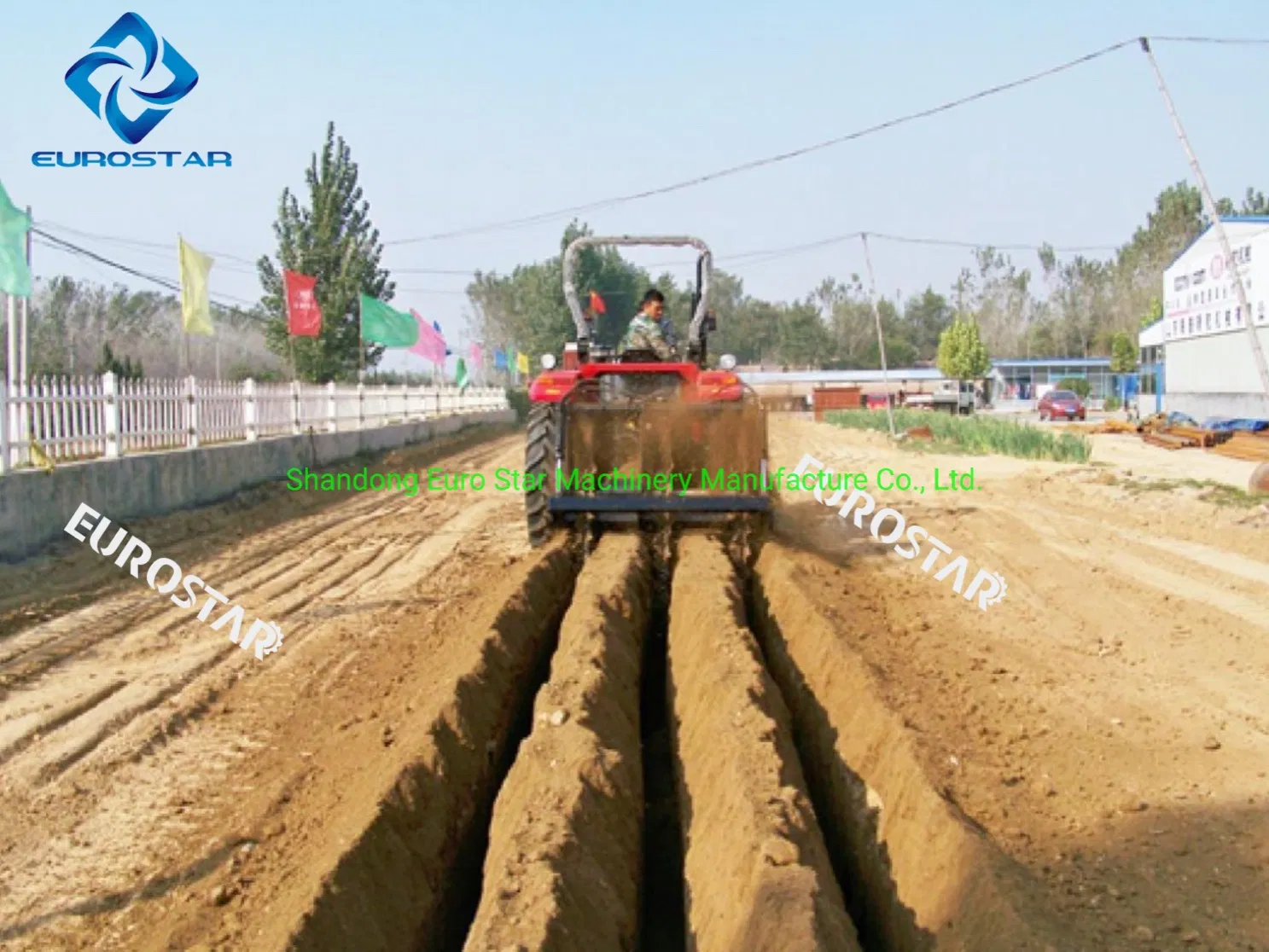

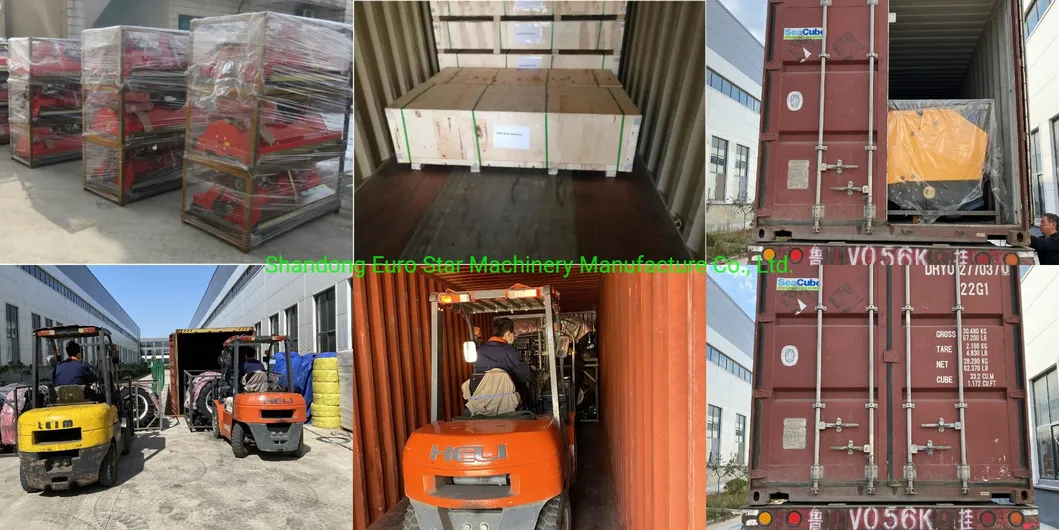

Working Effect & Logistics

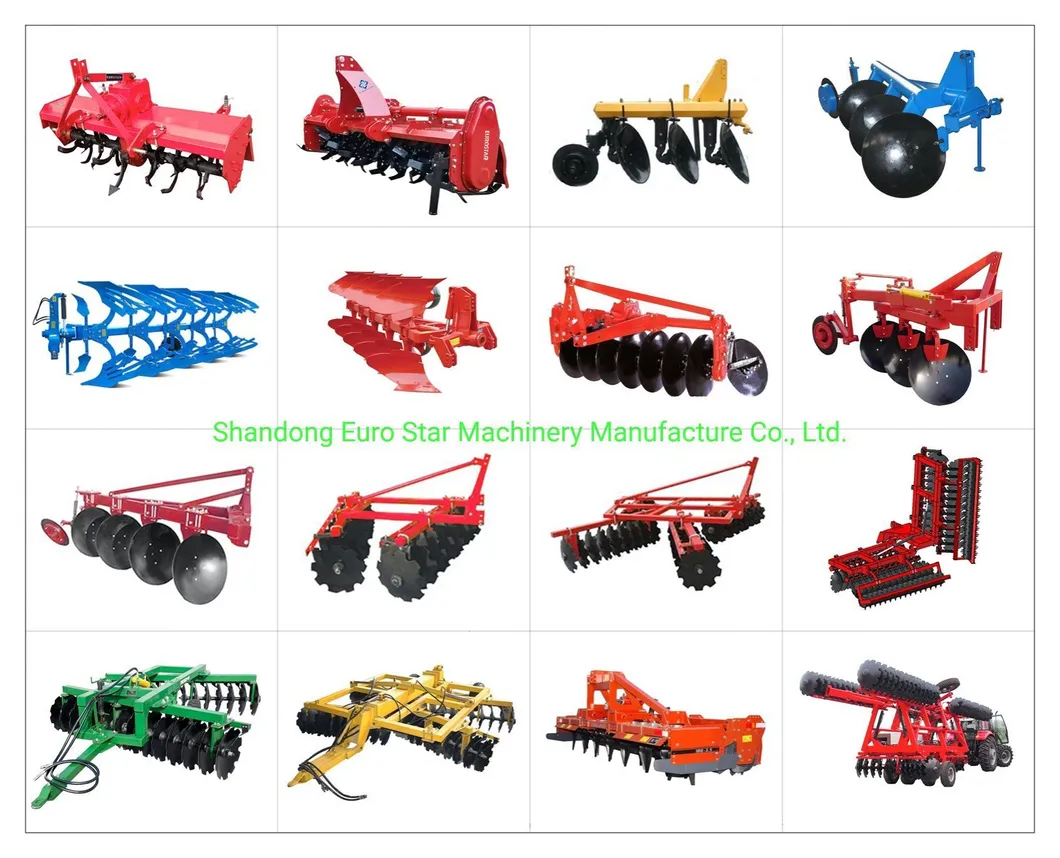

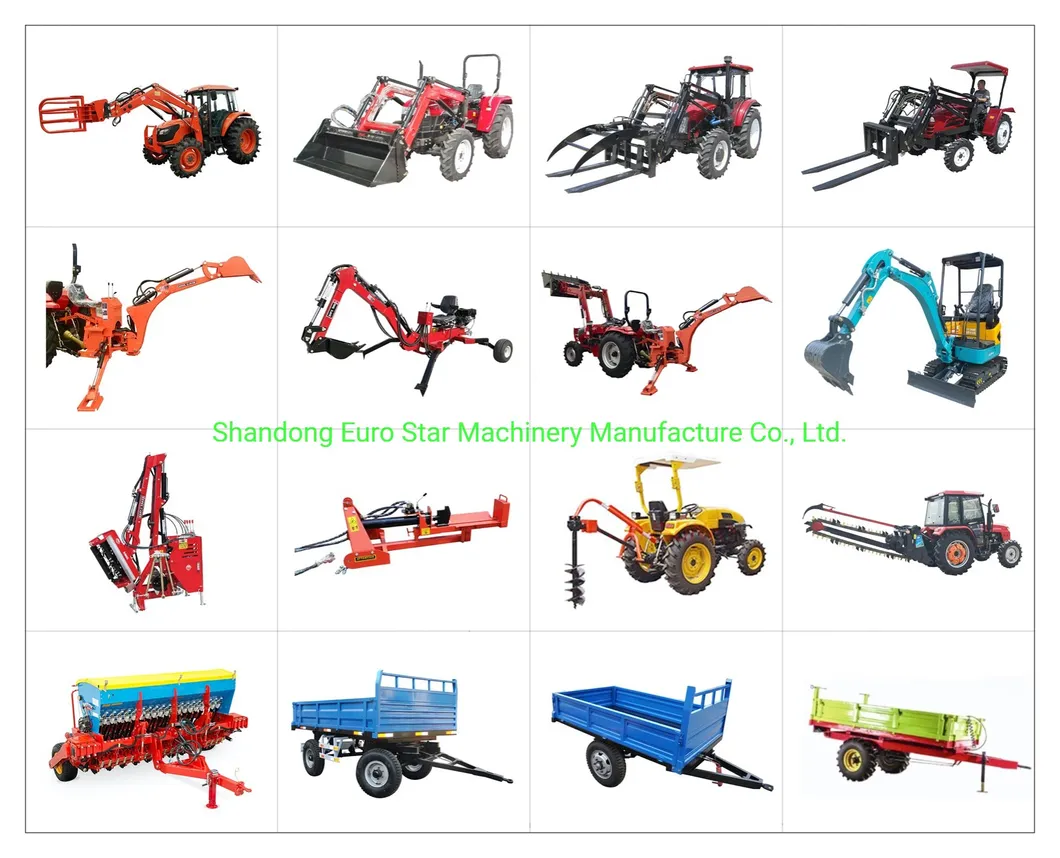

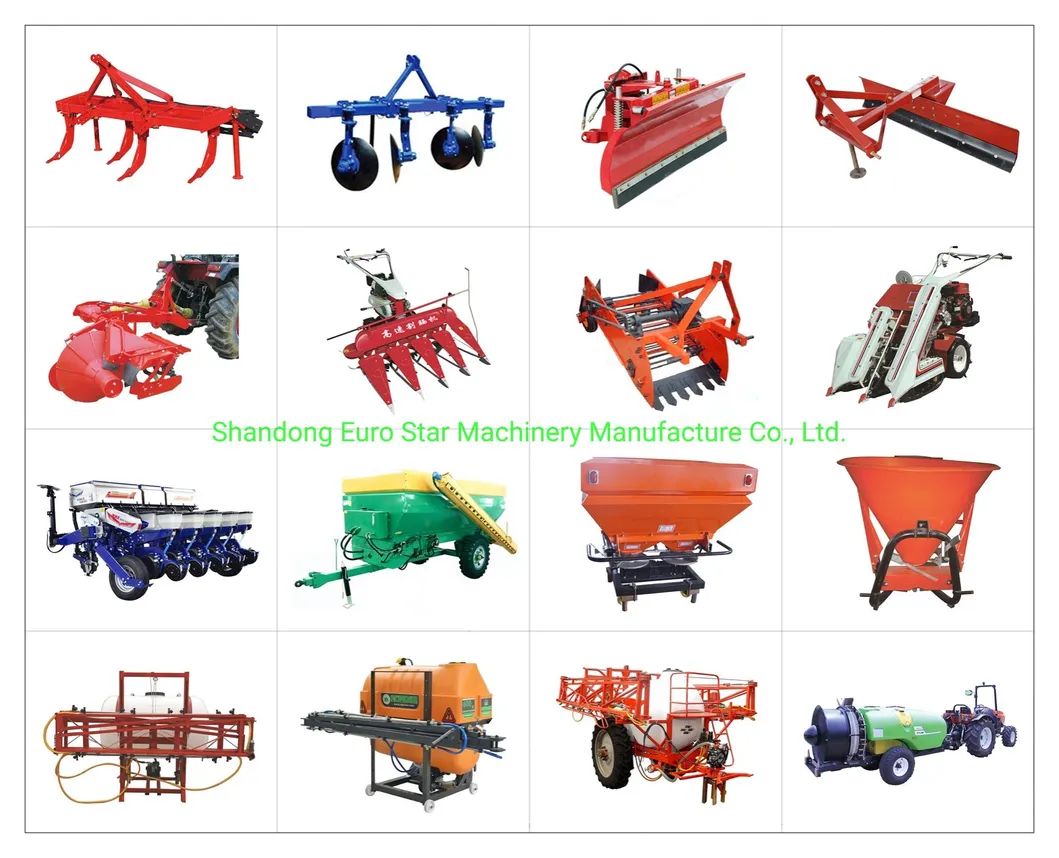

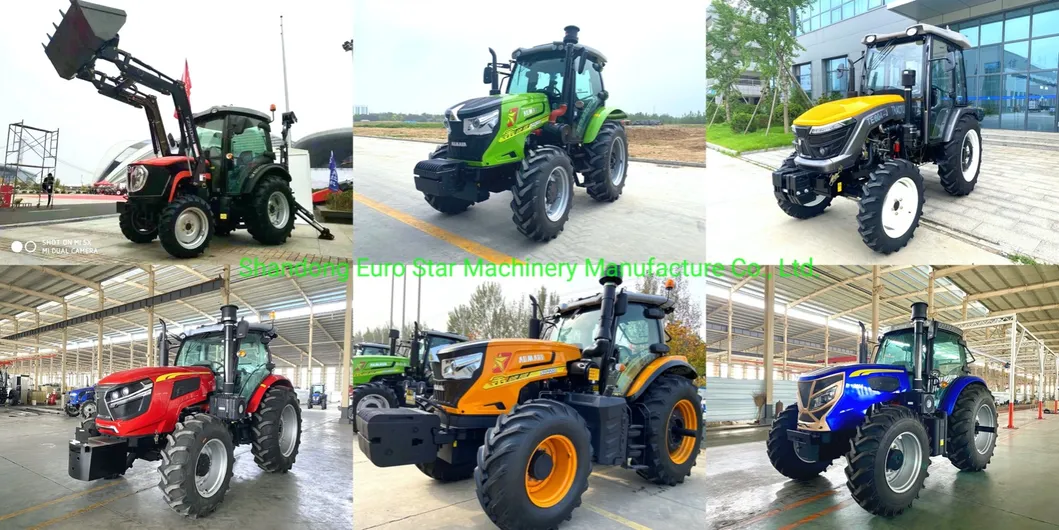

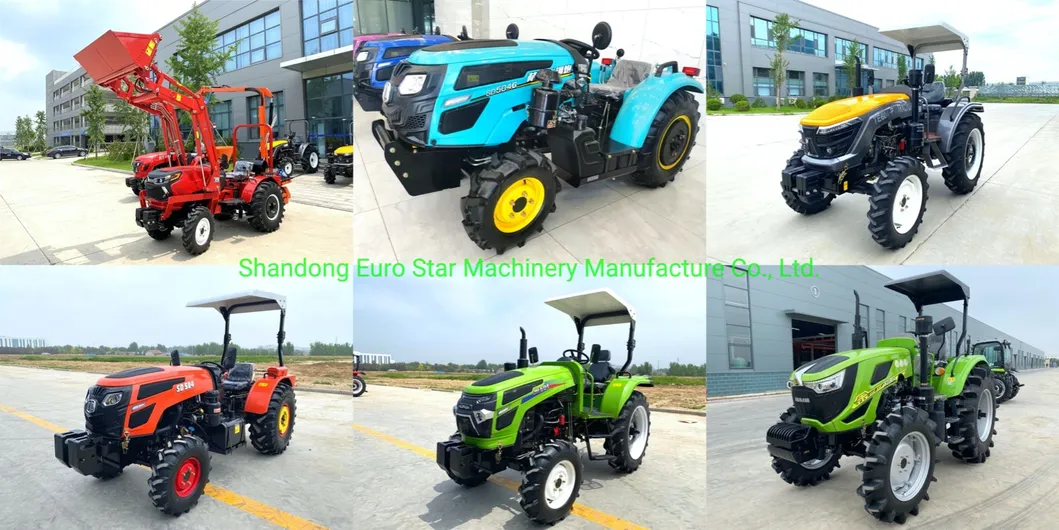

Tractor Range & Agricultural Machinery

Service & Technical Support

A professional, fast, and comprehensive service guarantee system covering the entire lifecycle of your equipment.

Spare Parts Service: 100% original spare parts with a barcode system for accuracy and promptness.
Training Service: Characteristic training modes including factory technician visits and remote online network training.
Market Service: Stationary points combined with circuit technology support for high-efficiency maintenance.
Technical Support: Full-process technology support covering both sales and after-sales service.

Frequently Asked Questions (FAQ)

1. What makes the chain trencher more efficient than an excavator? The chain trencher is specifically designed for narrow ditches (such as for pipes or cables). It works 3-5 times faster than an excavator in these specialized environments and produces a much more even and vertical ditch.

2. Can the trenching depth and width be adjusted? Yes, the LKJ series allows for adjustments based on work requirements. Ditching widths can be as narrow as 120mm, and depths can reach up to 1500mm or more depending on the model and tractor power.

3. What types of surfaces can the disc trencher handle? The disc trencher is highly versatile and can operate on cement roads (50-150M/h), asphalt (120-200M/h), brick pavement (150-230M/h), and standard land (180-300M/h).

4. What kind of power source is required for the trenching machine? These machines are designed to be powered by tractors. Depending on the model, required power ranges from 50HP up to 220HP. The tractor should ideally be equipped with creeper gear and high-speed hydraulic joints.

5. How are the products shipped internationally? We arrange shipments through world-famous shipping carriers via airfreight or ocean service. We offer various terms including FOB and CIF to meet your destination requirements.

6. What is the standard delivery time for an order? For normal orders, the standard delivery time is approximately 20 days. Payment terms for first orders usually involve a 30% deposit via T/T or 100% L/C at sight.
