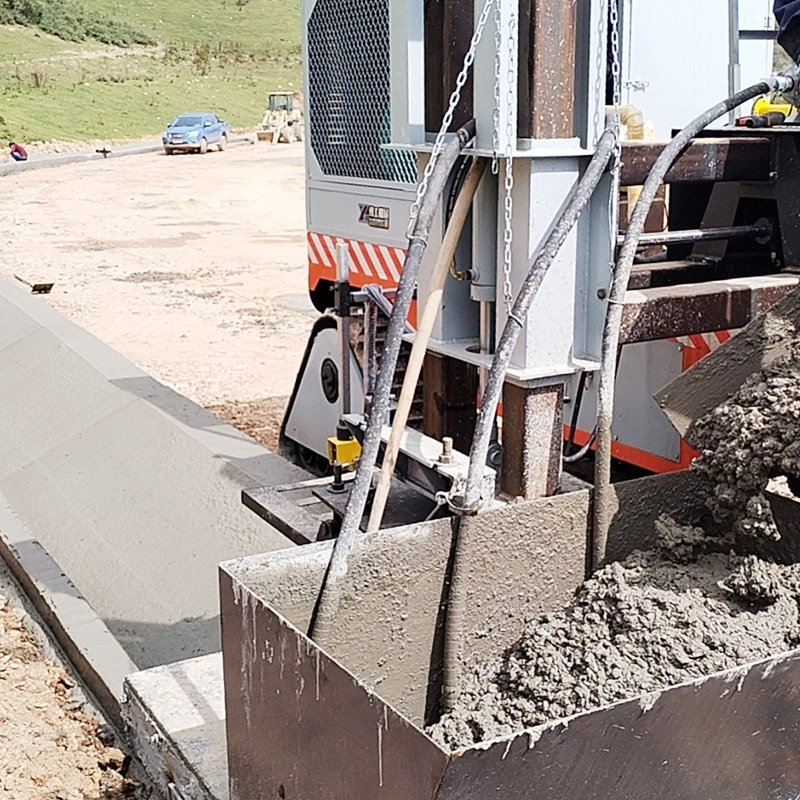

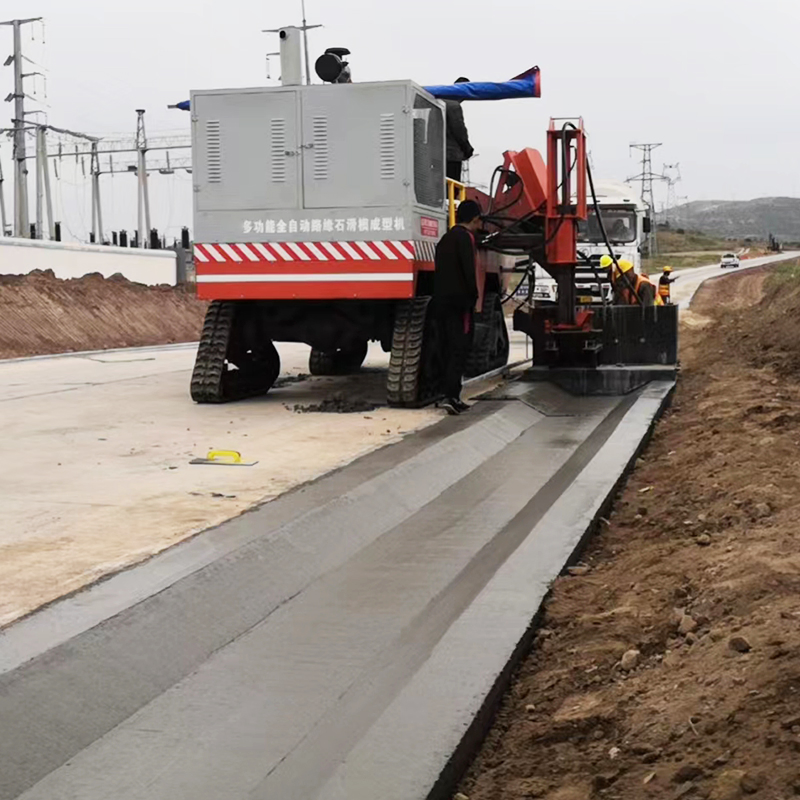

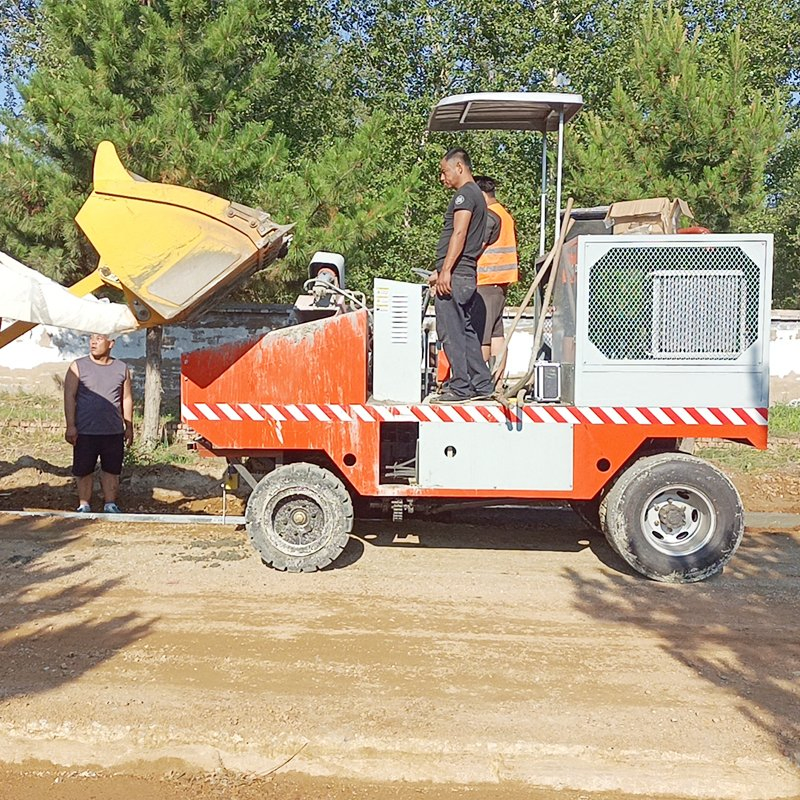

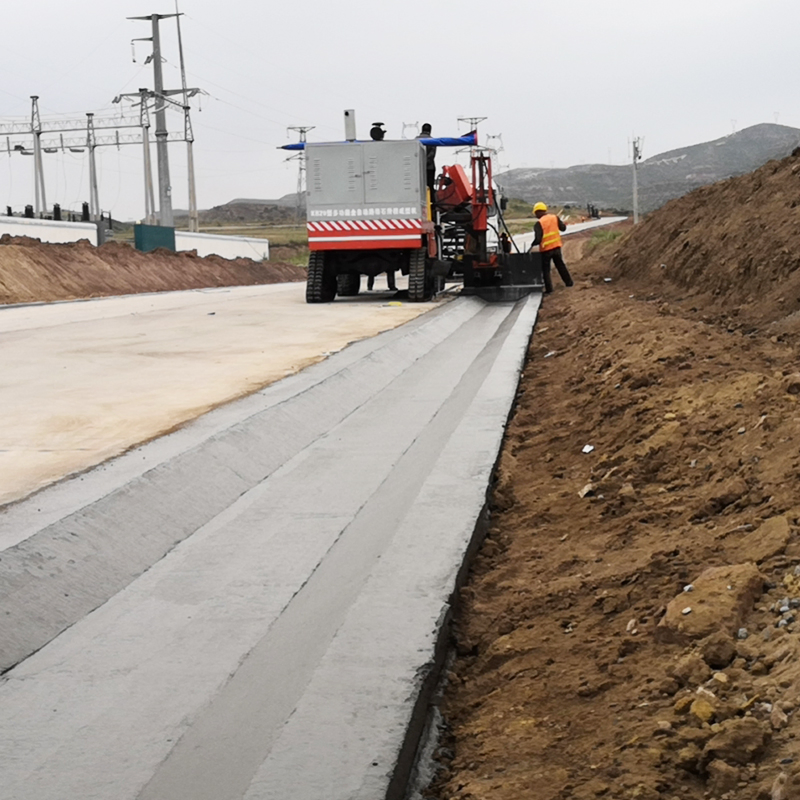

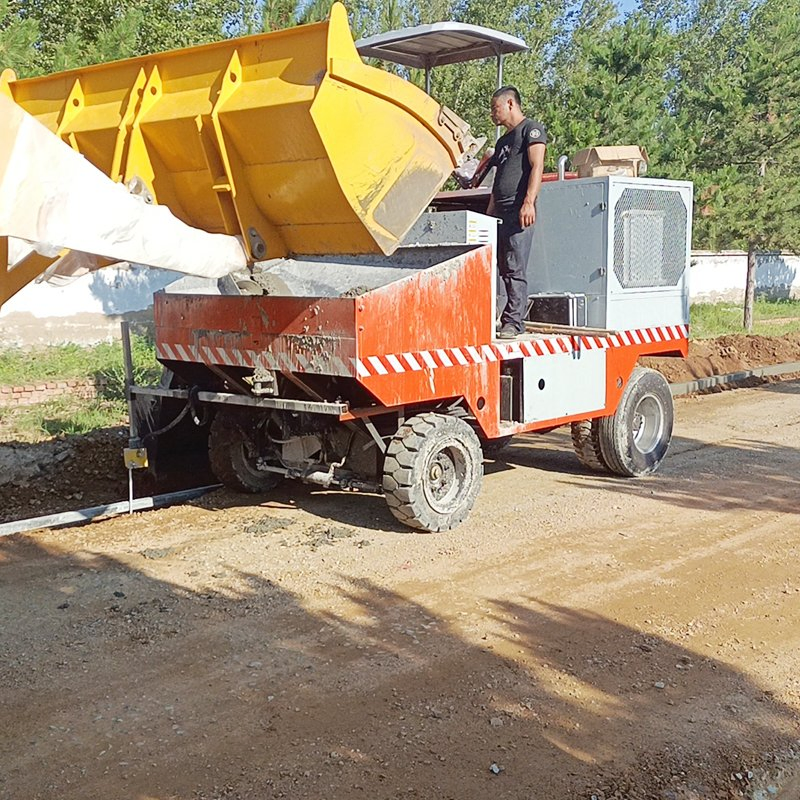

Concrete Curb Slipform Machine for Expressway Sluice and Central Divider Curb Forming

Customization: Available
After-sales Service: 2 Years
Warranty: 2 Years

Product Description

Basic Information
Type Paver
Object Cement Concrete Pavement
Moving Type Mobile
Automatic Grade Automatic
Product Capacity 1-10m
Certification CE
Condition New
Package 40hq
Specification L5000 W2400 H2800
Origin China
Slipform Concrete Paver Overview
Slipform concrete pavers are construction equipment that continuously molds plastic concrete using a fixed template. Based on their walking mechanism, they can be divided into three categories: tracked, wheeled, and curb-specific. This equipment utilizes the slipform forming principle, automatically completing concrete paving, vibration, and leveling processes without the need for tracks. The SP8500 model is equipped with an automated dowel bar insertion device (DBI). Significant breakthroughs in technological research and development have been made; for example, the HTH6000 model was exported overseas in 2003, and recent patents involve automatic end-form angle adjustment technology.

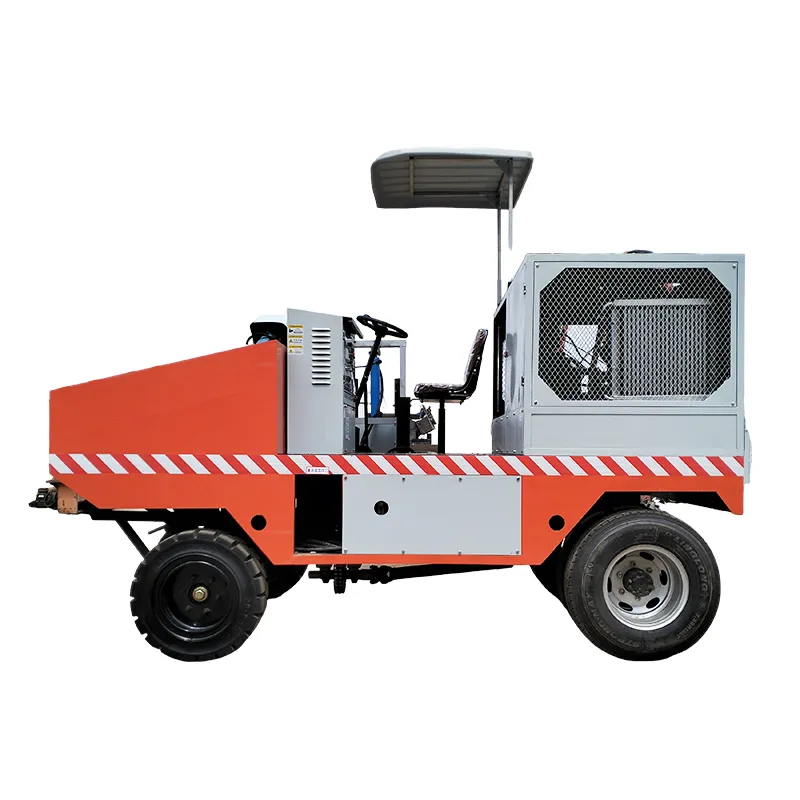

Slipform Concrete Paver
Wide Range of Applications

Roadwork

  • Concrete curb slipforming
  • Highway median barrier extrusion
  • Shoulder edge forming
  • Drainage channel slipforming

Urban Infrastructure

  • Sidewalk curb & gutter forming
  • Parking lot perimeter curbing
  • Roundabout island curbing
  • Bicycle lane separation curb

Landscaping

  • Garden bed border forming
  • Lawn irrigation channel curbing
  • Residential community decorative curbing
  • Park road edge restraint

Port & Airport

  • Runway edge light foundation curb
  • Apron pavement containment curb
  • Port road traffic separation curb
  • Agricultural irrigation canal walls
Right Elevation
Right Elevation

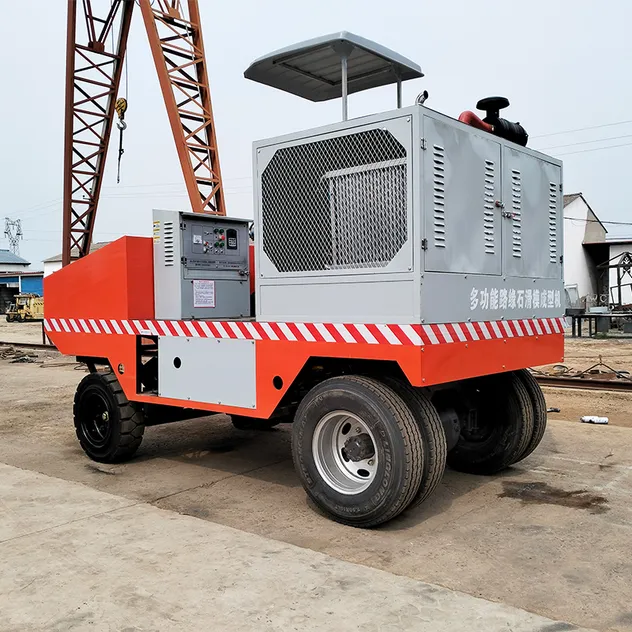

Left Elevation
Left Elevation

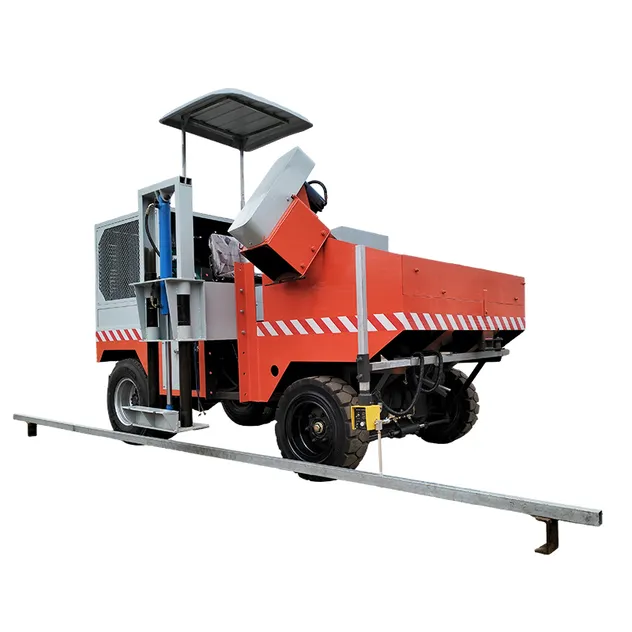

Front Elevation
Front Elevation
Technical Specifications
(Custom configurations available upon request.)
Model YG-20 YG-30
Type Portable wheel type Crawler portable
Steering system Automatic steering system Automatic steering system
Engine 65kw, AC380V four-cylinder turbo diesel 65kw
Curb size Height ≤ 600mm, Width ≤ 2000mm Height ≤ 1100mm, Width ≤ 2000mm
Forming method High frequency vibrator / Attached motor High frequency vibrator / Attached motor
Min Turning Radius 6800mm 6800mm
Paving speed 1—7m/min adjustable 1—10m/min
Hopper volume 1m³ 1m³
Machine size 5000*2400*2800mm 5200*2400*2800mm
Weight 6000kg 7000kg
Product Details & Performance

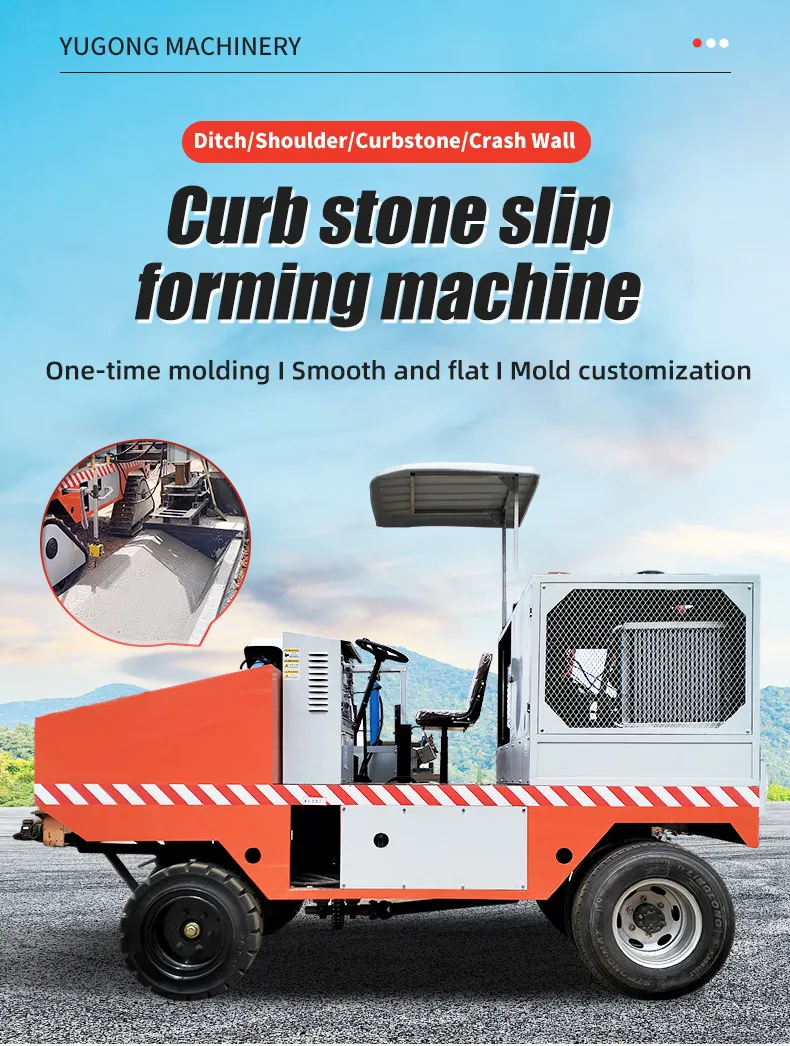

Performance View 1
Performance View 2

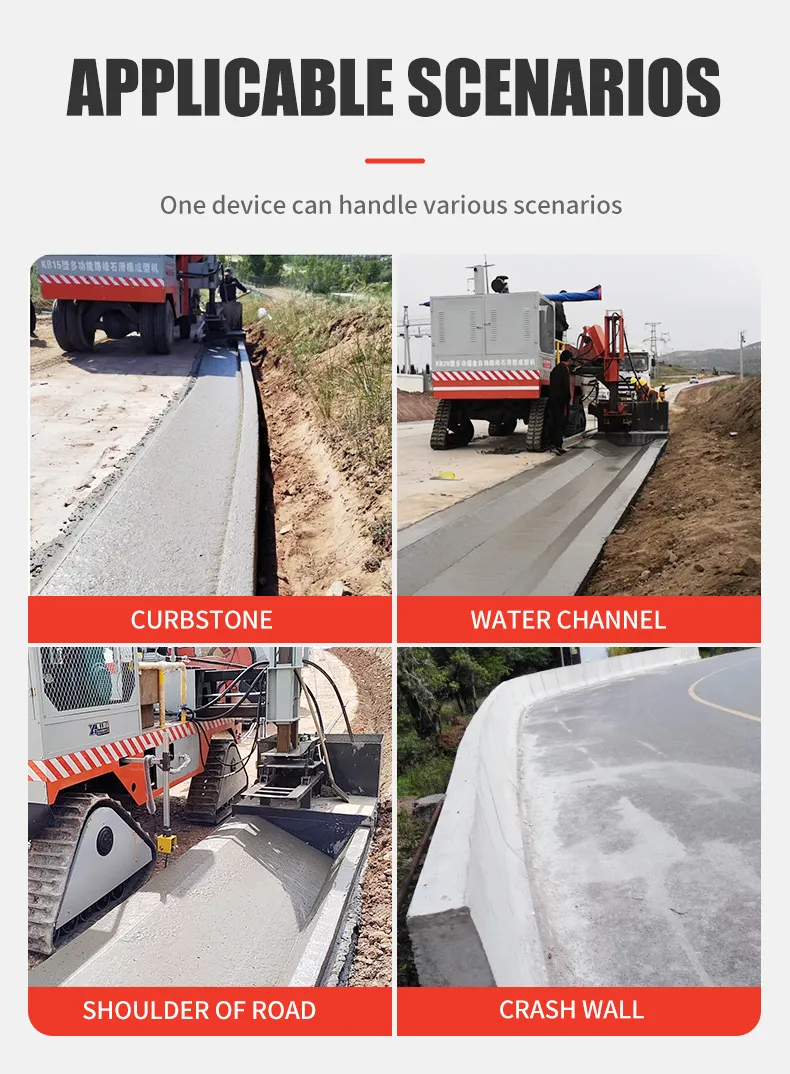

Detail View 1

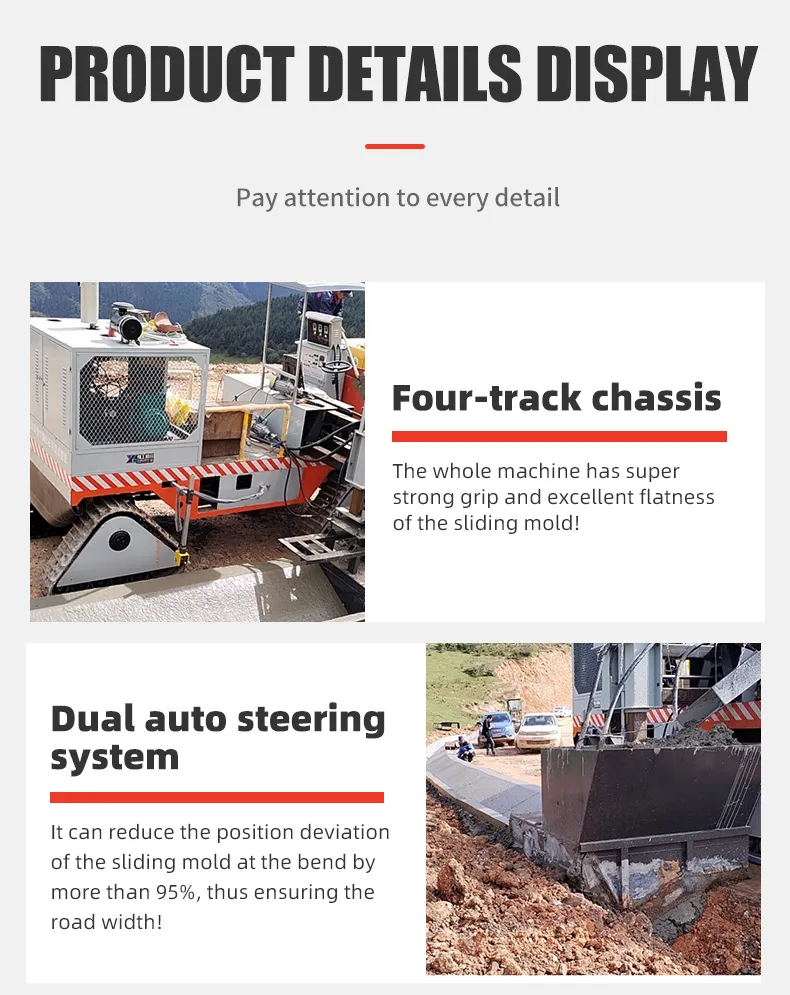

Detail View 2

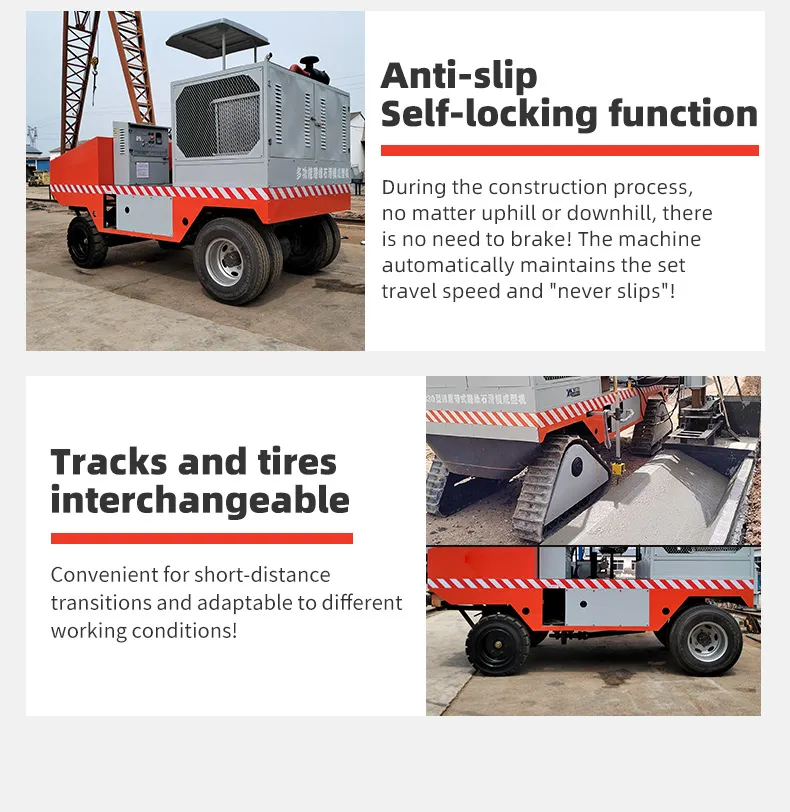

Detail View 3

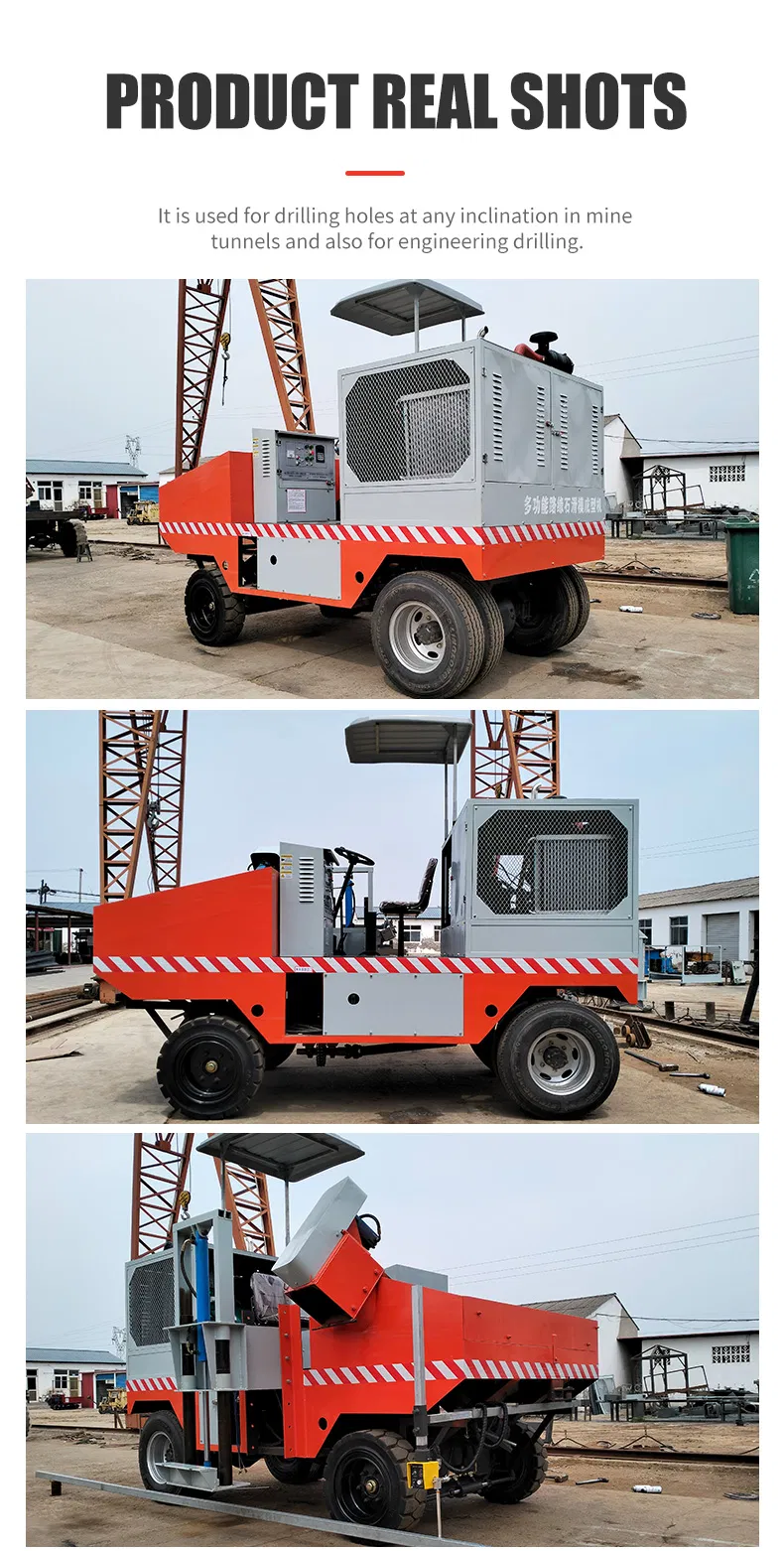

Detail View 4

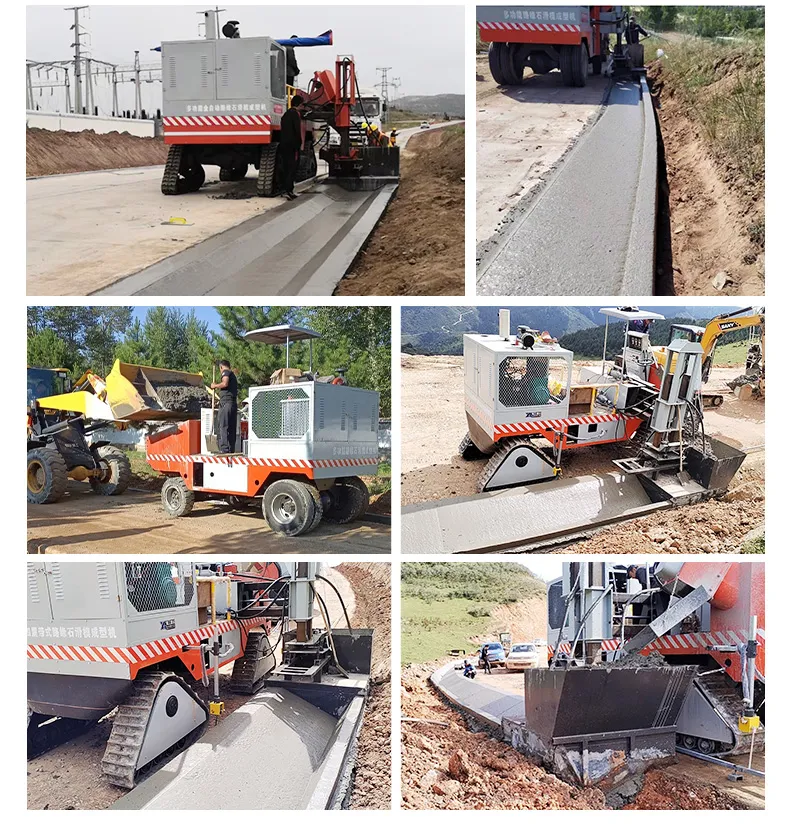

Detail View 5
Detail View 6
Detail View 7
Detail View 8
Detail View 9
Frequently Asked Questions
What is a curb slipform machine?
A curb slipform machine is a piece of construction equipment used to continuously extrude concrete curbs, barriers, or gutters without the need for fixed forms. It shapes wet concrete into a finished profile as it moves forward.
What types of concrete can be used with a slipform machine?
Zero-slump or low-slump concrete with a stiff consistency is typically required. The mix should contain sufficient fines for cohesion and be properly graded to prevent slumping or edge collapse.
How fast can a curb slipform machine operate?
Production speed depends on the machine model, concrete mix, and site conditions. Typical operating speeds range from 3 to 10 meters per minute (10–33 ft/min).
Can the machine form curved curbs?
Yes, many slipform machines are designed to handle both straight and curved sections. Machines with articulating tracks or steering systems can form radii as tight as 1–2 meters, depending on the mold width and machine capability.
Do I need special molds for different curb shapes?
Yes. The curb profile is determined by the mold attached to the machine. Standard shapes include barrier, mountable, mower, and gutter profiles. Molds can be custom-made to meet project specifications.
Is technical support available for installation and operation?
Professional equipment usually includes operation manuals and support for initial setup to ensure the concrete mix and machine settings are optimized for the specific project requirements.
