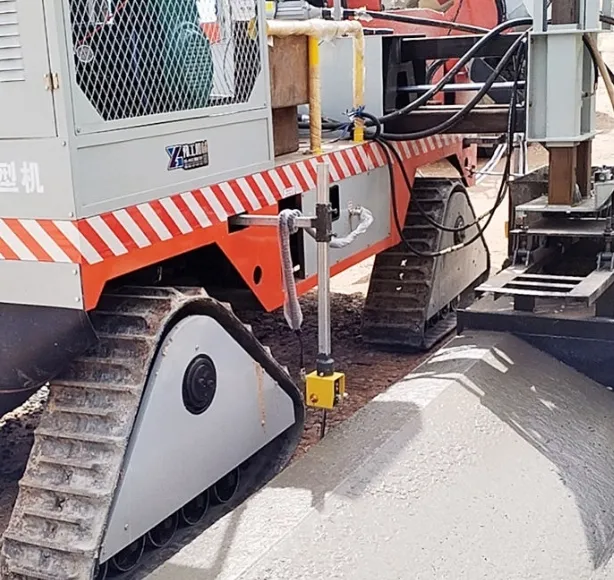

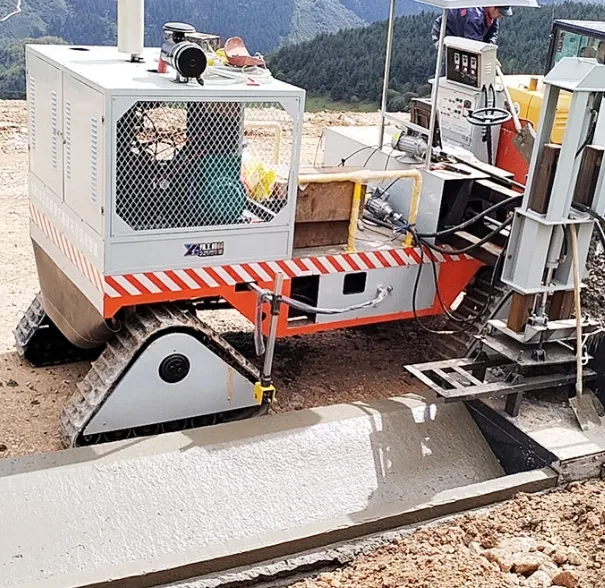

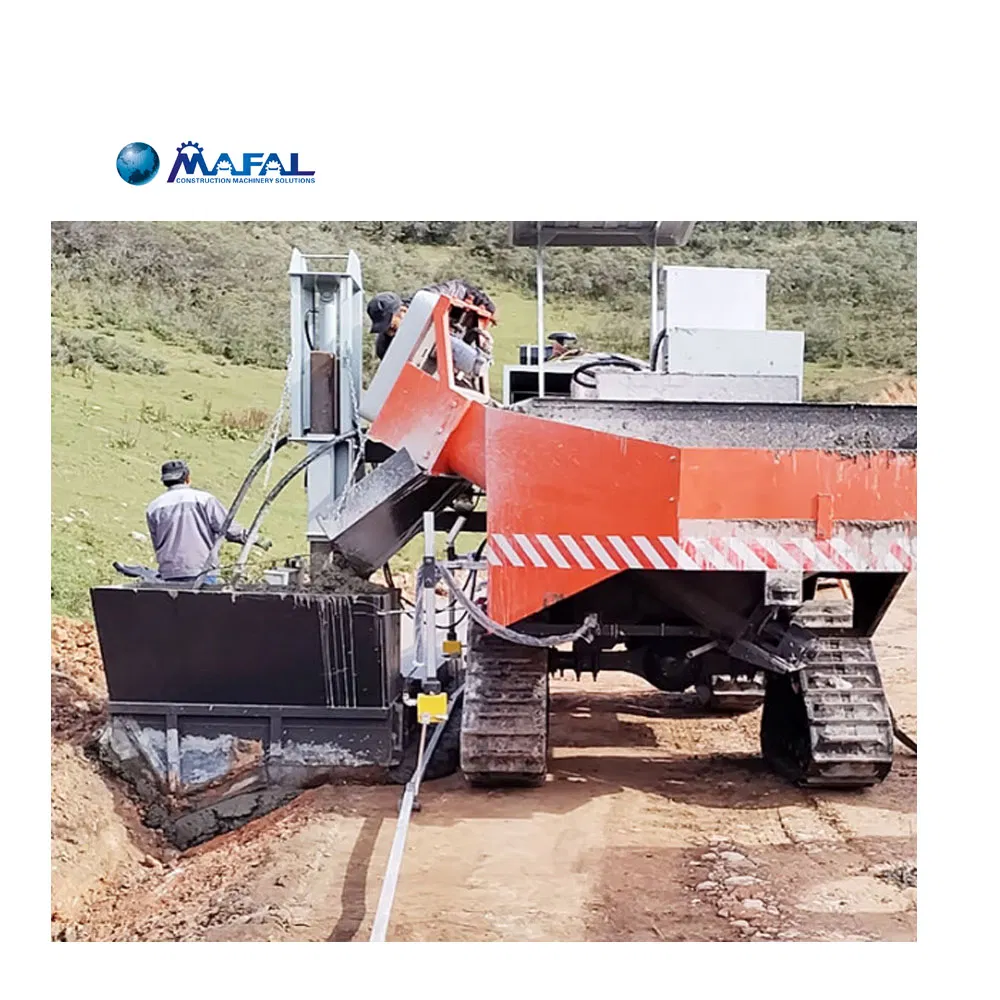

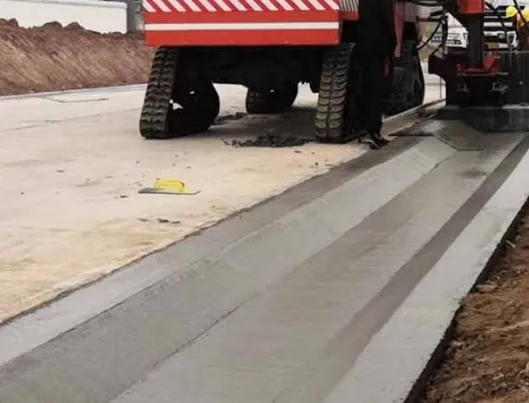

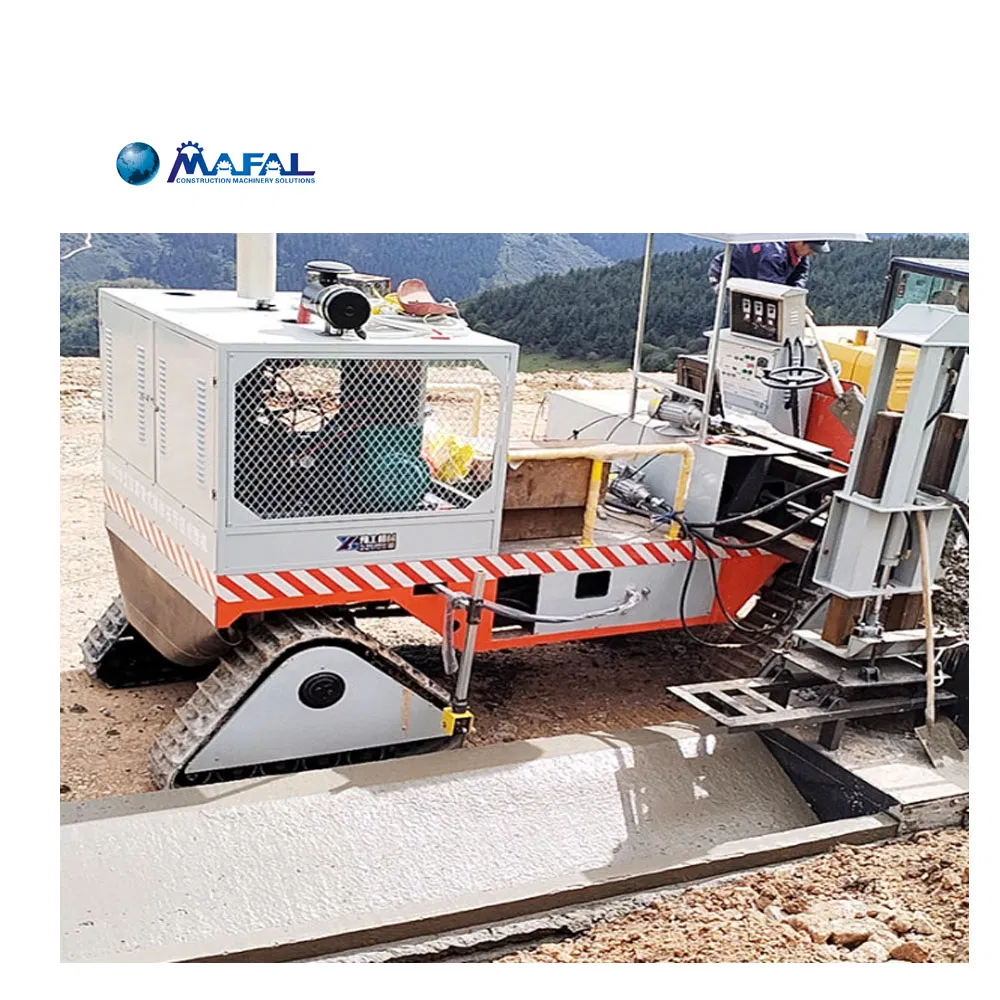

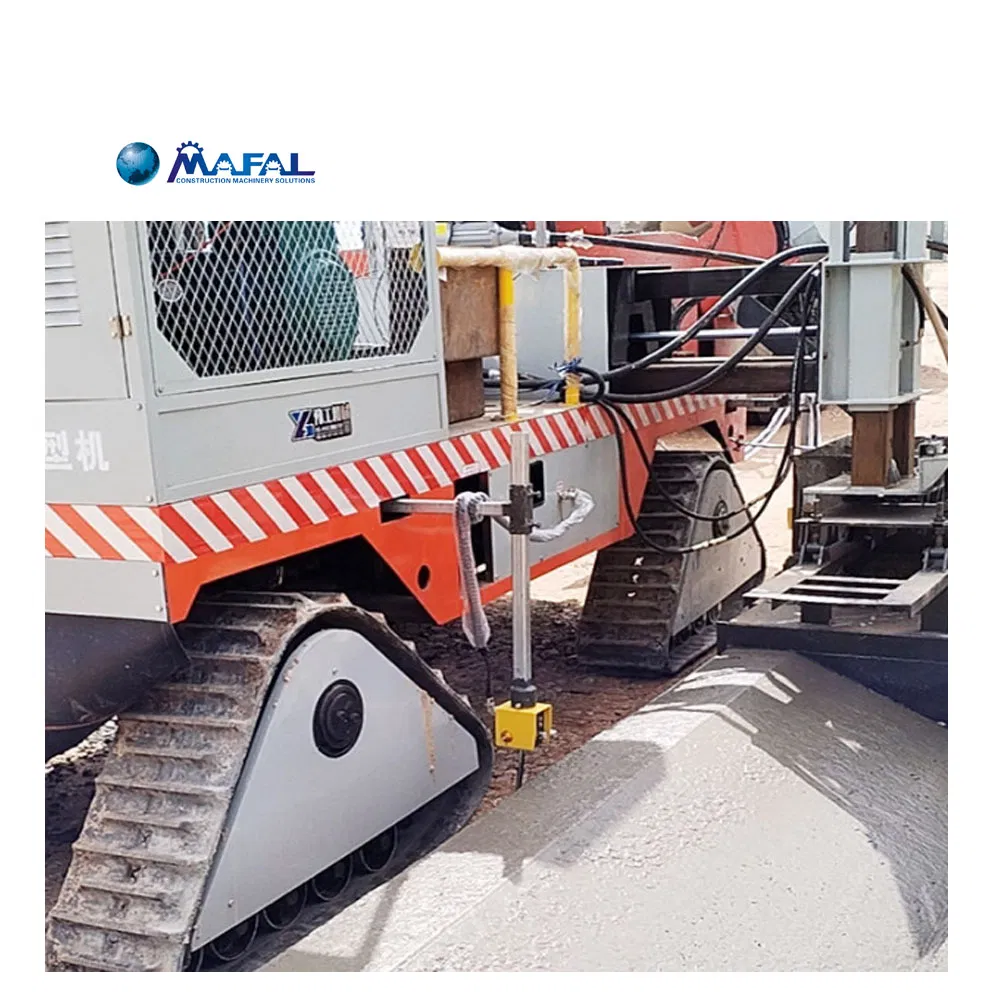

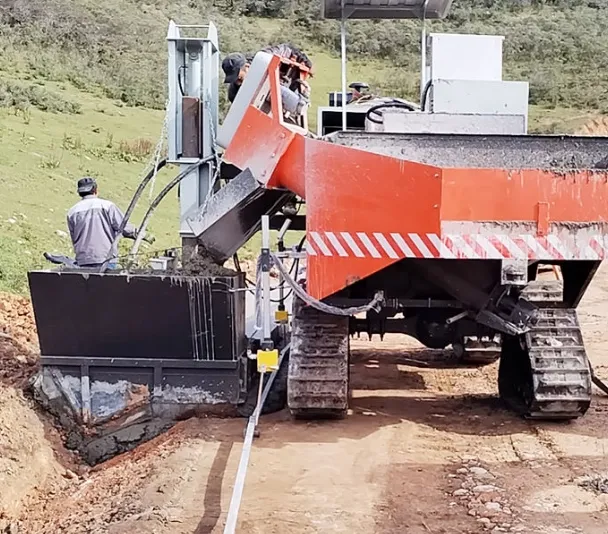

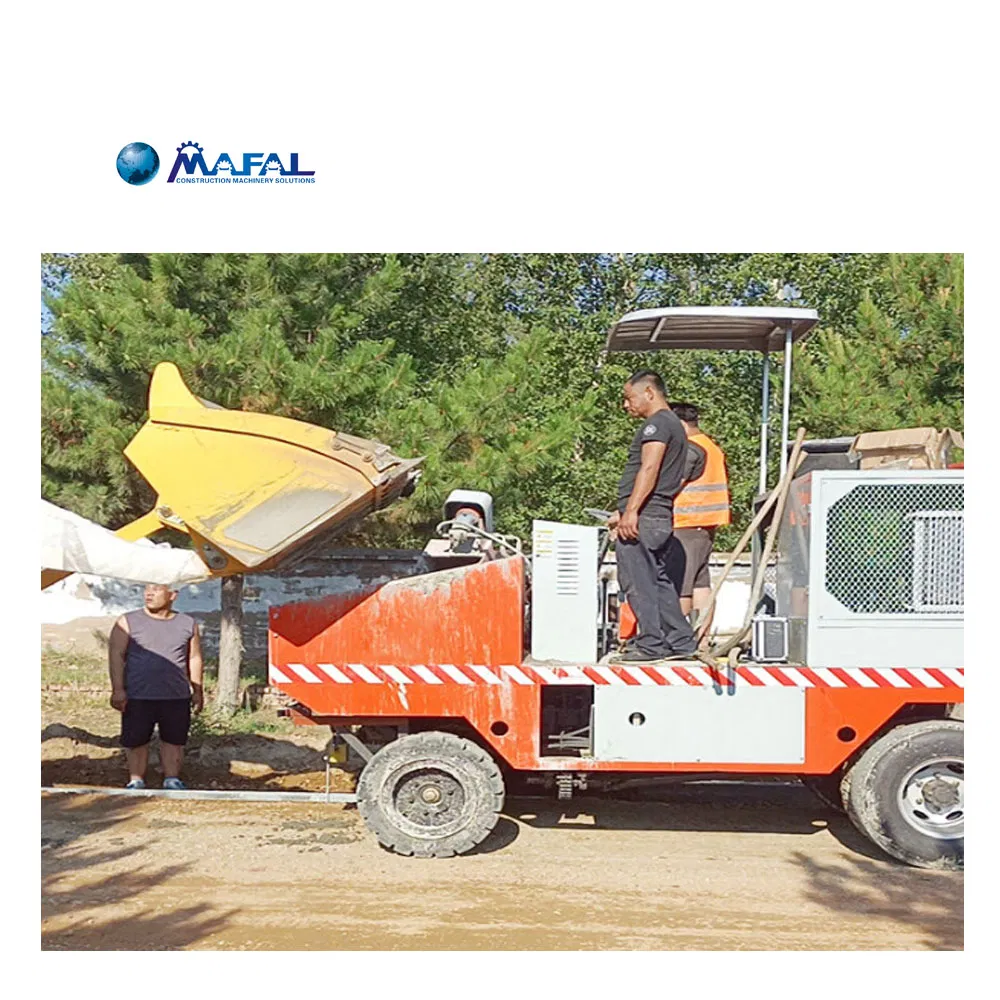

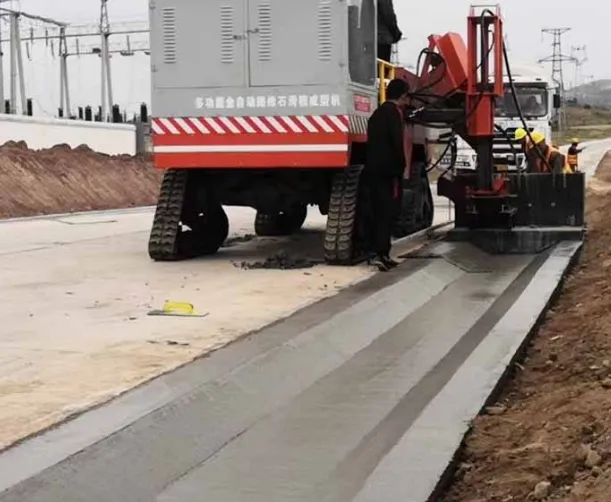

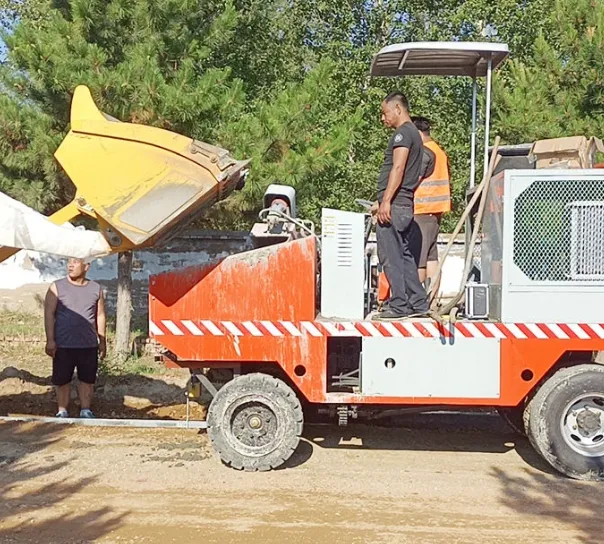

Used Slipform Paver KB20 70KW Hopper Capacity 1m³ - Concrete Slipform Paver in Store
This machine is professional equipment specifically designed for asphalt mixture or cement concrete road-building curbs. It is widely utilized in highway and municipal road curb molding due to its high efficiency, aesthetic finish, and cost-effective operation.
Aided by modern techniques, this Concrete Kerb Laying Machine is manufactured with superior quality components ensuring optimum functioning and a long service life. It is versatile enough to cast kerbs in various shapes and sizes to meet diverse engineering requirements.
| Item | Parameter | Feature |
|---|---|---|
| Length*Width*Height | 4700mm * 2700mm * 2500mm | Compact structural design |
| Weight | 7500kg | Improves tire grip and construction stability |
| Curbing Size | Width ≤2000mm, Height ≤600mm | Suitable for road shoulders, side ditches, and ditches |
| Generator / Motor | 70KW | Inline 4-cylinder turbocharged diesel engine |
| Working Voltage | AC 380V | Standard industrial power |
| Start-up Model | Electric Start | Reliable startup system |
| Rotation Speed | 1500rpm | Stable power output |
| Radiating Way | Water Cooling | Efficient heat dissipation |
| Curbing Forming Type | High frequency vibrating rod | Applicable to plastic concrete |
| Vibration Motor | Attached vibration motor | Applicable to dry hard concrete |
| Steering System | Hydraulic steering | Manual steering wheel control |
| Paving Speed | 0.9m - 16m/min | Eight-speed gearbox for stepless adjustment |
| Min. Turning Radius | 2800mm | Excellent maneuverability |
