MRECH Machinery
1 / 5

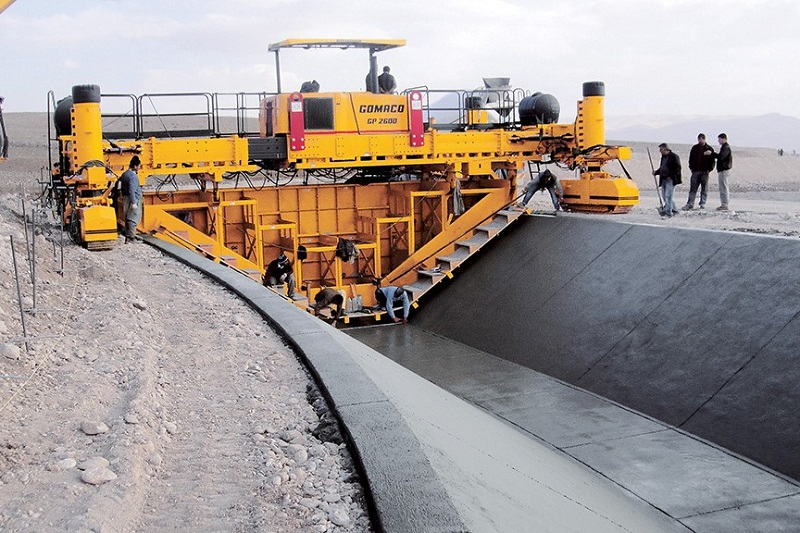

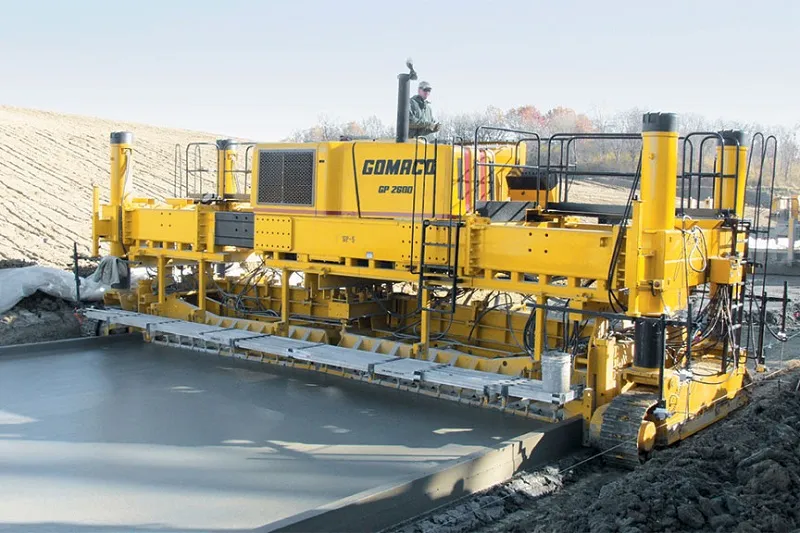

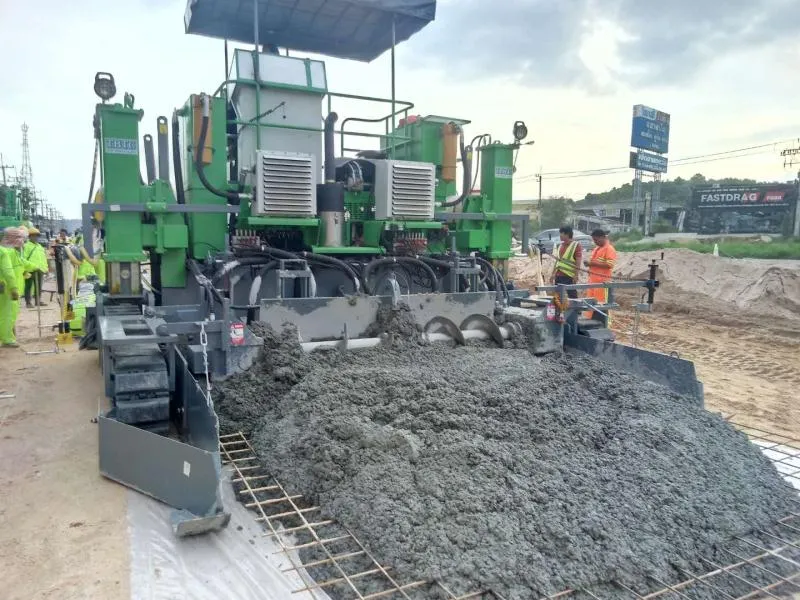

Slipform paving is defined as a process used to consolidate, form into geometric shape and surface finish a PCC mass by pulling the forms continuously through and surrounding the plastic concrete mass. Slipform paving is most appropriate for larger jobs that require high production rates.
Advanced industrial bus communication system between the console and the main control box. Features a user-friendly wide-screen LCD display for intuitive fault indication and working status.
Equipped with an automatic steering function for perfect linearity and an automatic leveling system to ensure the smoothness of the paving road and auxiliary facilities.
Equipped with four lengthened crawlers for improved ground adhesion and a dedicated water washing system for easy cleaning after operations.
| Model | SMC6500 |
| Engine | Shangchai |
| Transport dimension | 6600*2150*2550 mm |
| Operating weight | 20 t |
| Paving width | 250~450 cm |
| Paving height | 0~30 cm |
| Paving speed | 0~7.5m/min |
