⚙️ Product Description
The inset slipform paver is based on the advanced PAV-SAVER technology introduced from the American PRO-HOFF company. It has developed offset-paving and inset-paving slipform pavers with paving widths of 3.4~6 meters, 4.25~8 meters, and 4.25~9 meters. It can be widely used in concrete pavement projects such as urban and rural roads, high-grade highways, high-speed railway passenger lines, squares, docks, and water conservancy.

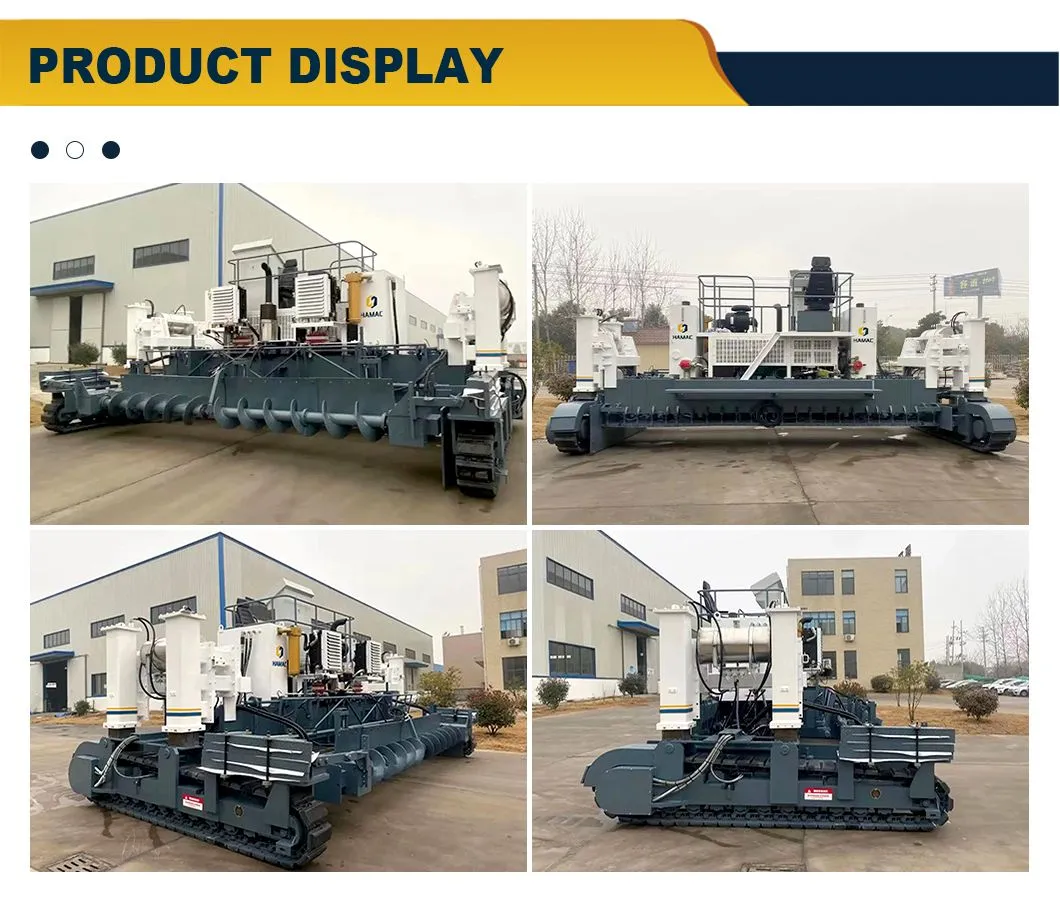

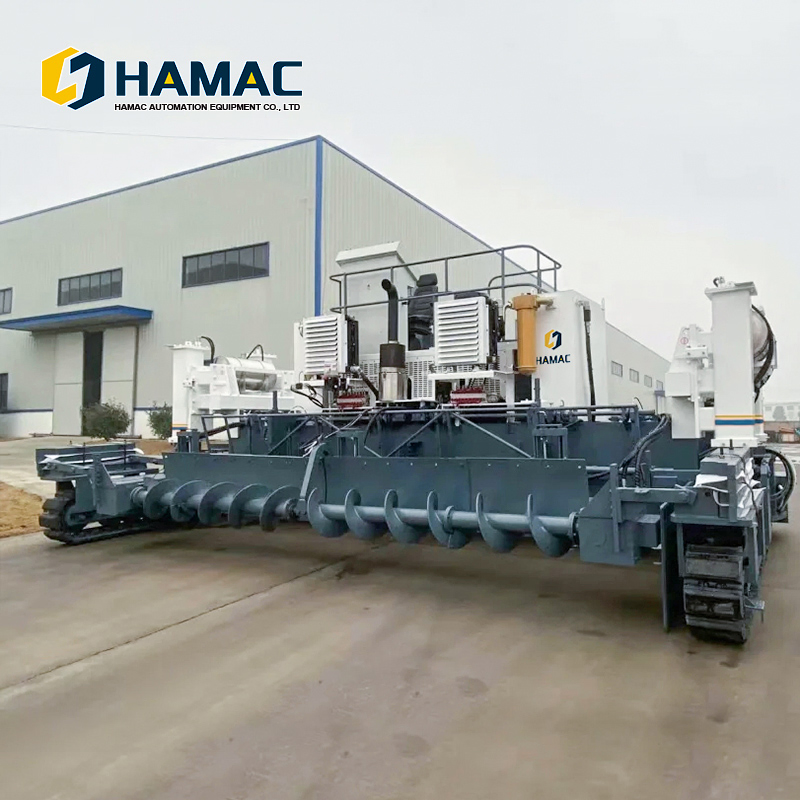

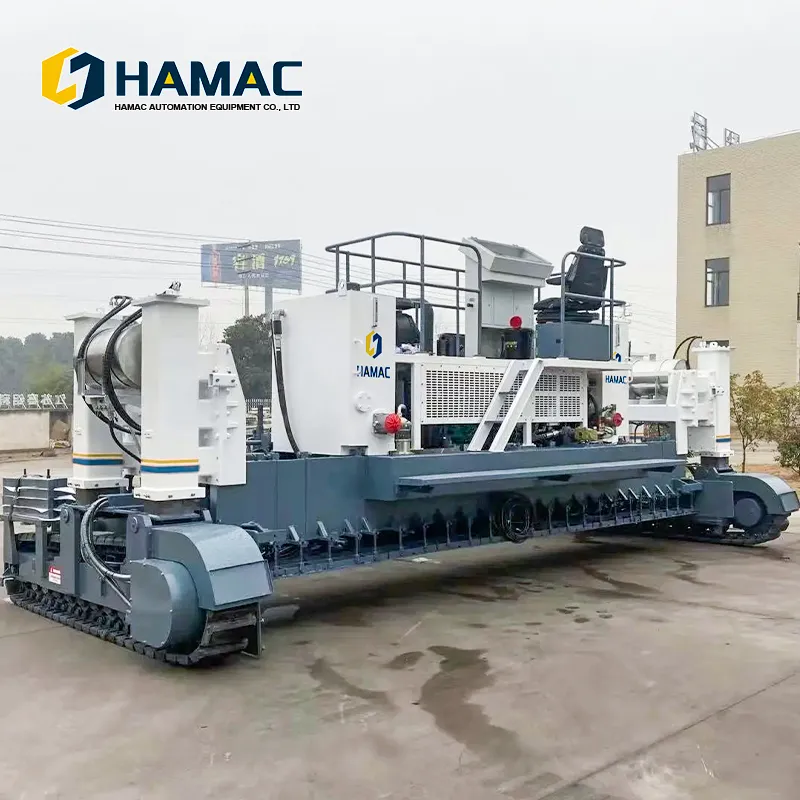

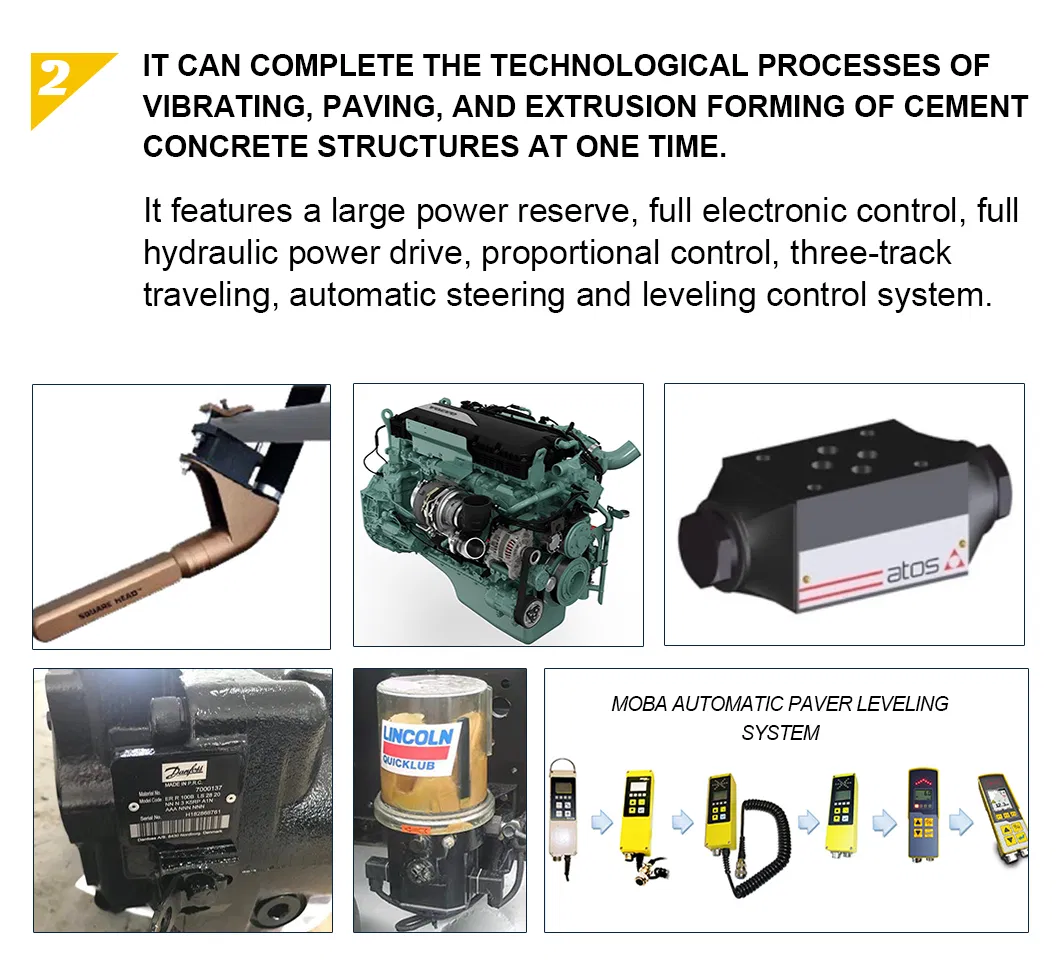

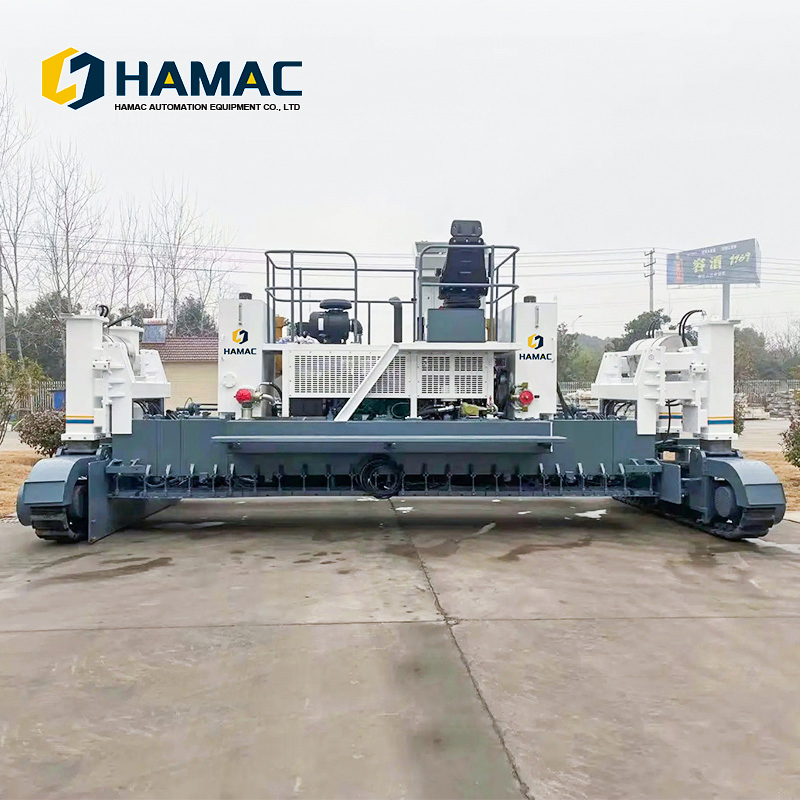

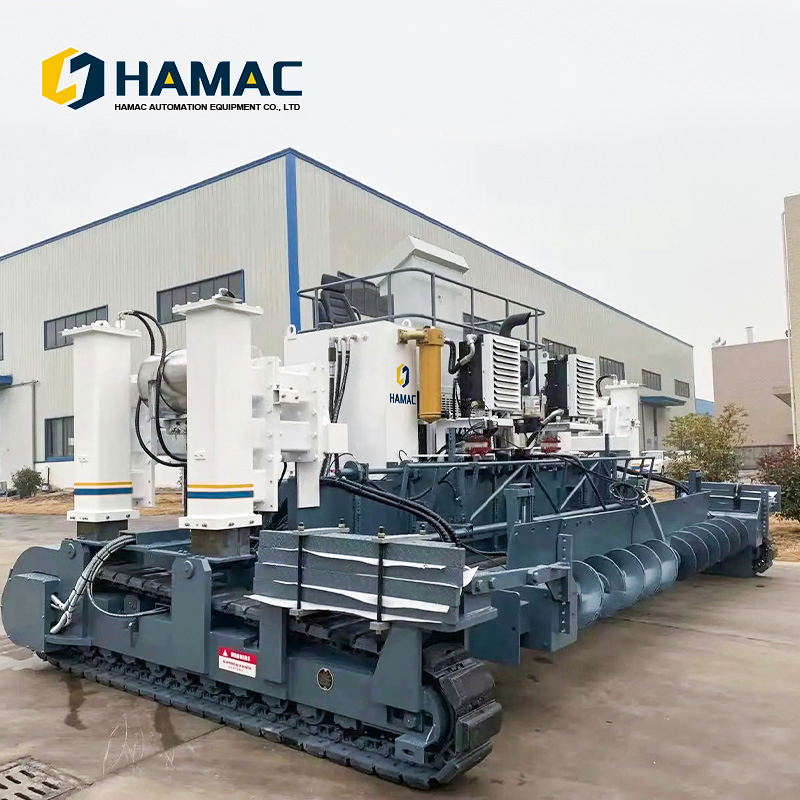

This machine is a fully hydraulic concrete slipform paver with high power and two crawler tracks. It is equipped with automatic driving and automatic leveling control systems. During operation, it can complete concrete paving, scraping, vibrating, tamping, extrusion and other processes at one time, and can complete the processes of middle steel bar insertion and side steel bar insertion.
It can be equipped with a super trowel. Through the lateral and longitudinal compound movement of the trowel, the unevenness left on the surface of the concrete pavement can be eliminated, so as to obtain a smoother pavement surface more economically.
📊 Technical Specifications
| Item |
Unit |
SP6000 |
| Paving Width | mm | 3400-6000 |
| Paving thickness | mm | 0-500 |
| Paving speed | m/min | 0-10 |
| Travel speed | Km/h | 0-2.0 |
| Drive system | - | Full hydraulic |
| Travel system | - | Track type |
| Engine Model | - | TAD552VE(Volvo) |
| Engine Power | kW | 160 |
| Engine Speed | rpm | 2300 |
| Pavement Evenness | mm/3m | 3mm/3m |
| Vibration bar | - | High frequency & hydraulic drive |
| Overall size | mm | 4020*7290*2770 |
| Machine Weight | T | 22 |
Frequently Asked Questions
What is the maximum paving width of the SP6000?
The SP6000 model supports a paving width ranging from 3,400mm to 6,000mm.
What type of engine is equipped in this machine?
The machine is powered by a high-performance Volvo TAD552VE engine with 160kW power output.
Is the leveling system manual or automatic?
The SP6000 is equipped with fully automatic driving and automatic leveling control systems for precision operation.

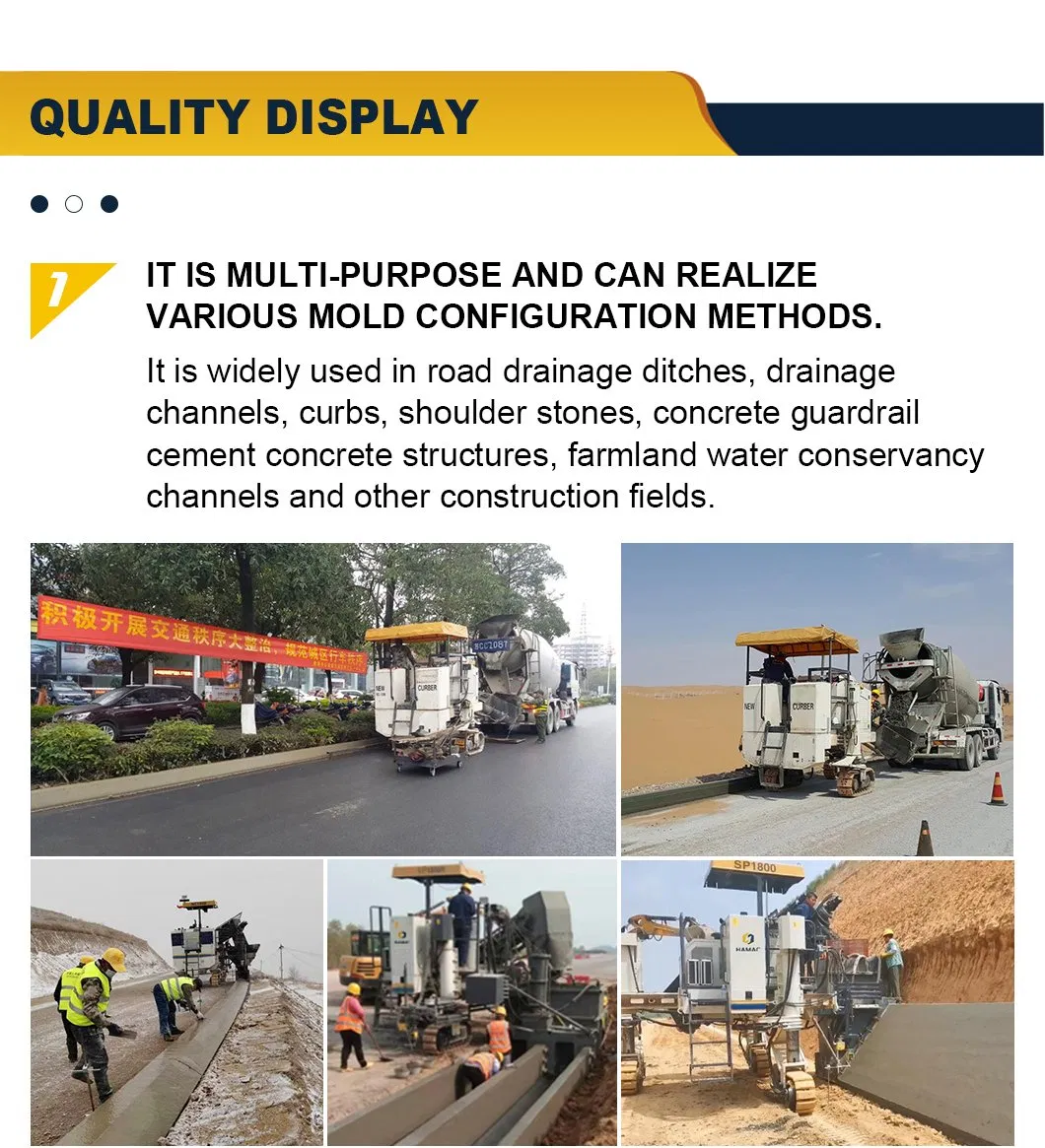

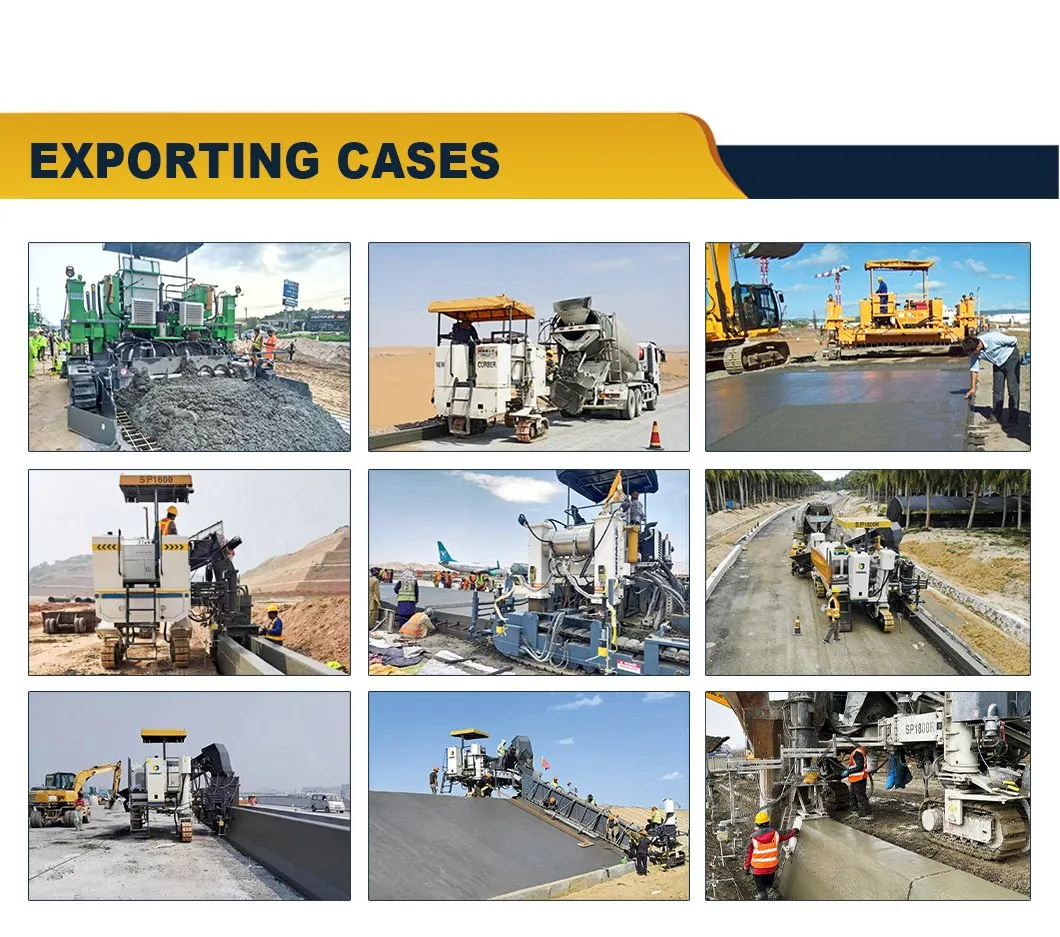

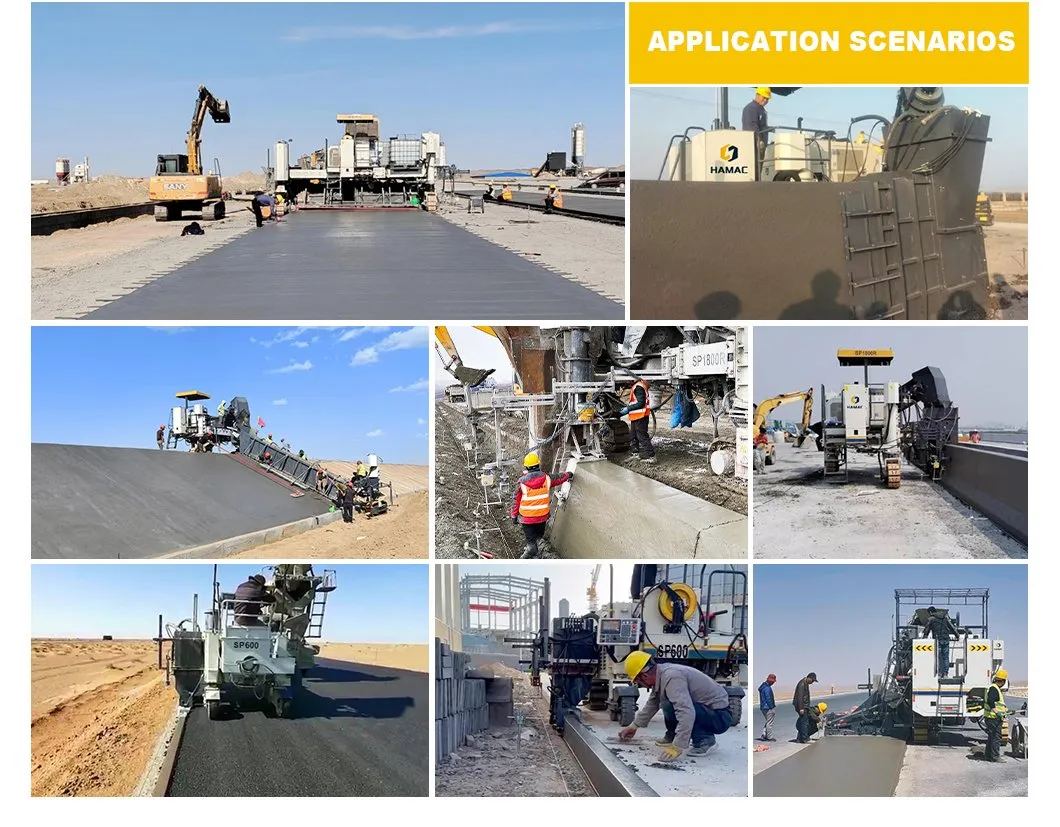

What kind of projects is this slipform paver suitable for?
It is widely used for high-grade highways, urban/rural roads, high-speed railway passenger lines, squares, docks, and water conservancy projects.
Does it support steel bar insertion during the paving process?
Yes, the machine can complete both middle steel bar insertion and side steel bar insertion during a single paving pass.
What is the standard paving thickness?
The machine can handle a paving thickness range from 0 to 500mm.
