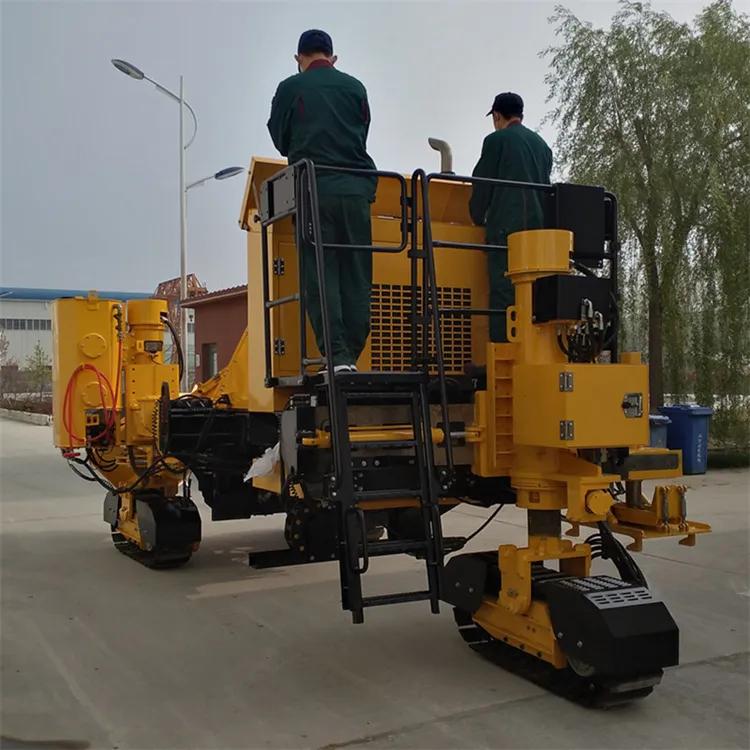

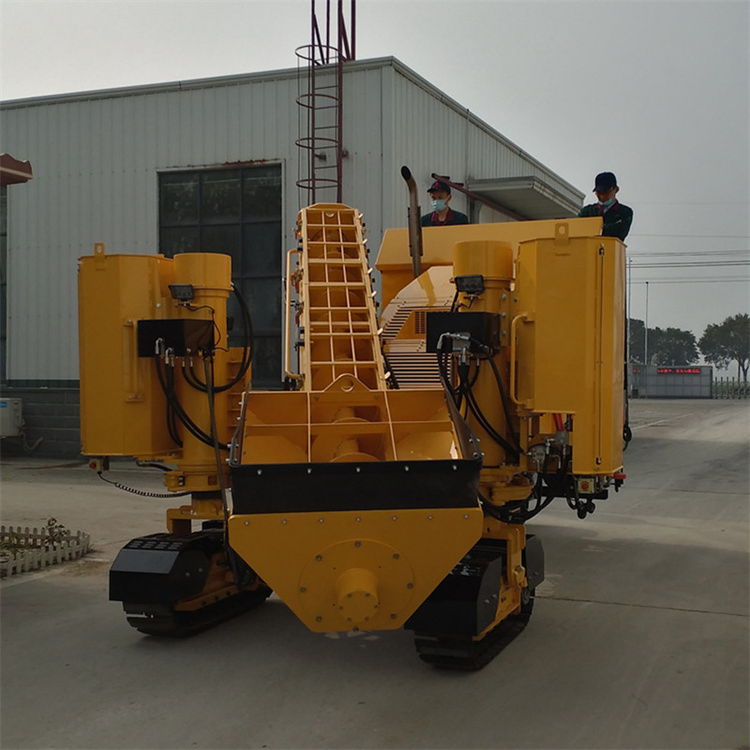

Automatic Road Paving Construction Machinary Asphaltic Concrete Laying Slipform Pavers Machine
Automatic Road Paving Construction Machinary Asphaltic Concrete Laying Slipform Pavers Machine
Automatic Road Paving Construction Machinary Asphaltic Concrete Laying Slipform Pavers Machine
Automatic Road Paving Construction Machinary Asphaltic Concrete Laying Slipform Pavers Machine
Automatic Road Paving Construction Machinary Asphaltic Concrete Laying Slipform Pavers Machine
1 / 5
Automatic Road Paving Construction Machinary Asphaltic Concrete Laying Slipform Pavers Machine
Automatic Road Paving Construction Machinary Asphaltic Concrete Laying Slipform Pavers Machine
Automatic Road Paving Construction Machinary Asphaltic Concrete Laying Slipform Pavers Machine
Automatic Road Paving Construction Machinary Asphaltic Concrete Laying Slipform Pavers Machine
Automatic Road Paving Construction Machinary Asphaltic Concrete Laying Slipform Pavers Machine

Automatic Road Paving Construction Machinary Asphaltic Concrete Laying Slipform Pavers Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO. LDHM41
Type Paver
Product Capacity 40～400t/h
Automatic Grade Semi-Automatic
Moving Type Mobile
Working Type Diesel Engine, liquid cooled, four cylinder
Certification ISO9001: 2000, CE
Product Description

Automatic Road Paving Construction Machinary Asphaltic Concrete Laying Slipform Pavers Machine

Slipform Pavers Machine 1
Slipform Pavers Machine 2
Slipform Pavers Machine 3
⚙️
Great function controller with automatic calculation, suitable for various construction projects.
🚀
Equipped with imported brand CUMMINS diesel engine for powerful and stable performance.
💧
Imported Danfoss hydraulic variable plunger pump, driving the machine at stepless speed.
Detailed Photos & Advanced Features
Detail View 1
Detail View 2
Detail View 3
✅
Intelligent Control: U.S.A hydra force brand hydraulic control valve manages each function intelligently.
✅
Vibration Power: Features high-frequency hydraulic rods with strong power for high-density paving.
✅
Durable Crawler: Walking mechanism with automatic tension cylinder significantly increases belt lifespan.
Detail View 4
Detail View 5
Detail View 6
🛠️
Patented Steering: Flexible and convenient steering system with quick-switch walking modes.
🛠️
Real-time Monitoring: Pressure monitors for every mechanism ensure supervised operation.
🛠️
Hydraulic Cleaning: High-pressure washing pump included for easy machine maintenance.
Technical Parameters
Engine Specifications
Engine ModelCummins 4BTA 3.9
Rated Power97kw / 2200rpm
Oil Volume9L
Traveling & Working System
Traveling ModeCrawler Type (Hydraulic Drive)
Steering ModeCollaborative/Yaw/Front wheel/Rear wheel/Automatic
Traveling Speed0-30m/min
Working Speed0-15m/min
Mold & Dimension
Max. Mold Height1300mm
Max. Mold Width1300mm
Hydraulic Height Adj.980mm
Transport Size6975 x 2500 x 3420mm
Total Weight11,700kg
Product Application

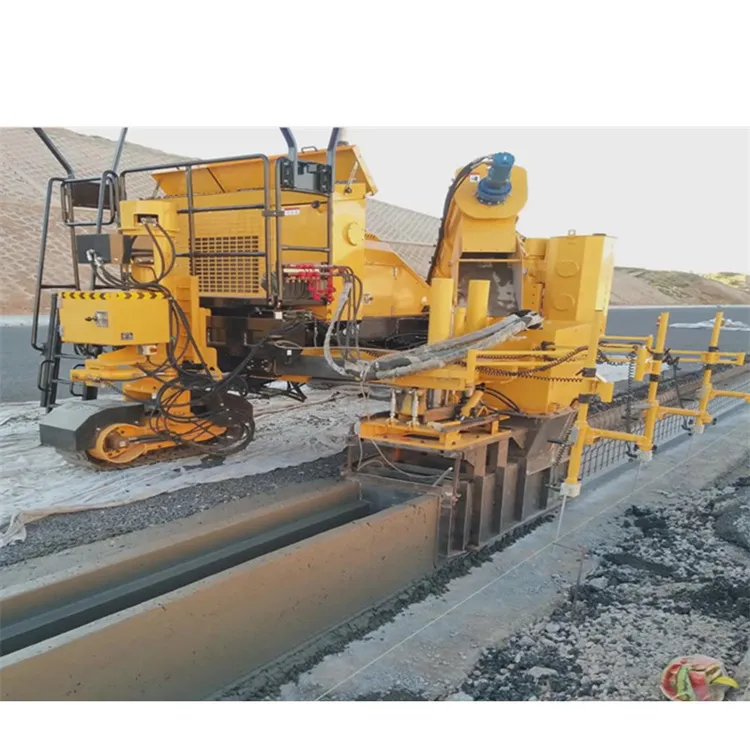

Widely used in high-grade highway and municipal road curbs molding projects.

Application 1
Application 2
Application 3
Application 4
Related Product Models

Model: LDHM31

LDHM31
LDHM31 Detail

Models: LDHM21 & LDHM11

LDHM21
LDHM11
Production Strength
Production Facility
Frequently Asked Questions
What is the primary application of the LDHM41 slipform paver?
The LDHM41 is widely used for molding concrete curbs on highways and municipal roads, offering high efficiency and precision.
What type of engine is equipped in this machine?
It uses an imported CUMMINS 4BTA 3.9 liquid-cooled, four-cylinder diesel engine, providing 97kW of power.
How does the steering system work?
The machine features a patented steering system with multiple modes including Collaborative, Yaw, Front wheel, Rear wheel, and Automatic steering for maximum flexibility.
What are the maximum mold dimensions?
The machine can accommodate molds with a maximum height of 1300mm and a maximum width of 1300mm.
Is the machine easy to maintain?
Yes, it includes a hydraulic high-pressure washing pump for easy cleaning and high-quality Italian brand quick plugs to prevent oil leaks during hydraulic connections.
What is the working speed of the paver?
The working speed ranges from 0 to 15 meters per minute, allowing for adjustable pacing based on project requirements.
