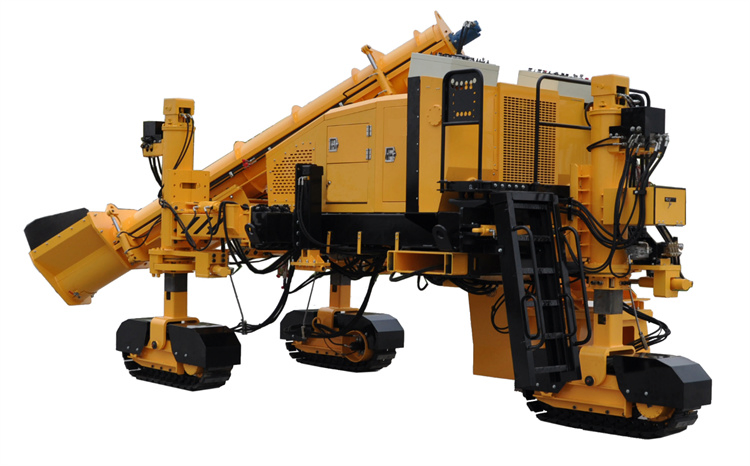

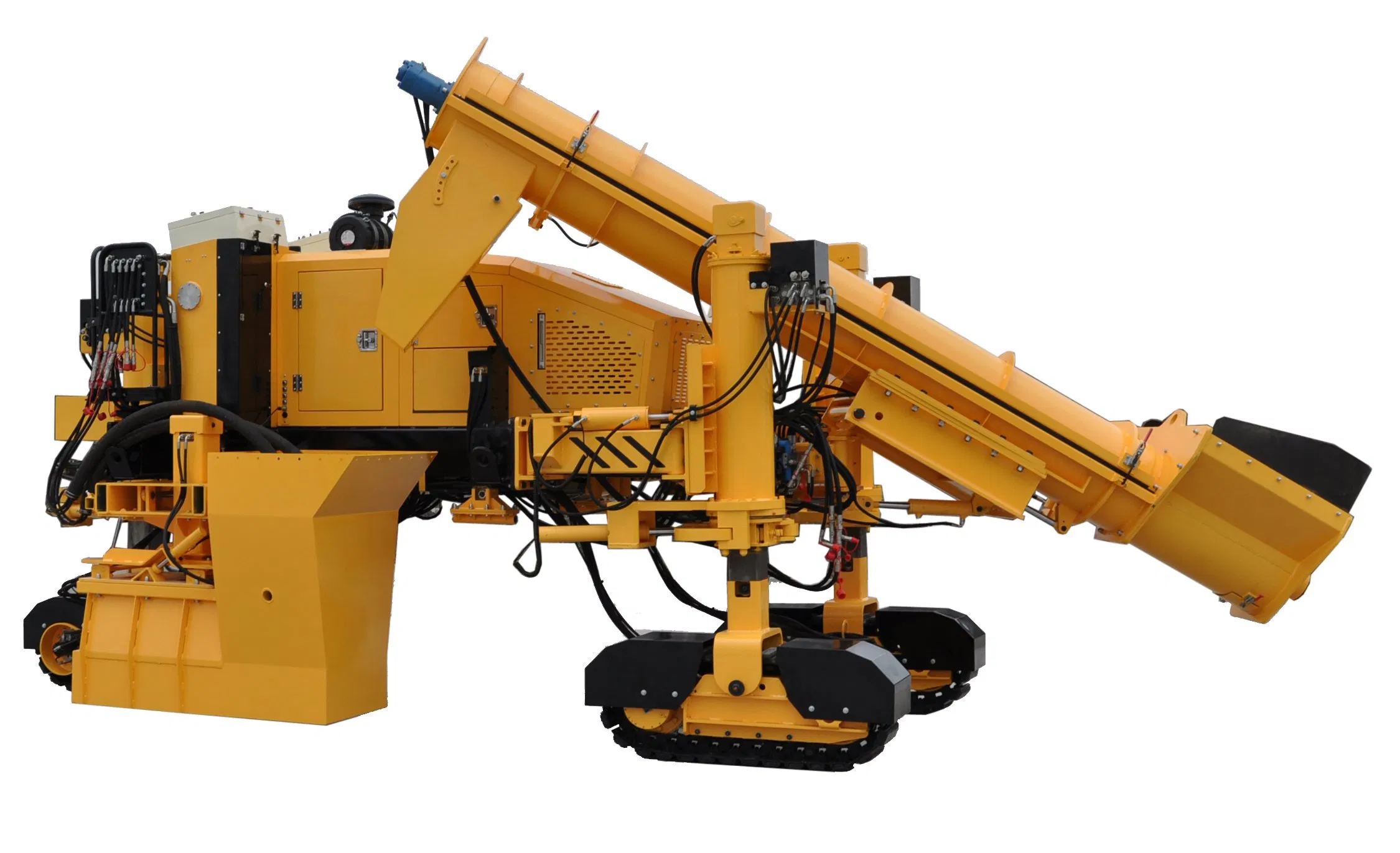

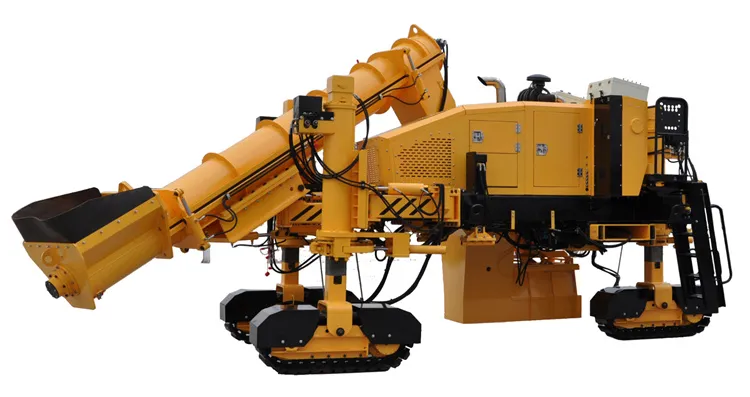

Concrete Machinery Kerbing Equipment Kerb Laying Machine
Concrete Machinery Kerbing Equipment Kerb Laying Machine
Concrete Machinery Kerbing Equipment Kerb Laying Machine
Concrete Machinery Kerbing Equipment Kerb Laying Machine
Concrete Machinery Kerbing Equipment Kerb Laying Machine
1 / 5
Concrete Machinery Kerbing Equipment Kerb Laying Machine
Concrete Machinery Kerbing Equipment Kerb Laying Machine
Concrete Machinery Kerbing Equipment Kerb Laying Machine
Concrete Machinery Kerbing Equipment Kerb Laying Machine
Concrete Machinery Kerbing Equipment Kerb Laying Machine

Concrete Machinery Kerbing Equipment Kerb Laying Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
LDHM41
Type
Paver
Object
Cement Concrete Pavement
Moving Type
Mobile
Mixing Method
Intermittent Compulsory
Automatic Grade
Semi-Automatic
Capacity
40～400t/h
Certification
ISO9001: 2000, CE
Power
97kW/2200rpm
Fuel Tank
120L
Weight
11,700kg
HS Code
8474802000
Product Description

Concrete Machinery Kerbing Equipment Kerb Laying Machine

Kerb Laying Machine
Kerbing Equipment
Paver Detail
Concrete Machinery
Key Features & Details
Control System
Engine Detail
Hydraulic Pump
✓With great function controller and automatic calculation, suitable for various projects.
✓Equipped with imported brand CUMMINS diesel engine.
✓With imported Danfoss hydraulic variable plunger pump, driving the machine at stepless speed.
Valve System
Vibrating Rod
Crawler Mechanism
✓U.S.A Hydra Force brand hydraulic control valve for intelligent function management.
✓High-frequency hydraulic vibrating rod with strong power.
✓Crawler walking mechanism with automatic tension cylinder for extended belt life.

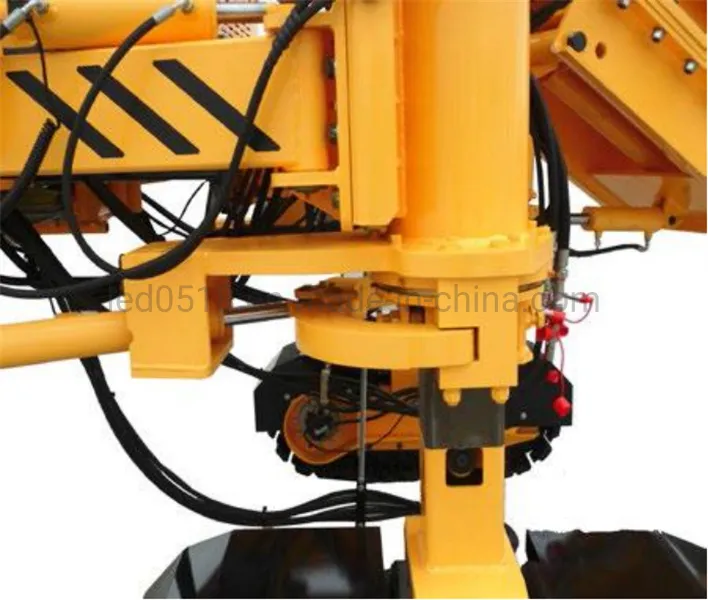

Steering System

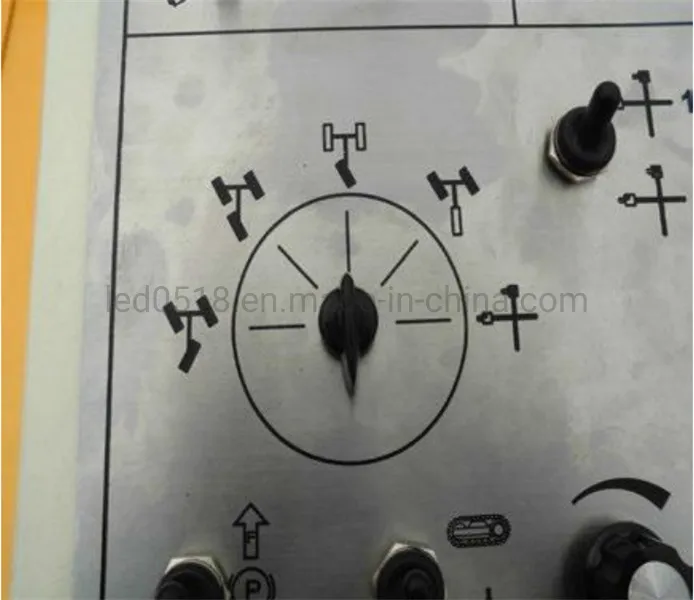

Modes Switch

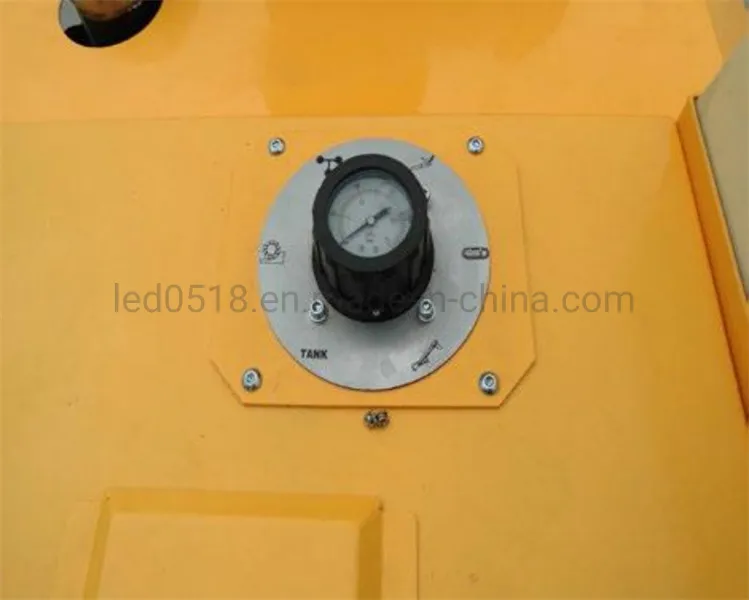

Pressure Monitor
✓Patented steering system, flexible and convenient.
✓Multiple walking modes with quick-switch capability.
✓Real-time supervision with pressure monitors for each working mechanism.

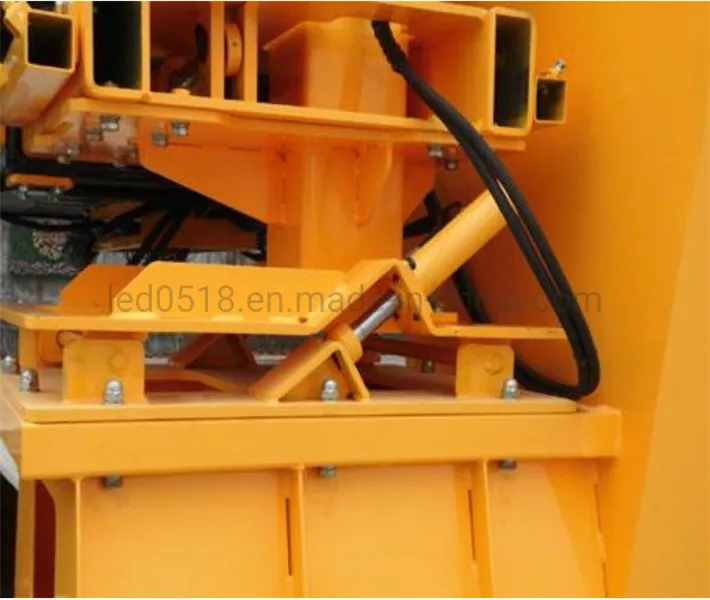

Mold Hanging

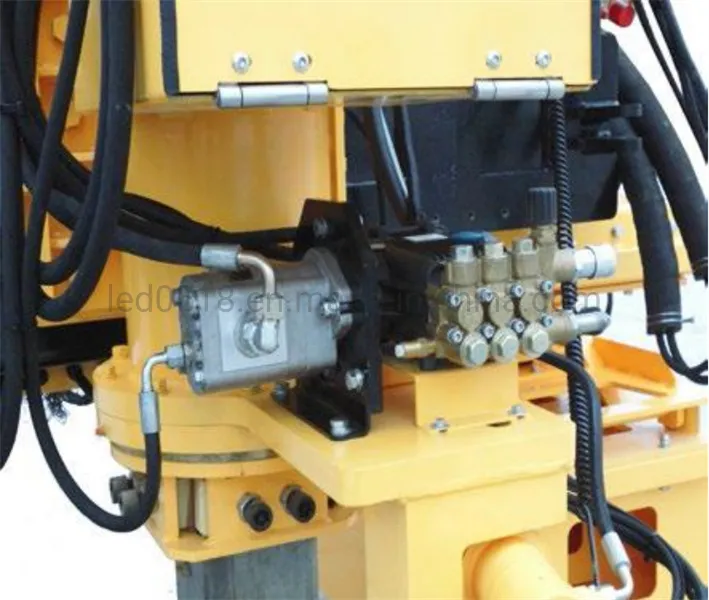

Washing Pump

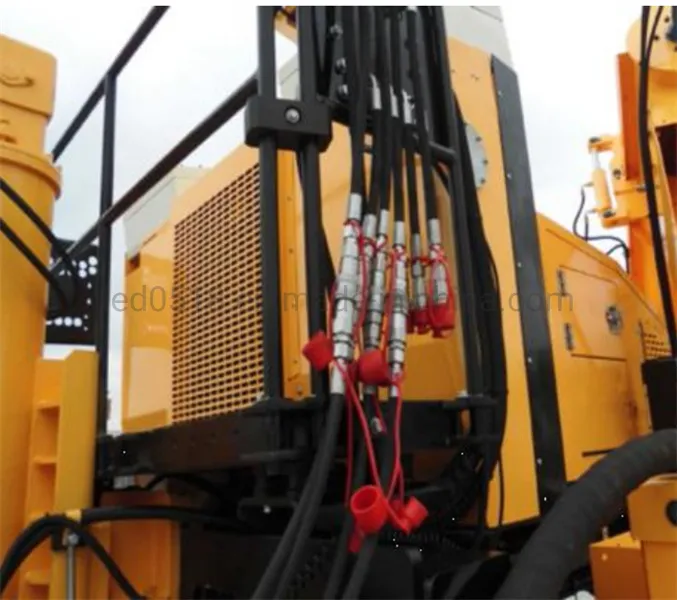

Quick Plugs
✓Hydraulic mold hanging and dismantling for easy operation and labor savings.
✓Integrated high-pressure washing pump for easy machine cleaning.
✓Italy brand quick plugs for external hydraulic connections to prevent oil leaks.
Technical Parameters
TypeLDHM41
Engine System
ModelCummins 4BTA 3.9
TypeDiesel, liquid cooled, four cylinder
Power97kw/2200rpm
Engine Oil Volume9L
Traveling System
ModeCrawler
Driving ModeHydraulic
Steering ModeCollaborative/Yaw/Front wheel/Rear wheel/Automatic
Traveling Speed0-30m/min
Working Speed0-15m/min
Mold Specifications
Traverse Adjustment1000mm
Height Adjustment400mm
Max Height/Width1300mm / 1300mm
Volume & Capacity
Fuel Tank120L
Hydraulic Tank280L
Water Tank120L
Physical Dimensions
Transport Size6975x2500x3420mm
Weight11700kg

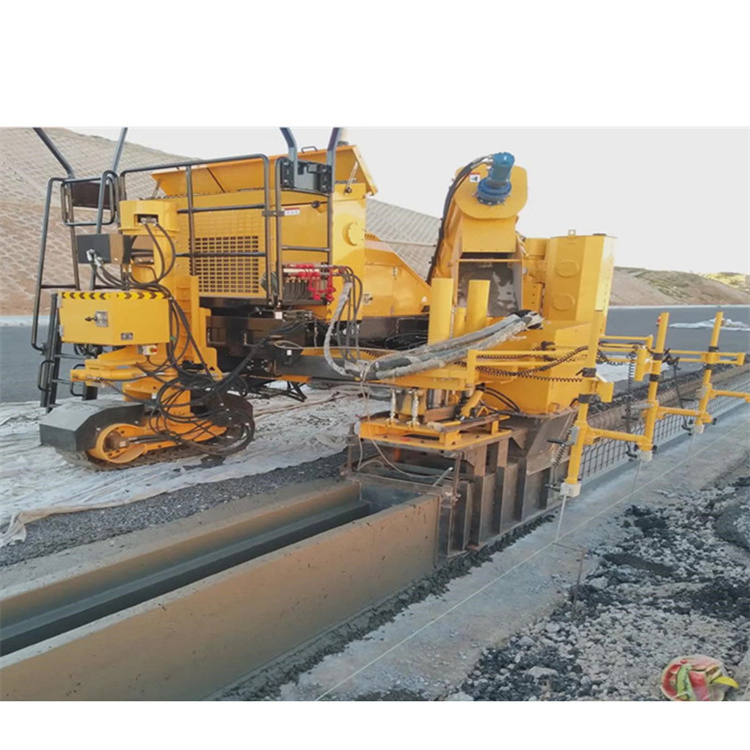

Product Application

The LDHM41 is widely used in highway and municipal road curbs molding projects, ensuring high precision and efficiency.

Application 1
Application 2
Application 3
Application 4
Related Models

LDHM31 - Automatic Curb Paver

LDHM31
LDHM31 Detail

LDHM21 & LDHM11 - Small Landscape Road Kerb Machines

LDHM21
LDHM11
Production Excellence
Company Overview
Frequently Asked Questions
What is the main application of the LDHM41 curb machine?
It is primarily used for the slipform molding of concrete curbs in highway and municipal road construction projects.
Does the machine come with an automatic steering system?
Yes, it features a patented steering system with multiple modes, including a collaborative automatic steering mode for high precision.
What type of engine is installed in this equipment?
The machine is powered by a high-performance, liquid-cooled, four-cylinder Cummins diesel engine.
How does the vibration system work for concrete density?
It uses a high-frequency hydraulic vibrating rod system with four ports to ensure strong and uniform concrete compaction.
Is the machine easy to clean after use?
Yes, the equipment includes a built-in high-pressure hydraulic washing pump, allowing operators to clean the machine on-site at any time.
Can the mold size be adjusted for different road requirements?
The machine allows for mold traverse adjustments up to 1000mm and height adjustments up to 400mm to meet specific project demands.
