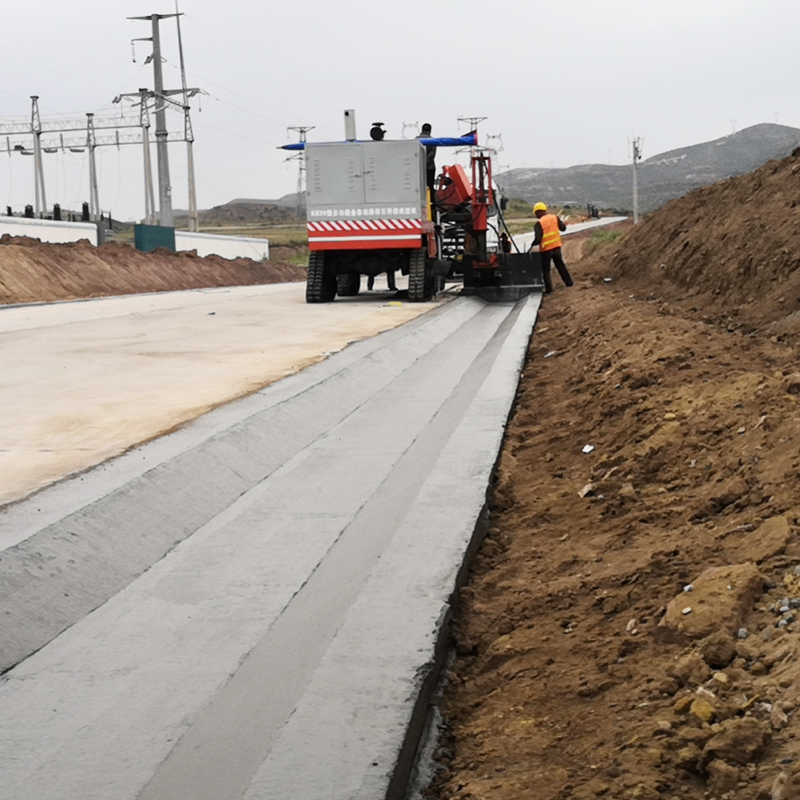

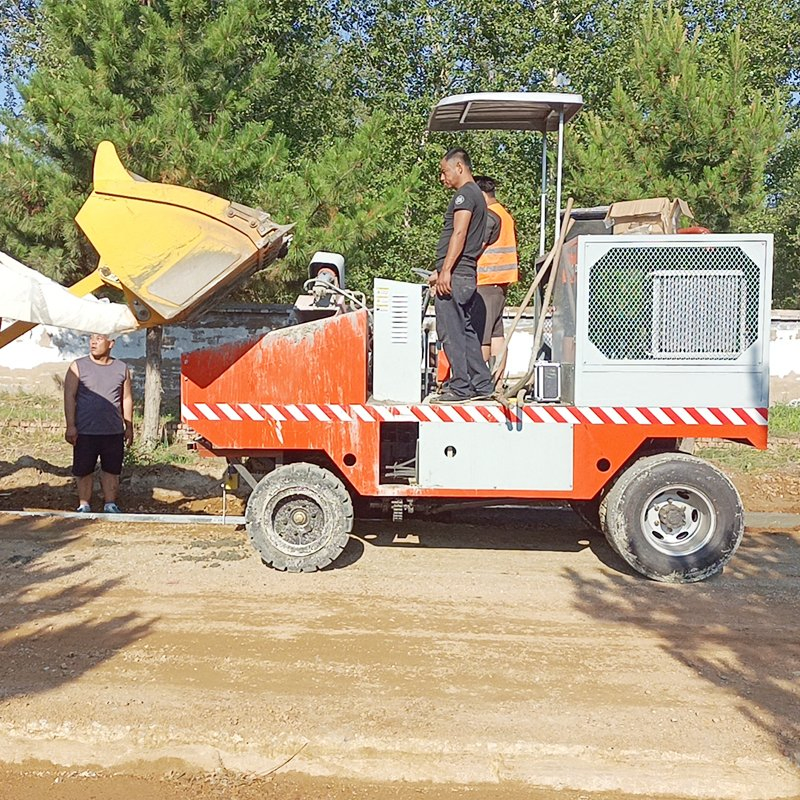

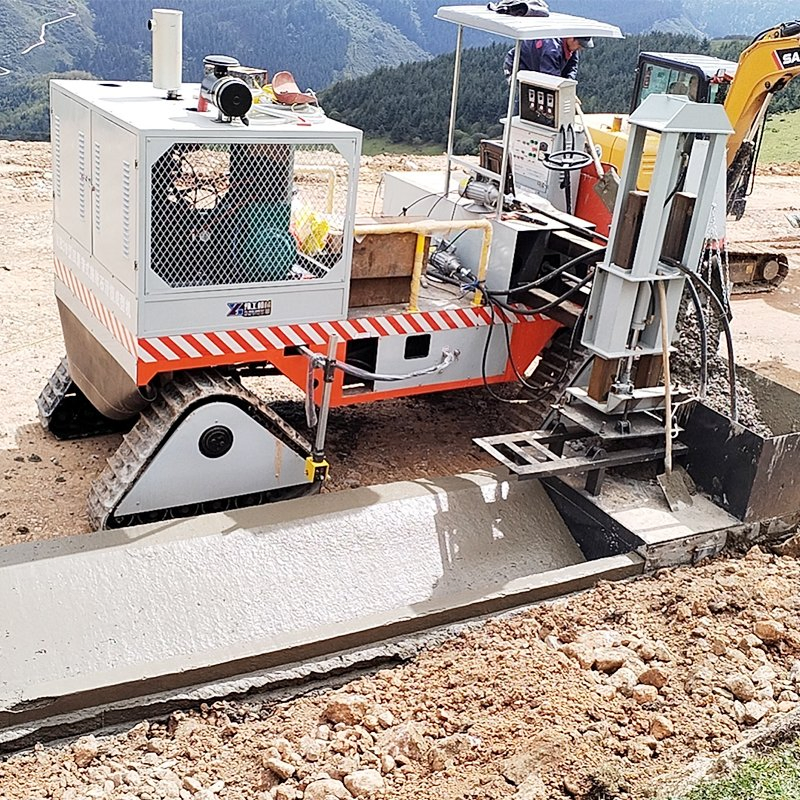

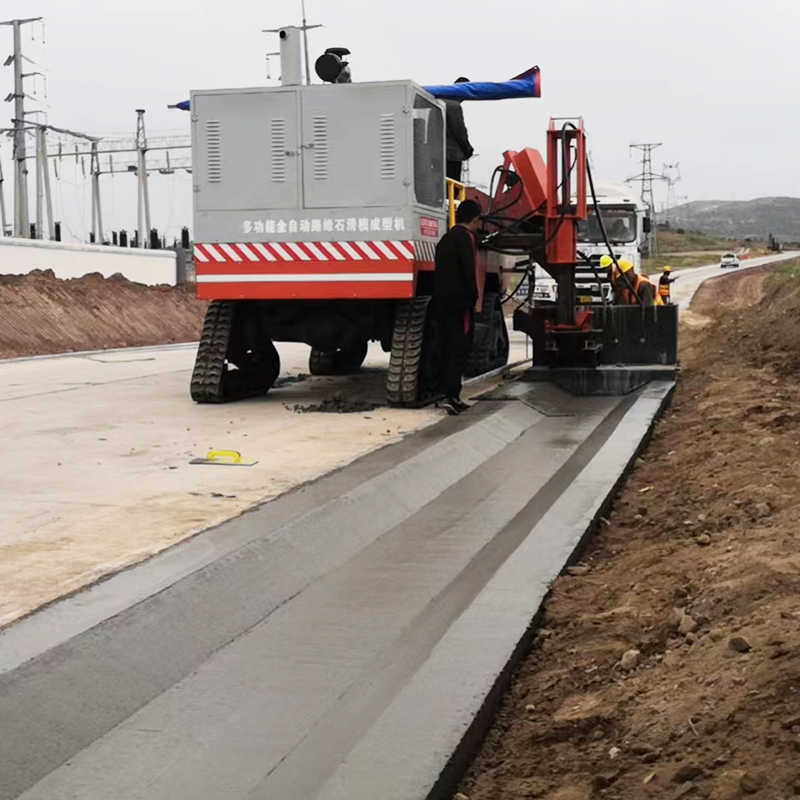

High Speed Concrete Curb Slipform Paver for Large Scale Road Project Efficient Construction Machine

Product Description

Slipform Concrete Paver

Slipform concrete pavers are construction equipment that continuously molds plastic concrete using a fixed template. Based on their walking mechanism, they can be divided into three categories: tracked, wheeled, and curb-specific. This equipment utilizes the slipform forming principle, automatically completing concrete paving, vibration, and leveling processes without the need for tracks. A 2025 document indicates that the SP8500 model is equipped with an automated dowel bar insertion device (DBI). Chinese companies have made breakthroughs in technological research and development; for example, the HTH6000 model developed by a Zhenjiang company in 2003 was exported overseas, and related patents in 2021 involved automatic end-form angle adjustment technology.

Applications

Roadwork: Concrete curb slipforming, Highway median barrier extrusion, Shoulder edge forming, Drainage channel slipforming beside roads.
Urban Infrastructure: Sidewalk curb & gutter forming, Parking lot perimeter curbing, Roundabout island curbing, Bicycle lane separation curb.
Landscaping & Site Development: Garden bed border forming, Lawn irrigation channel curbing, Residential community decorative curbing, Park road edge restraint.
Airport & Port Construction: Runway edge light foundation curb, Apron pavement containment curb, Port road traffic separation curb.
Agricultural & Rural Infrastructure: Farm road edge forming, Irrigation canal sidewall slipforming, Rural drainage ditch curbing, Livestock farm hard pavement edge.

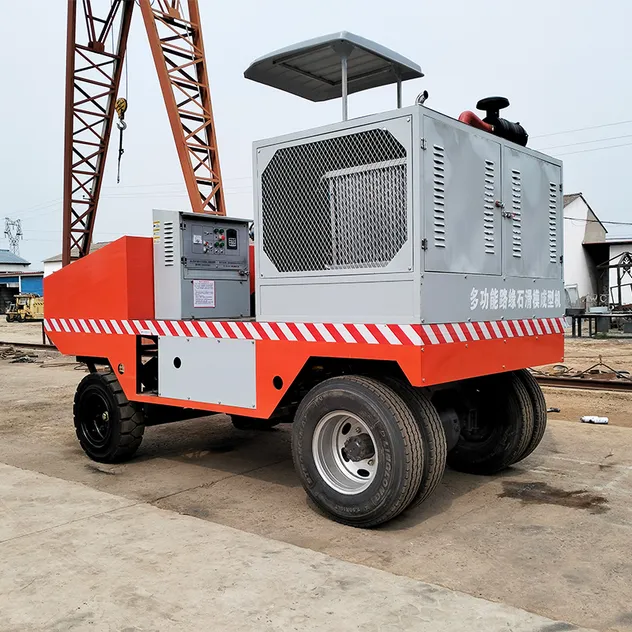

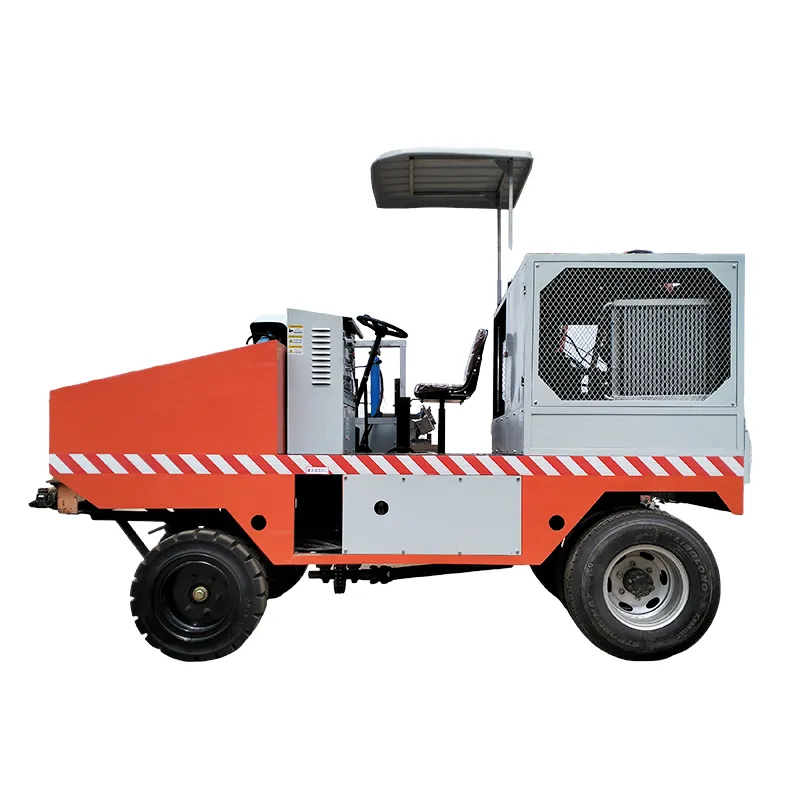

High Speed Concrete Curb Slipform Paver
High Speed Concrete Curb Slipform Paver
High Speed Concrete Curb Slipform Paver

Technical Specifications

Feature YG-20 YG-30
TypePortable wheel typeCrawler portable
Steering systemAutomatic steering systemAutomatic steering system
Engine65kw, AC380V four-cylinder65kw
Rated speed1500rpmHeight≤1100mm, width≤2000mm
Curb sizeHeight≤600mm, width≤2000mm-
Forming methodHigh frequency vibratorHigh frequency vibrator
Min turning radius6800mm6800mm
Paving speed1—7m/min adjustable1—10m/min
Hopper volume1m³1m³
Machine size5000*2400*2800mm5200*2400*2800mm
Weight6000kg7000kg

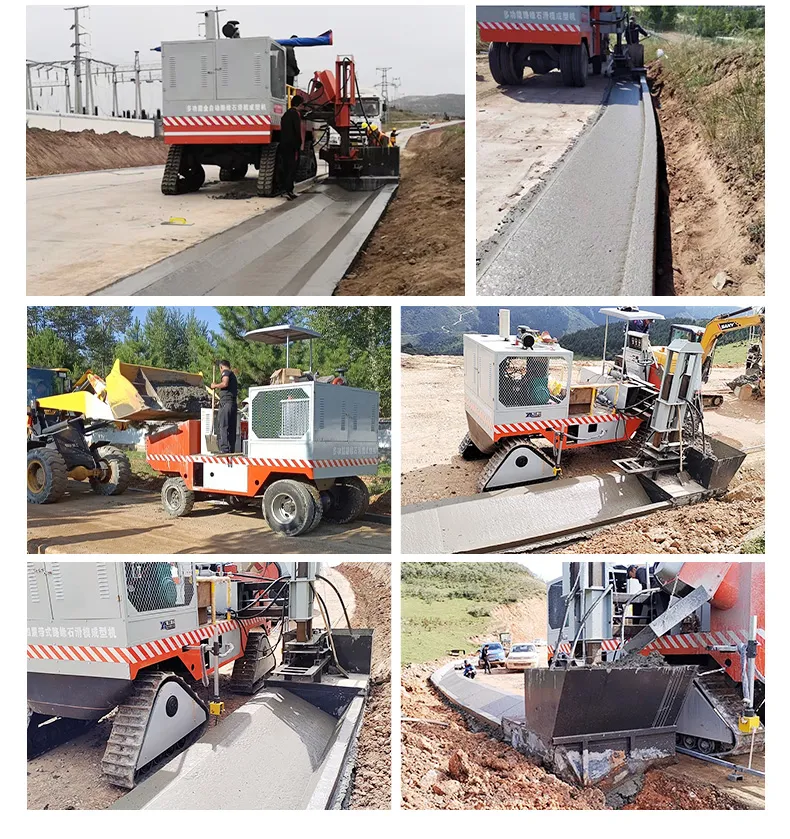

Product Gallery

Concrete Paver
Concrete Paver
Concrete Paver
Concrete Paver
Concrete Paver
Concrete Paver
Concrete Paver
Concrete Paver
Concrete Paver

FAQ

Q: What is a curb slipform machine?
A: A curb slipform machine is a piece of construction equipment used to continuously extrude concrete curbs, barriers, or gutters without the need for fixed forms.
Q: What types of concrete can be used?
A: Zero-slump or low-slump concrete with a stiff consistency is typically required for optimal shaping.
Q: How fast can a curb slipform machine operate?
A: Typical operating speeds range from 3 to 10 meters per minute, depending on the machine model and site conditions.
Q: Can the machine form curved curbs?
A: Yes, many slipform machines are designed to handle both straight and curved sections using articulating tracks.
Q: Do I need special molds for different curb shapes?
A: Yes, the curb profile is determined by the mold attached to the machine, which can be custom-made to meet specific project needs.
Q: Are custom configurations available?
A: Yes, custom configurations are available upon request to suit specific technical requirements.
