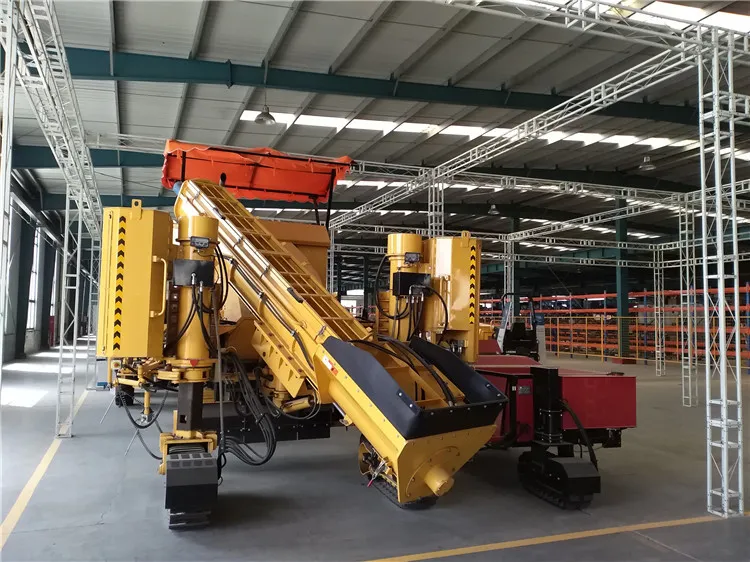

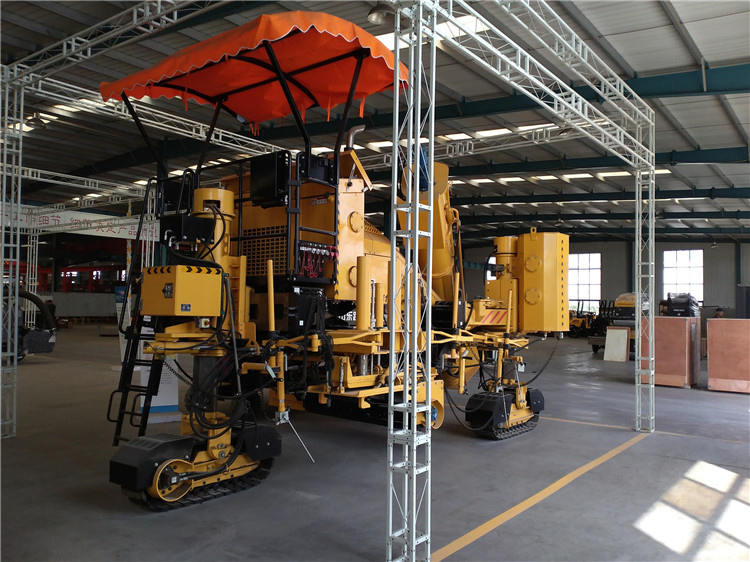

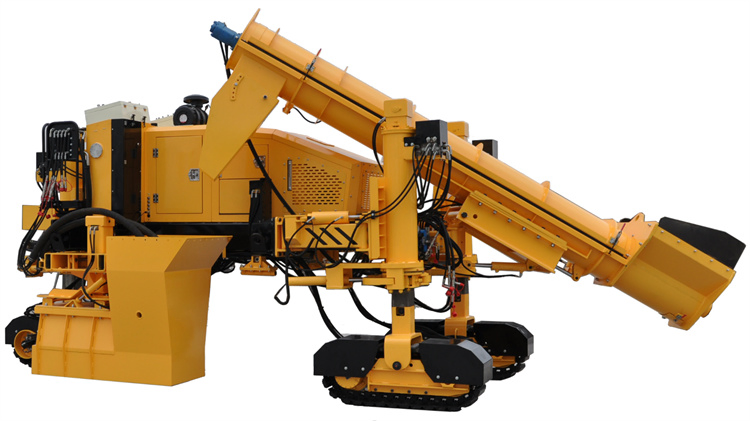

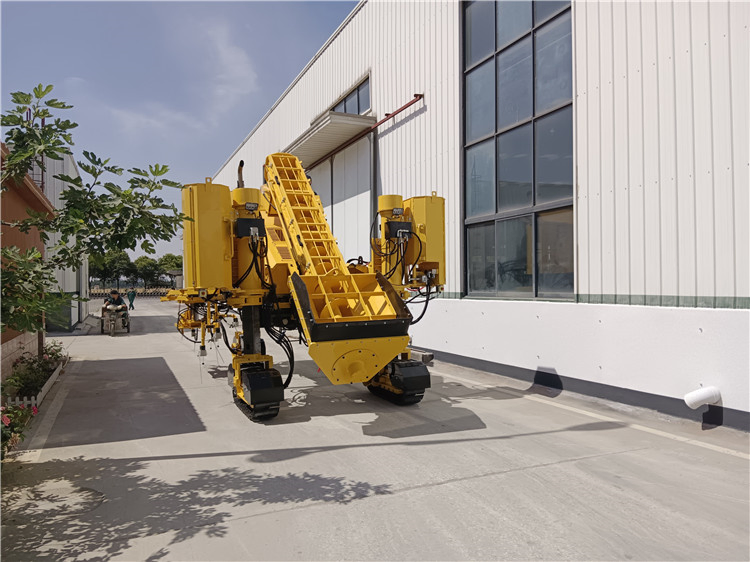

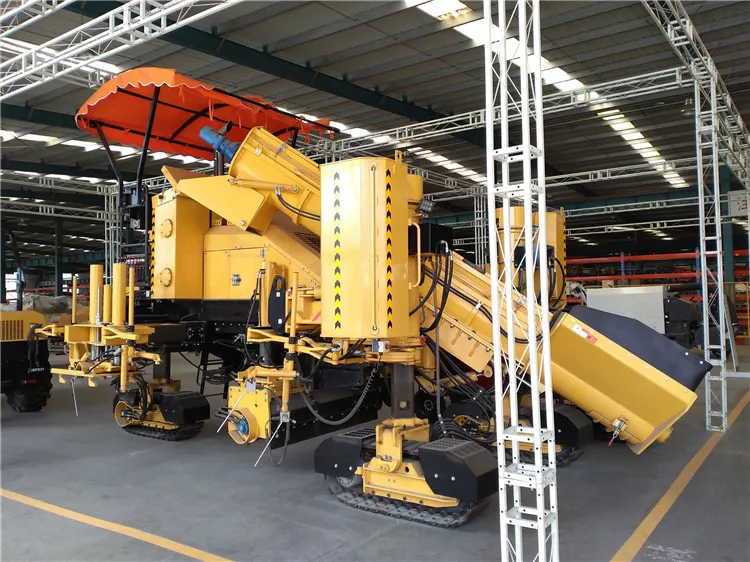

Paving Thickness 350mm Concrete Leveling Machine Slip Form Paver
Paving Thickness 350mm Concrete Leveling Machine Slip Form Paver
Paving Thickness 350mm Concrete Leveling Machine Slip Form Paver
Paving Thickness 350mm Concrete Leveling Machine Slip Form Paver
Paving Thickness 350mm Concrete Leveling Machine Slip Form Paver
1 / 5
Paving Thickness 350mm Concrete Leveling Machine Slip Form Paver
Paving Thickness 350mm Concrete Leveling Machine Slip Form Paver
Paving Thickness 350mm Concrete Leveling Machine Slip Form Paver
Paving Thickness 350mm Concrete Leveling Machine Slip Form Paver
Paving Thickness 350mm Concrete Leveling Machine Slip Form Paver

Paving Thickness 350mm Concrete Leveling Machine Slip Form Paver

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
ModelLDHM41 TypePaver
ObjectCement Concrete Pavement Moving TypeMobile
Mixing MethodIntermittent Compulsory Automatic GradeSemi-Automatic
Product Capacity40～400t/h CertificationISO9001: 2000, CE
Power97kW/2200rpm ConditionNew
Transport Size6975x2500x3420mm Package Weight11,700kg
Product Description

Paving Thickness 350mm Concrete Leveling Machine Slip Form Paver

Paver Image 1
Paver Image 2
Paver Image 3
Paver Image 4
Key Features & Technical Advantages
1
Great function controller with automatic calculation, suitable for various projects.
2
Equipped with imported brand CUMMINS diesel engine for reliable power.
3
Imported Danfoss hydraulic variable plunger pump for stepless speed driving.
4
U.S.A Hydra Force brand hydraulic control valves for intelligent function control.
5
Crawler walking mechanism with automatic tension cylinder for increased belt life.
6
Patented steering system, flexible and convenient for complex job sites.
Detailed Component Photos
Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Detail 6
Technical Parameters
Engine System
Engine ModelCummins 4BTA 3.9
TypeDiesel Engine, liquid cooled, four cylinder
Rated Power97kw/2200rpm
Traveling System
Traveling ModeBy Crawler
Steering ModeCollaborative / Yaw / Front wheel / Rear wheel / Automatic
Traveling Speed0-30m/min
Working Speed0-15m/min
Mold Adjustment
Traverse Adjustment1000mm
Height Adjustment400mm
Max. Mold Width/Height1300mm / 1300mm
Capacities
Fuel Tank120L
Hydraulic Tank280L
Water Tank120L
Product Application

The machine is widely used in highway and municipal road curbs molding projects, ensuring precision and efficiency.

Application 1
Application 2
Related Models

LDHM31

LDHM31

LDHM21 & LDHM11

LDHM21
Frequently Asked Questions
What is the maximum paving thickness of the LDHM41?
The LDHM41 concrete leveling machine supports a paving thickness of up to 350mm.
What type of engine is used in this slip form paver?
It uses a high-performance Cummins 4BTA 3.9 diesel engine, which is liquid-cooled and features four cylinders.
How fast can the machine work during operation?
The working speed is adjustable from 0 to 15 meters per minute, while the transport traveling speed can reach up to 30 meters per minute.
Is the steering system automated?
Yes, the machine features multiple steering modes including Collaborative, Yaw, Front/Rear wheel, and a fully Automatic mode for precision.
Does the machine include a cleaning system?
Yes, it is equipped with a hydraulic high-pressure washing pump that allows you to clean the machine at any time on the job site.
