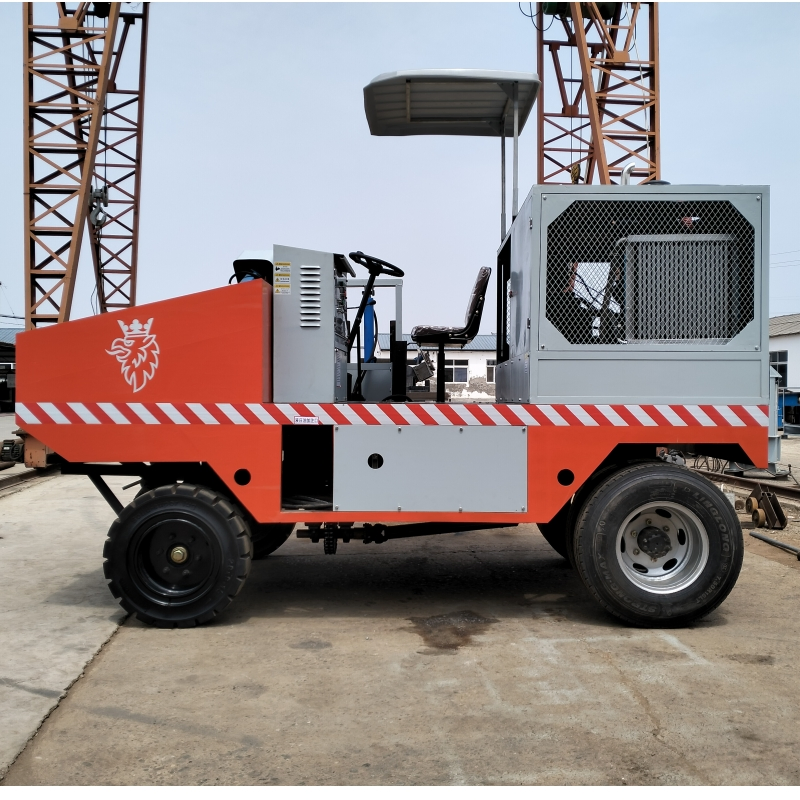

Paving Width 1000mm Concrete Curb Paver Machine Road Asphalt Pavers

Customization:	Available
After-sales Service:	12months
Warranty:	12months

Send Inquiry

Product Description

Basic Information

Model NO.

YGCS-130

Type

Paver

Object

Cement Concrete Pavement

Moving Type

Mobile

Mixing Method

Continuous Drum

Automatic Grade

Automatic

Product Capacity

>400t/h

Certification

ISO9001: 2000, CE

Condition

New

Construction Scope

Width 1500mm, Height 700mm

Engine Power

34 HP

Operating Voltage

AC380V

Hopper Volume

0.3m³

Product Description

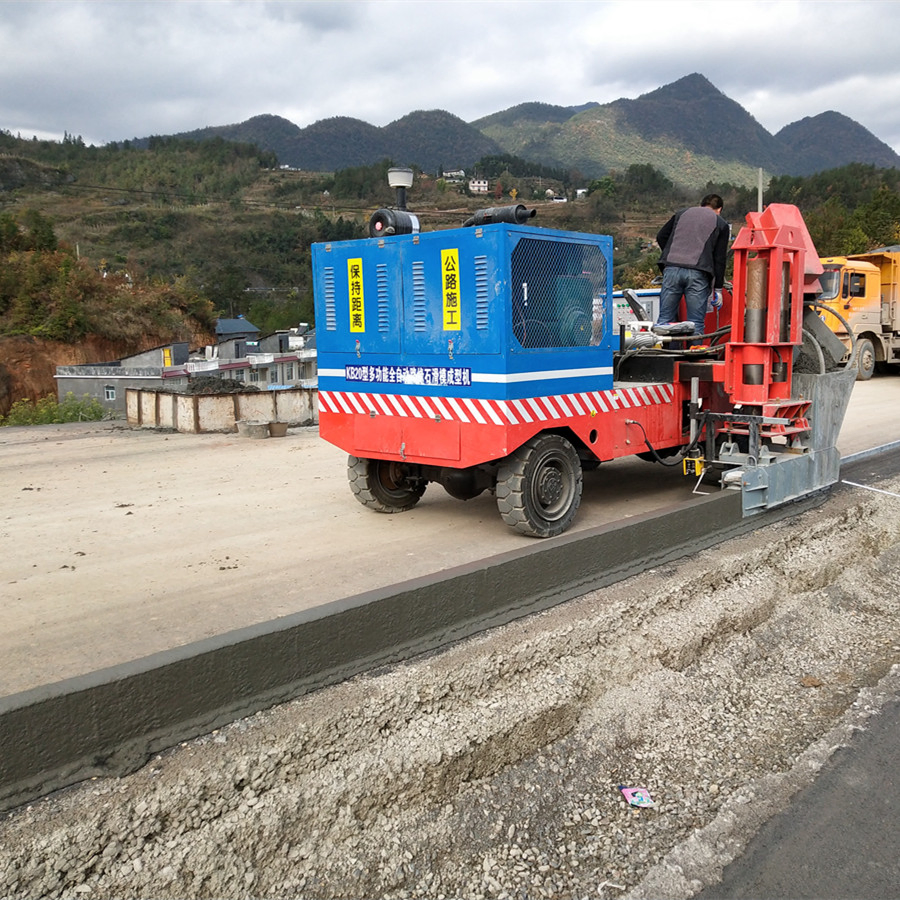

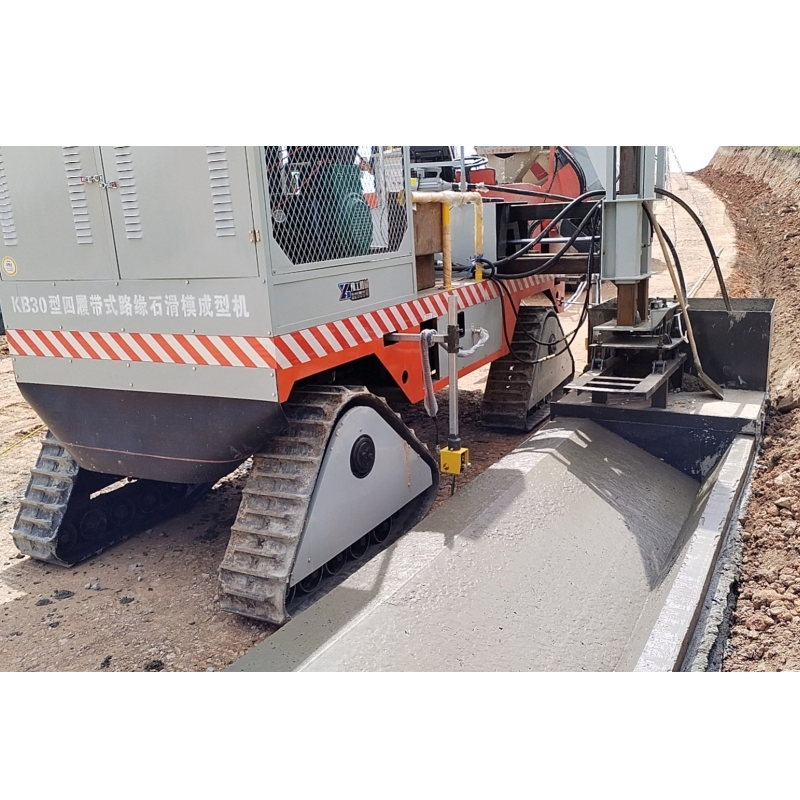

Concrete Curb Stone Forming Machine - The fully automatic curb slip form machine adopts a spiral extrusion feeding method and is used for curb concrete forming construction. The machine is compact and is especially suitable for concrete forming construction in leisure green spaces and flower bed curbs in residential areas. It can be used to make highway curb stones, nursery weirs and highway water strips.

Key Features

High efficiency, beautiful appearance, low cost, and high quality.
The formed curb has high impact strength and stability.
The hydraulic vibrating bar has a high vibration frequency and large vibration pressure.
The machine is easy to operate and can adapt to various construction requirements.
Equipped with a high-pressure cleaning pump for convenient maintenance.

Technical Parameters

Model	YG-C4	YG-C6	YG-C20
Paveable Curb Size (W*H)	600*400mm	900*500mm	2000*600mm
Paving speed	1-5m/min	1-6m/min	0.9-16m/min
Hopper volume	0.3m³	0.4m³	1m³
Power	8.5KW	12kw	65kw
Empty weight	1000kg	1800kg	6000kg
Dimension	250185110cm	330210120cm	500240280cm

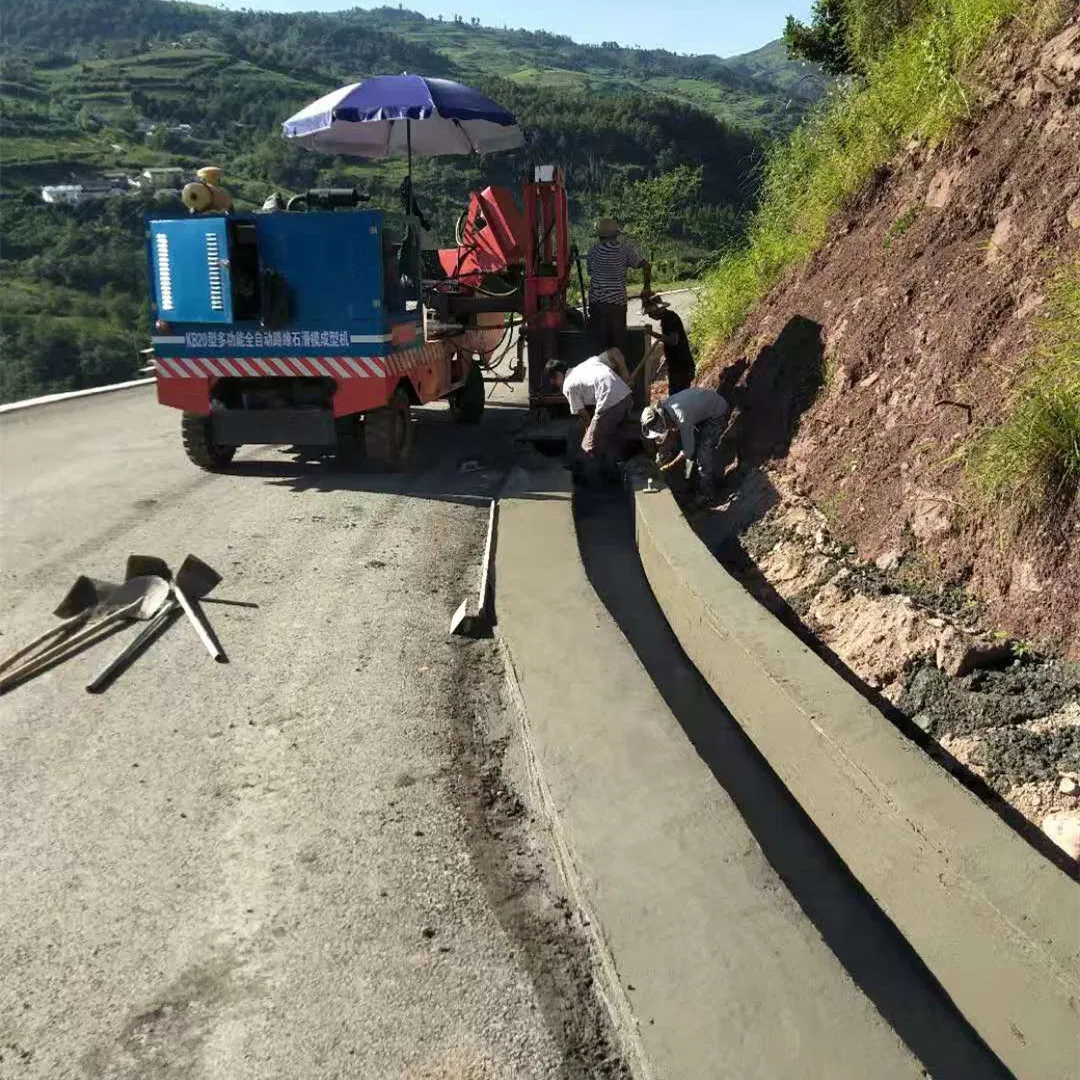

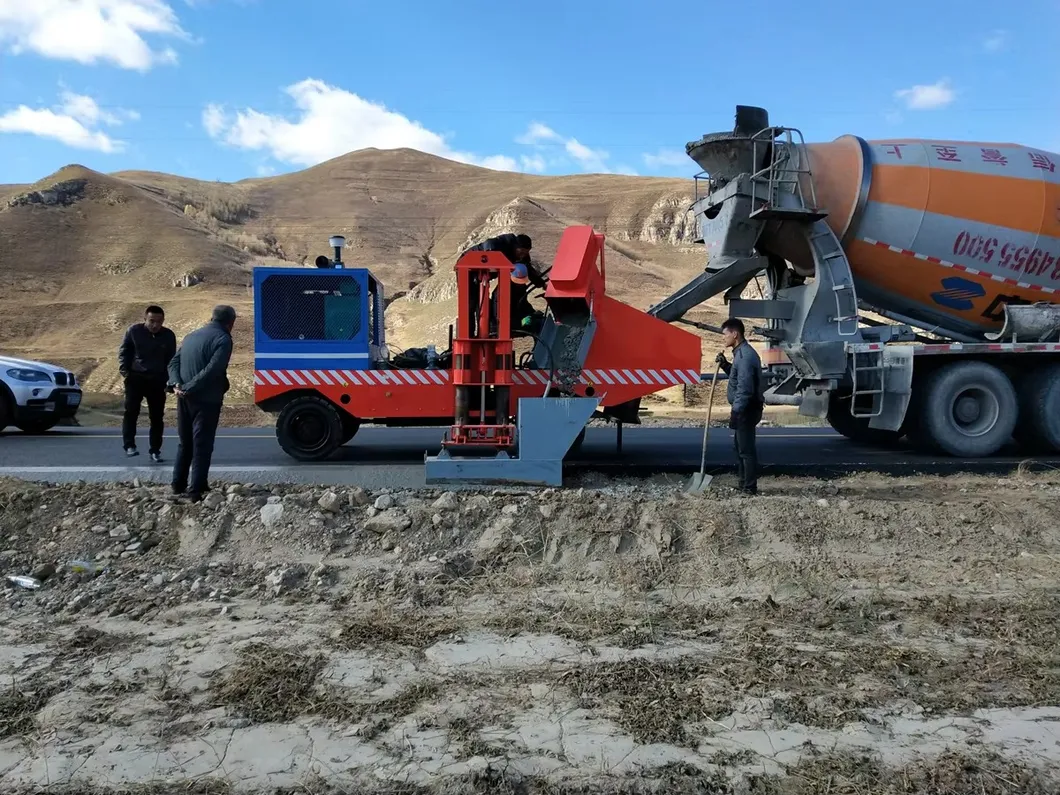

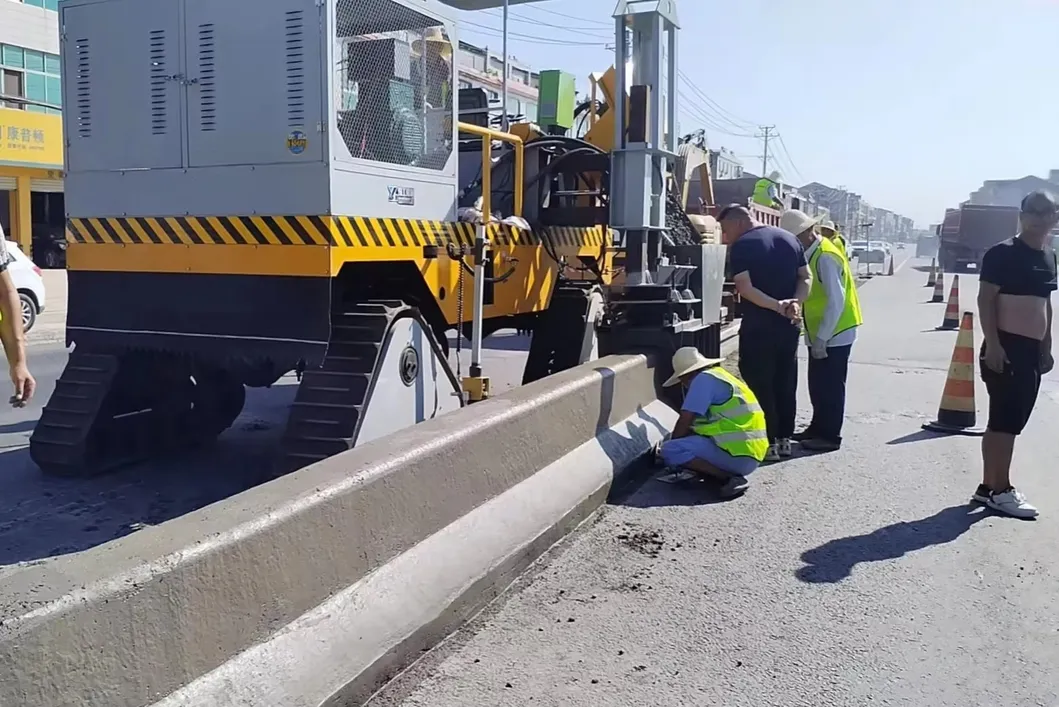

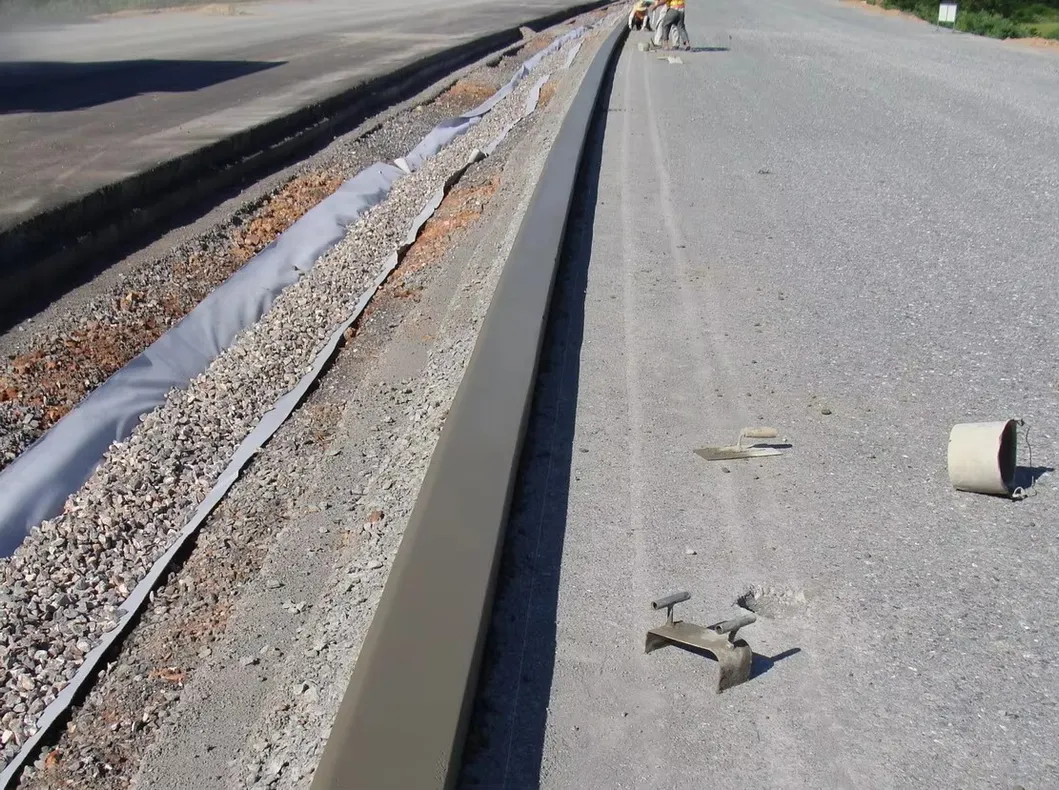

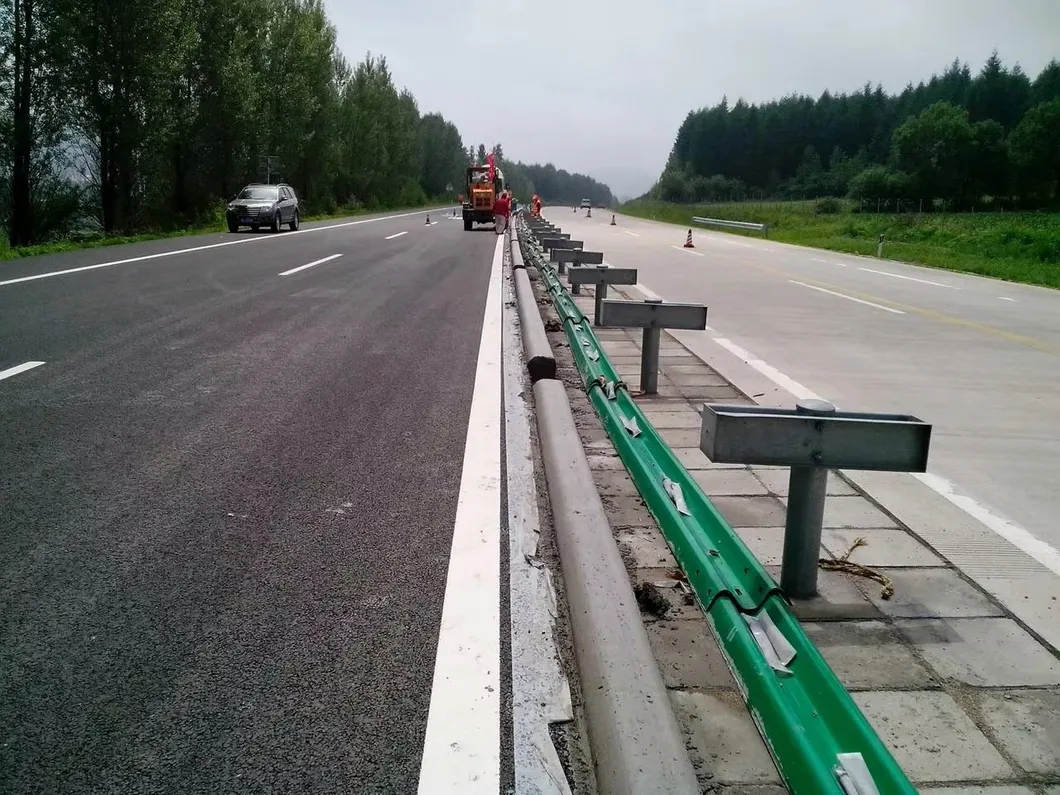

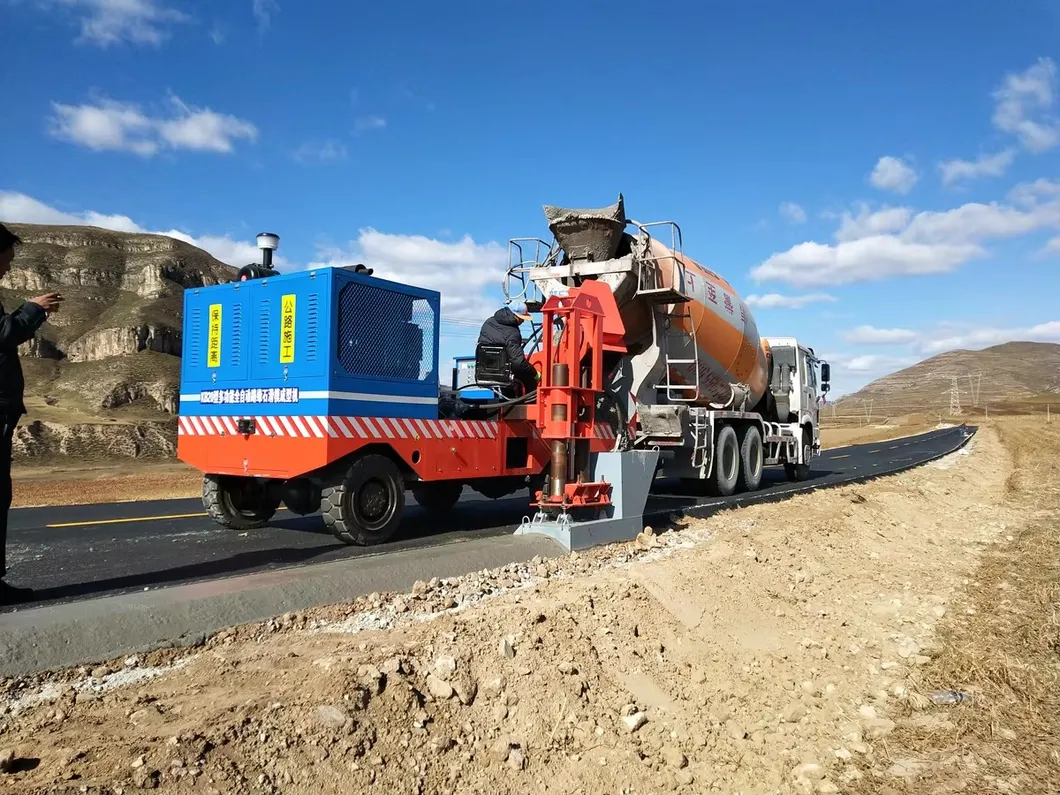

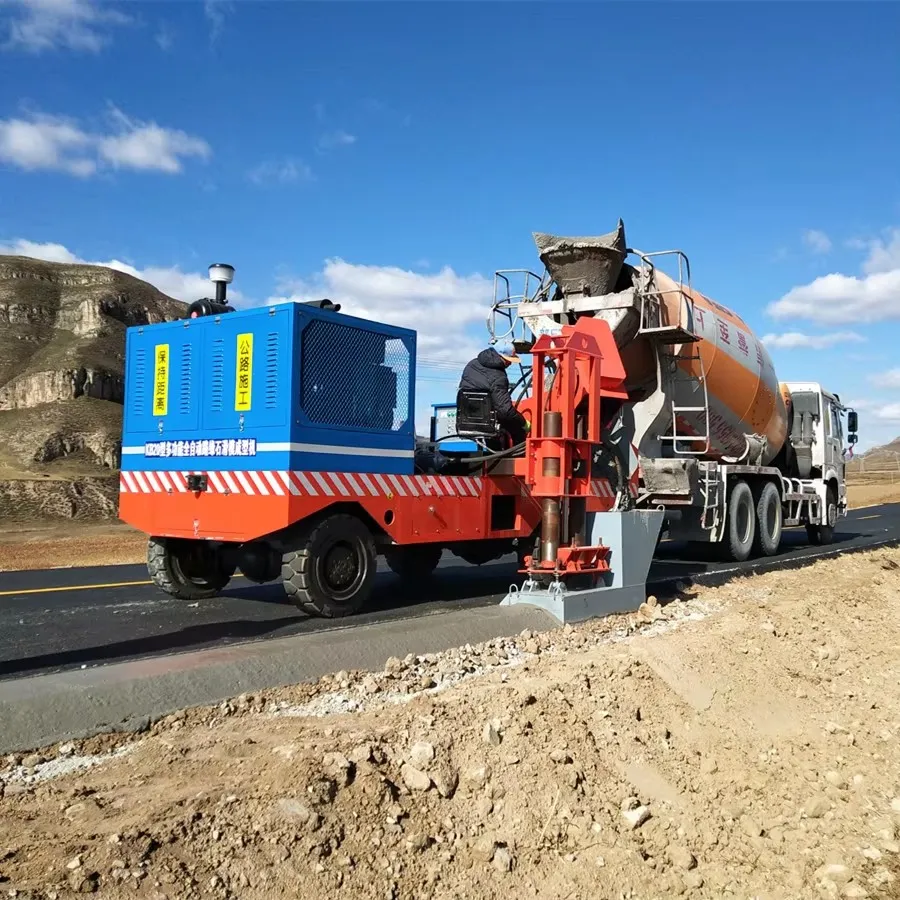

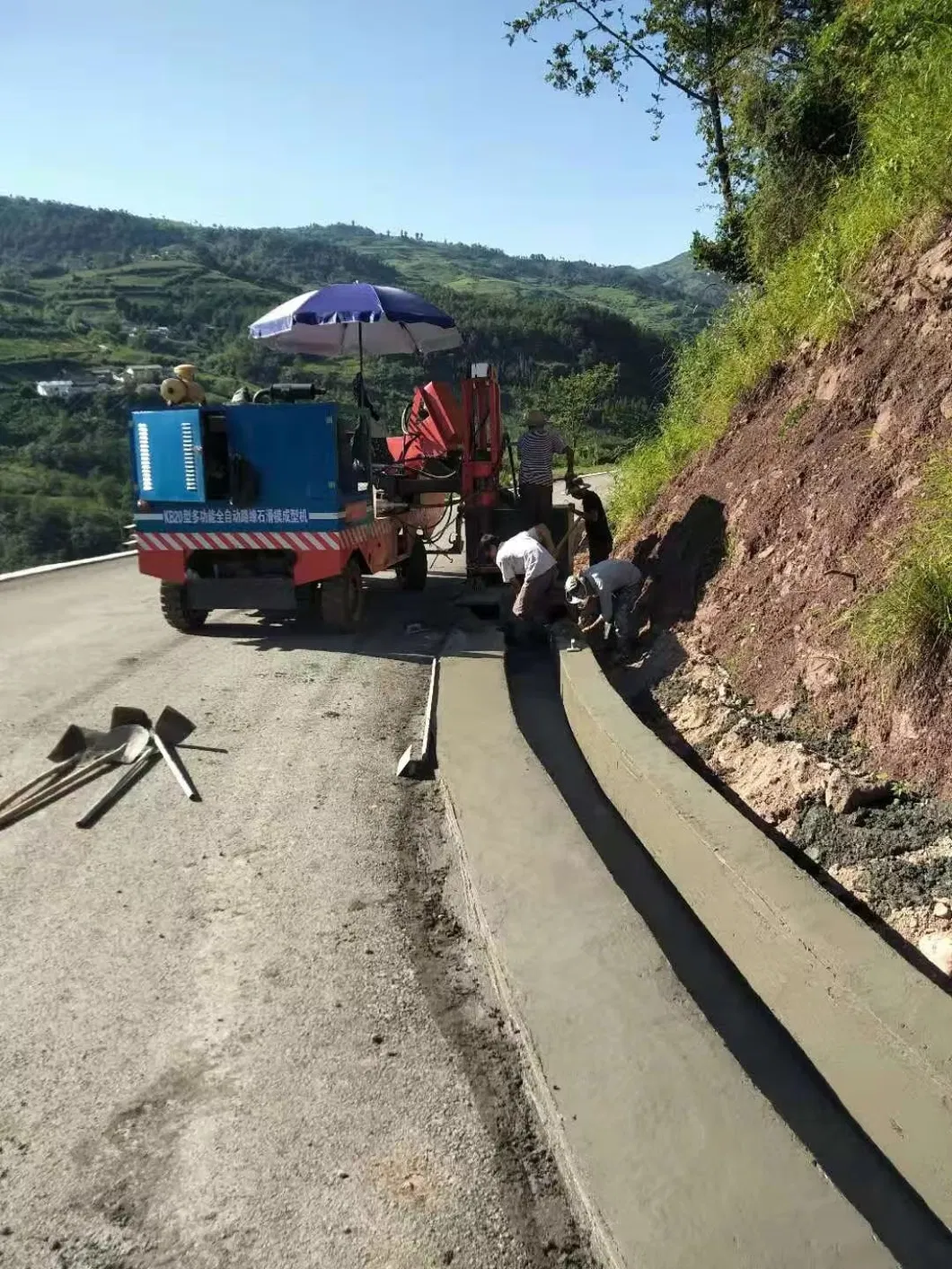

Machine Application & Details

Manufacturing Excellence

Frequently Asked Questions

Q1: What is the primary use of the curb slip form machine?

A1: It is primarily used for the continuous concrete forming of road curbs, highway water strips, and garden flower bed borders using a spiral extrusion method.

Q2: Can the machine handle different sizes of curb stones?

A2: Yes, different models offer various paving capacities. For example, the YG-C20 can handle curbs up to 2000mm in width and 600mm in height.

Q3: How does the machine ensure the stability of the formed curb?

A3: The machine uses a high-frequency hydraulic vibrating bar which provides large vibration pressure, ensuring the formed concrete has high impact strength and density.

Q4: Is it difficult to clean the machine after construction?

A4: Not at all. The machine is equipped with a high-pressure cleaning pump, allowing operators to clean the internal components and exterior easily at any time.

Q5: What power source does the machine require?

A5: Depending on the model, power requirements range from 8.5KW to 65KW. Most units operate on an AC380V voltage system with electric start functionality.

Q6: Is this machine suitable for narrow residential roads?

A6: Yes, the compact design makes it especially suitable for residential areas, green spaces, and flower beds where maneuverability is key.
