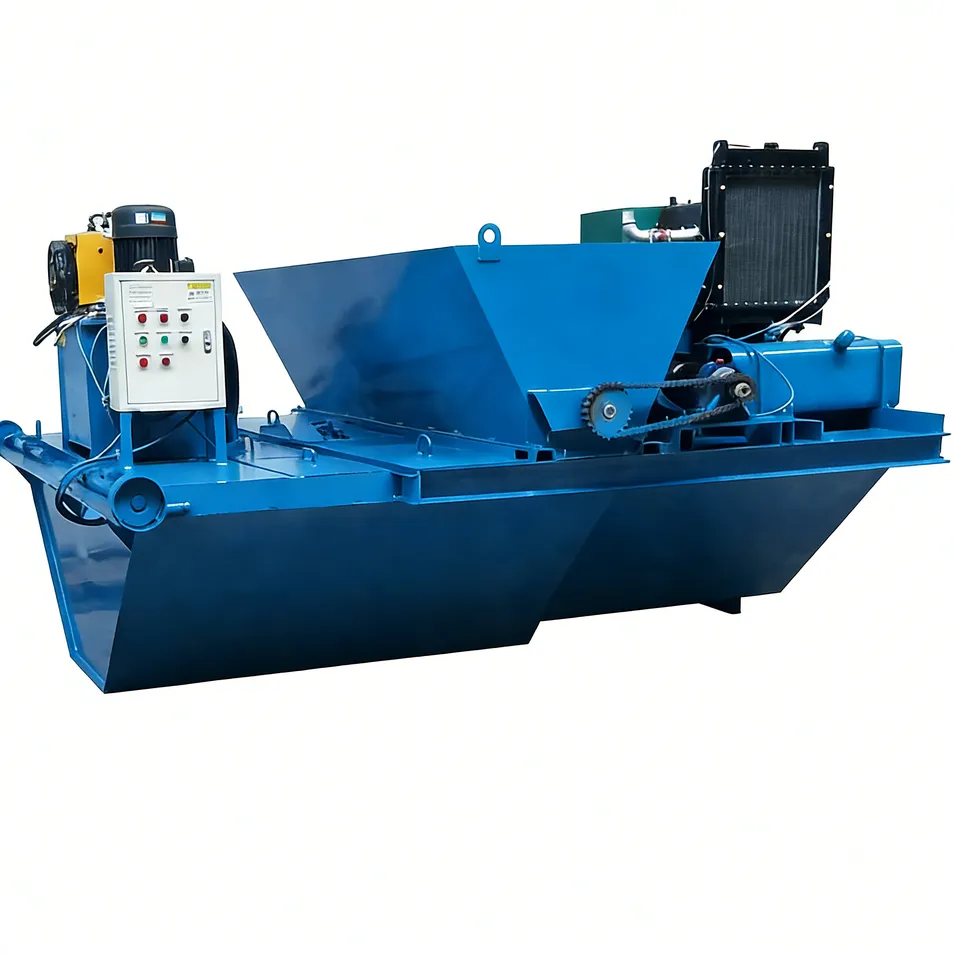

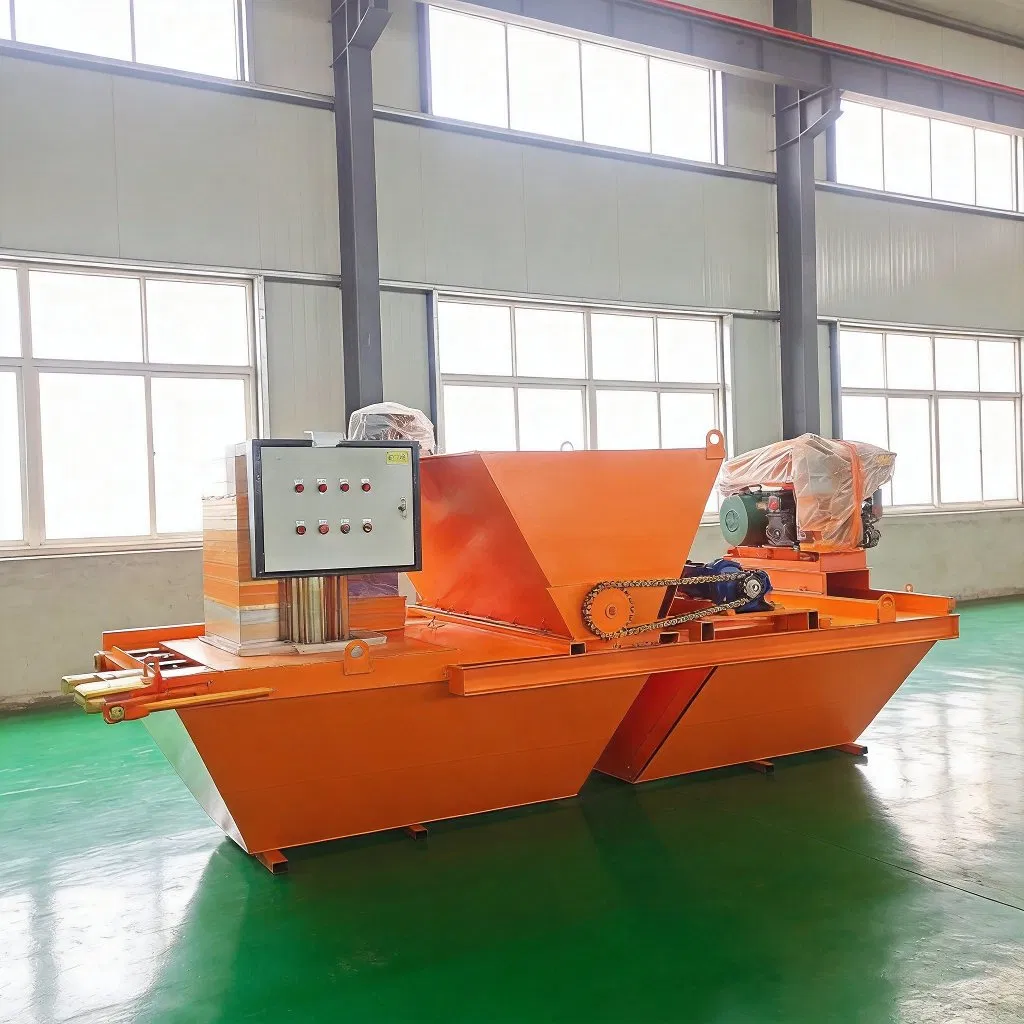

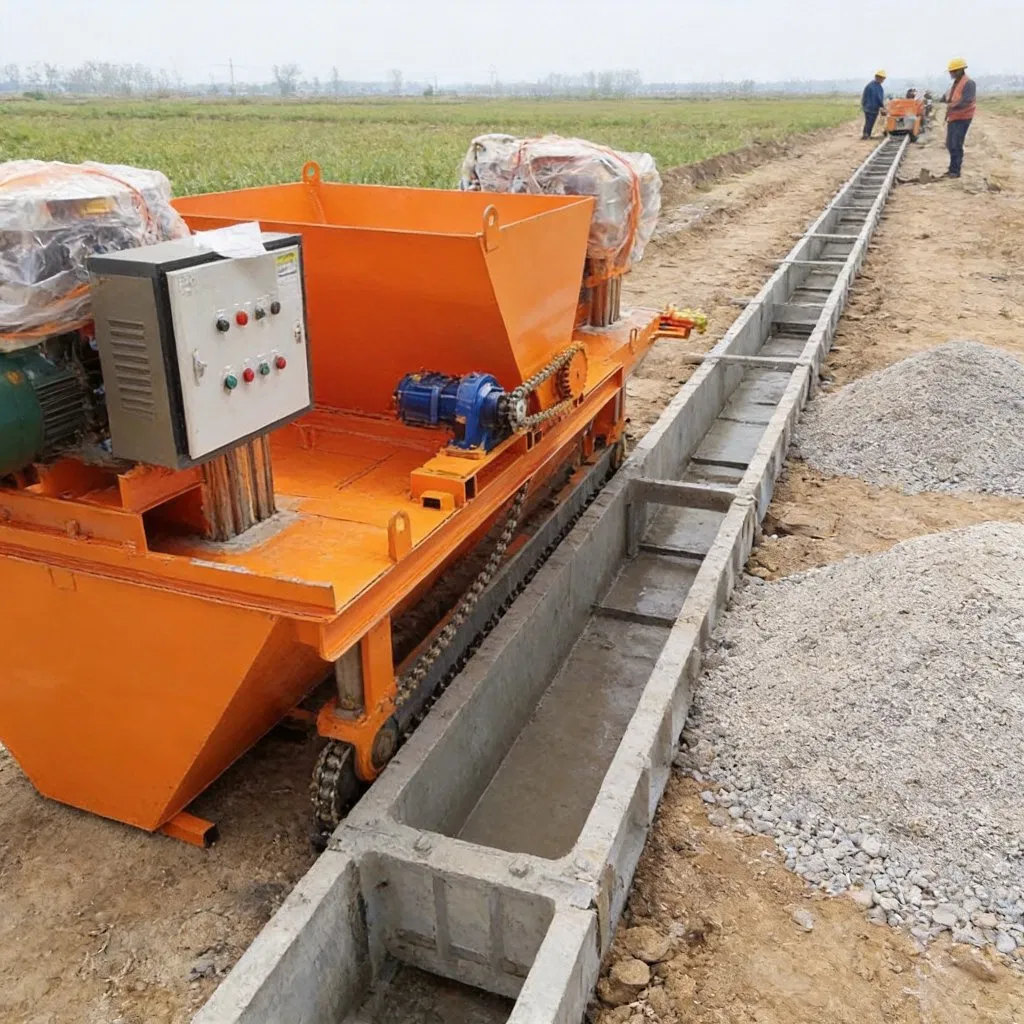

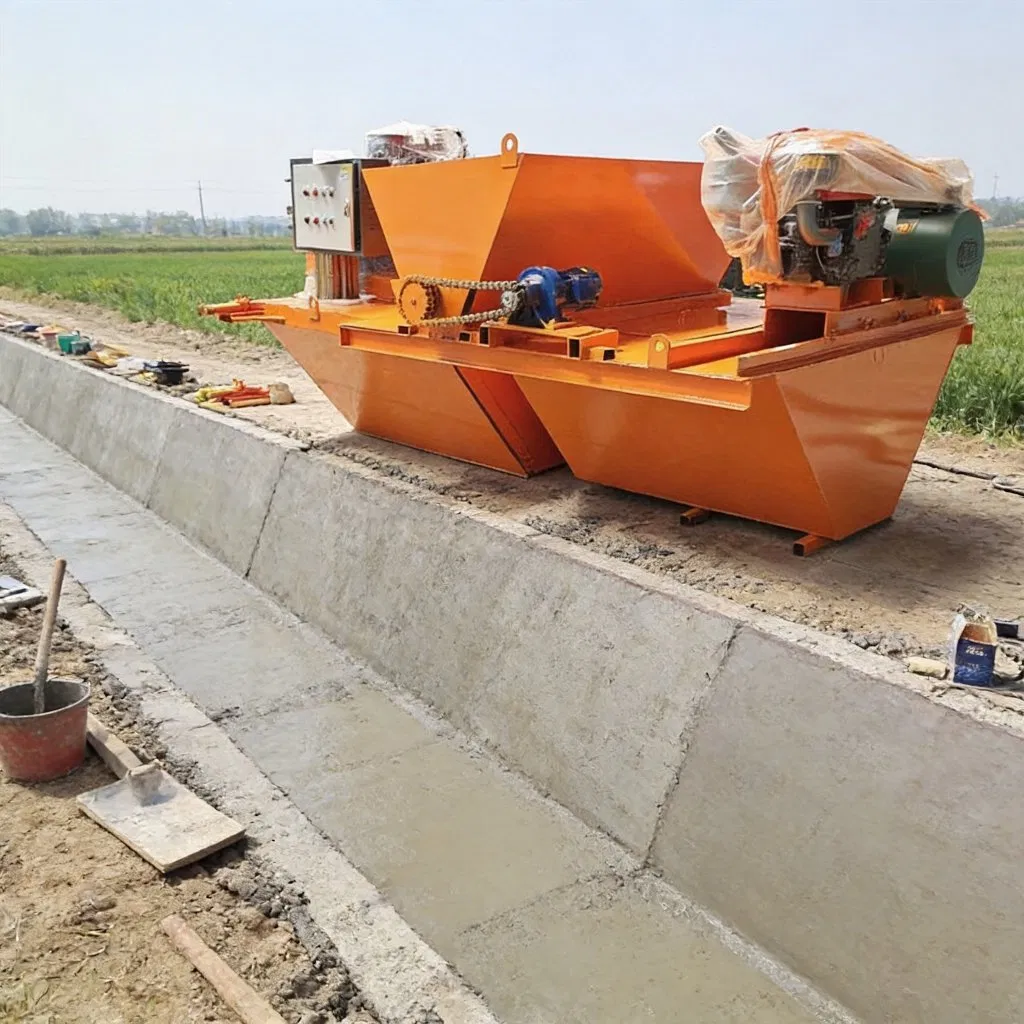

The trapezoidal channel automatic vibrating concrete lining machine and U-shaped concrete automatic ditch channel lining device are designed for high-efficiency concrete placement. These machines are adaptable to various sites, including canal bottoms, canal slopes, and highways. All equipment specifications, including the length of the fuselage, can be customized according to the width of the working surface.
Working Principle: The machine consists of four parts: the feeding machine, spreading machine, screeding machine, and receiving frame. The loading machine is placed on the slope, automatically controlling its walk. Concrete is fed into the hopper by the belt, introduced into storage via a baffle plate, and spread evenly by the vibrating plate before being smoothed by a trowel.
Construction of high-standard farmland, irrigation canals, and drainage ditches.
Slope drainage ditches and side ditches for highways, railways, and national roads.
Urban drainage networks, river management, and drainage for photovoltaic bases.
| Model | U-shaped Type | Ladder Type | Custom Type |
|---|---|---|---|
| Operating Weight (kg) | 20,000 | 30,500 | 45,000 |
| Engine Power (kW) | 24 | 15 | 30 |
| Work Ability (m/h) | 40-50 | 40-50 | 40-50 |
| Body Length (m) | 3.5 | 3.4 | 3.7 |
| Labor Required | 2 persons | 2 persons | 2 persons |
| Width (m) | Customized | Customized | Customized |
Front Elevation

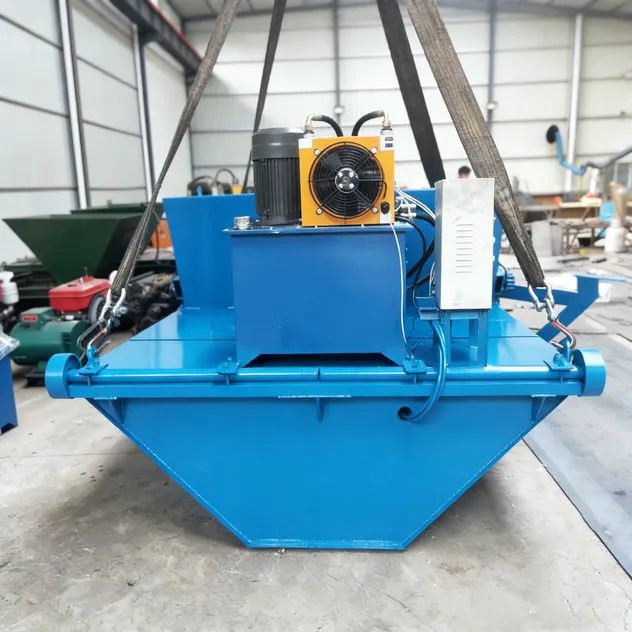

Left Elevation

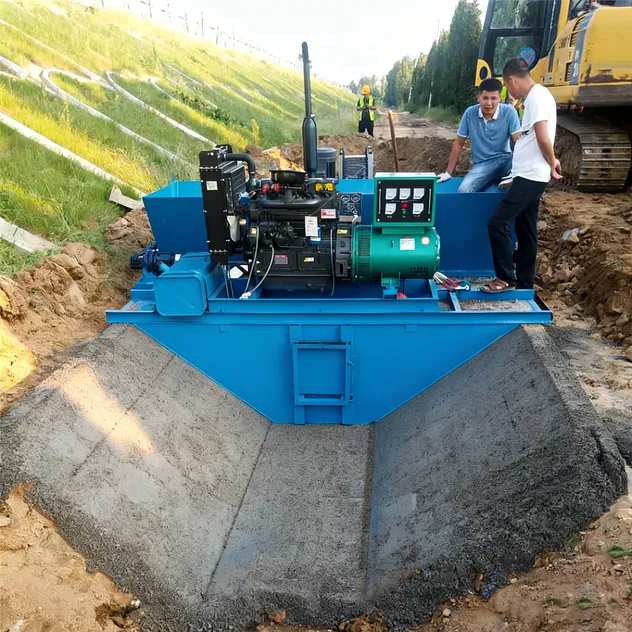

Right Elevation
Standard Warranty: 12 months or 2,000 operating hours.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation and maintenance training.
A: Standard models typically ship within 15–30 days, while customized units require 30–45 days.
A: Yes, we provide 24/7 technical assistance and have partnered service centers in key global regions.
A: Absolutely. We offer U-shaped, trapezoidal, rectangular, and fully customized forming molds based on your project requirements.
A: We provide a full export package, including Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).
A: Yes, we offer both on-site and remote training for operation and maintenance to ensure your team can use the machine effectively.
A: Please contact our customer service team to obtain detailed CAD drawings and dimension diagrams tailored to your specific needs.
