Farmland Drainage Ditch Slipform Machine Self-Propelled Concrete Channel Maker
Farmland Drainage Ditch Slipform Machine Self-Propelled Concrete Channel Maker
Farmland Drainage Ditch Slipform Machine Self-Propelled Concrete Channel Maker
Farmland Drainage Ditch Slipform Machine Self-Propelled Concrete Channel Maker
Farmland Drainage Ditch Slipform Machine Self-Propelled Concrete Channel Maker
1 / 5
Farmland Drainage Ditch Slipform Machine Self-Propelled Concrete Channel Maker
Farmland Drainage Ditch Slipform Machine Self-Propelled Concrete Channel Maker
Farmland Drainage Ditch Slipform Machine Self-Propelled Concrete Channel Maker
Farmland Drainage Ditch Slipform Machine Self-Propelled Concrete Channel Maker
Farmland Drainage Ditch Slipform Machine Self-Propelled Concrete Channel Maker

Farmland Drainage Ditch Slipform Machine Self-Propelled Concrete Channel Maker

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
Trapezoidal self-propelled
Application Field
Construction
Max Trenching Depth
1500mm
Structure
Single Disc
Power Source
Diesel
Moving way
Crawler Loader
Working Speed
70 meters Per Hour
Certification
ECE, EU, CE, EPA
Warranty
One Year
Origin
China
Product Introduction

Trapezoidal channel automatic vibrating concrete lining machine is a U-shaped or trapezoidal concrete automatic ditch channel lining device. It adapts to various sites such as canal bottoms, canal slopes, and highway drainage side ditches. Equipment specifications can be customized based on the working surface width.

Working Principle: The machine uses a hydraulic or mechanical propulsion system to feed concrete into a specific shaped mold. High-frequency vibrators achieve compaction, while the self-propelled system ensures continuous, one-time forming of the water channel.
Key Advantages
●
Cost Efficiency: Reduces template and labor costs. Effectively reduces water leakage, saving 200-600 cubic meters of water per acre.
●
High Speed: Construction speed reaches 40 to 50 meters per hour, far exceeding manual labor.
●
Land Saving: The compact structure of the canal saves about 40% of land compared to earthen canals.

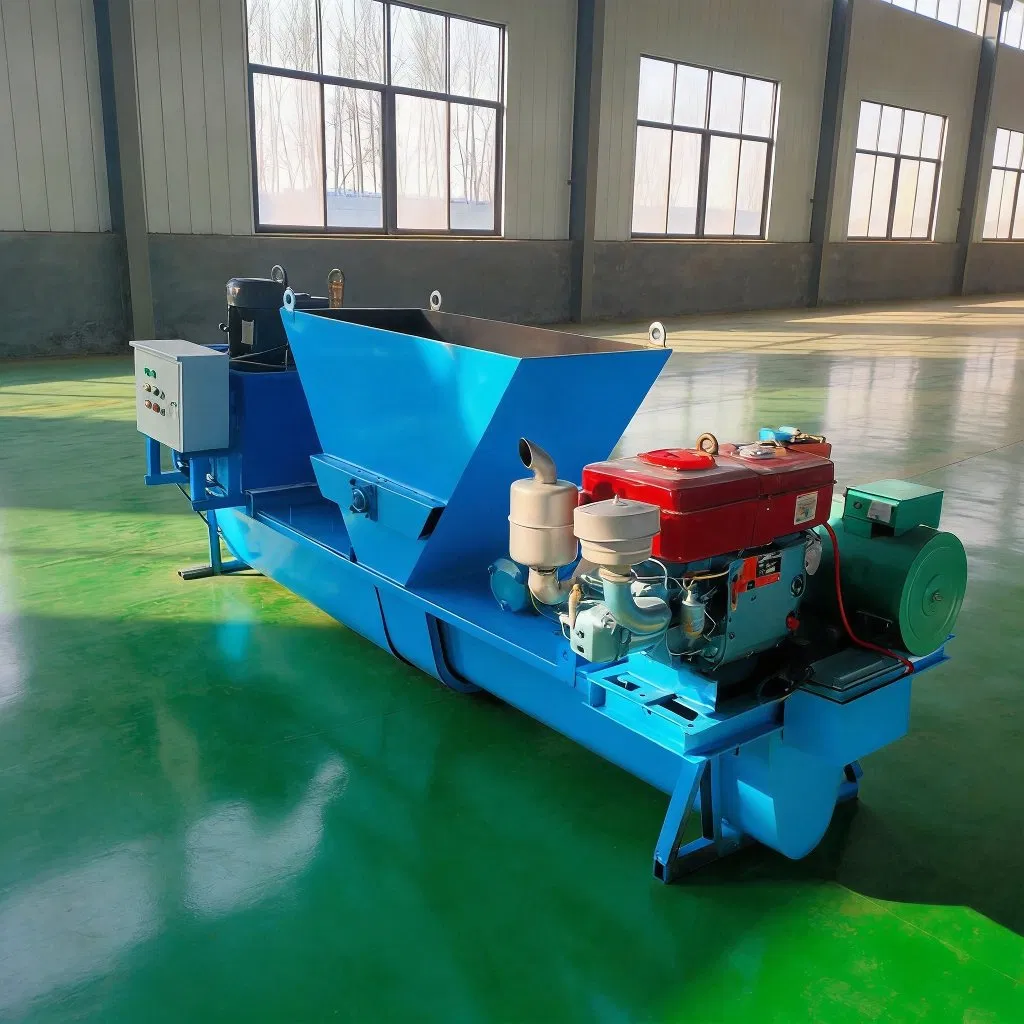

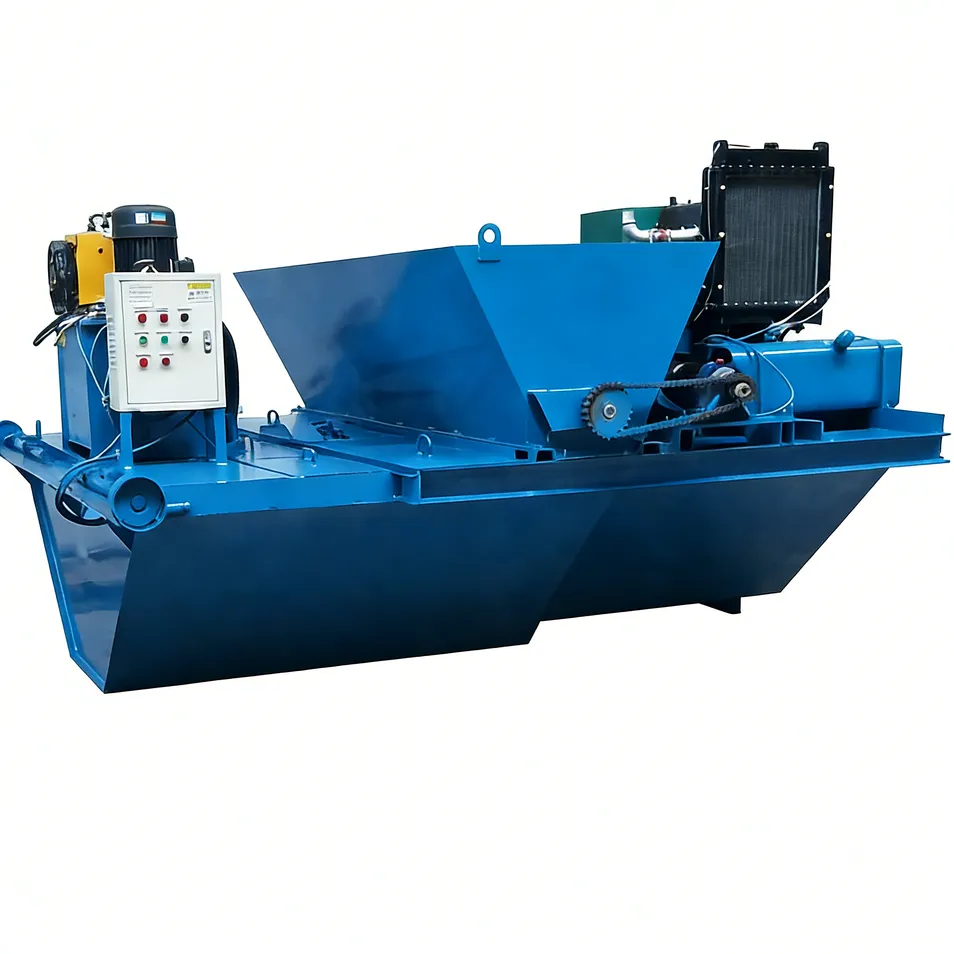

Concrete Channel Maker
Normal Application Scope
✔
Agricultural Water Conservancy: High-standard farmland irrigation and drainage ditches.
✔
Transportation Engineering: Side ditches for highways, railways, and national roads.
✔
Municipal Engineering: Urban drainage networks and river management.

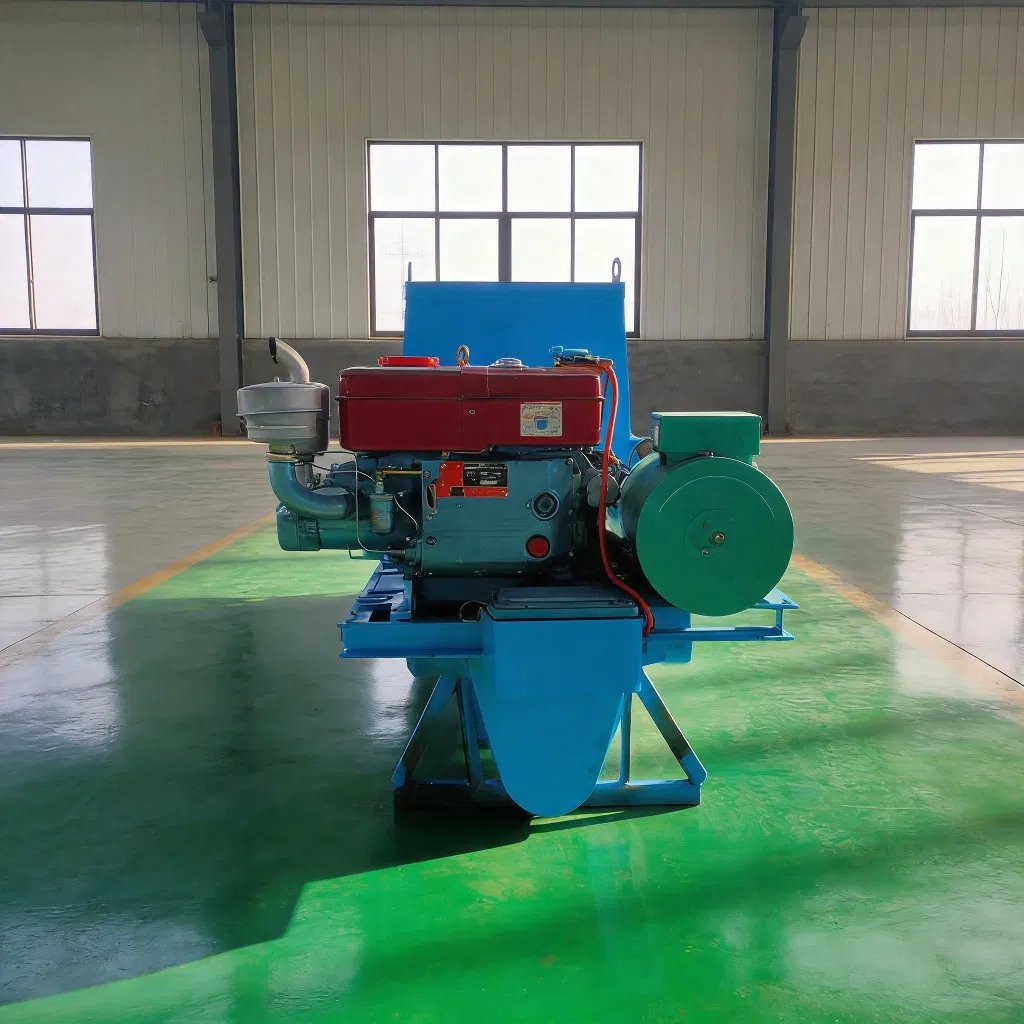

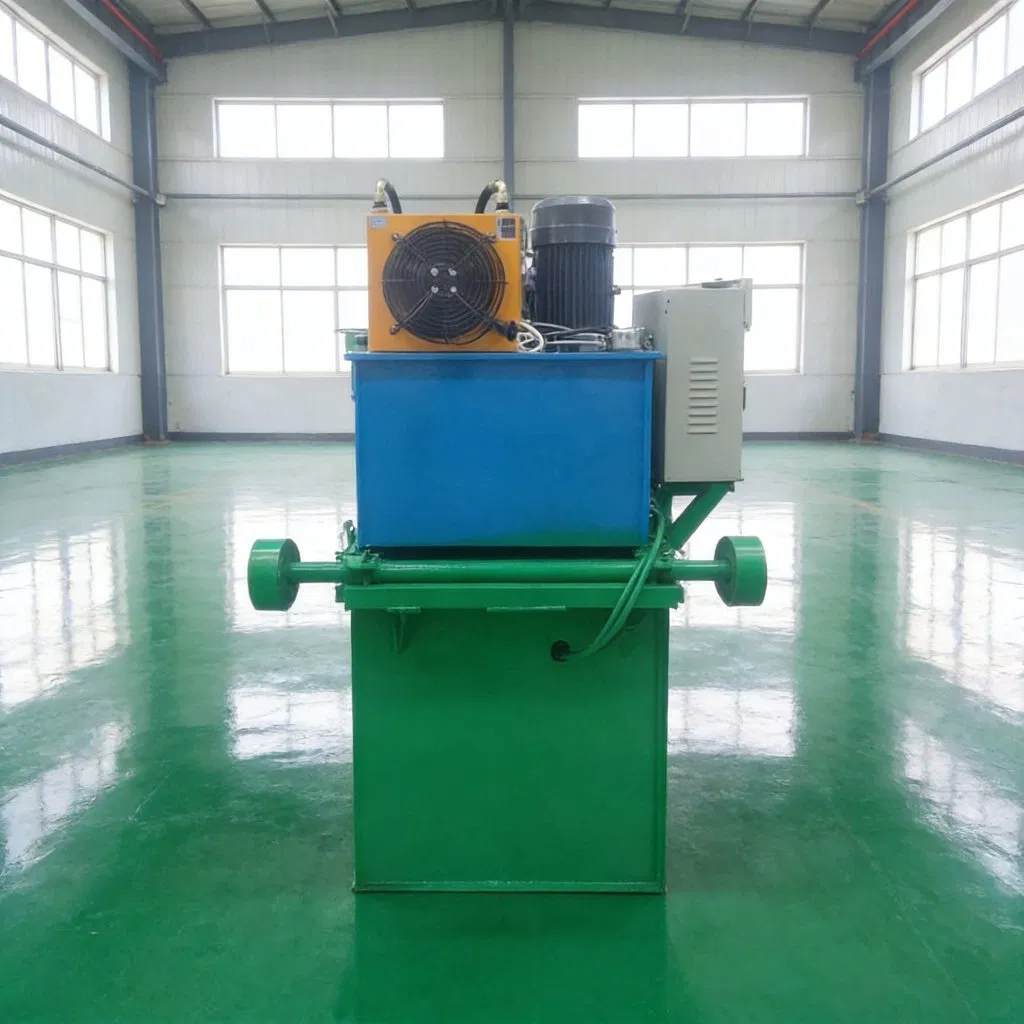

Front elevation
Front Elevation

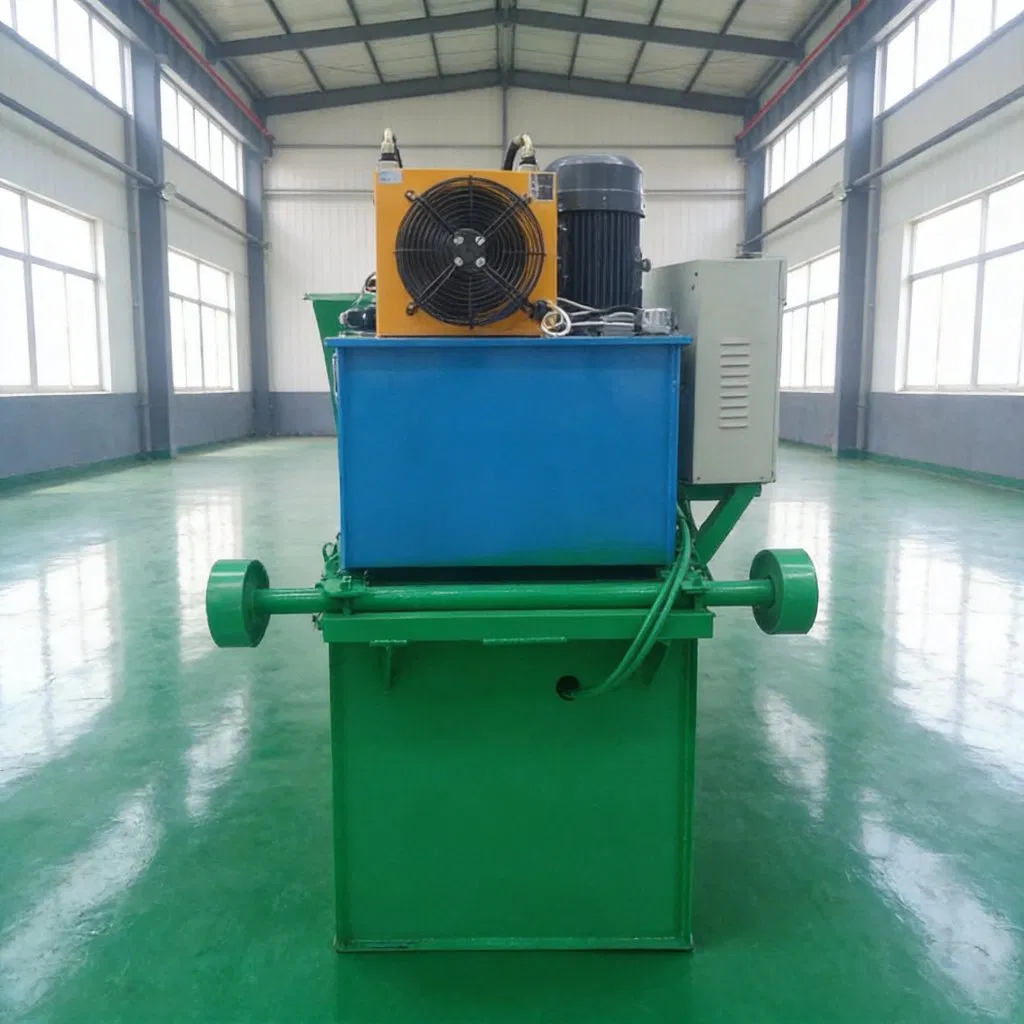

Left elevation
Left Elevation

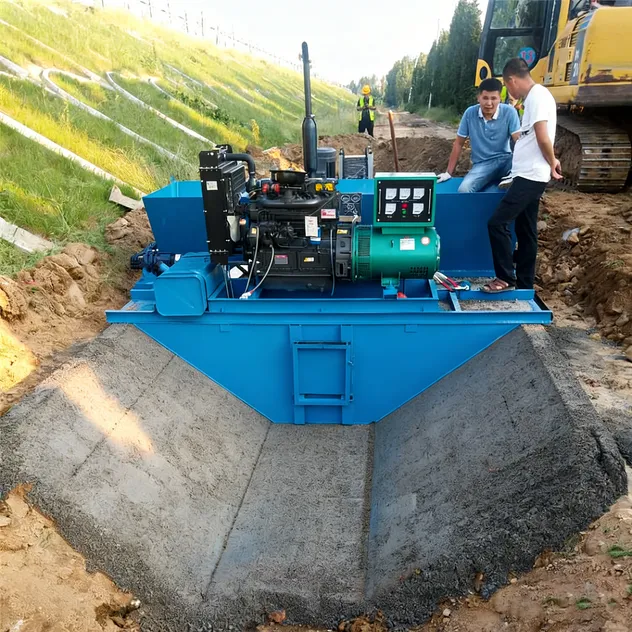

Right elevation
Right Elevation
Technical Specifications
Model U-shaped Ladder type Self defined type
Operating Weight (kg)20,00030,50045,000
Engine Power (kW)241530
Work ability (m/h)40-5040-5040-50
Length (m)3.53.43.7
Personnel required222
Width (meters)CustomizeCustomizeCustomize
After Sales Service

Standard Warranty: 12 months or 2,000 operating hours.

Global Support: 24/7 technical assistance and spare parts supply. Training provided on-site or via remote modules.

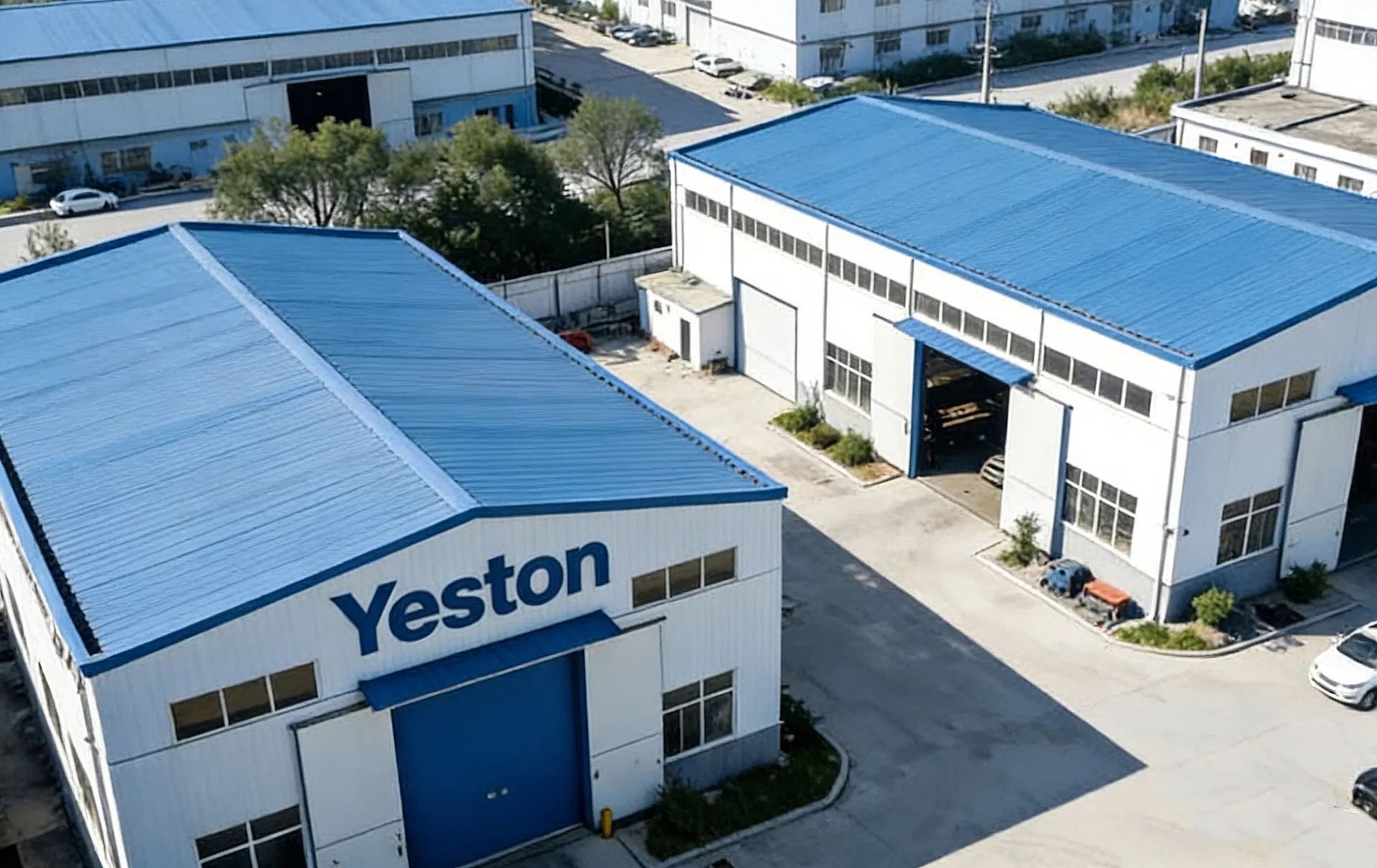

Manufacturing Facility
Manufacturer Overview

With over 20 years of expertise, the manufacturer is ISO 9001, CE, and GOST certified, exporting reliable construction machinery to 50+ countries worldwide.

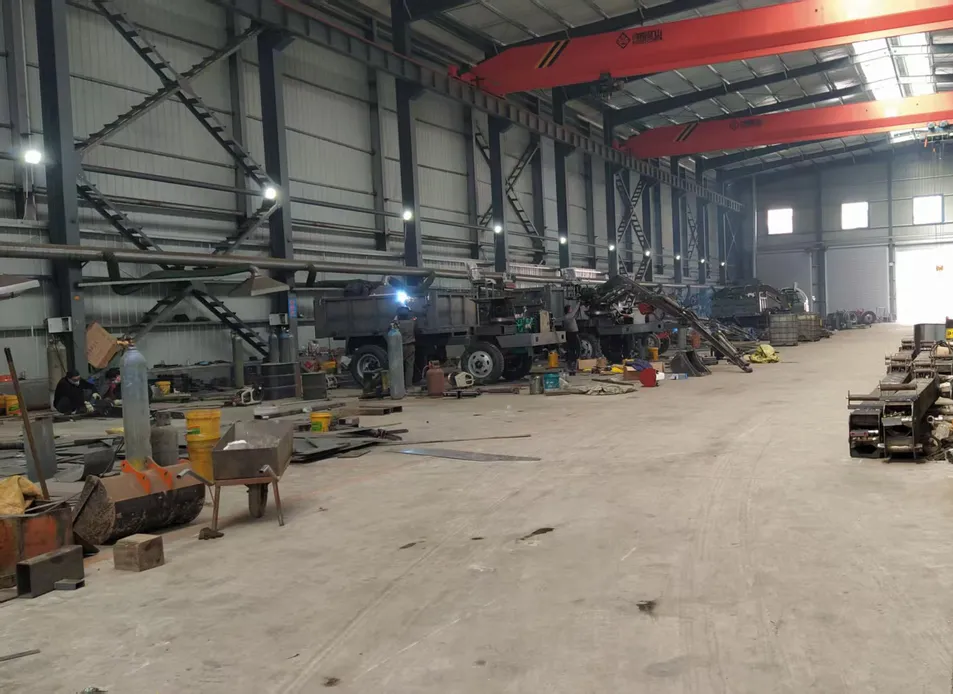

Quality Control

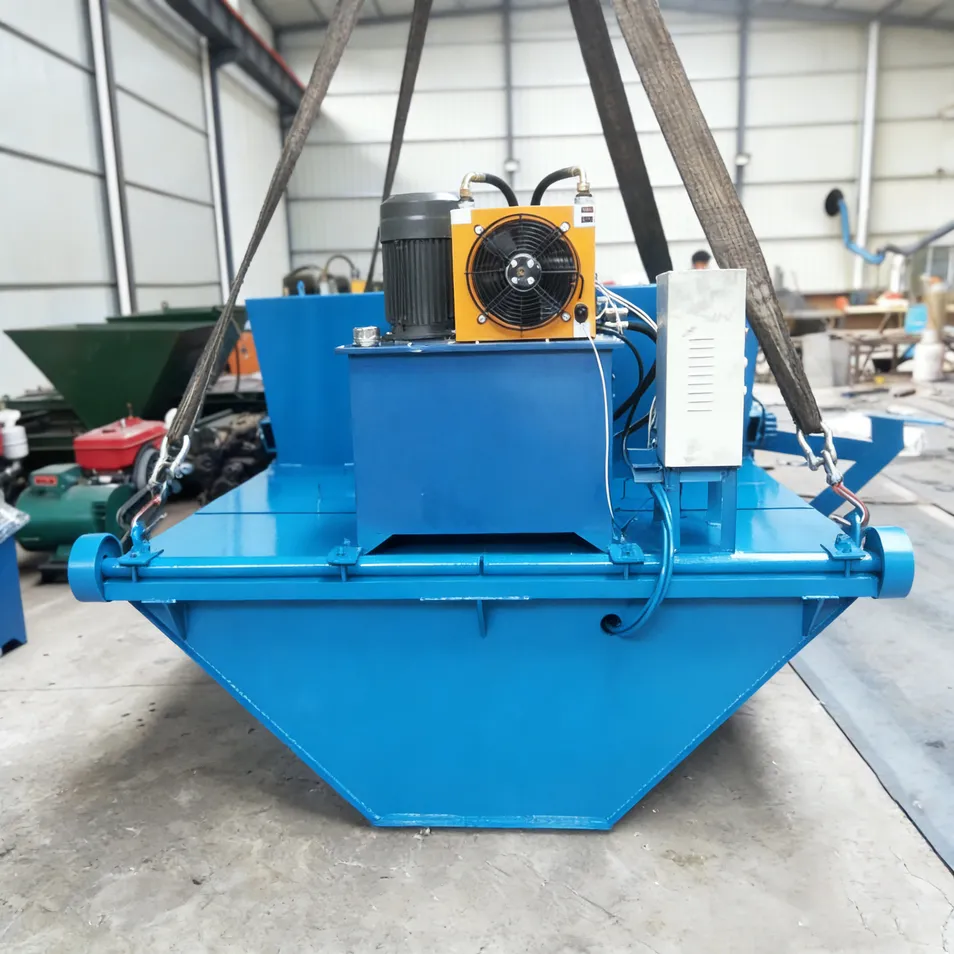

Innovation
Frequently Asked Questions
Q: What is the typical lead time for an order?
A: Standard models are usually shipped within 15–30 days, while customized units require 30–45 days depending on the specifications.
Q: Can the machine handle different channel shapes?
A: Yes, the machine can be configured for U-shaped, trapezoidal, rectangular, or other custom-defined ditch shapes based on project needs.
Q: How many operators are required for this equipment?
A: Typically, only 2 personnel are required to operate the self-propelled system effectively.
Q: Is overseas technical support available?
A: Yes, we provide 24/7 technical assistance and have partnered service centers in several key global regions.
Q: What documents are provided for international shipping?
A: We provide a full export package including the Commercial Invoice, Packing List, Bill of Lading, and necessary certifications like COC.
Q: Does the machine come with a warranty?
A: Yes, a standard warranty of 12 months or 2,000 operating hours is provided, with options for extended coverage.
