Tow-Type Trapezoidal Canal Forming Machine Highway Drainage Ditch Forming Machine Tow-Type Canal Construction Equipment

Basic Information

Model NO.

Trapezoidal Towed Type

Application Field

Agriculture

Max Trenching Depth

915mm

Power Source

Diesel

Speed

80-300m/h

Certification

ECE, EU, CE, EPA

Warranty

One Year

Rated Power

15-30kw

Working Depth

30-150cm

Package Gross Weight

1500.000kg

Introduction to Canal Forming Machines

The canal forming machine is specialized construction equipment used in hydraulic, road, and other engineering projects. It enables the one-time continuous cast-in-place forming of concrete canals (U-shaped, trapezoidal, rectangular, etc.), featuring high mechanization, efficiency, and excellent forming quality.

Key Advantages

Cost Efficiency: Reduces template and labor costs; saves 200-600 cubic meters of water per acre by effectively reducing leakage.
Space Saving: The compact structure saves about 40% of land compared to earthen canals.
Time Saving: Construction speed reaches 40 to 50 meters per hour, far exceeding manual labor.
Working Principle: Uses hydraulic or mechanical propulsion with high-frequency vibrators for compaction and continuous forming.

Application Scope

🚜 Agriculture

Construction of high-standard farmland, irrigation canals, and drainage ditches.

🛣️ Transportation

Slope drainage ditches and side ditch lining for highways, railways, and national roads.

🏙️ Municipal

Urban drainage networks, river management, and drainage for photovoltaic power bases.

Visual Presentation

Front Elevation

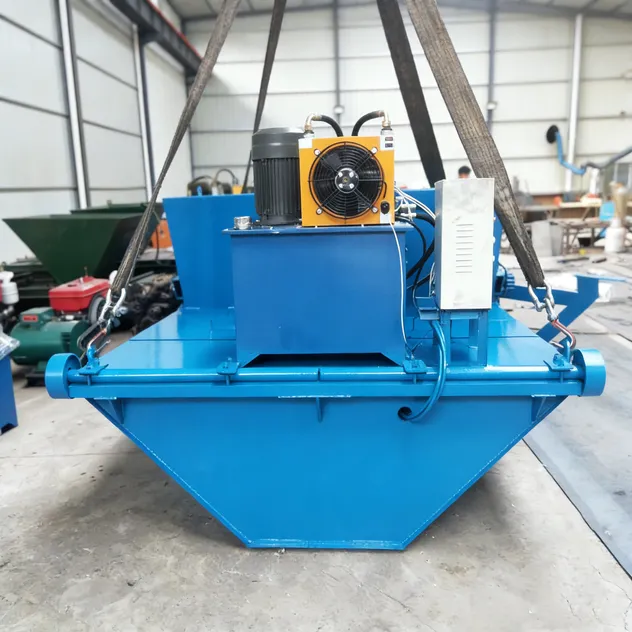

Left Elevation

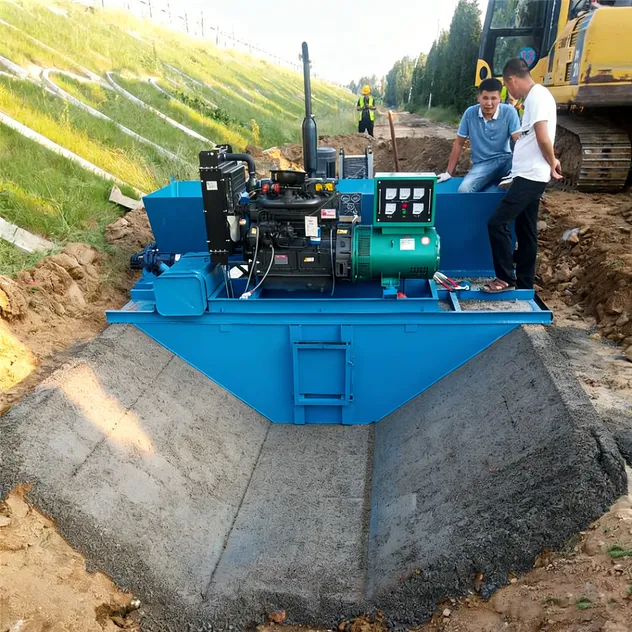

Right Elevation

Technical Specifications

(Custom configurations available upon request.)

Model Parameter	U-shaped	Ladder type	Self defined type
Operating Weight (kg)	20,000	30,500	45,000
Engine Power (kW)	24	15	30
Work ability (meters/h)	40-50	40-50	40-50
Length (m)	3.5	3.4	3.7
Labor Required	2	2	2
Width (meters)	Customize	Customize	Customize

After-Sales & Support

🛡️ Warranty Terms

Standard Warranty: 12 months or 2,000 operating hours. Optional extended coverage up to 36 months available.

🌍 Global Assistance

24/7 technical assistance, spare parts supply, and on-site/remote maintenance training.

Frequently Asked Questions

Q: What types of water channels can this machine form? A: It can produce U-shaped, trapezoidal, rectangular, and other custom-shaped concrete canals through specialized molds.

Q: What is the typical construction speed? A: The equipment can achieve a forming speed of 40 to 50 meters per hour, depending on the concrete supply and terrain.

Q: Can the machine dimensions be customized? A: Yes, we provide customized designs for bucket sizes and channel dimensions to meet specific project engineering requirements.

Q: What is the lead time for an order? A: Standard models typically ship within 15–30 days, while customized units require approximately 30–45 days.

Q: Do you provide documents for international export? A: We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).

Q: Is on-site training available for operators? A: Yes, we offer both on-site and remote training sessions for operation and maintenance to ensure efficient equipment use.
