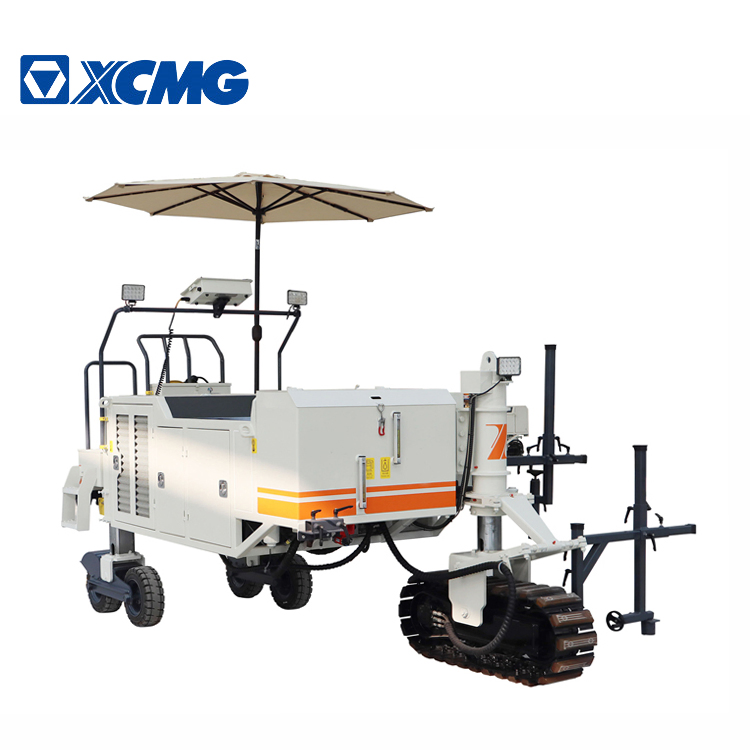

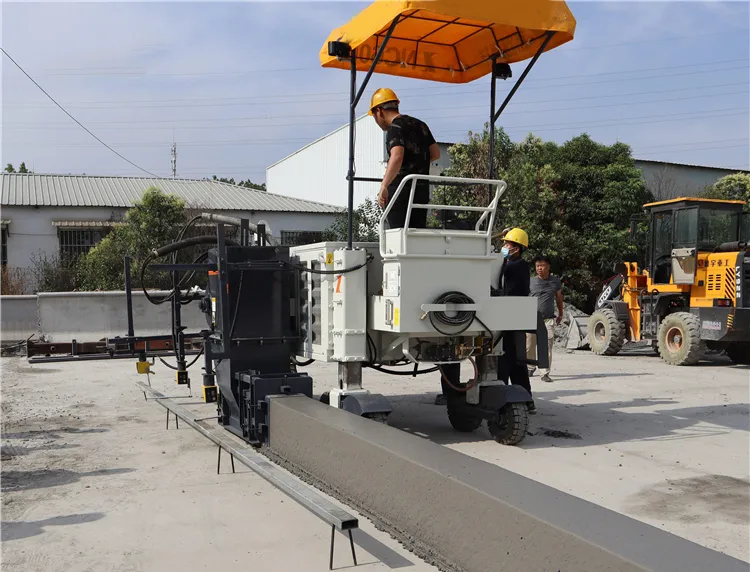

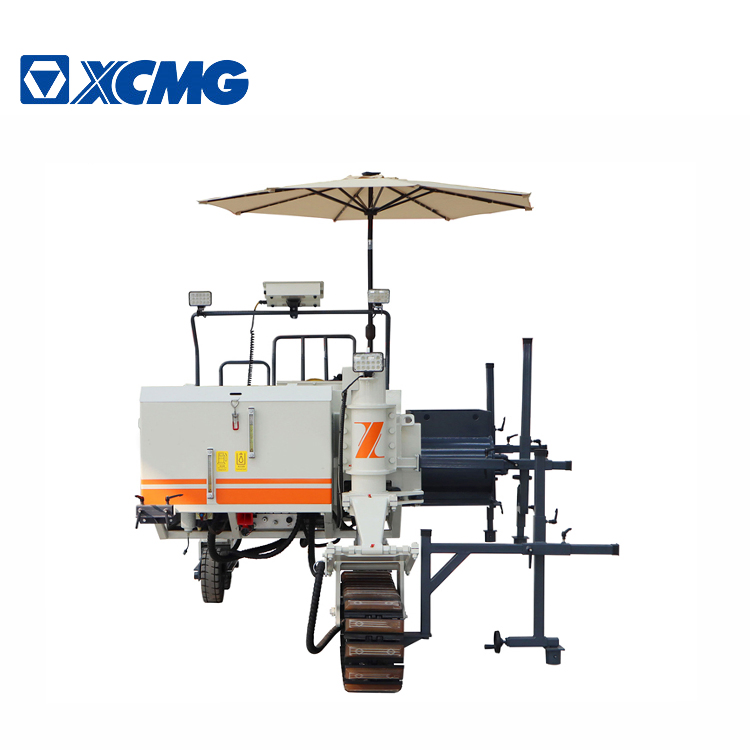

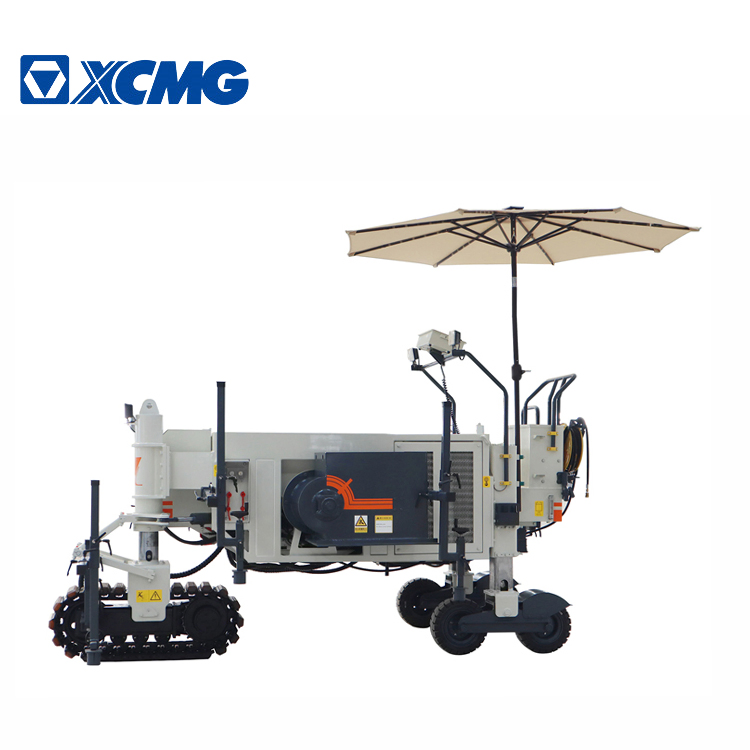

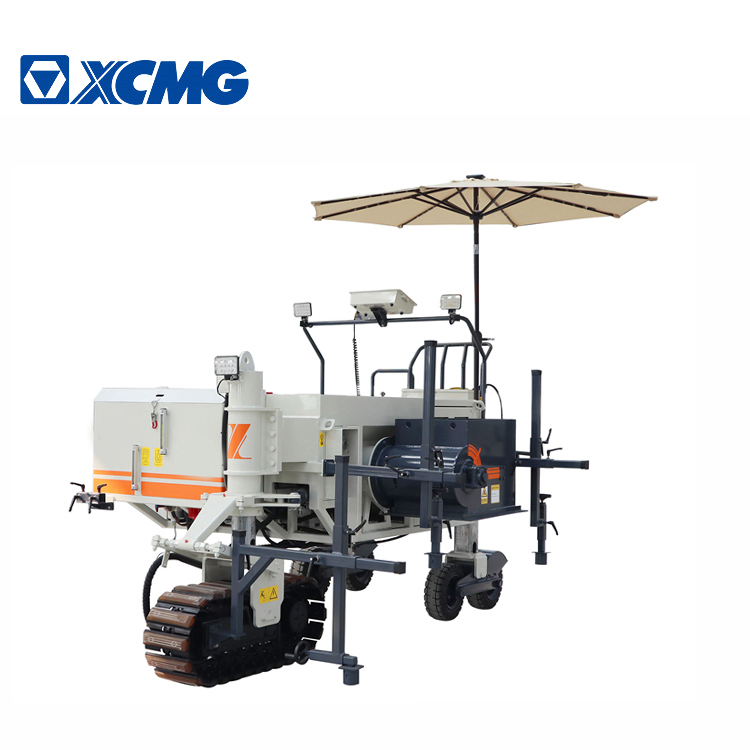

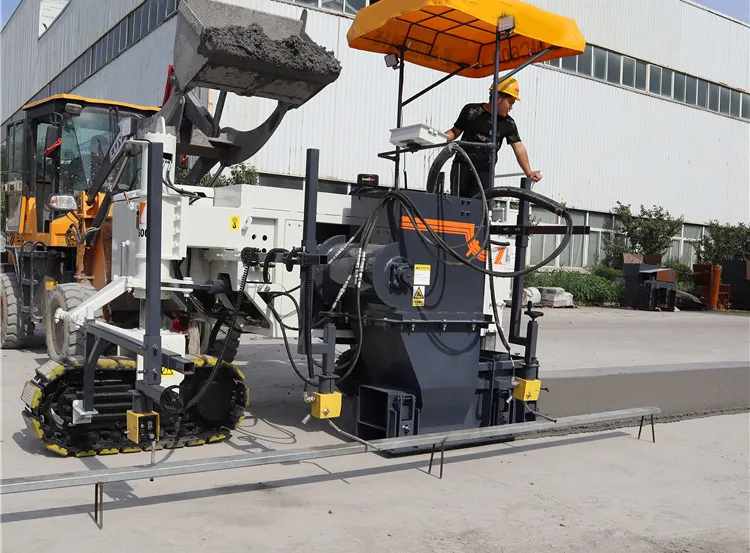

The XGNC600 multifunctional slipform paver is a multi-purpose cement concrete construction equipment. It can be used for multiple purposes and can realize multiple mold configurations. It is widely used in the field of cement concrete structures such as small road drains, gutters, kerbs, shoulder stones, etc., replacing traditional technology and significantly improving construction quality and speed.
⚙️ Stability & Control: Front crawler walking, hydraulic drive, and proportional control two-speed motor with a large speed ratio planetary gear reducer ensure paving stability and high-quality slipform results.
⚡ Power System: Equipped with a strong engine; the hydraulic system adopts load-sensitive variable control, supplying oil based on actual load size and speed for low oil consumption and energy saving.
🛠️ User Experience: Humanized design of the operation console and man-machine interactive control screen with clear graphical symbols for easy operation.
| Item | XGNC600 |
| Maximum side paving height | 600mm |
| Maximum paving width | 600mm |
| Paving speed | 0~15m/min |
| Travel speed | 0~20m/min |
| Engine model | YCF3050-T302 (Yuchai) |
| Rated power/speed | 36.8kW/2400r/min |
| Diesel tank capacity | 100L |
| Track width / length | 300mm / 1340mm |
| Climbing capacity | ≥ 15% |
| Minimum turning radius | 3500mm |
| Outrigger hydraulic lifting stroke | 430mm |
| Twister speed | 0~65r/min |
| Size of auger feeding device | 1600mm long, 300mm diameter |
| Hydraulic vibrator interface | 2 |
| Vibrating rod frequency | 0~200Hz |
| Water tank capacity | 158L |
| Operating Weight | 3200Kg |
