Model NO.
ZM-1000 Asphalt Paver
Object
Asphalt Concrete Pavement
Mixing Method
Intermittent Compulsory
Automatic Grade
Semi-Automatic
Product Name
Asphalt Rubber Tracks Paver
Maximum Working Width
1000mm
Minimum Working Width
250mm
Maximum Working Speed
28m/Min
Maximum Turning Speed
3.2km/H
Package Size
60.00cm * 60.00cm * 60.00cm
Package Gross Weight
50.000kg
Product Description

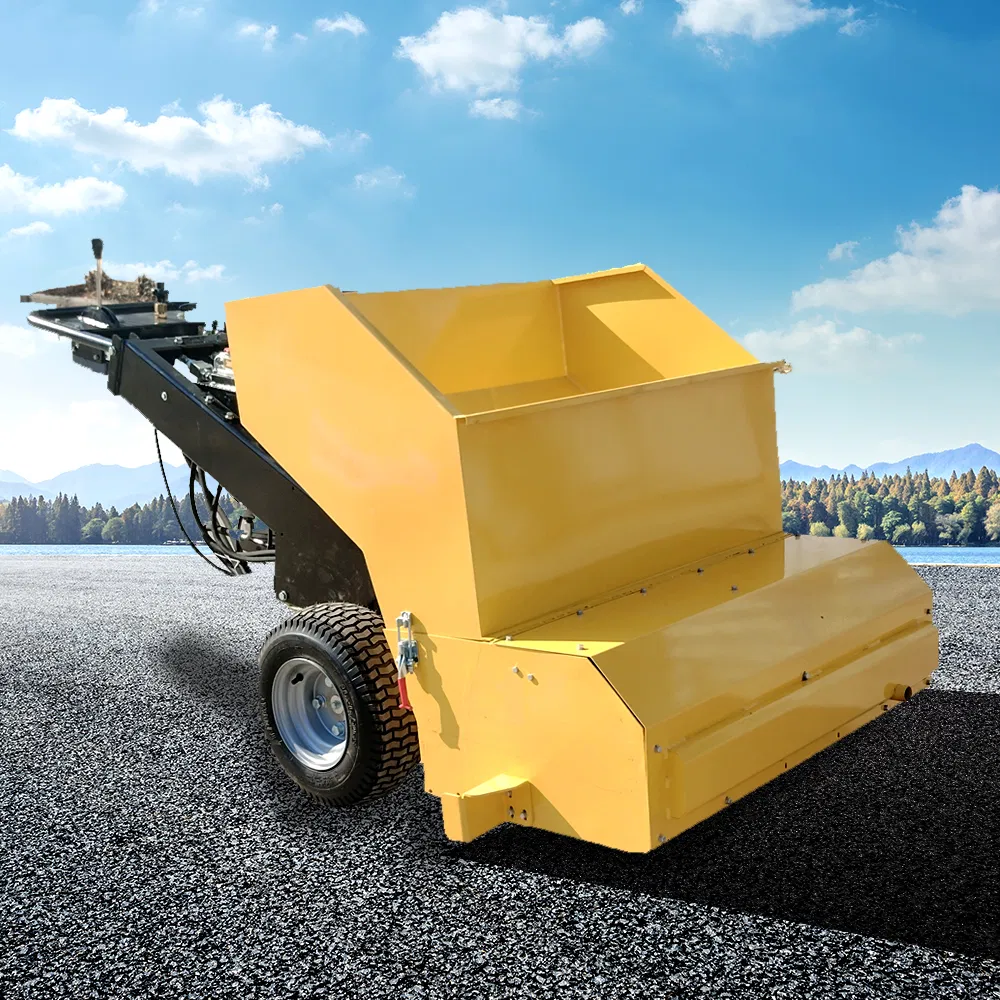

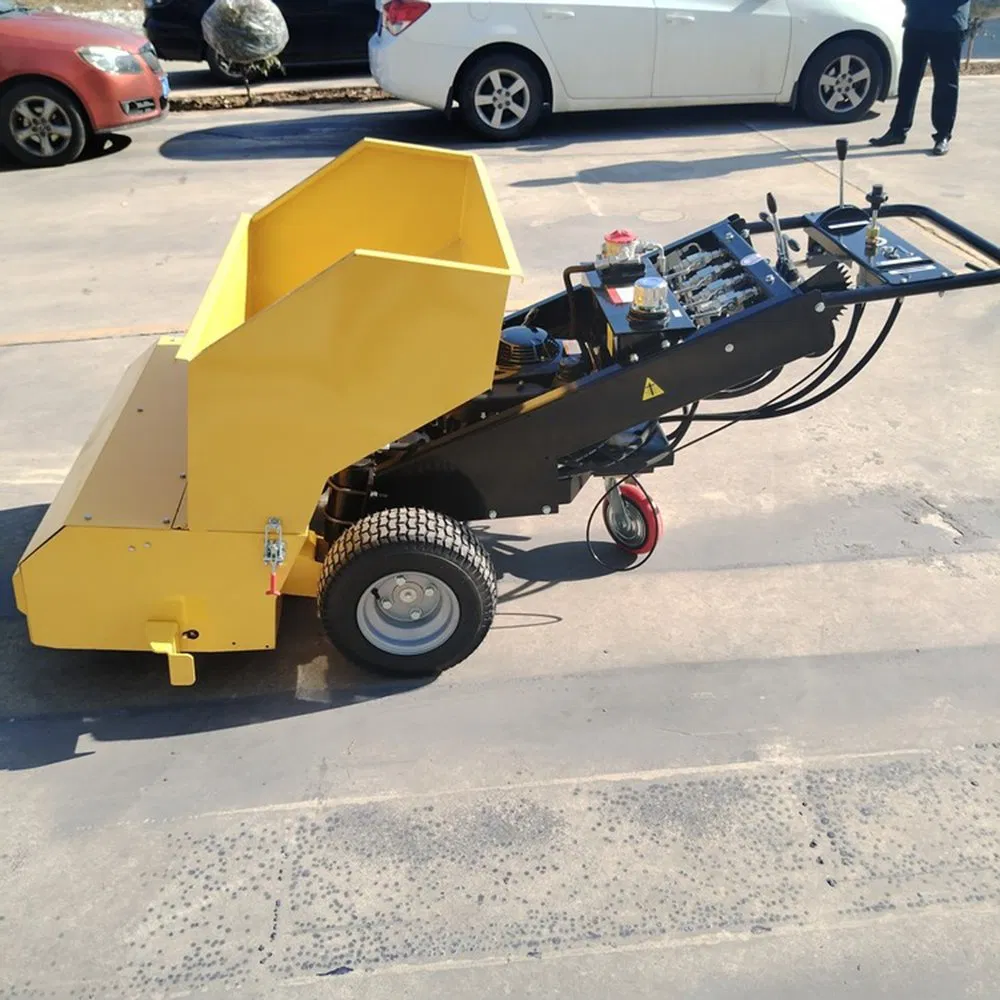

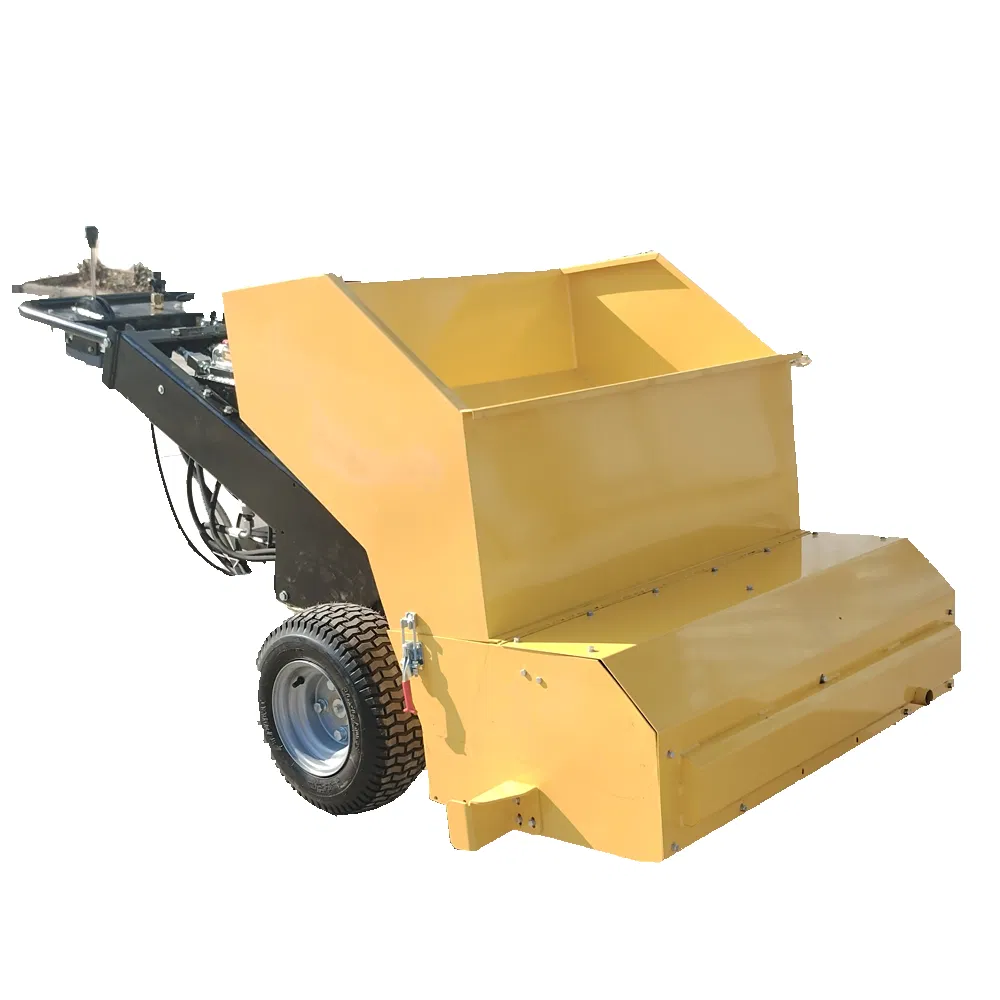

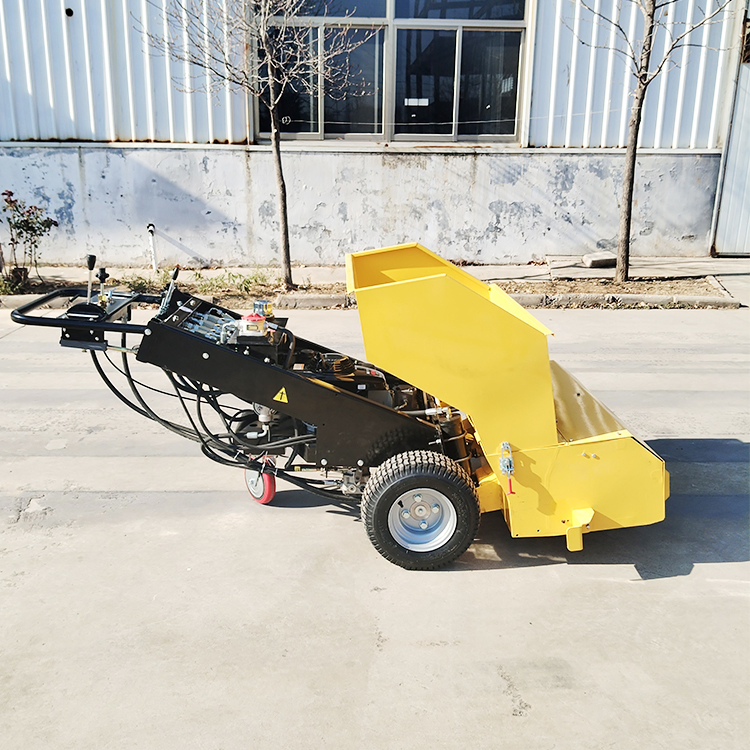

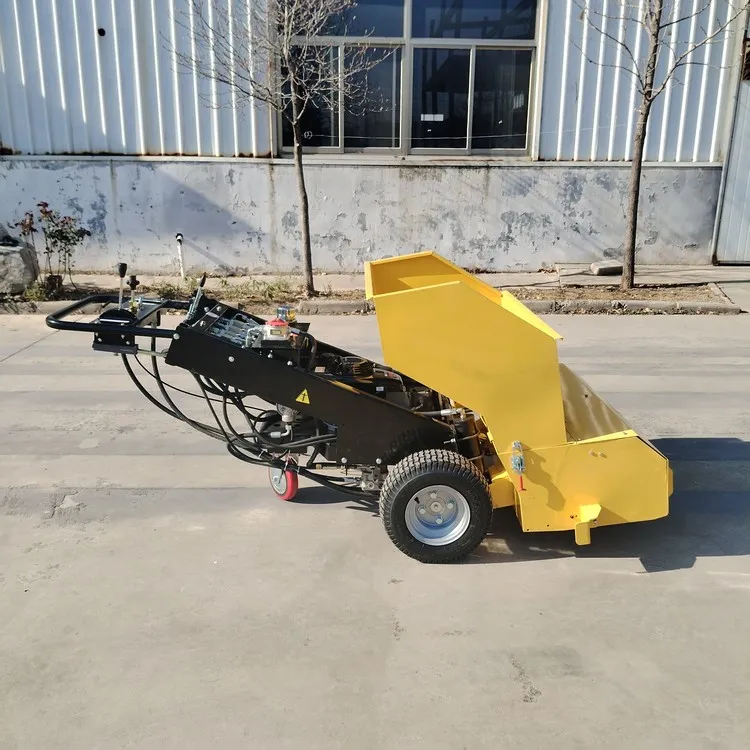

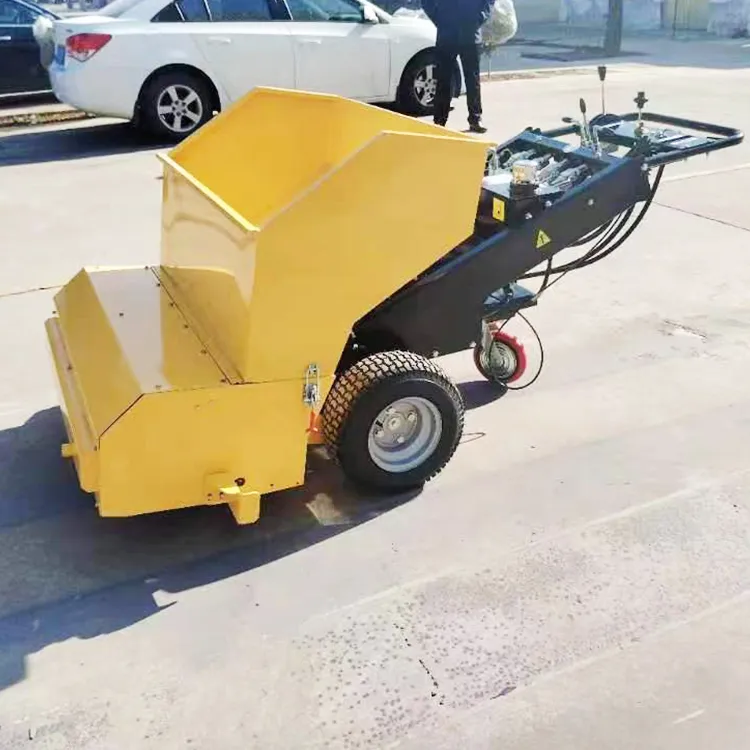

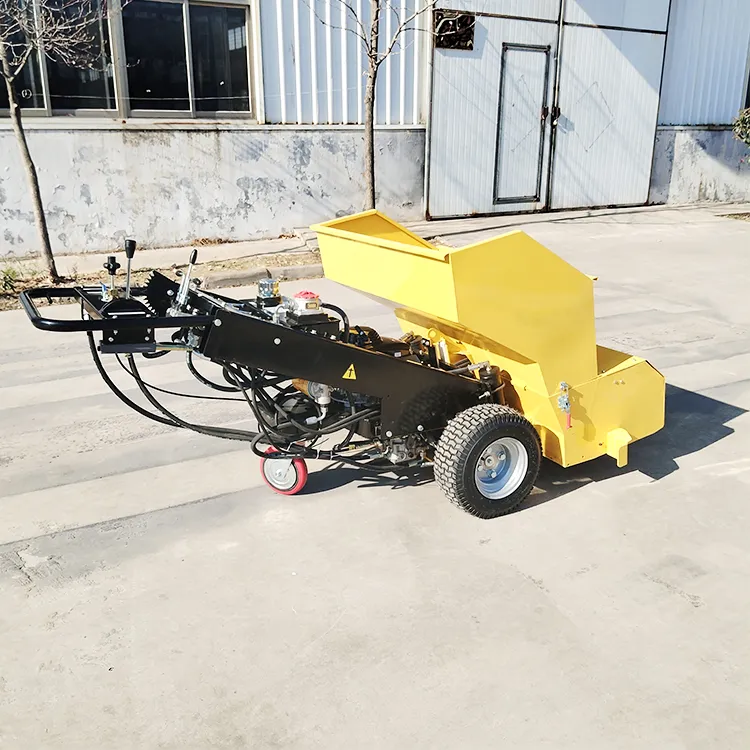

Small asphalt paver with a heated bottom used for home, road repair, community and park pavement construction. The minimum spreading length is 250mm and the maximum spreading length is 1000mm. Its small size and excellent maneuverability make it perfect for narrow or confined spaces, enabling precise and efficient paving in tight areas.
⚙️
High Horsepower Engine: Strong machine power, fuel-efficient and environmentally friendly, easy starting with transistorized magneto ignition system.
📏

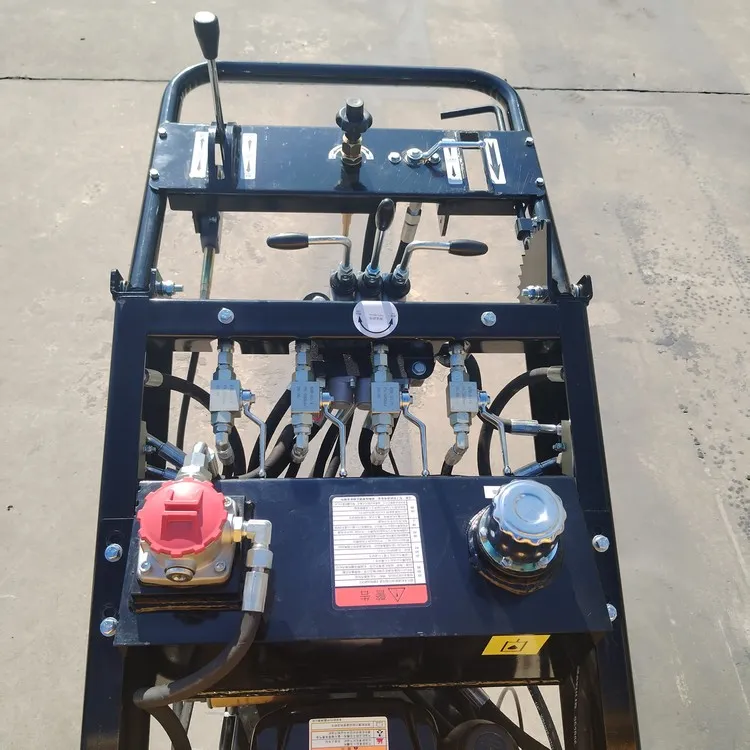

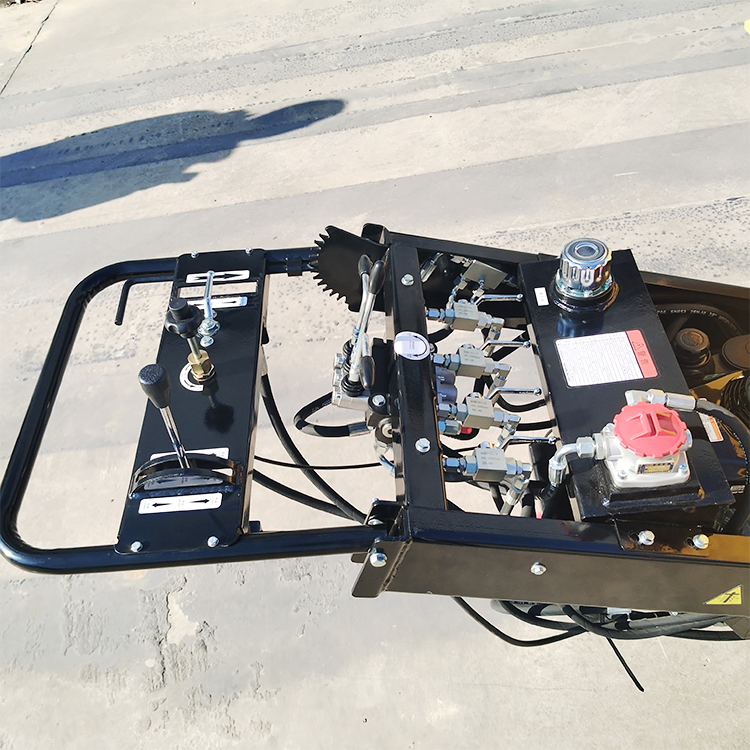

Thickness Adjustment: Left and right double cylinders independently control paving thickness for smooth and even surfaces.
🔄

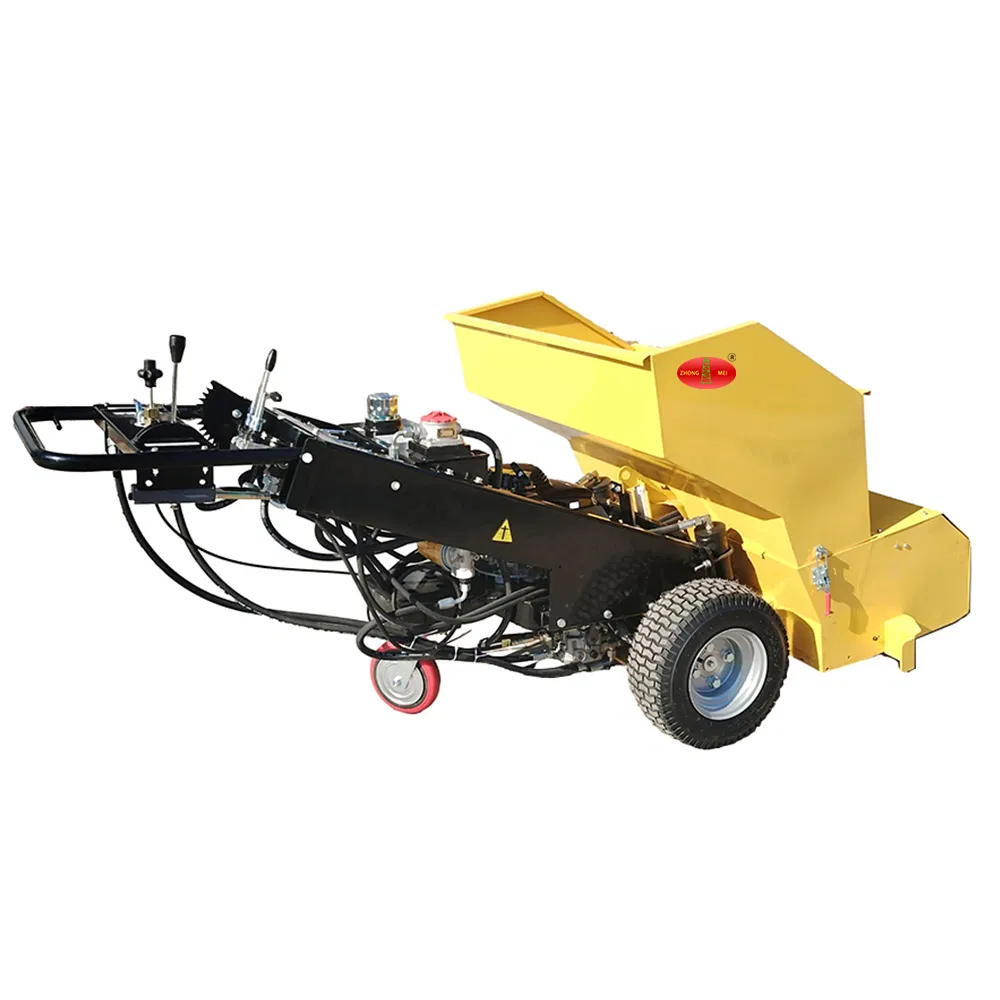

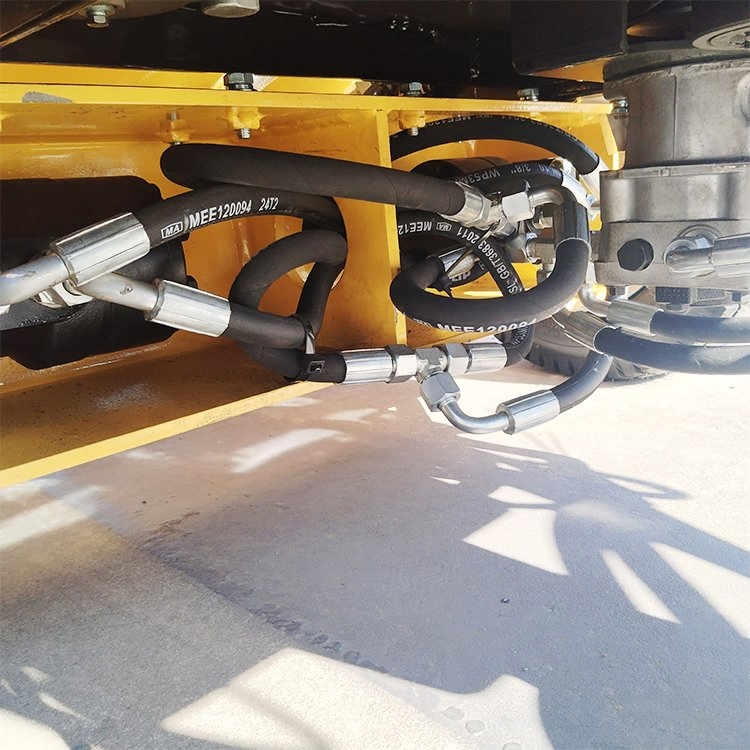

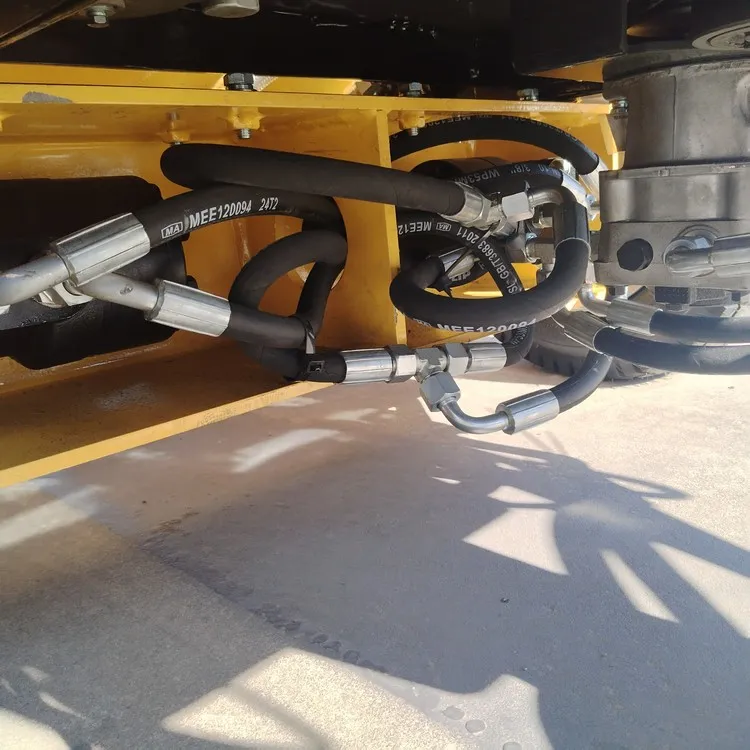

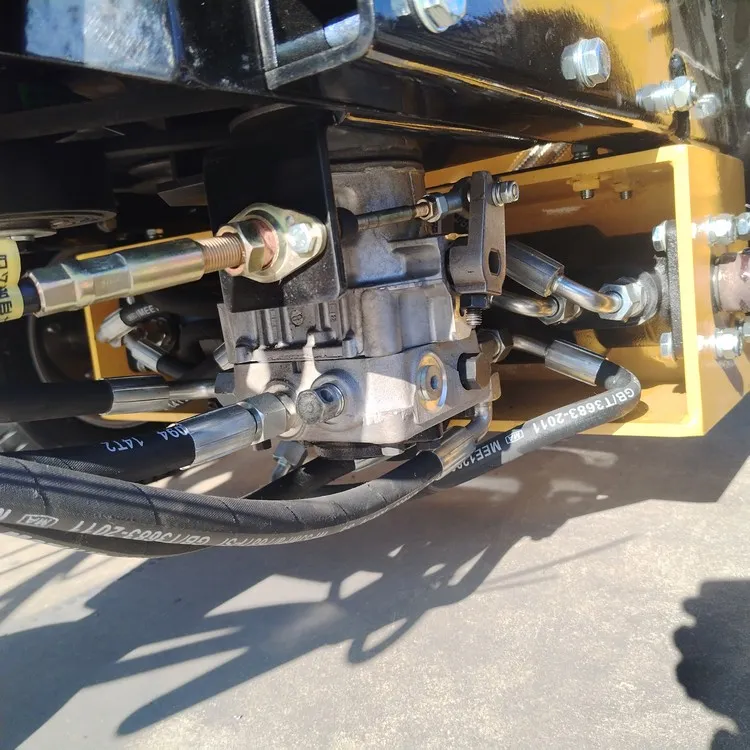

Convenient Movement: Hydraulic axle with two-wheel drive and universal wheels for faster transfer and turnaround.
🛠️

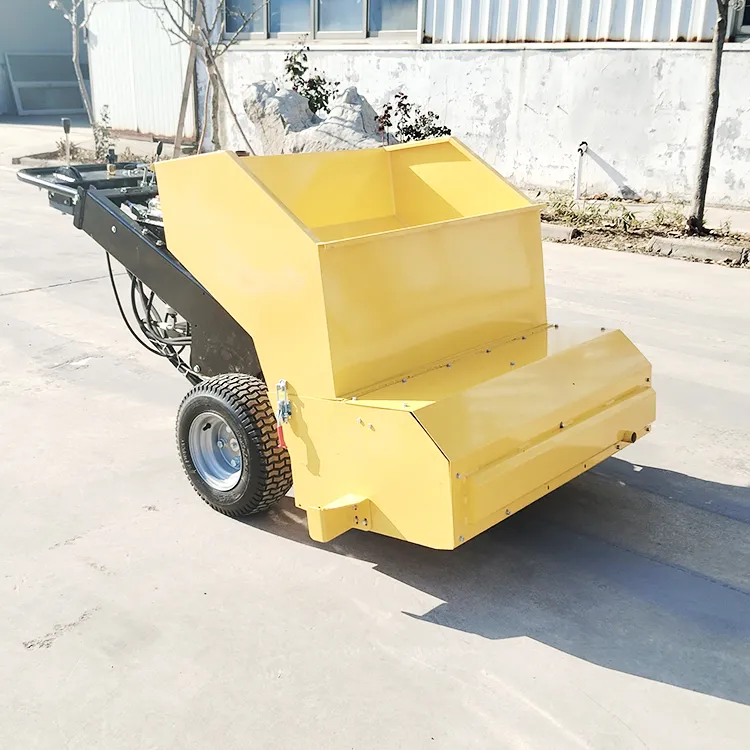

Adjustable Hopper: Four paving widths can be freely adjusted between 250mm and 1000mm.
Technical Parameters
| Specification |
Details (ZM-1000) |
| Engine | HONDA GXV160 |
| Engine Specification | Air-cooled single cylinder gasoline |
| Rated Power | 3.2kw |
| Maximum Working Width | 1000mm |
| Minimum Working Width | 250mm |
| Maximum Working Speed | 28m/min |
| Maximum Turning Speed | 3.2km/h |
| Fuel Capacity | 4L |
| Maximum Operating Weight | 530kg |
| Transportation Dimensions | 2250x1200x1150mm |
Frequently Asked Questions
1. What is the maximum paving width of the ZM-1000?
The ZM-1000 offers a maximum working width of 1000mm, which is adjustable down to 250mm to suit various narrow road requirements.
2. Which engine powers this mini asphalt paver?
It is equipped with a high-performance HONDA GXV160 air-cooled single-cylinder gasoline engine, known for its reliability and fuel efficiency.
3. Is the paving thickness adjustable?
Yes, the machine features a professional thickness adjustment system with left and right double cylinders that operate independently to ensure smooth and even paving.
4. What type of projects is this machine suitable for?
The ZM-1000 is ideal for small to medium-scale projects including residential streets, garden paths, bicycle lanes, parking lots, and road shoulder repairs.
5. How does the machine handle tight spaces?
Thanks to its compact size and hydraulic axle with universal wheels, the paver provides excellent maneuverability and can easily operate in confined or narrow areas.
6. What is the maximum working speed?
The ZM-1000 can reach a maximum working speed of 28 meters per minute, allowing for efficient project completion.
