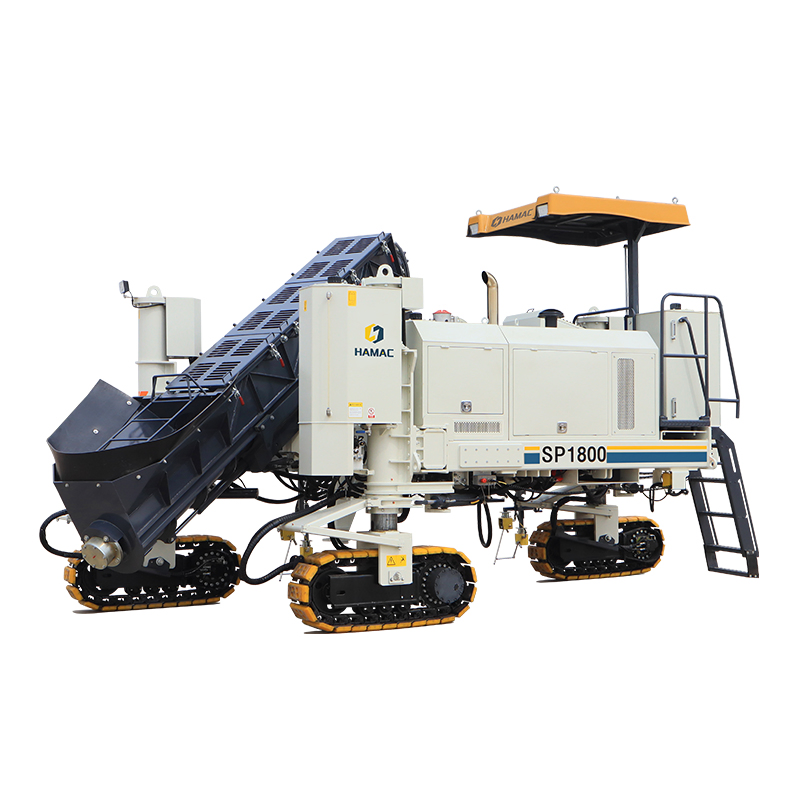

Sp1800 Slip-Form Paver Customized Molds Multi-Function Cement Concrete Offset Slipform Pavers

Product Description

Slip-Form Paver
Product Overview

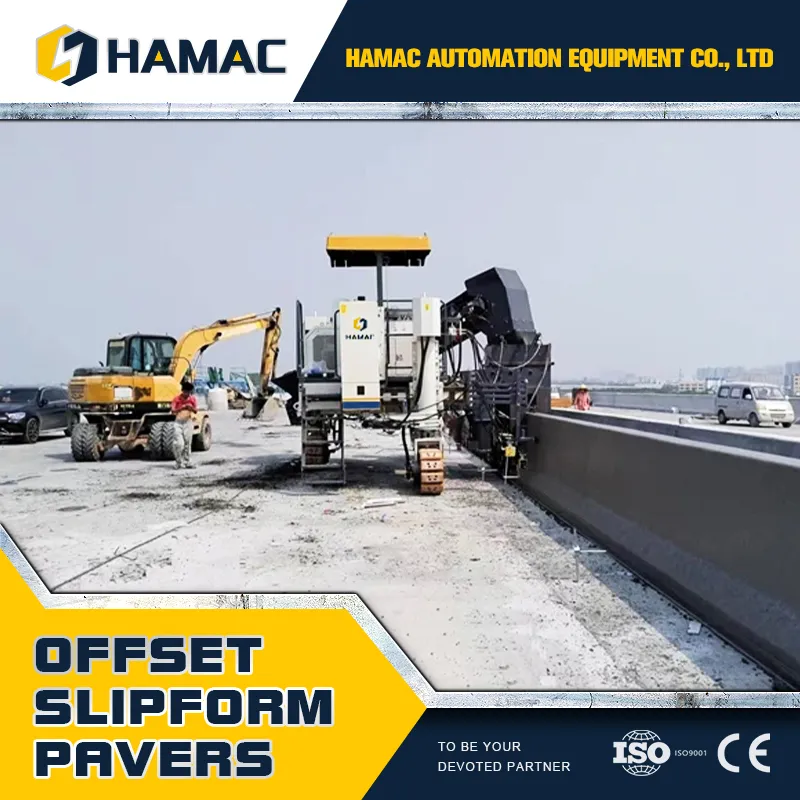

Offset pavers are used to produce monolithic concrete profiles such as protective concrete walls, kerb profiles, gutters or narrow paths. Thanks to numerous options, such as for concrete feeding or slipforming, offset slipform pavers are extremely versatile. Multi-functional slipform pavers is a multi-purpose cement concrete construction equipment independently developed. It is multi-purpose and can realize various mold configuration methods. It is widely used in road drainage ditches, drainage channels, curbs, shoulder stones, concrete guardrail cement concrete structures, farmland water conservancy channels and other construction fields. It replaces the traditional process and significantly improves the construction quality and speed of cement concrete structures. With slipform pavers, the concrete is placed directly in front of the machine and distributed by a spreading auger or spreading plough. Vibrators compact the concrete homogeneously and the mold forms it in the specified width and thickness as the slipform paver advances.

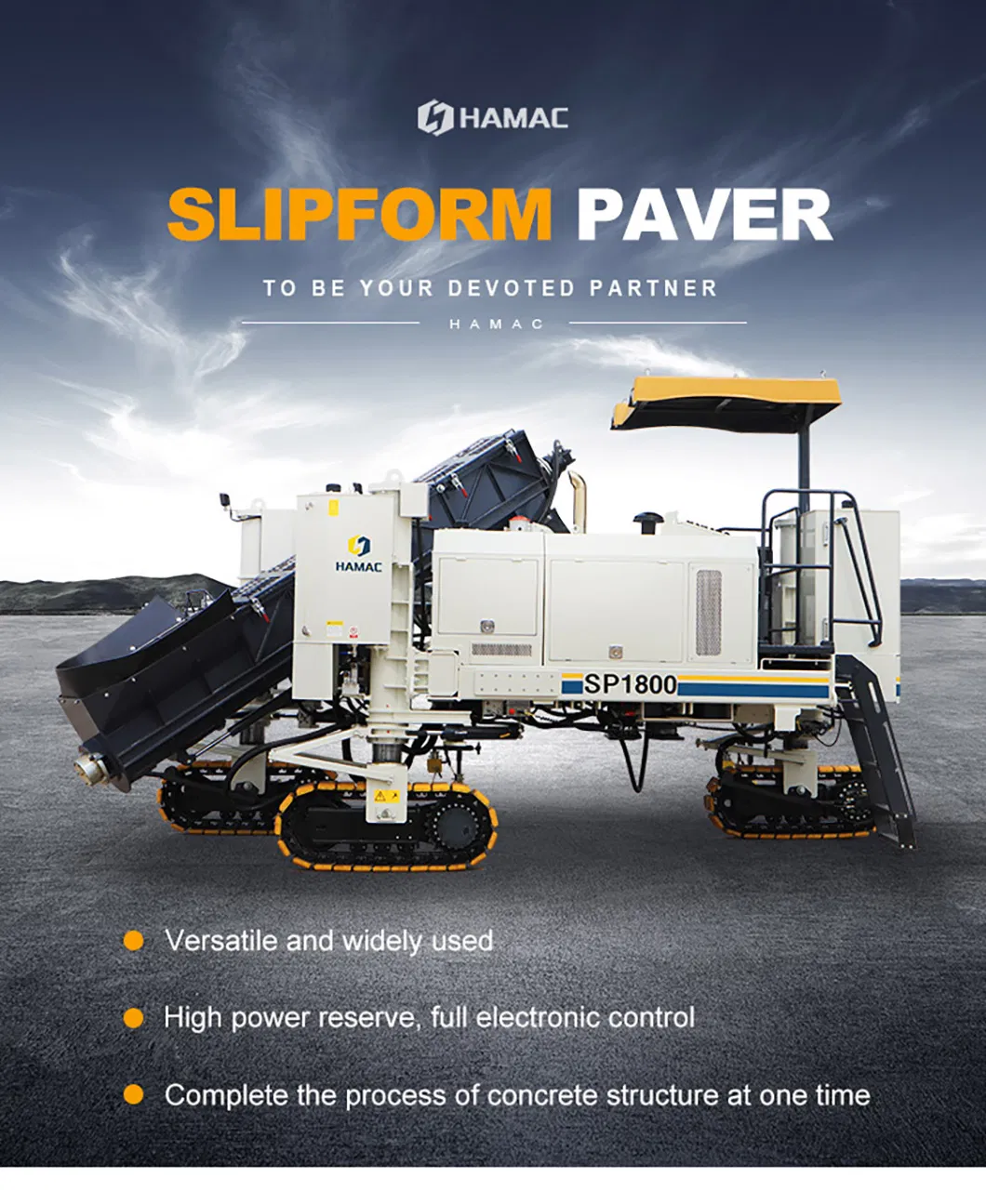

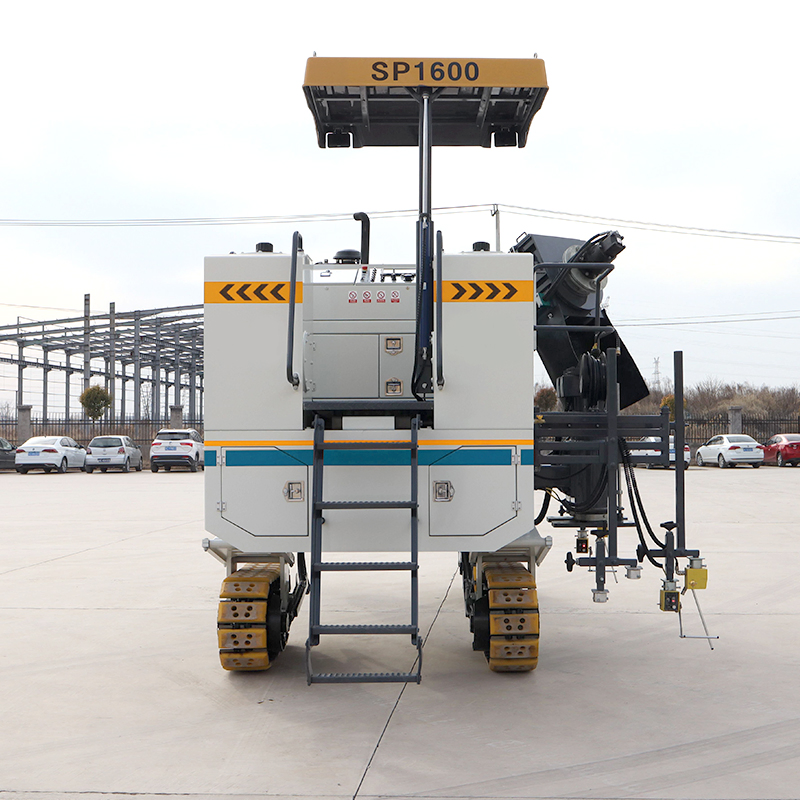

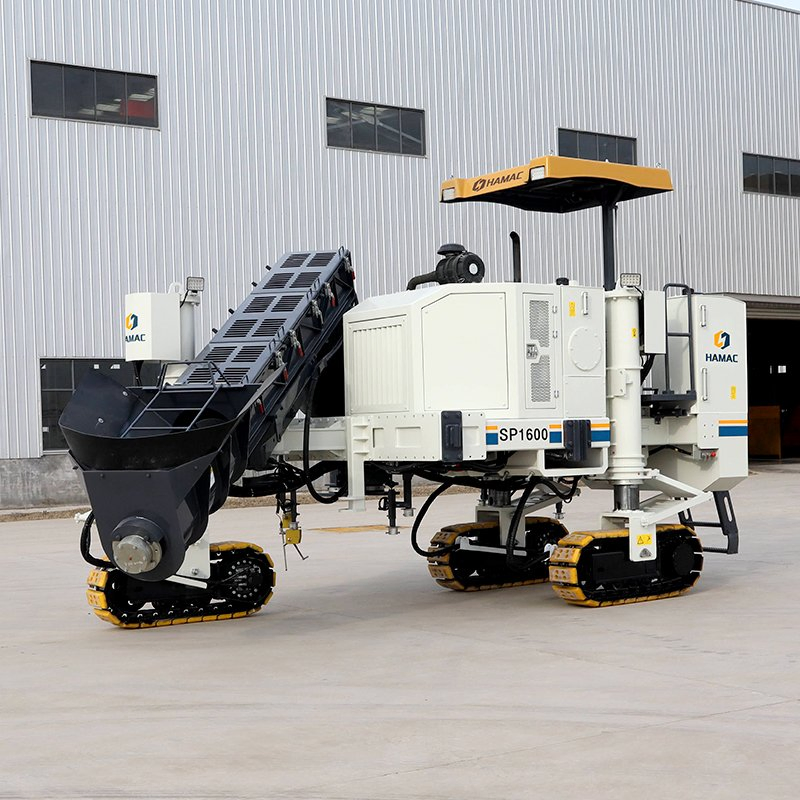

Paver Details 1

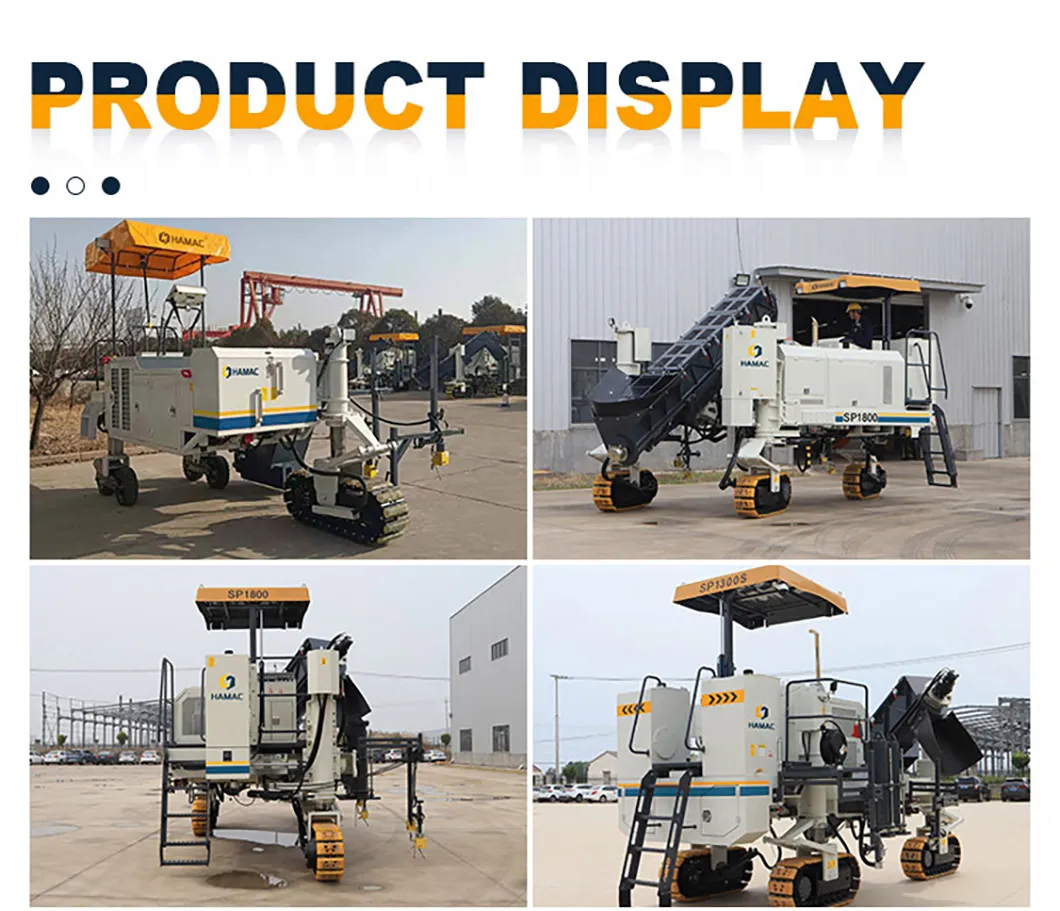

Paver Details 2

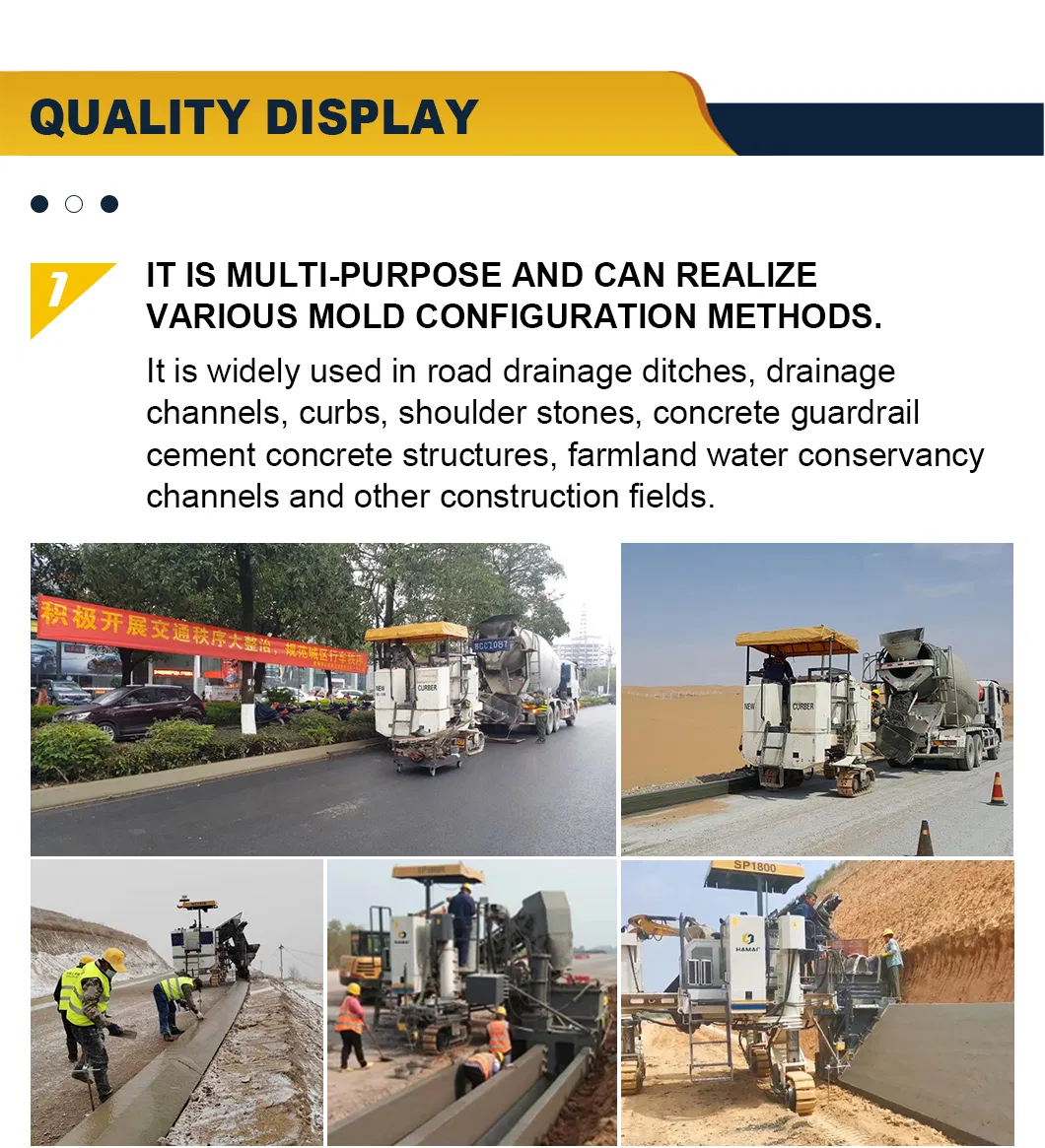

Paver Details 3

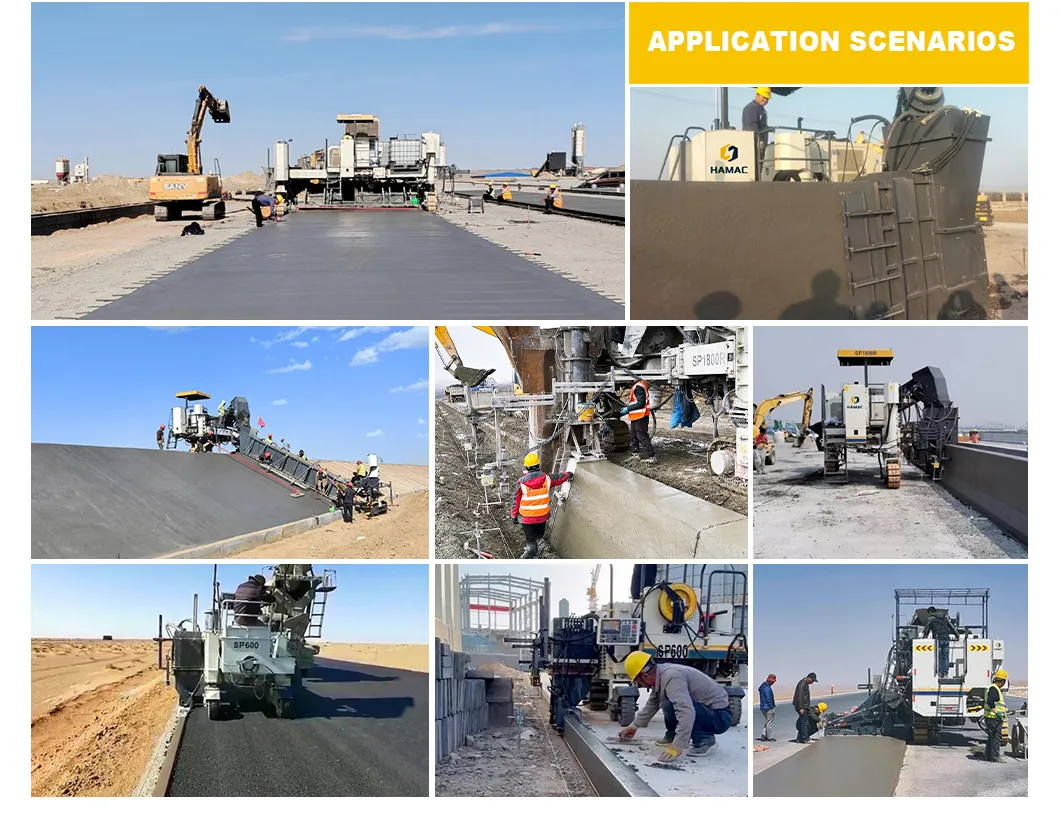

Paver Details 4

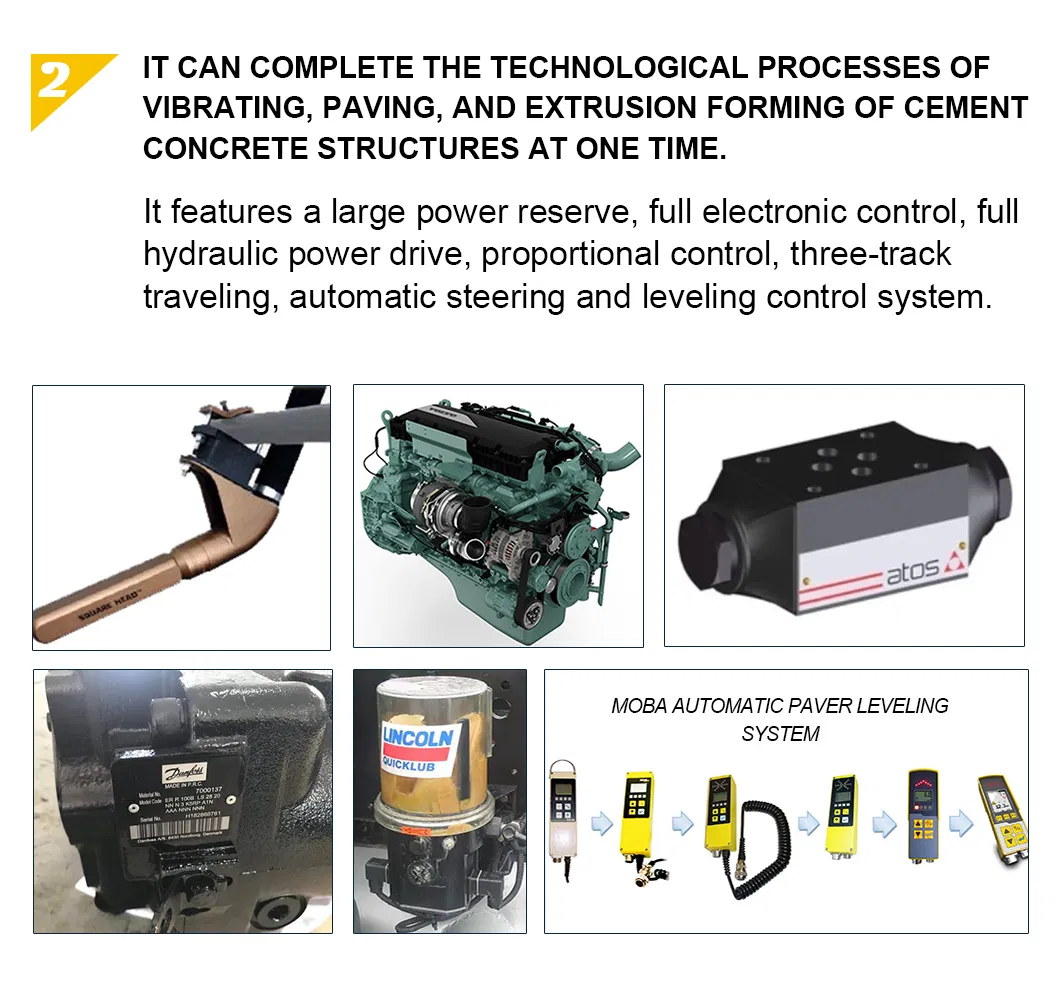

Paver Details 5

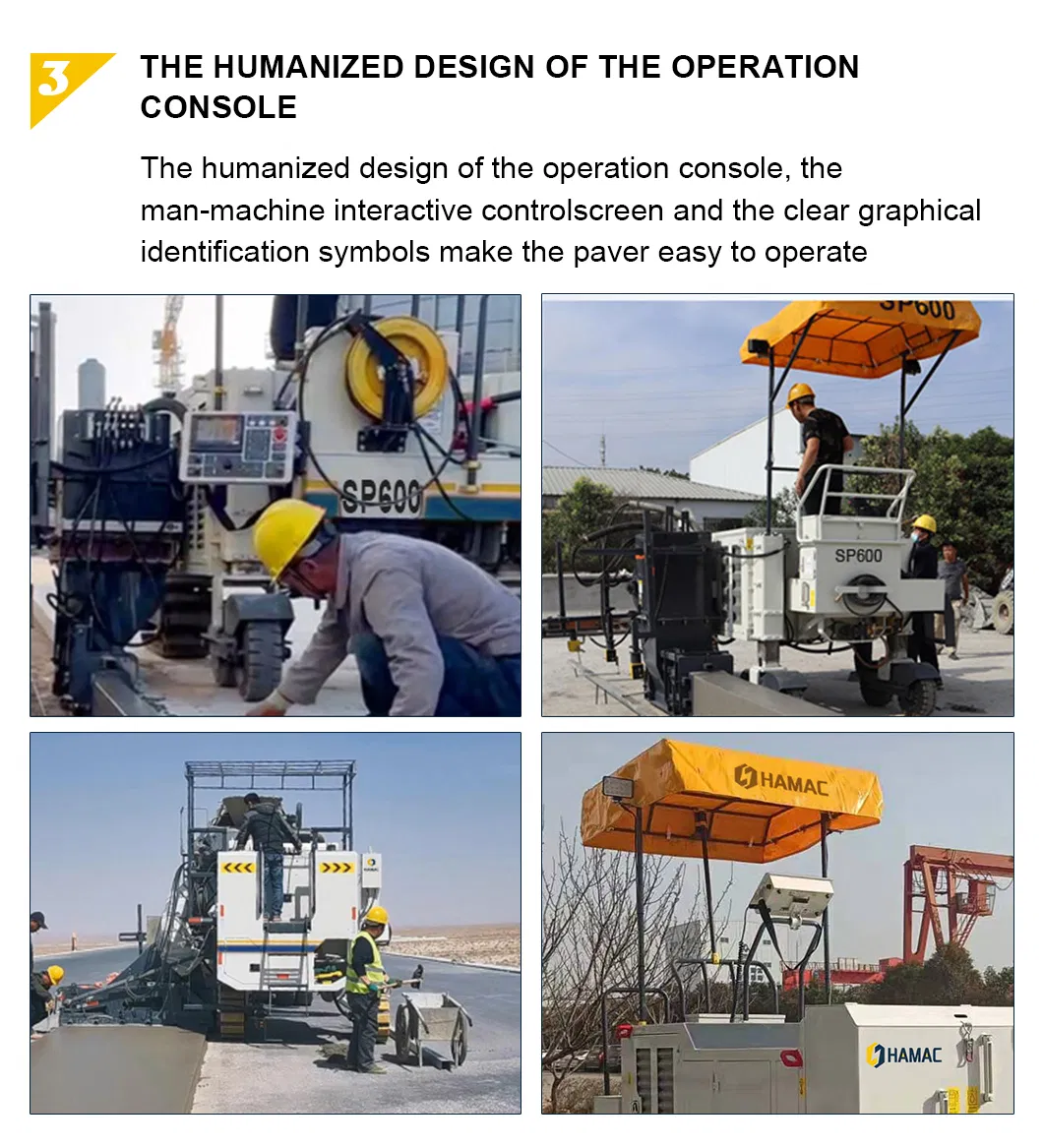

Paver Details 6
Technical Specifications
Specifications Header

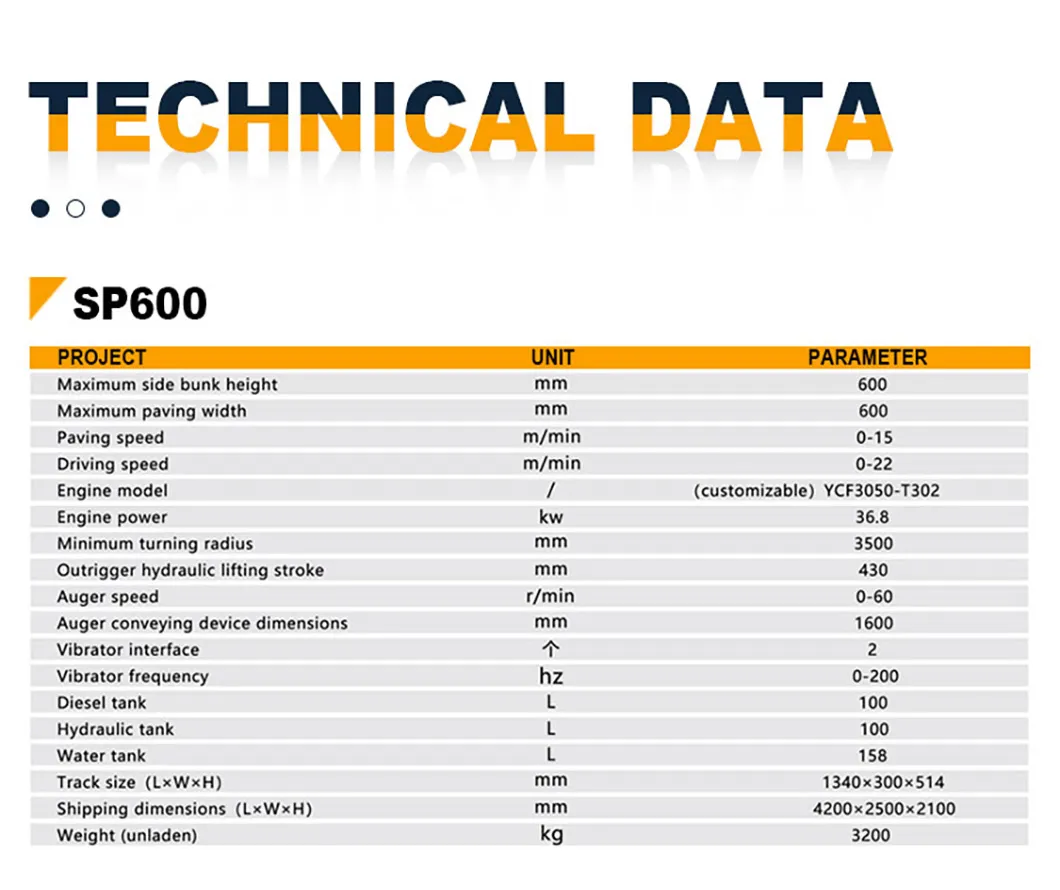

SP600 Parameters
PROJECT UNIT PARAMETER
Maximum side bunk heightmm600
Maximum paving widthmm600
Paving speedm/min0-15
Driving speedm/min0-22
Engine model/(customizable) YCF3050-T302
Engine powerkw36.8
Minimum turning radiusmm3500
Outrigger hydraulic lifting strokemm430
Auger speedr/min0-60
Auger conveying device dimensionsmm1600
Vibrator interfacepiece2
Vibrator frequencyhz0-200
Diesel tankL100
Hydraulic tankL100
Water tankL158
Track size (LxWxH)mm1340x300x514
Shipping dimensions (LxWxH)mm4200x2500x2100
Weight (unladen)kg3200
Application 1
Application 2
Application 3

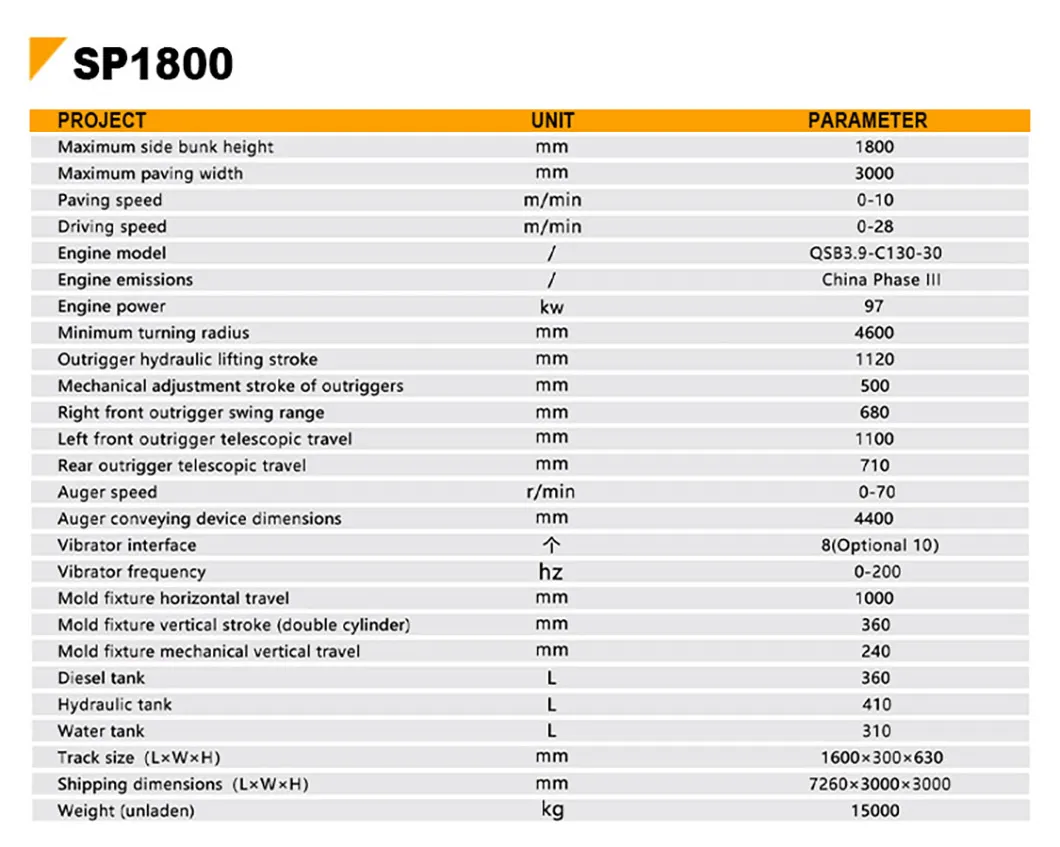

Application 4

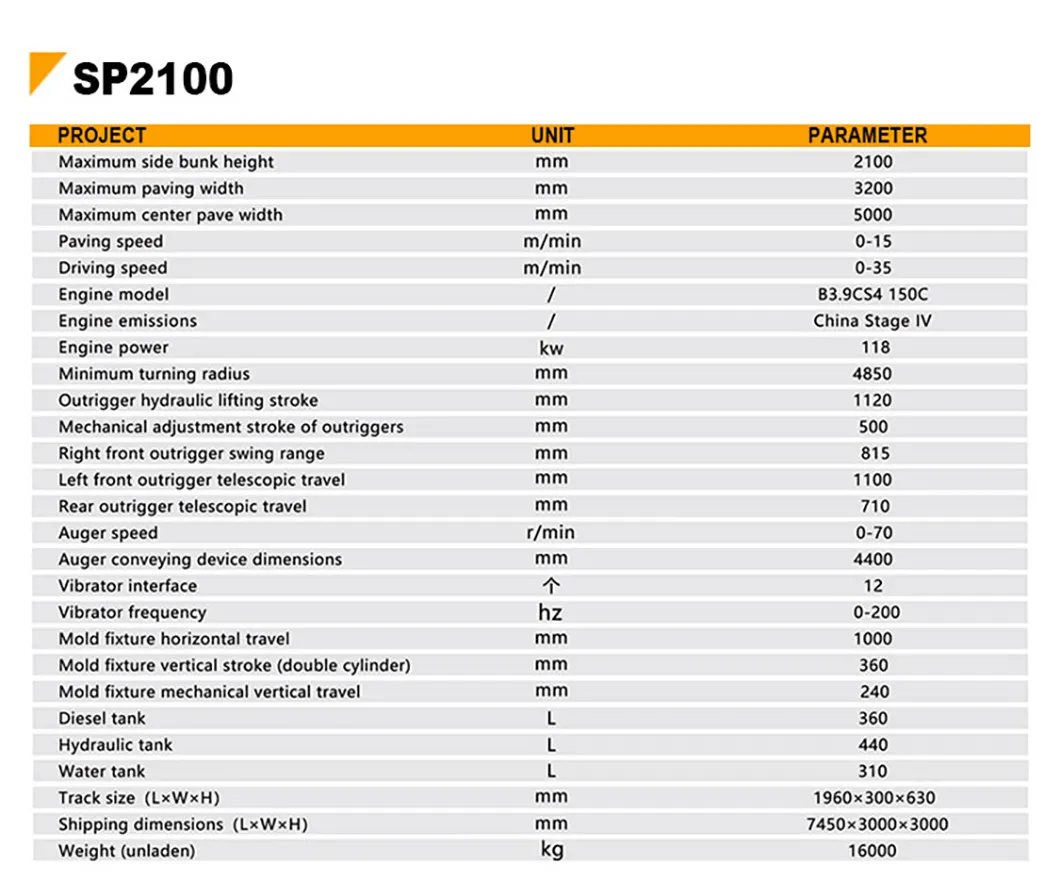

Application 5
Customized Molds & Results
Mold 1
Mold 2
Mold 3
Mold 4
Mold 5
Mold 6
Frequently Asked Questions
What is an offset slipform paver used for?
Offset slipform pavers are used to create monolithic concrete structures like curbs, gutters, drainage ditches, and protective highway walls.
How does the machine improve construction quality?
The machine uses vibrators to compact concrete homogeneously and high-precision molds to ensure the specified width and thickness are consistent throughout the advance.
Are the molds customizable for different projects?
Yes, the equipment supports various mold configuration methods to realize different concrete profiles based on specific engineering requirements.
What is the paving speed of the SP600 model?
The SP600 model offers a paving speed ranging from 0 to 15 meters per minute, depending on the site conditions and material supply.
Can this machine handle sharp turns in road construction?
With a minimum turning radius of 3500mm, it is highly maneuverable and suitable for most standard road and drainage construction sites.
What kind of maintenance does the hydraulic system require?
Standard maintenance includes checking the 100L hydraulic tank levels and ensuring the vibrator interfaces and auger conveying devices are clean and lubricated.
