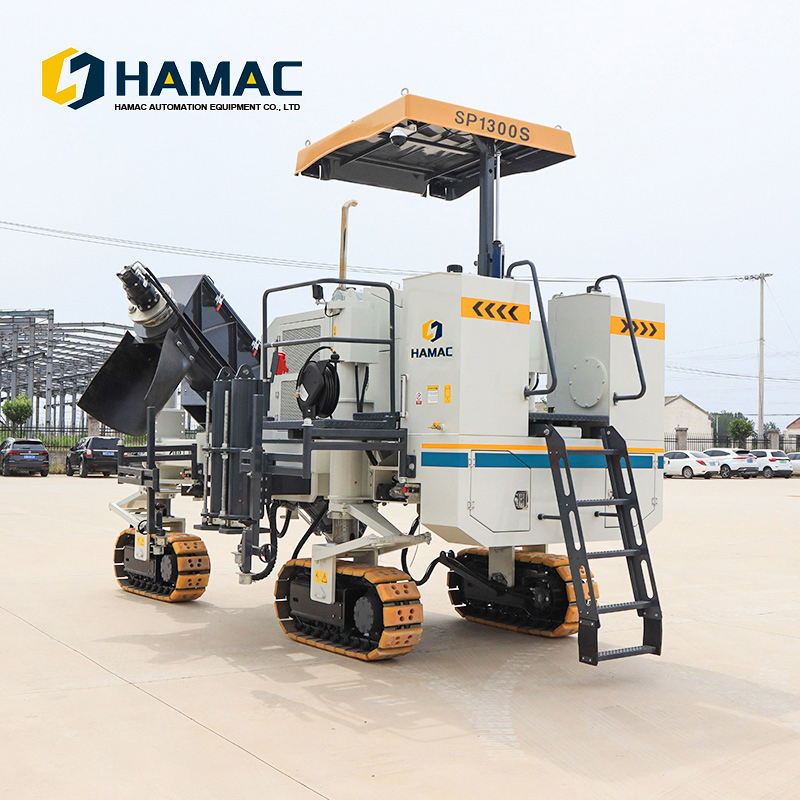

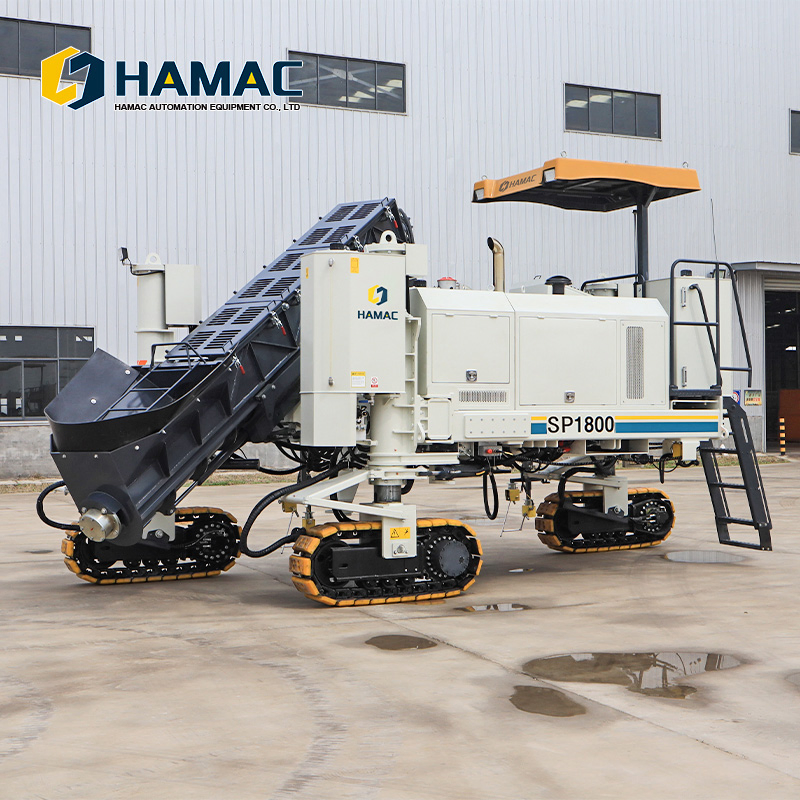

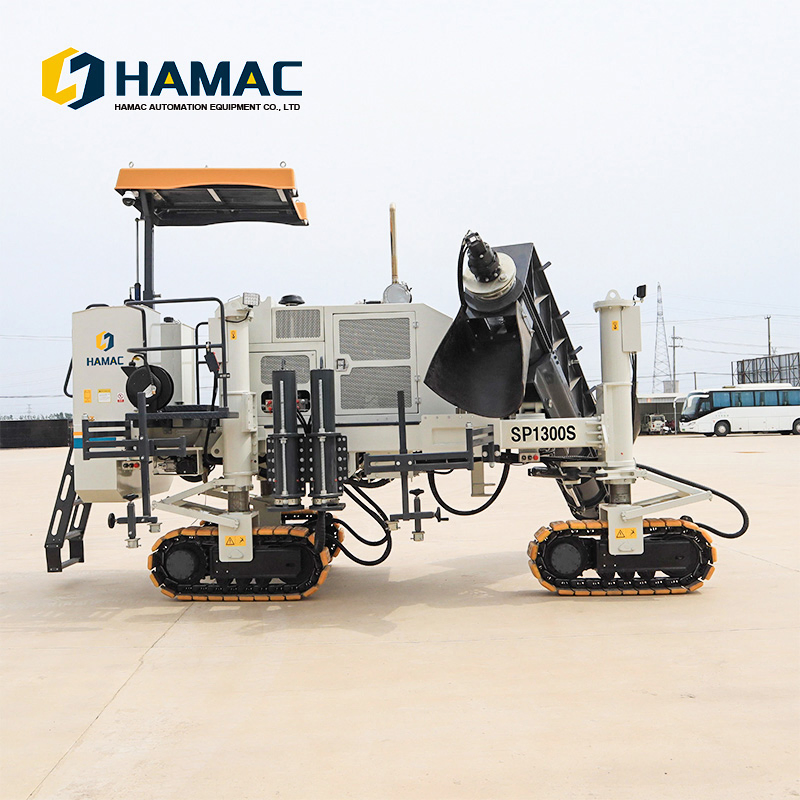

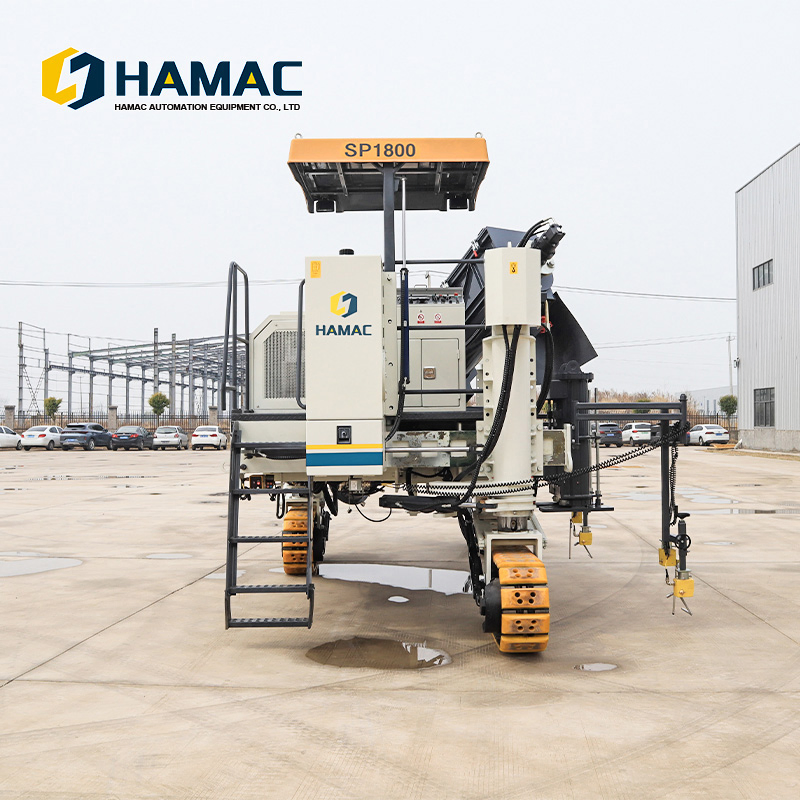

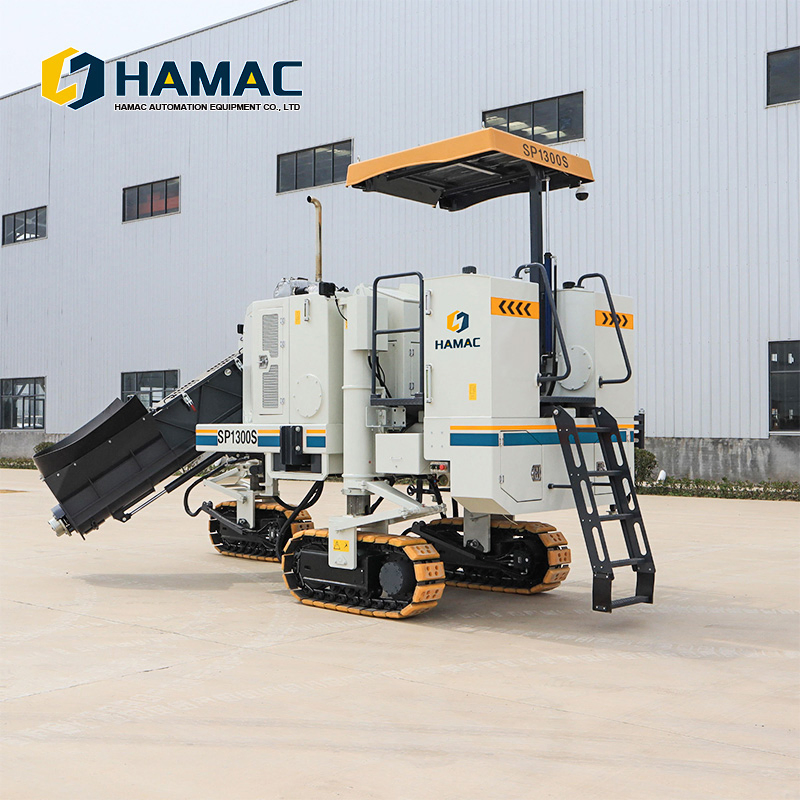

Sp1200 Hand-Push Curb Paver for Sale Have Reliable Performance for Hot Sale

Customization: Available
After-sales Service: Online Support, Video Technical Support
Warranty: 1 Year

Product Description

Basic Specifications

Model NO. SP1200
Type Paver
Object Cement Concrete Pavement
Moving Type Mobile
Automatic Grade Automatic
Product Capacity 40~400t/h
Certification ISO9001: 2000, CE
Maximum Side Bunk Height 600mm
Paving Speed 0-15m/Min
Engine Power 36.8kw
Minimum Turning Radius 3500mm
Shipping Dimensions 4200x2500x2100
Origin China

Product Description

Curb Paver Overview
Offset pavers are used to produce monolithic concrete profiles such as protective concrete walls, kerb profiles, gutters or narrow paths. Thanks to numerous options, such as for concrete feeding or slipforming, offset slipform pavers are extremely versatile.

Multi-functional slipform pavers is a multi-purpose cement concrete construction equipment. It is multi-purpose and can realize various mold configuration methods. It is widely used in road drainage ditches, drainage channels, curbs, shoulder stones, concrete guardrail cement concrete structures, farmland water conservancy channels and other construction fields. It replaces the traditional process and significantly improves the construction quality and speed of cement concrete structures. With slipform pavers, the concrete is placed directly in front of the machine and distributed by a spreading auger or spreading plough. Vibrators compact the concrete homogeneously and the mold forms it in the specified width and thickness as the slipform paver advances.

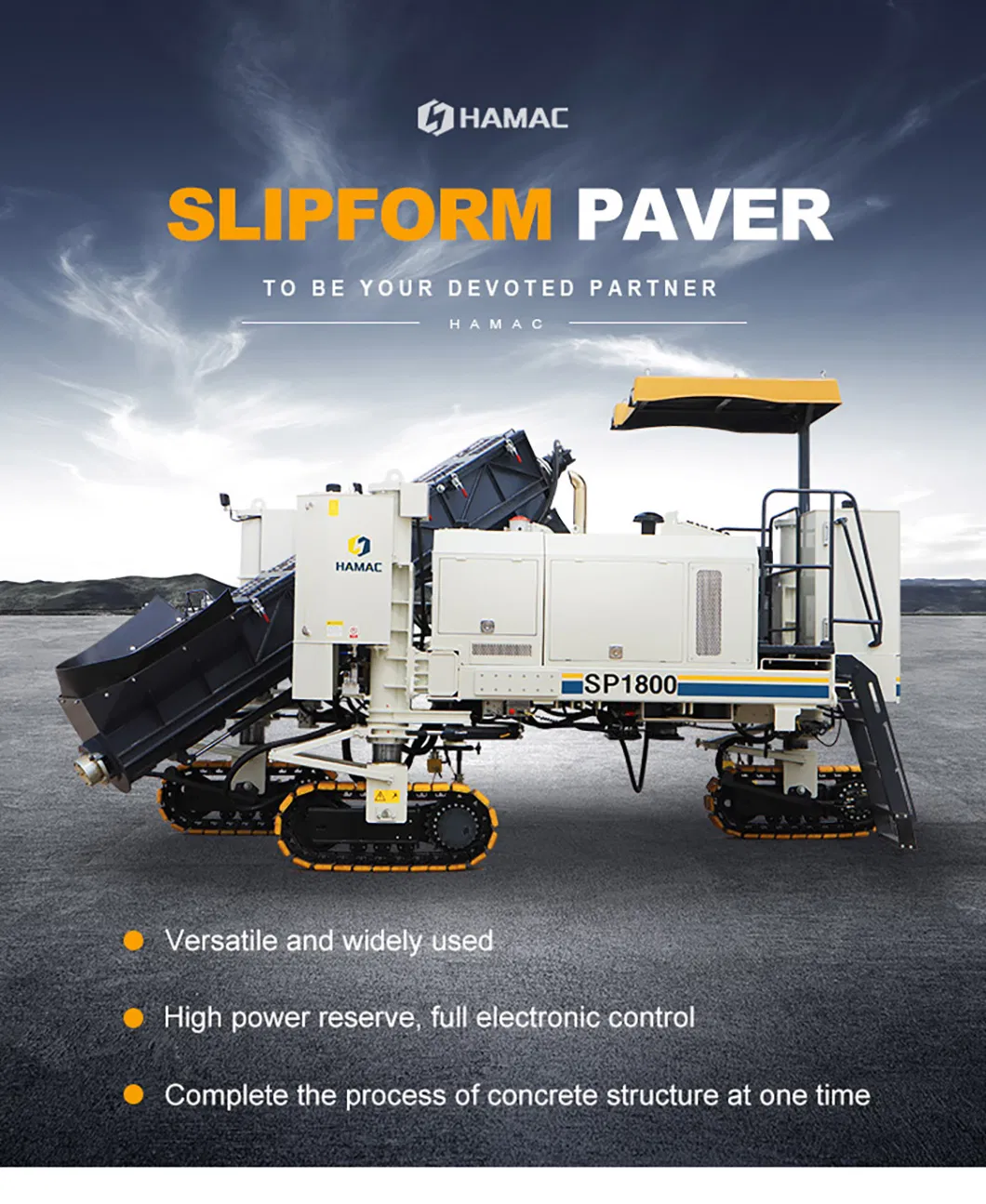

Performance View 1

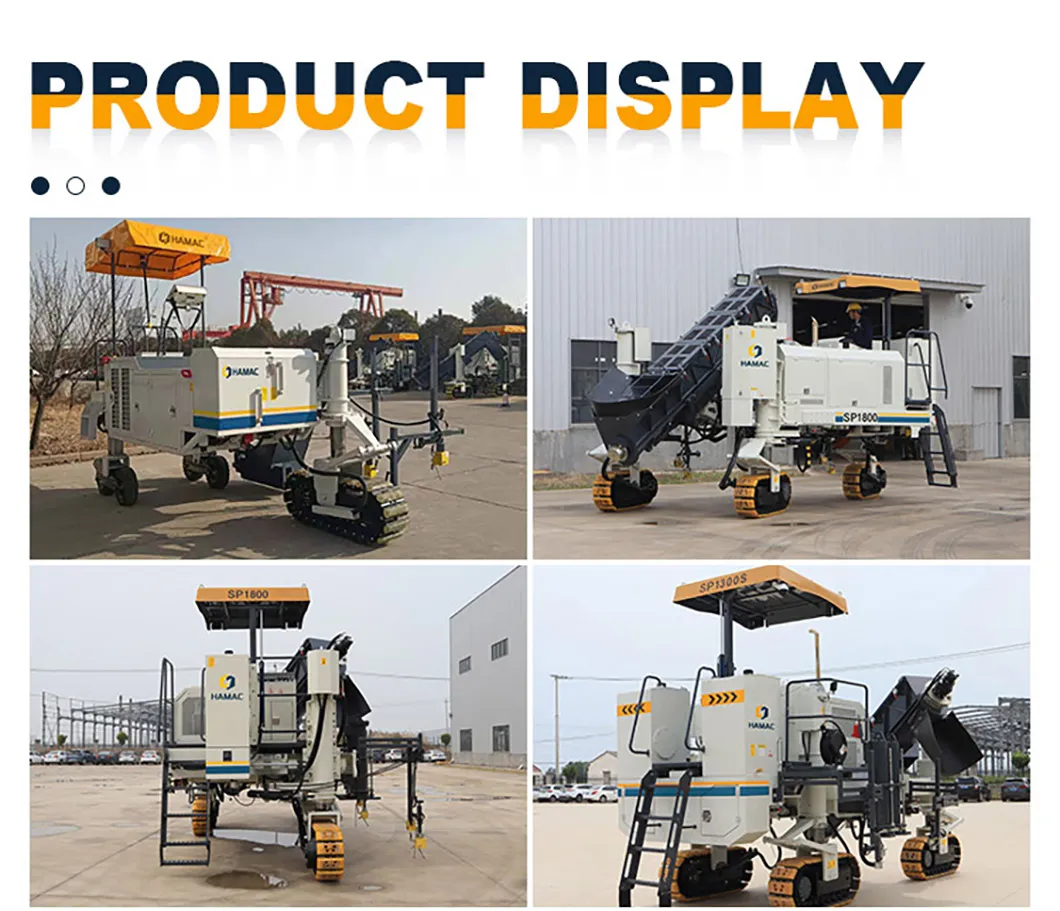

Performance View 2

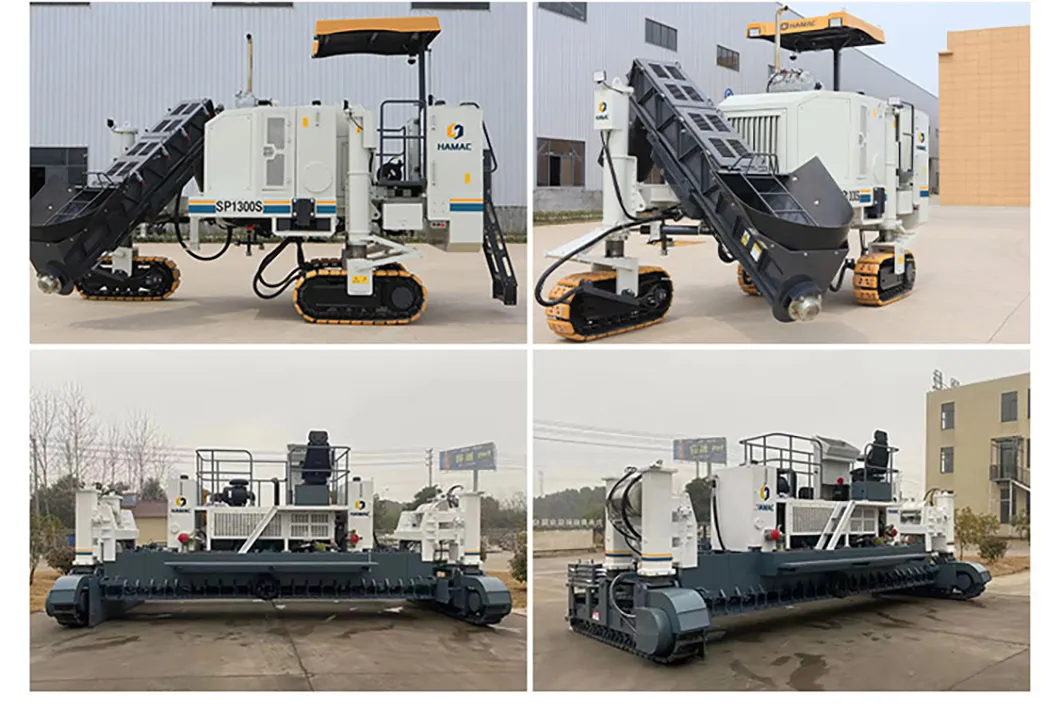

Performance View 3

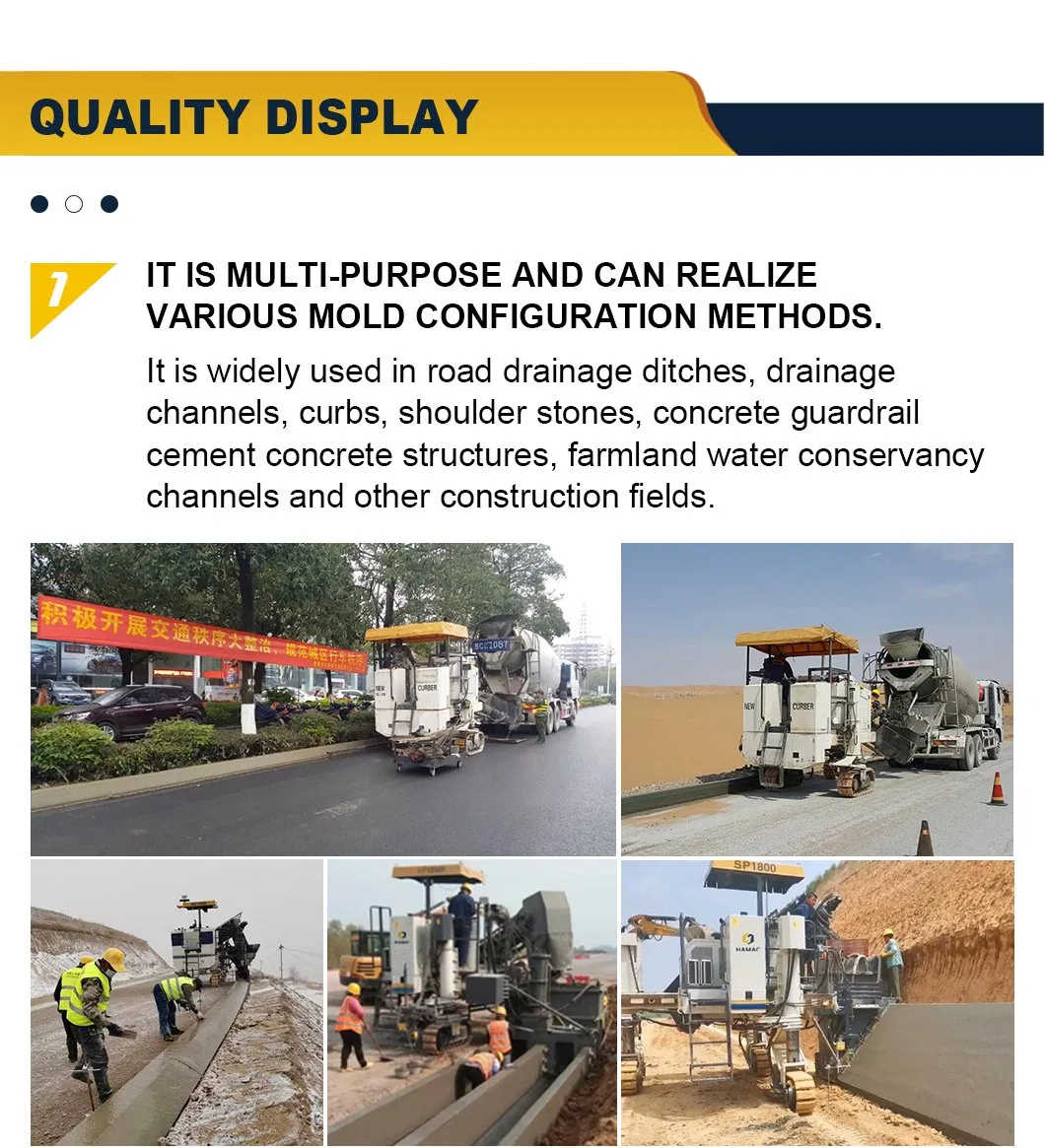

Technical Detail 1

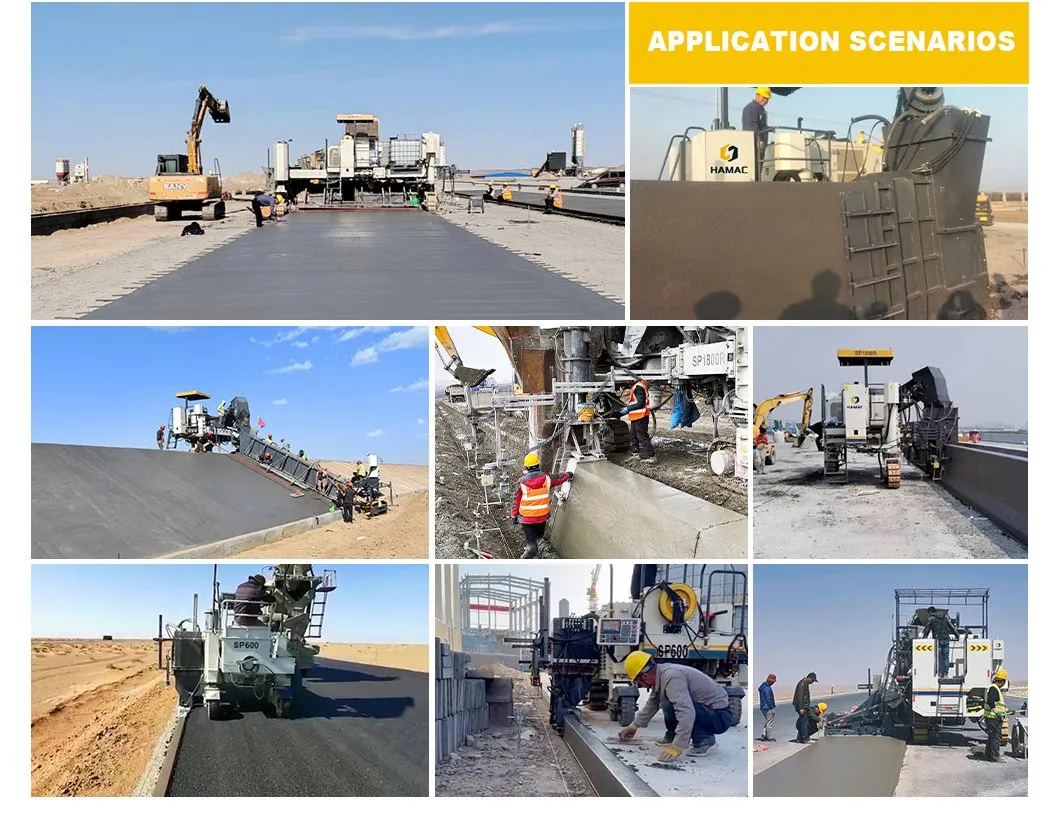

Technical Detail 2

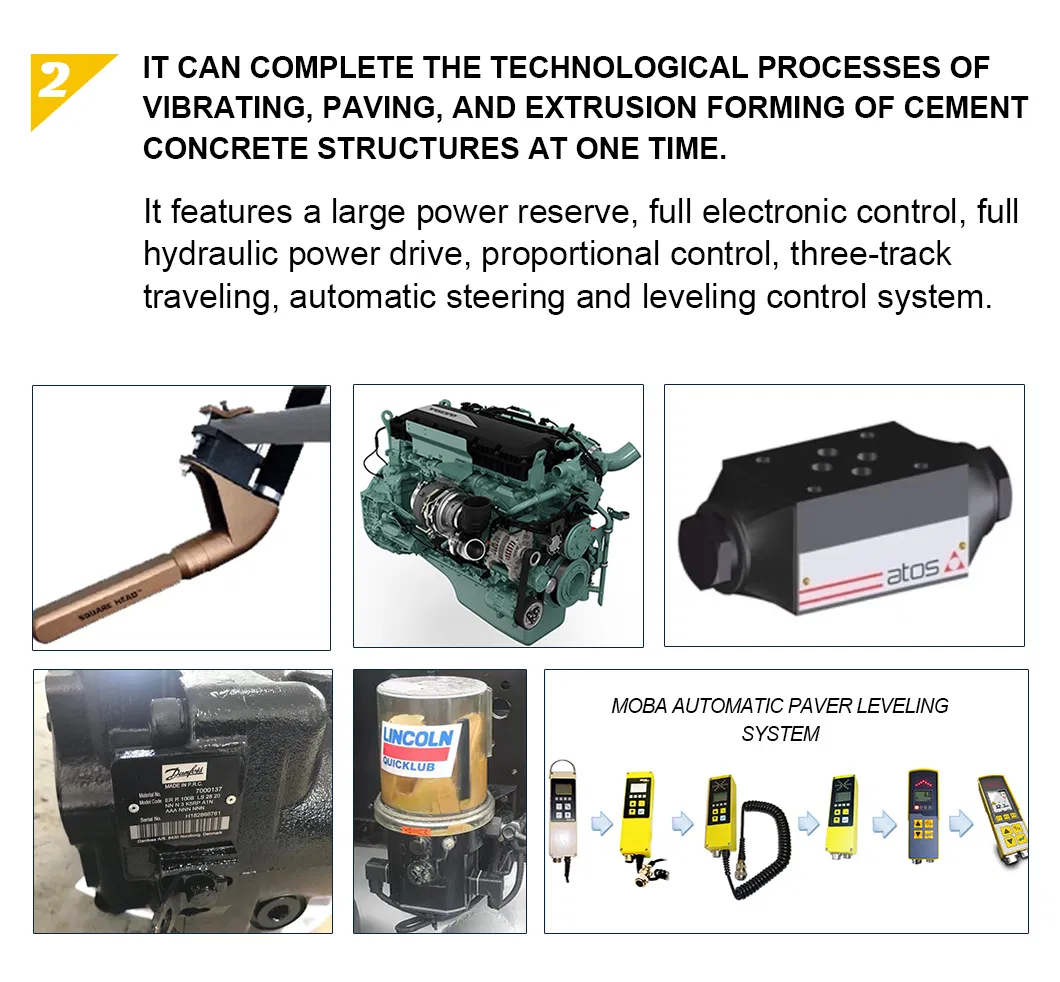

Machine Structure 1

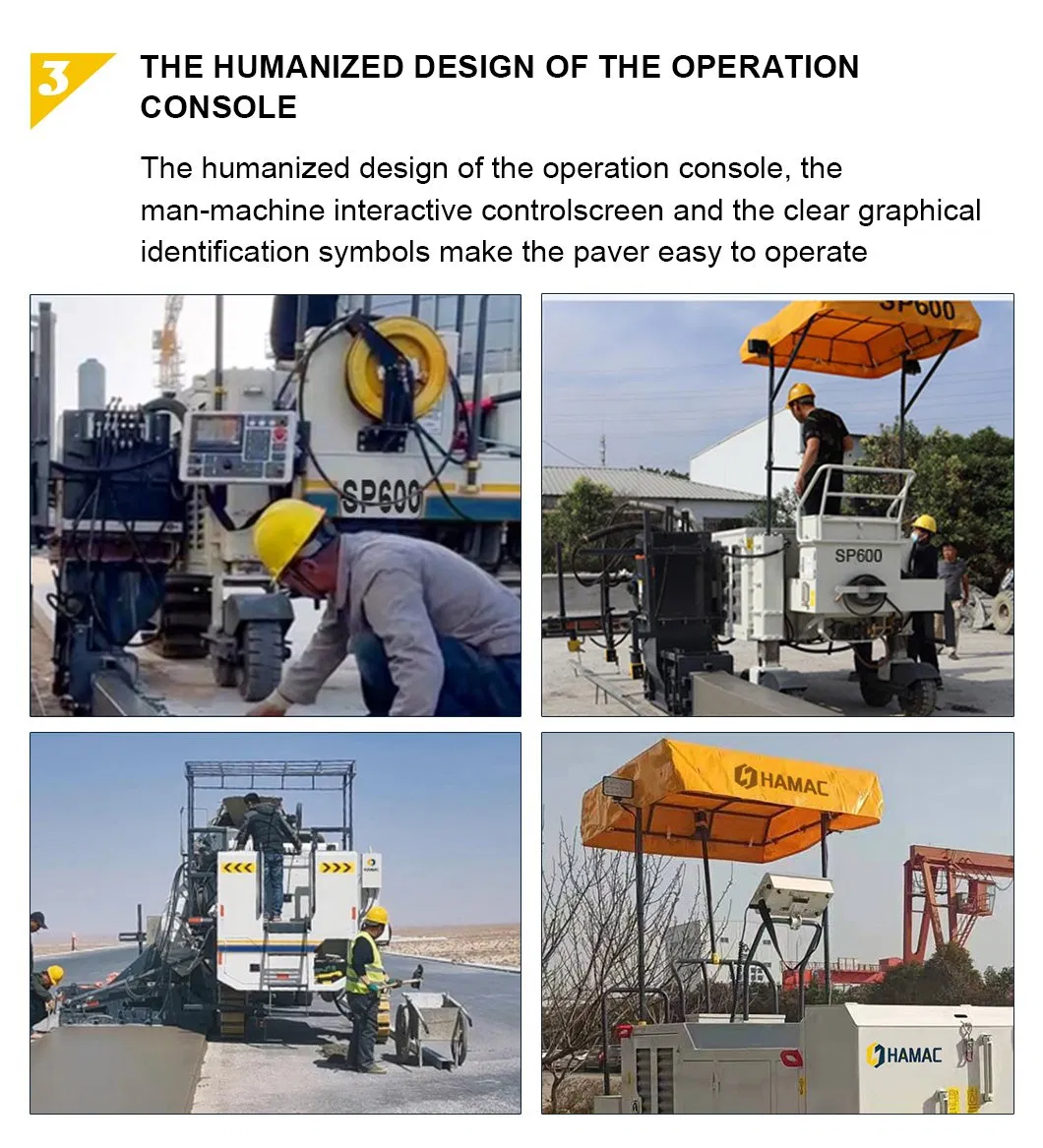

Machine Structure 2
📊

Technical Parameters (SP600)

Parameters Header
PROJECT UNIT PARAMETER
Maximum side bunk heightmm600
Maximum paving widthmm600
Paving speedm/min0-15
Driving speedm/min0-22
Engine powerkw36.8
Minimum turning radiusmm3500
Outrigger hydraulic strokemm430
Auger speedr/min0-60
Vibrator frequencyhz0-200
Diesel tankL100
Hydraulic tankL100
Weight (unladen)KG3200

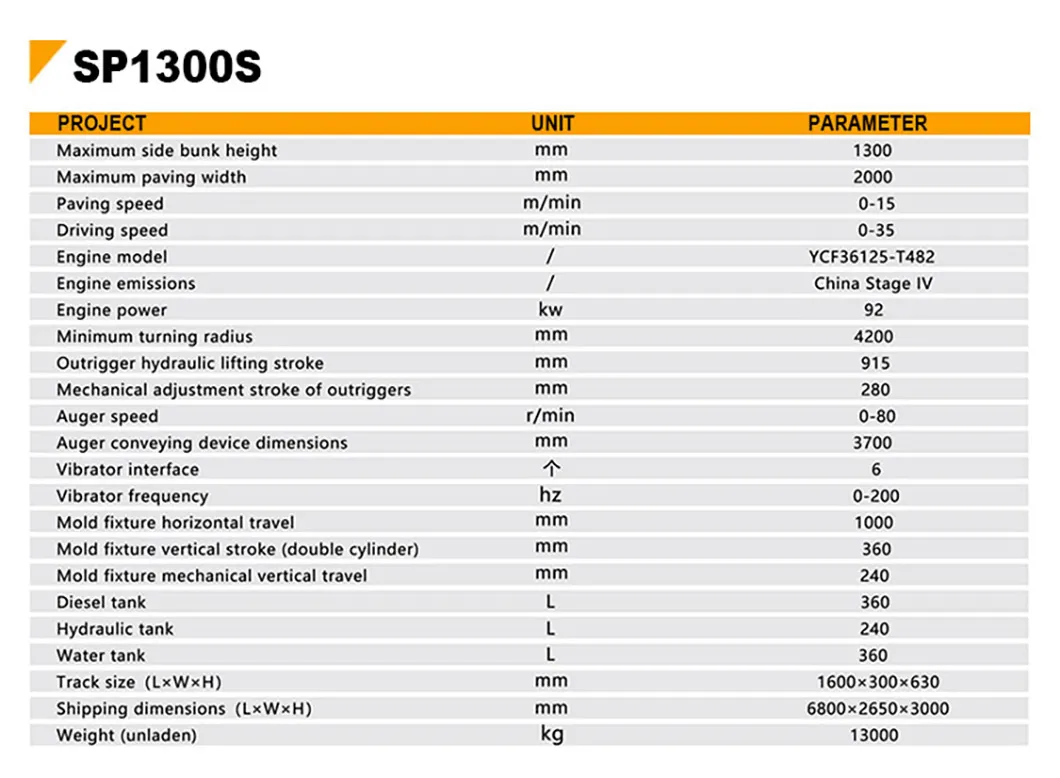

Working Site 1

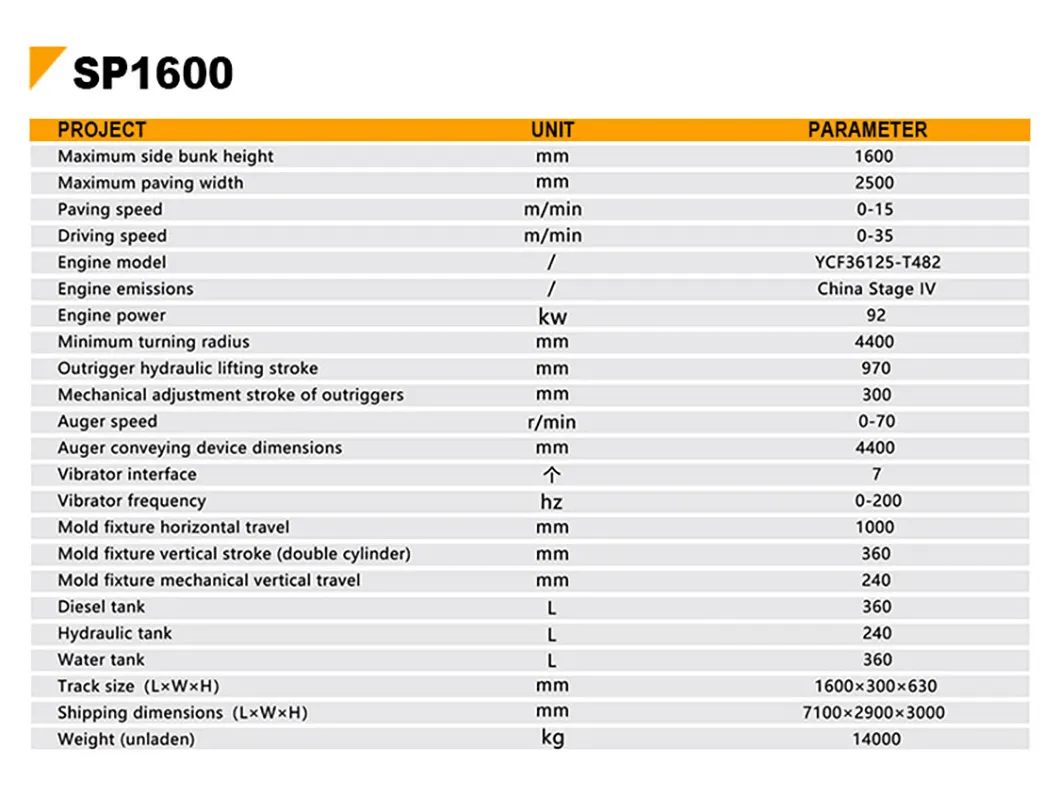

Working Site 2

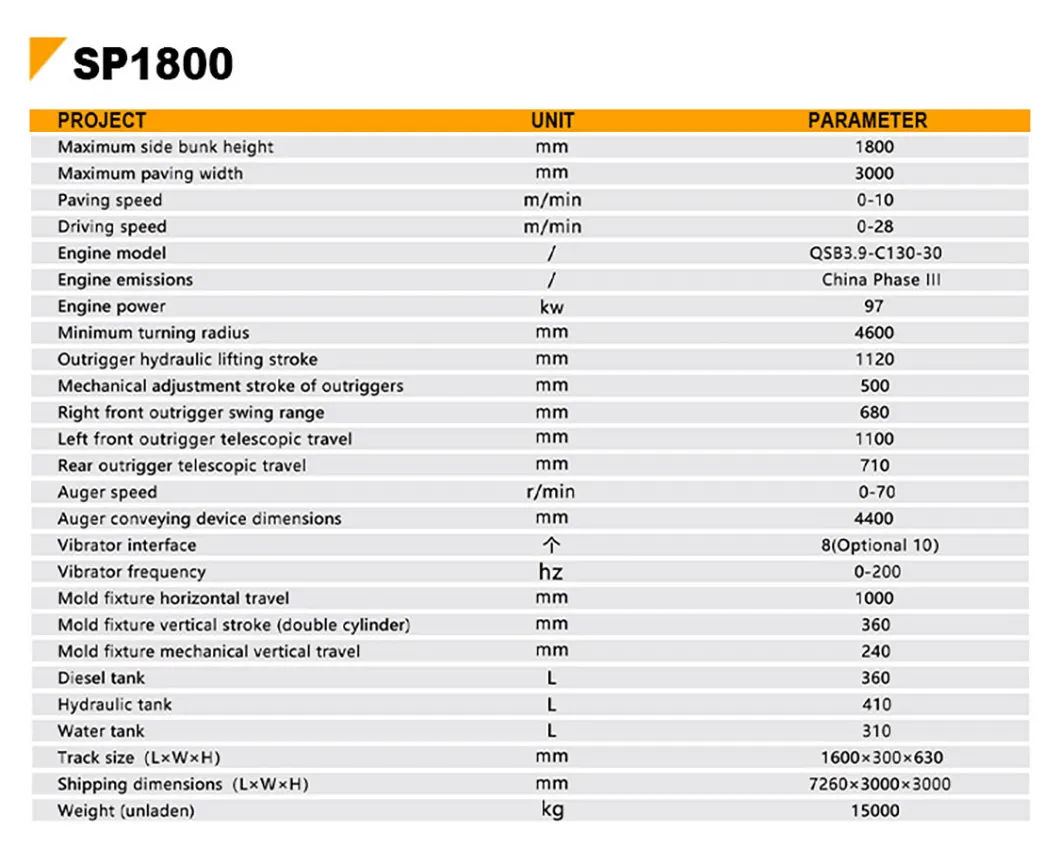

Equipment Detail 1

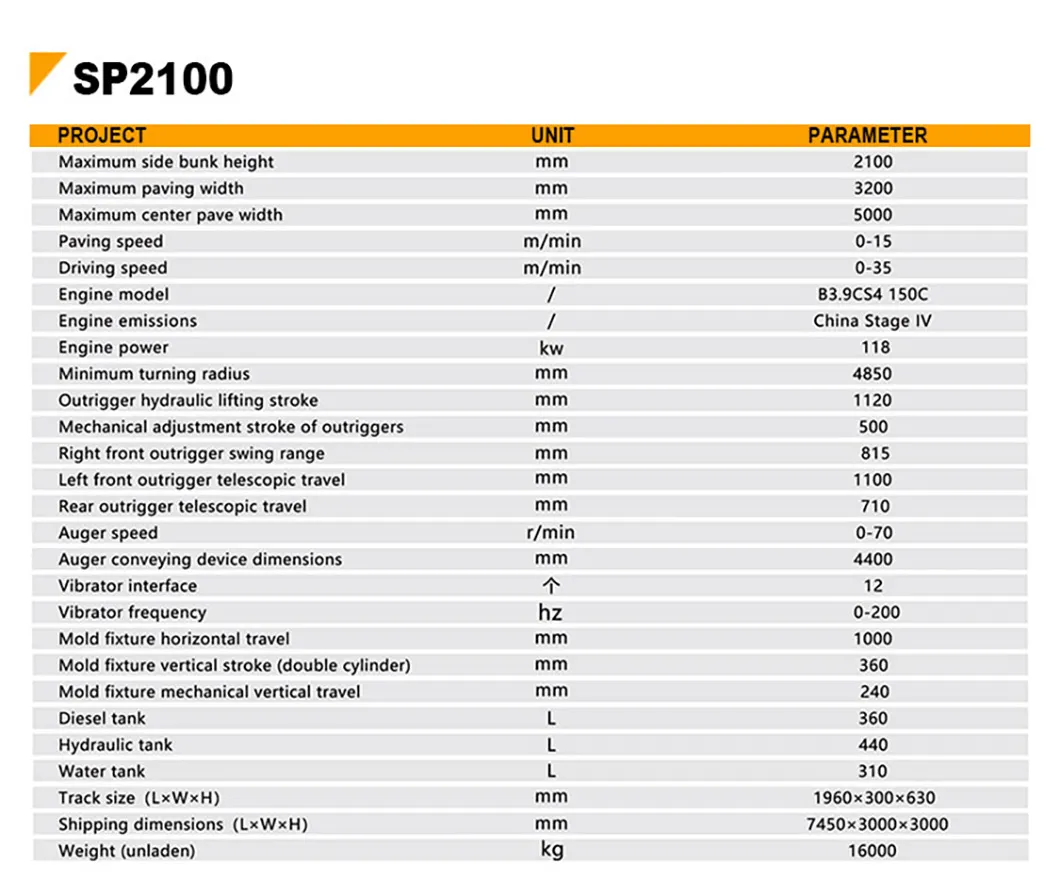

Equipment Detail 2

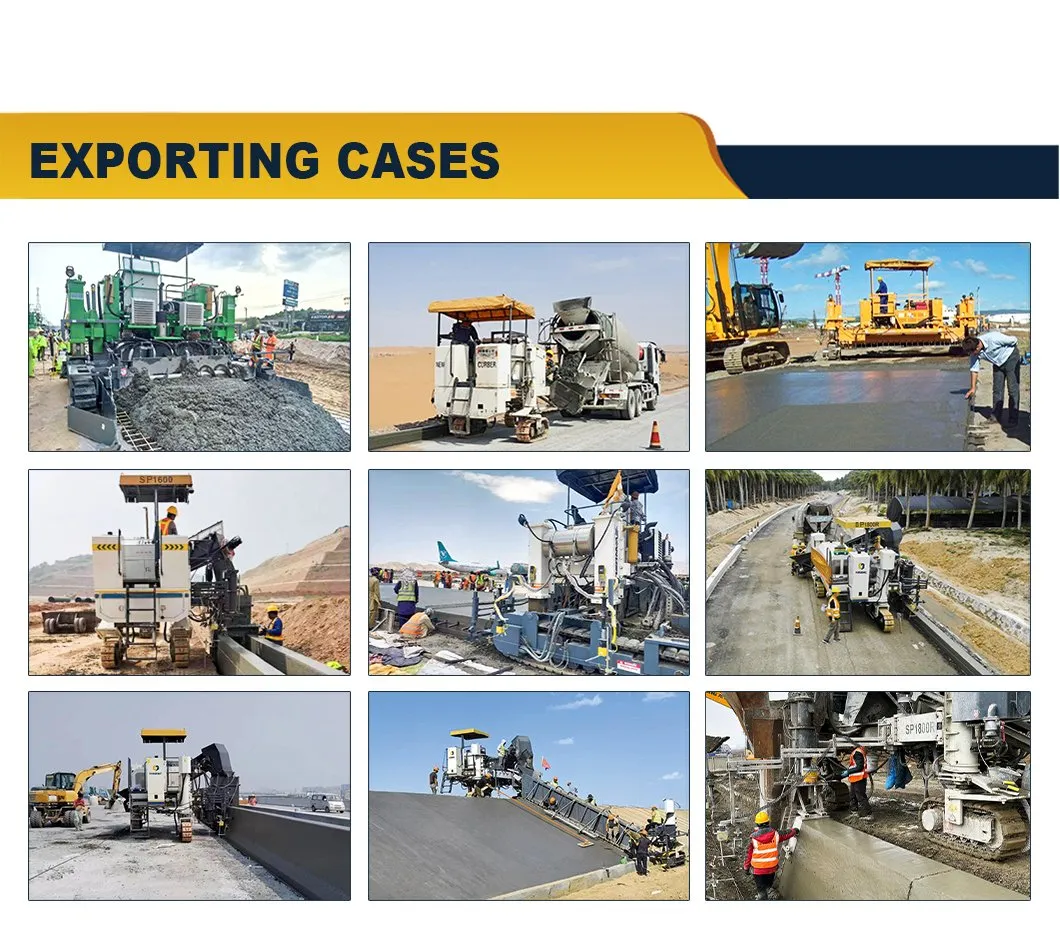

Final Product 1
Final Product 2
?

Frequently Asked Questions

1. What are the primary applications for this curb paver?

The paver is highly versatile and used for road drainage ditches, curbs, shoulder stones, concrete guardrails, and farmland water conservancy channels.

2. Does the machine support automatic operation?

Yes, the SP1200 features an automatic grade system, ensuring high precision and efficiency during the cement concrete construction process.

3. What is the maximum paving speed of the equipment?

The machine offers an adjustable paving speed ranging from 0 to 15 meters per minute, allowing for flexible construction schedules.

4. How is the concrete distributed during the paving process?

Concrete is placed directly in front of the machine and distributed evenly by a high-efficiency spreading auger or spreading plough.

5. Can this machine handle sharp turns on a construction site?

Yes, with a minimum turning radius of 3500mm, it is designed to maneuver effectively in various road construction environments.

6. What certifications does this concrete paver have?

The equipment is fully compliant with international standards, holding both ISO9001: 2000 and CE certifications.
