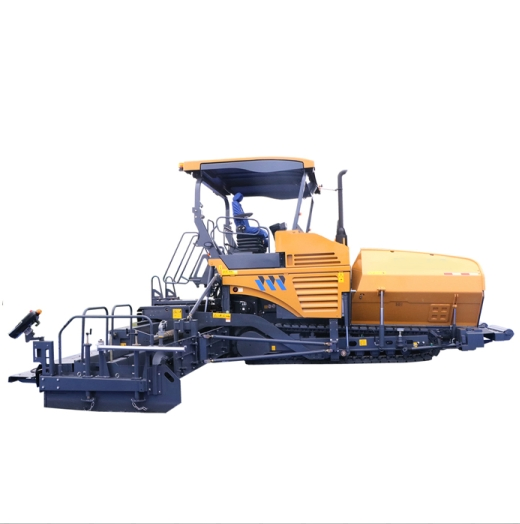

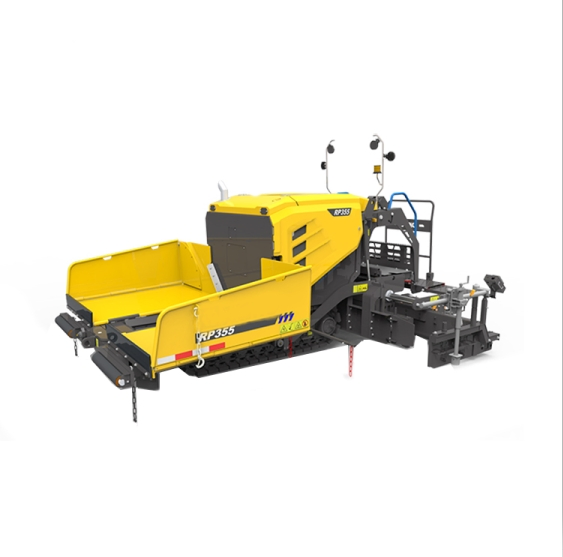

Small Asphalt Paver RP355 3.5m 4m Paving Width Mini Asphalt Concrete Paver
Small Asphalt Paver RP355 3.5m 4m Paving Width Mini Asphalt Concrete Paver
Small Asphalt Paver RP355 3.5m 4m Paving Width Mini Asphalt Concrete Paver
Small Asphalt Paver RP355 3.5m 4m Paving Width Mini Asphalt Concrete Paver
Small Asphalt Paver RP355 3.5m 4m Paving Width Mini Asphalt Concrete Paver
1 / 5
Small Asphalt Paver RP355 3.5m 4m Paving Width Mini Asphalt Concrete Paver
Small Asphalt Paver RP355 3.5m 4m Paving Width Mini Asphalt Concrete Paver
Small Asphalt Paver RP355 3.5m 4m Paving Width Mini Asphalt Concrete Paver
Small Asphalt Paver RP355 3.5m 4m Paving Width Mini Asphalt Concrete Paver
Small Asphalt Paver RP355 3.5m 4m Paving Width Mini Asphalt Concrete Paver

Small Asphalt Paver RP355 3.5m 4m Paving Width Mini Asphalt Concrete Paver

Customization: Available
After-sales Service: Online Support
Warranty: 1 Year
Send Inquiry

Product Description

📋 Basic Information
Model NO.
RP355
Type
Paver
Object
Asphalt Concrete Pavement
Moving Type
Fixed
Automatic Grade
Automatic
Product Capacity
>400t/h
Max Paving Width
1.8m - 4.0m
Max Paving Thickness
280mm
Engine Power
73.5kw
Paving Speed
0-18m/Min
📦 Packaging & Delivery
Package Size
6242.00cm * 4753.00cm * 3728.00cm
Package Gross Weight
7500.000kg
🚧 Product Description

Small Asphalt Paver RP355 3.5m 4m Paving Width Mini Asphalt Concrete Paver

RP355 type paver is a small wheel-type paver with a paving width of less than 5m, utilizing a full hydraulic drive. It is specifically designed for construction projects with specific quality requirements such as small roads, urban and rural road construction, and grade road maintenance. It is ideal for sidewalks, auxiliary roads, bike lanes, and trenches.

Miniaturization: 1.8m ultra-small machine width to meet urban district and roadway construction operations.
Hydraulic Drive: Full hydraulic independent drive with stepless speed and high automation.
Efficient Power: Equipped with a water-cooled turbocharged diesel engine (73.5kW) for adequate power and low noise.
Large Capacity: 12t hopper design ensures enough material storage for continuous operation.
Precision Control: Automatic leveling device controls paving thickness and slope for vertical flatness of 3mm/3m.
Versatile Screed: E340 hydraulic scalable screed with three-point suspension for high road molding quality.
📊 Product Parameters
Item Unit RP355
Basic paving widthm1.8
Max paving widthm4
Max paving thicknessmm280
Paving speedm/min0~18
Travel speedKm/h0~21
Hopper capacityt12
Theoretical productivity capacityt/h240
Gradeability%≥20
Pavement evennessmm≤3
Engine powerkW73.5
Engine speedr/min2000
Machine weightt11
Overall dimensions (L*W*H)mm6242*4753*3728
📷 Detailed Photos

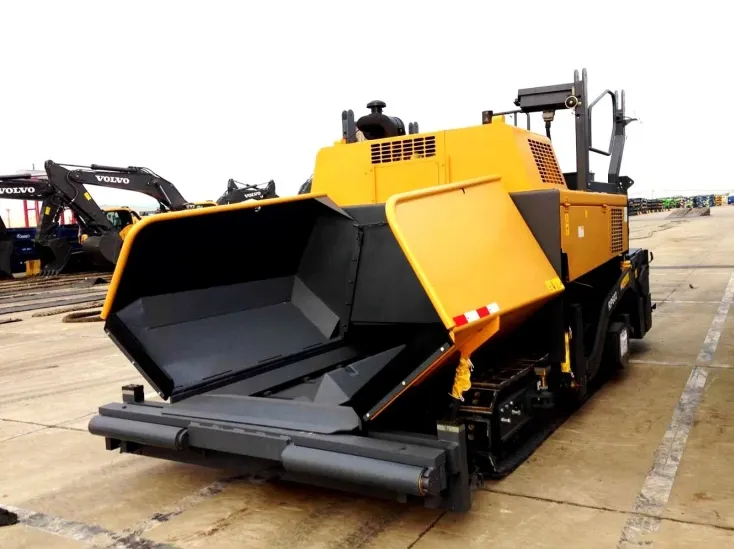

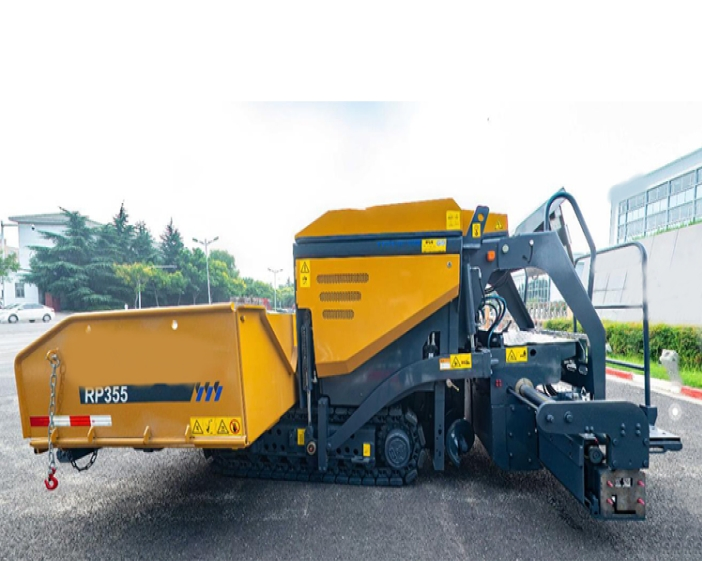

Asphalt Paver RP355 Overview

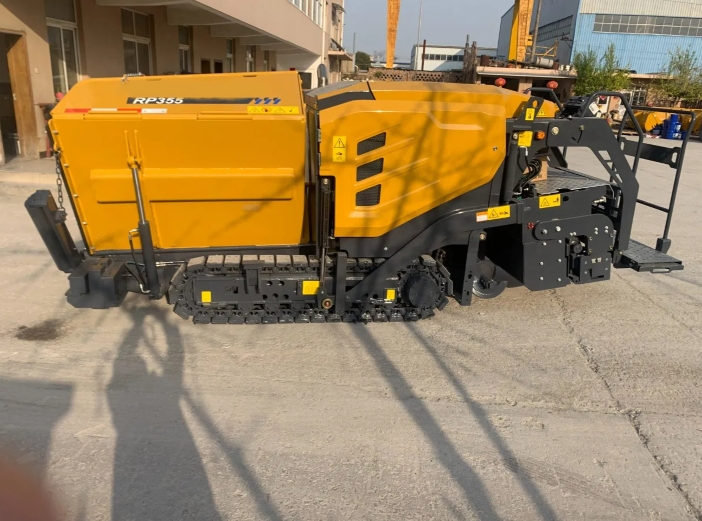

Compact Body Design
Hydraulic System Details

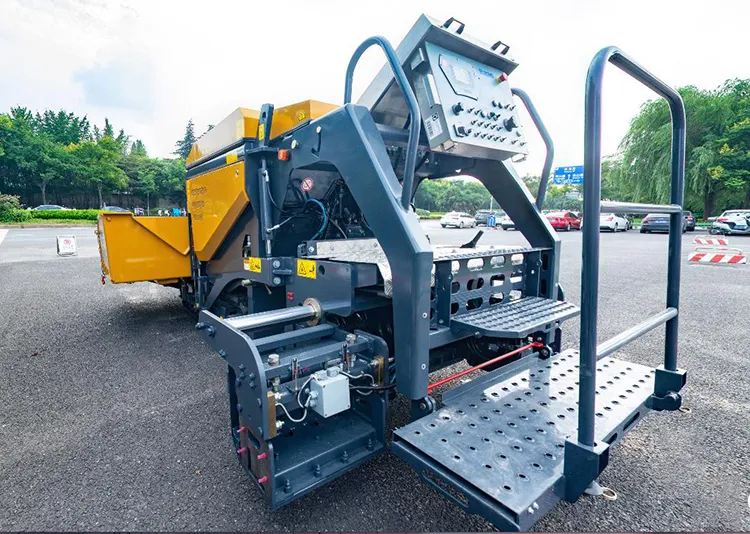

Control Panel
🏭 Production & Facilities
Factory Workshop
Production Line
Testing Area
Quality Control
Storage Area
Shipping Preparation
Component Parts
Certifications
❓ Frequently Asked Questions
What is the maximum paving width of the RP355?
The RP355 asphalt paver supports a maximum paving width of up to 4 meters, with a basic width of 1.8 meters.
What kind of engine power does this mini paver offer?
It is equipped with a SC4H water-cooled turbocharged diesel engine providing 73.5kW of power at 2000rpm.
Is this machine suitable for narrow urban streets?
Yes, with its miniaturized 1.8m machine width, it is specifically designed for urban districts, sidewalks, bike lanes, and restricted roadways.
What is the hopper capacity of the RP355?
The machine features a large 12-ton hopper design to ensure continuous material supply during construction.
Does the RP355 feature automatic leveling?
Yes, it includes an automatic leveling device that controls paving thickness and slope to meet high-grade highway specifications.
What is the maximum paving thickness?
The RP355 can handle a maximum paving thickness of up to 280mm.
