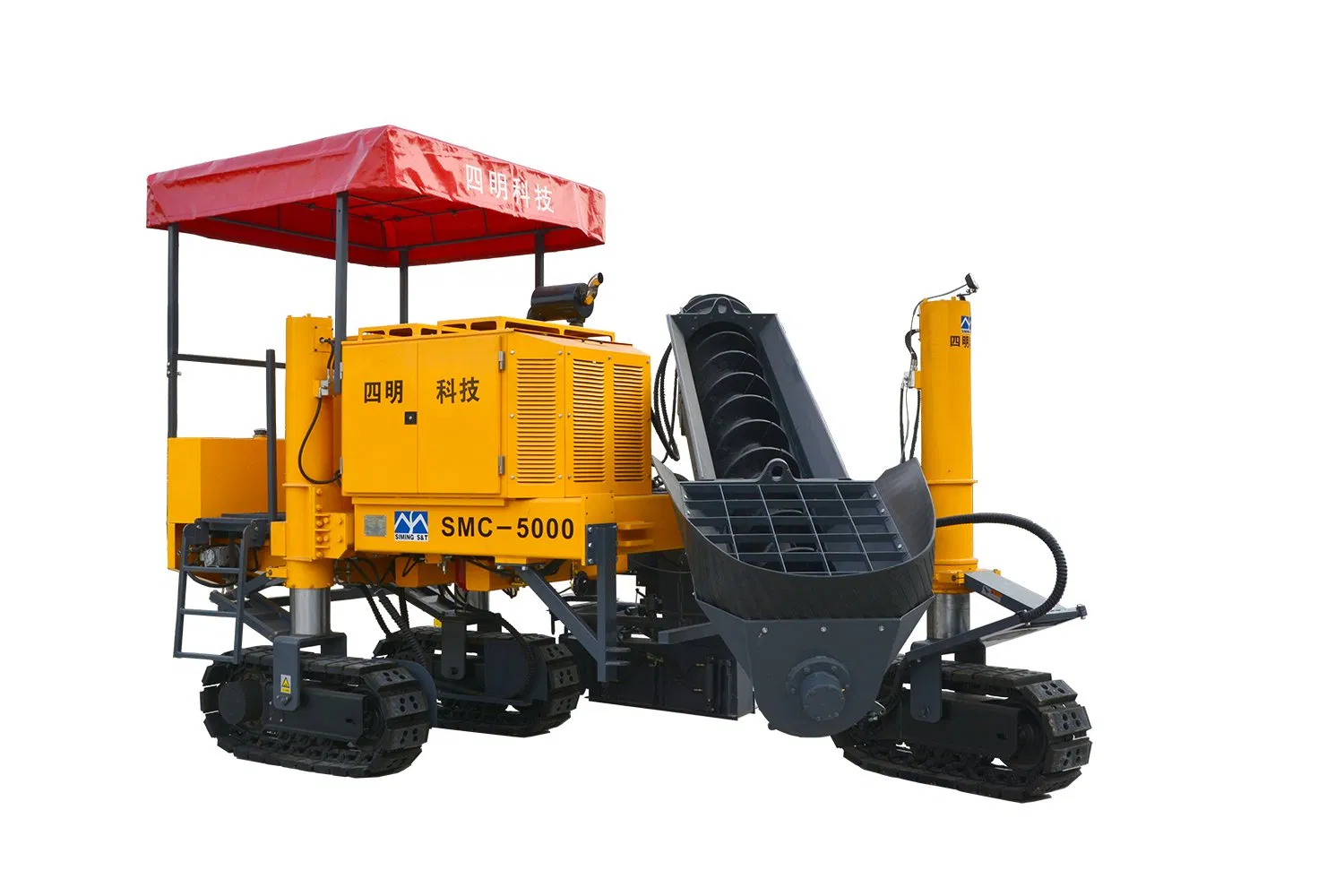

Factory Slipform Paver SMC-5000 Curb&Gutter Cement Concrete Construction Machinery

Send Inquiry

Product Description

Service Conditions

Highway and Municipal Road Construction: Ideal for curb, central isolation zone, anti-collision wall, slope protection, drainage ditch, and cement pavement.
Railway Construction: Suitable for retaining walls, drainage ditches, and related infrastructure.
Agriculture and Water Conservancy: Efficient for impervious canals, slope protection, and road hardening projects.

Functional Features

User-friendly and intuitive man-machine interface.
High efficiency and environmental protection with sufficient power for adverse conditions.
Adjustable right rear track spacing for convenient loading and central paving width adjustment.
Three crawler hydraulic drive ensuring smooth walking and superior adhesion.
High-precision automatic leveling and steering for accurate elevation and line type paving.
Built-in vibrator ensures smooth concrete surface and dense interior quality.
Integrated high-pressure water flushing device for easy maintenance and field work.

Technical Parameters

Engine Model	4TNV98T / WP4.1G
Hydraulic Vibration	5-8-way optional (2 vibrating rods as standard)
Rated Power	63.9 kW @2500r/min / 73.5 kW @2300r/min
Transport Dimension (CM)	530 (L) × 244 (W) × 267 (H)
Main Engine Weight	9000 kg
Max Paving Size (CM)	Curb: 300 (W) × 130 (H)
Paving Radius	≥ 61 cm
Paving Speed	0 - 12 m/min
Driving Speed	0 - 32 m/min

Construction Site

Frequently Asked Questions

What applications is this slipform paver best suited for? It is designed for highway curbs, central isolation zones, drainage ditches, railway retaining walls, and agricultural canal protection.

How does the machine ensure paving precision? The machine is equipped with high-precision automatic leveling and automatic steering functions to maintain specified elevations and line types accurately.

Can the track spacing be adjusted? Yes, the right rear track is adjustable, which is particularly useful for loading and adapting to different central paving widths.

What kind of engine power does this machine offer? It comes with two options: 63.9 kW at 2500r/min or 73.5 kW at 2300r/min, providing sufficient power for various working conditions.

Is the concrete density guaranteed after paving? Yes, the built-in vibrator ensures that the concrete has a smooth surface and a dense internal structure immediately after the paving process.

What is the maximum speed for paving and driving? The paving speed ranges from 0 to 12m/min, while the transport driving speed can reach up to 32m/min.
