📍 Basic Specifications
Model: RP453L
Type: Paver
Object: Asphalt Concrete Pavement
Moving Type: Mobile
Mixing Method: Intermittent Compulsory
Automatic Grade: Semi-Automatic
Product Capacity: >400t/h
Certification: CE
Operating Weight: 11000kg
Basic Paving Width: 1.8m
Max. Paving Width: 4.5m
Max. Paving Thickness: 260mm
Traveling Speed: 0-20 Km/H
Dimensions: 6260x1900x3750mm
📝 Product Description
⚙️

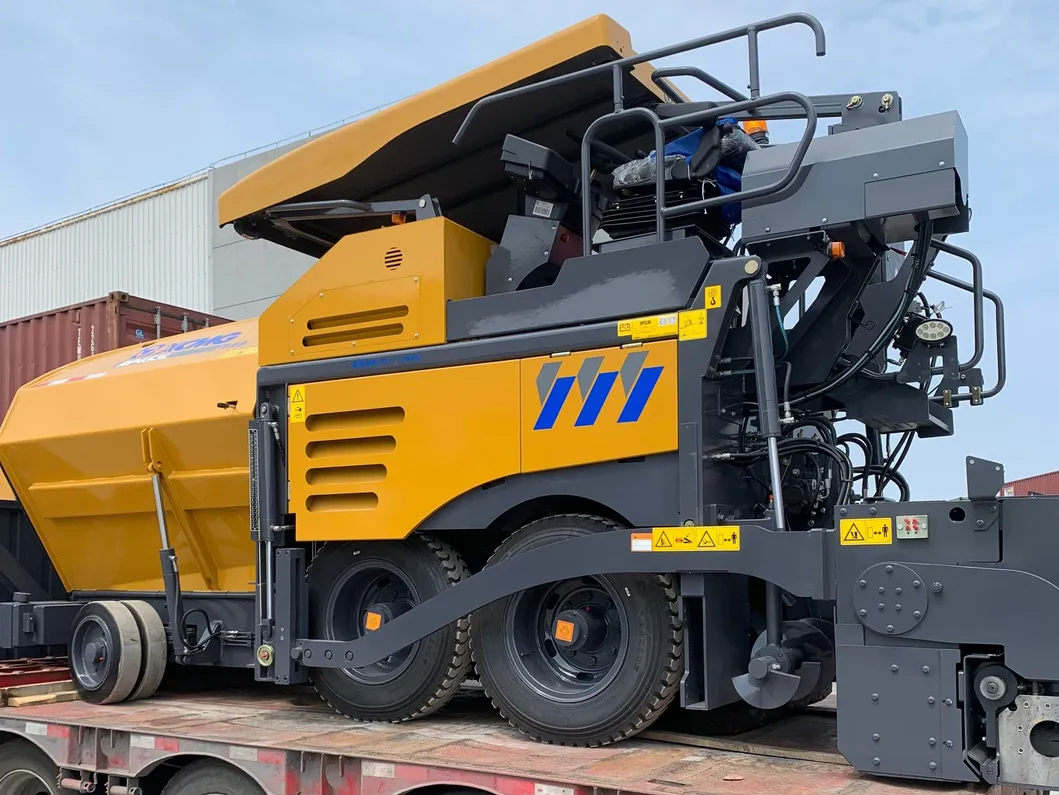

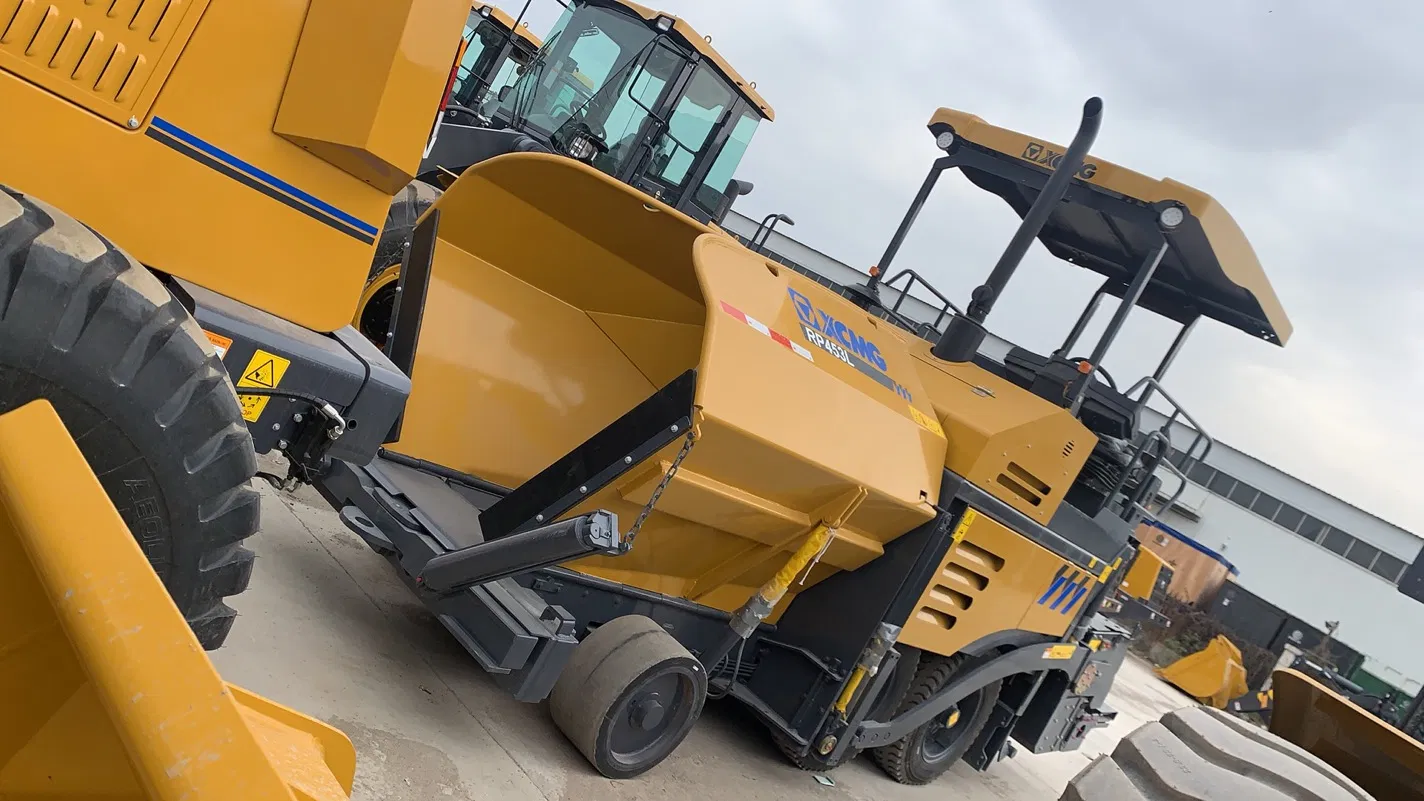

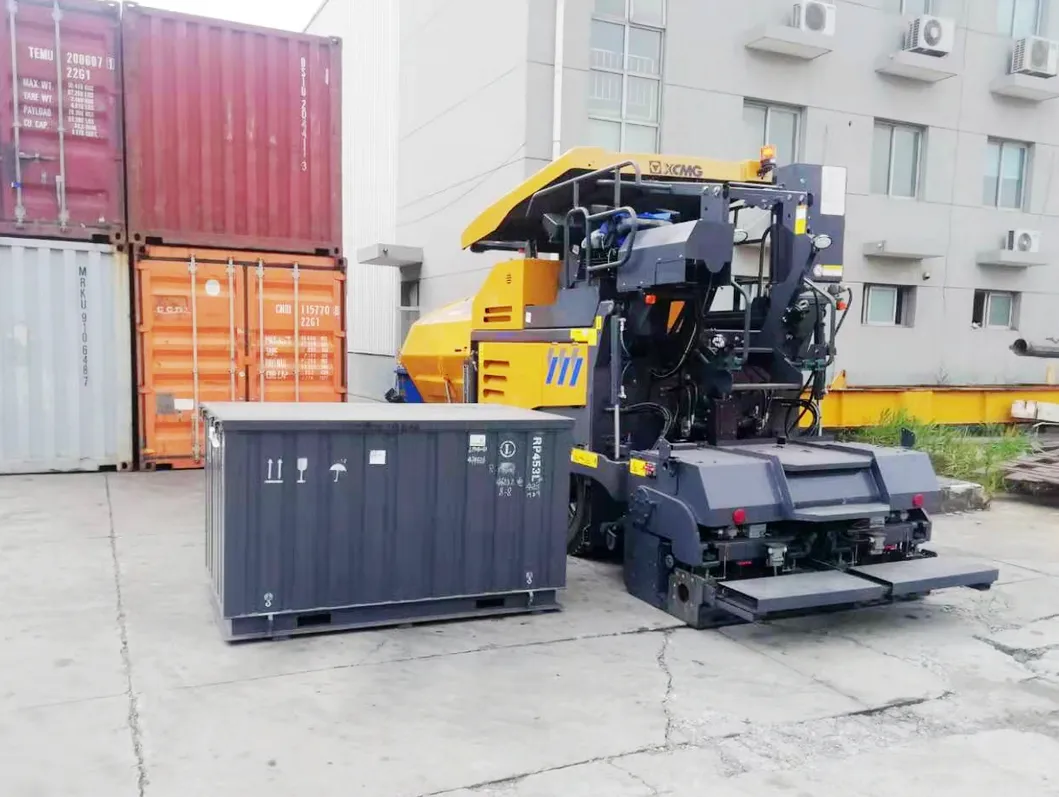

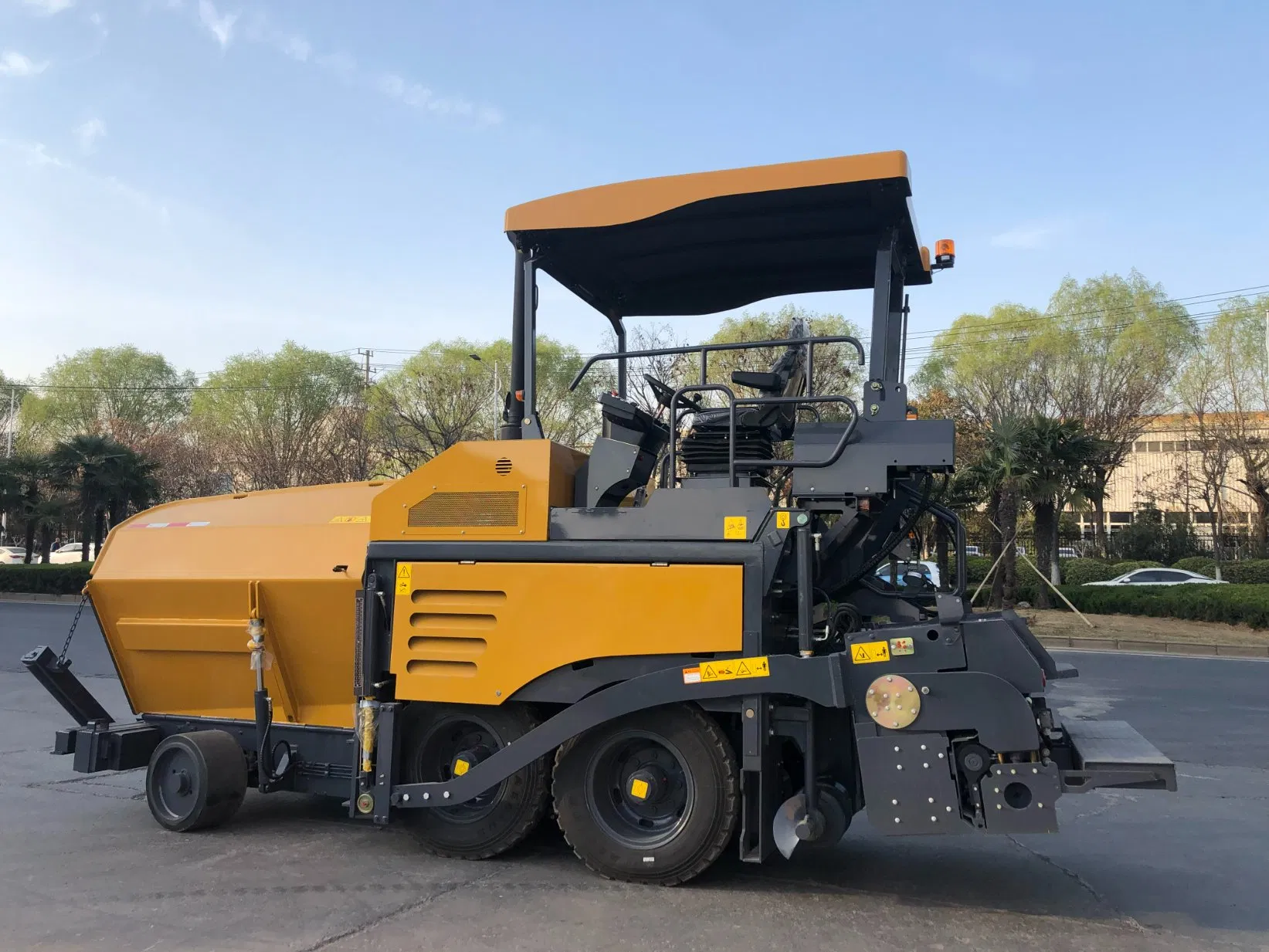

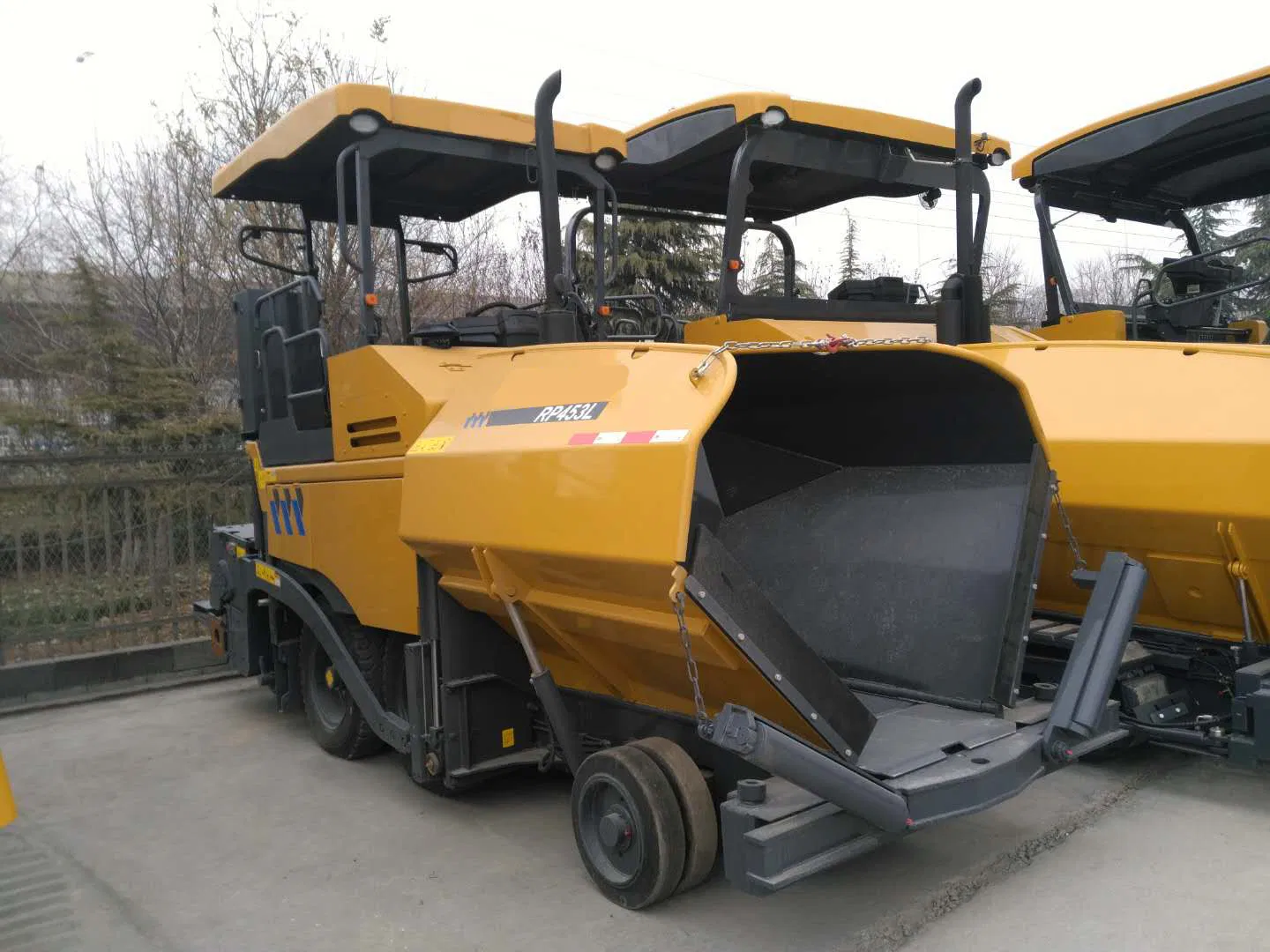

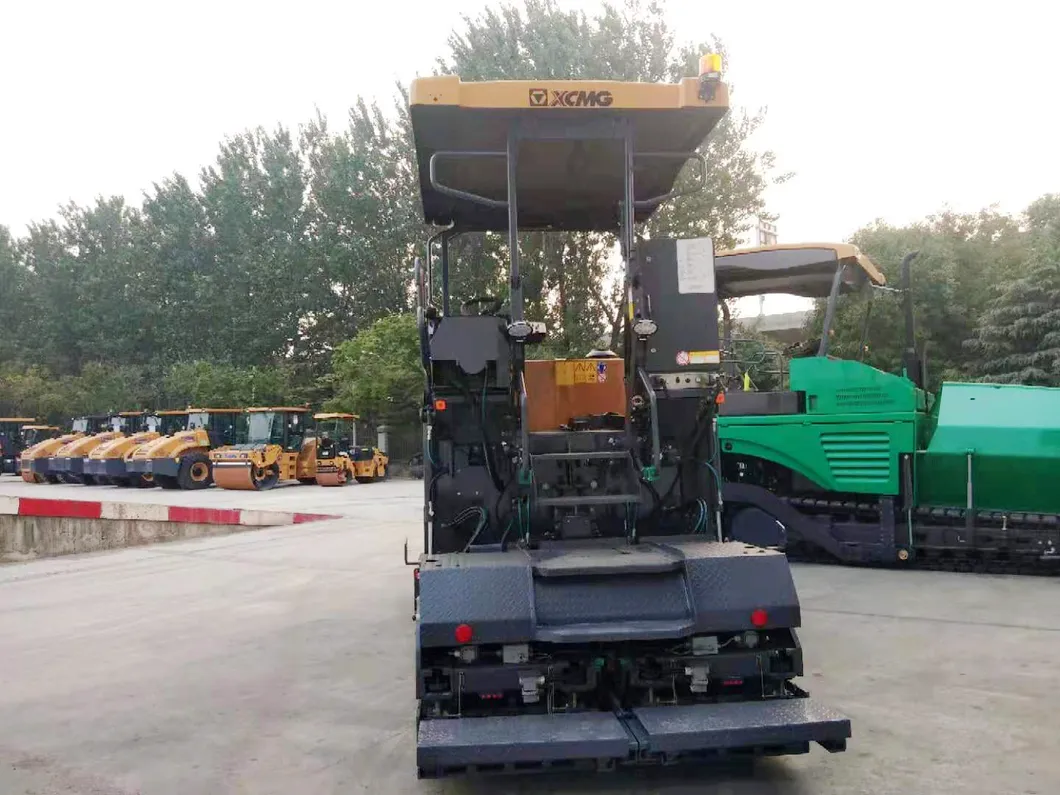

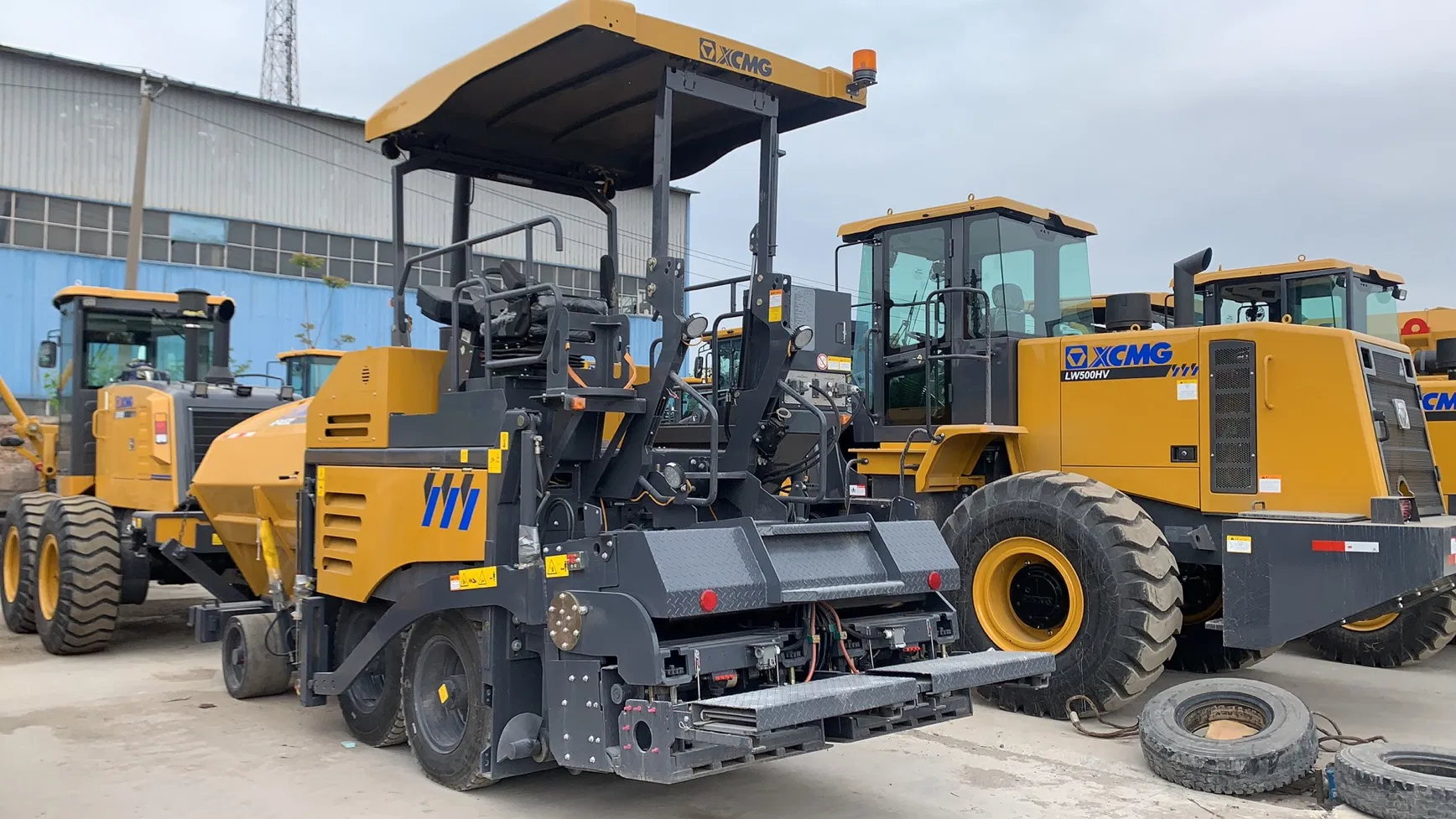

RP453L 1.8-4.5m Width Road Construction Machinery Wheel Asphalt Concrete Paver
The machine is compact with an ultra-small machine width of 1.8m, specifically designed to meet construction needs in urban areas and lanes. It features a fully hydraulic independent drive with stepless speed change, ensuring flexible maneuverability and high automation.
🚀
Equipped with a high-performance water-cooled turbocharged diesel engine (73.5kW/2000rpm), providing sufficient power reserve, low noise, and excellent economy. The hydraulic system utilizes load-sensitive control technology for energy-saving efficiency.

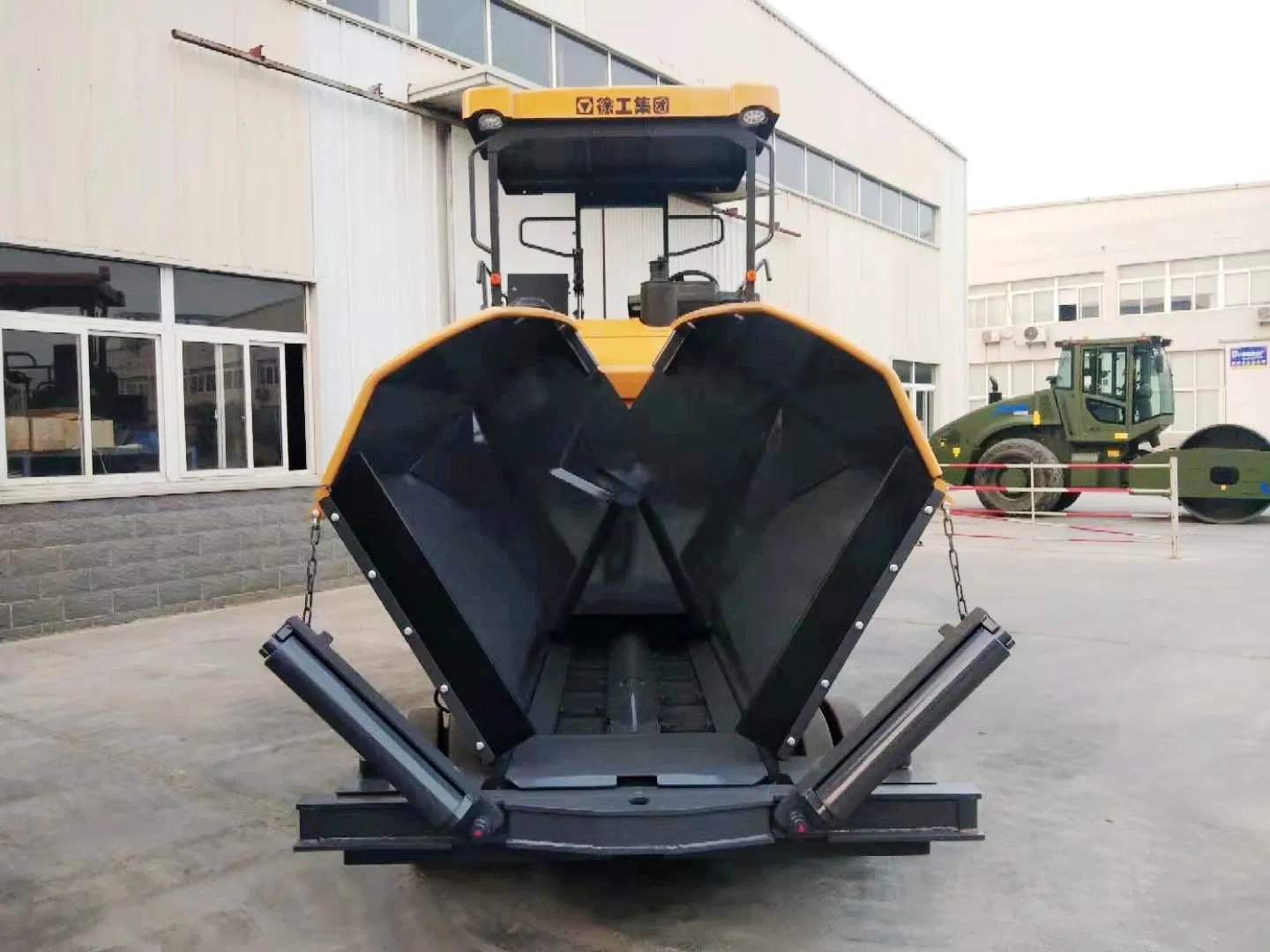

Key highlights include a 12t wide-design hopper for continuous material storage, a hydraulic telescopic ironing plate (E340) for enhanced pavement quality, and an automatic leveling device to control thickness and slope with high precision (longitudinal flatness within 3mm/3m).
❓ Frequently Asked Questions
1. What is the maximum paving width of the RP453L?
The RP453L paver offers a versatile paving width ranging from a basic 1.8 meters up to a maximum of 4.5 meters, making it ideal for narrow urban lanes and standard roads.
2. What type of engine powers this machinery?
It is equipped with a high-efficiency water-cooled turbocharged diesel engine with a rated power of 73.5kW at 2000rpm.
3. How much asphalt can the hopper hold?
The hopper is designed with a 12-ton capacity, ensuring a steady and continuous supply of materials during the paving process.
4. Can it handle precise slope and thickness requirements?
Yes, it features an automatic leveling device that controls longitudinal flatness within 3mm/3m and transverse slope within ±0.2%.
5. What is the maximum paving thickness?
The machine can reach a maximum paving thickness of 260mm, suitable for various high-grade road construction standards.
6. Is the operation system automated?
The RP453L features a semi-automatic grade with fully hydraulic independent drive and stepless speed changes for simple and convenient operation.
