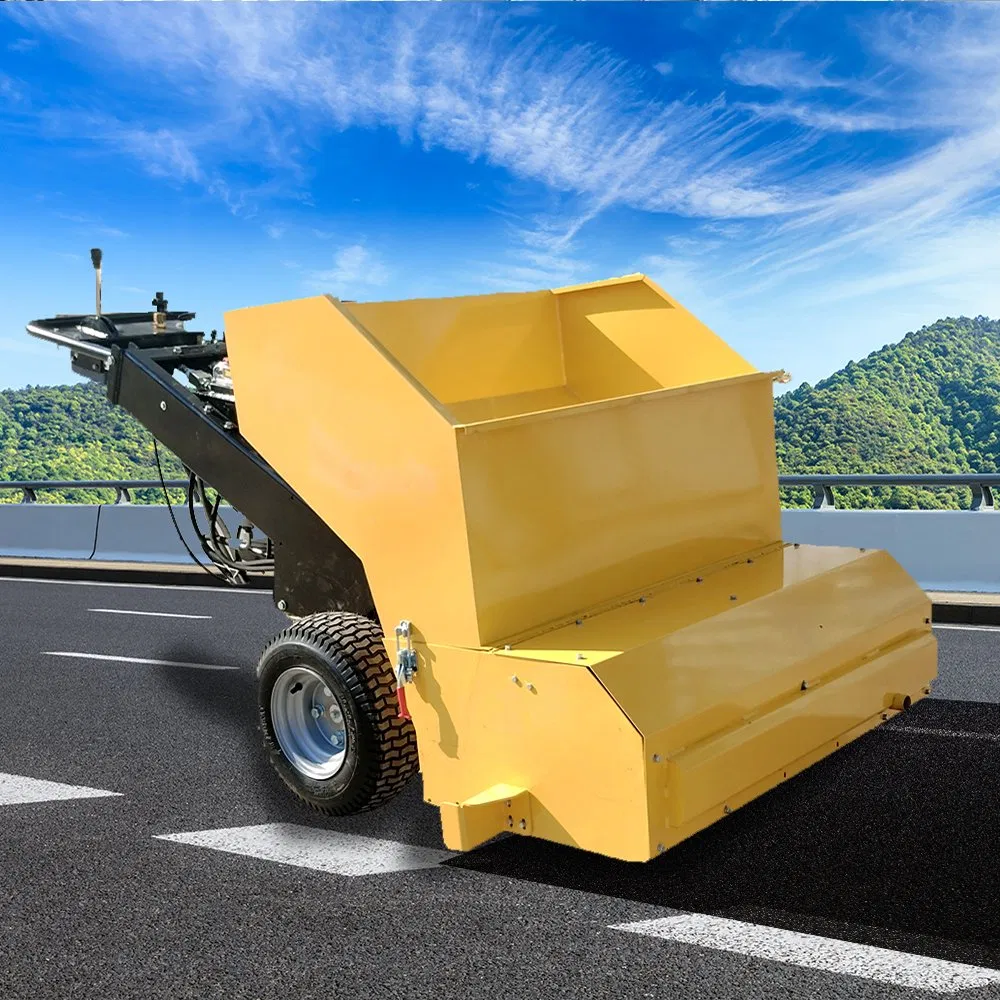

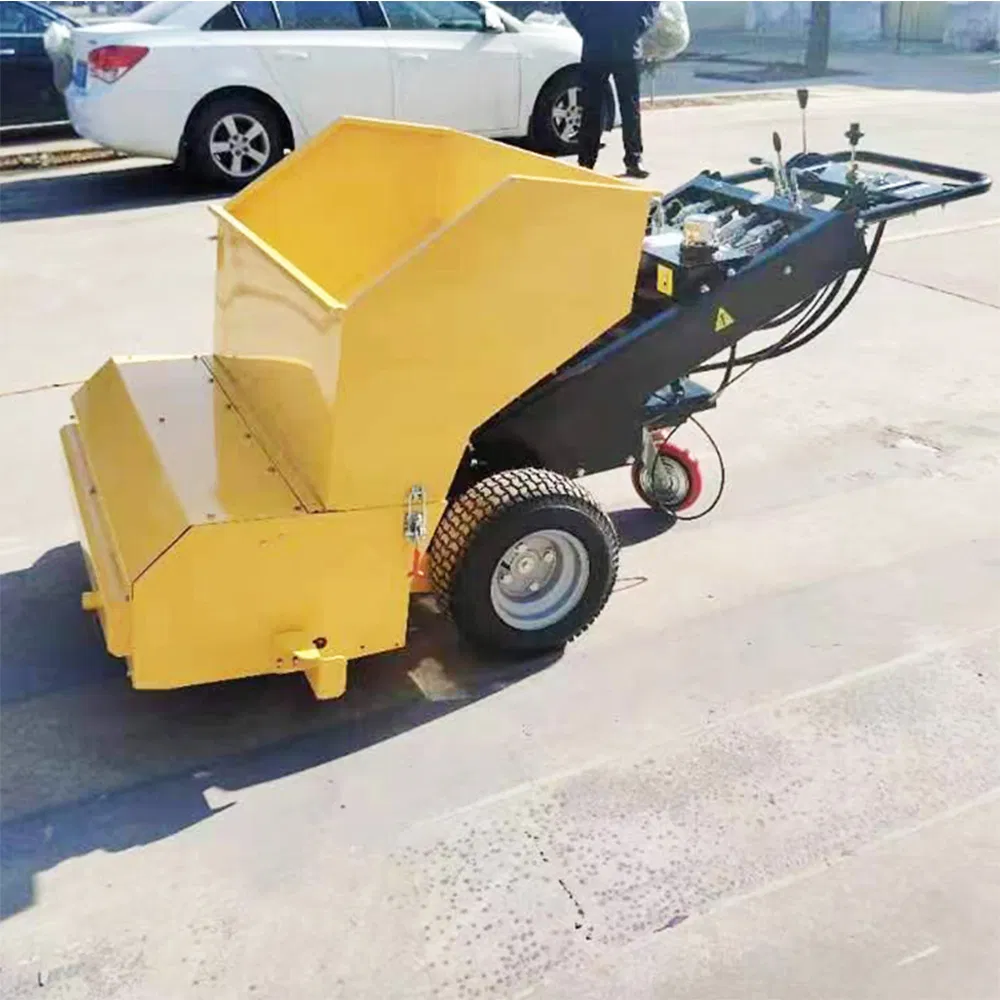

Mini Wheel Crawler Wheel Road Concrete Machine Asphalt Small Pitch Asphalt Pavermini Wheel Crawler Wheel Road Concrete Machine Asphalt Small Pitch Asphalt Paver

Still deciding? Get samples of $ !
Order Sample

Product Description

Overview & Basic Info

Model NO. ZM-1000 Asphalt Paver Type Road Roller / Paver
Moving Type Mobile Mixing Method Intermittent Compulsory
Automatic Grade Semi-Automatic Product Capacity <40t/h
Maximum Width 1000mm Minimum Width 250mm
Working Speed 28m/Min Turning Speed 3.2km/H
Certification CE Condition New

Hot Sales Showcase

ZM-1000 Asphalt Paver Showcase
Mini Asphalt Paver Feature Banner

Product Description

Mini Wheel Crawler Introduction

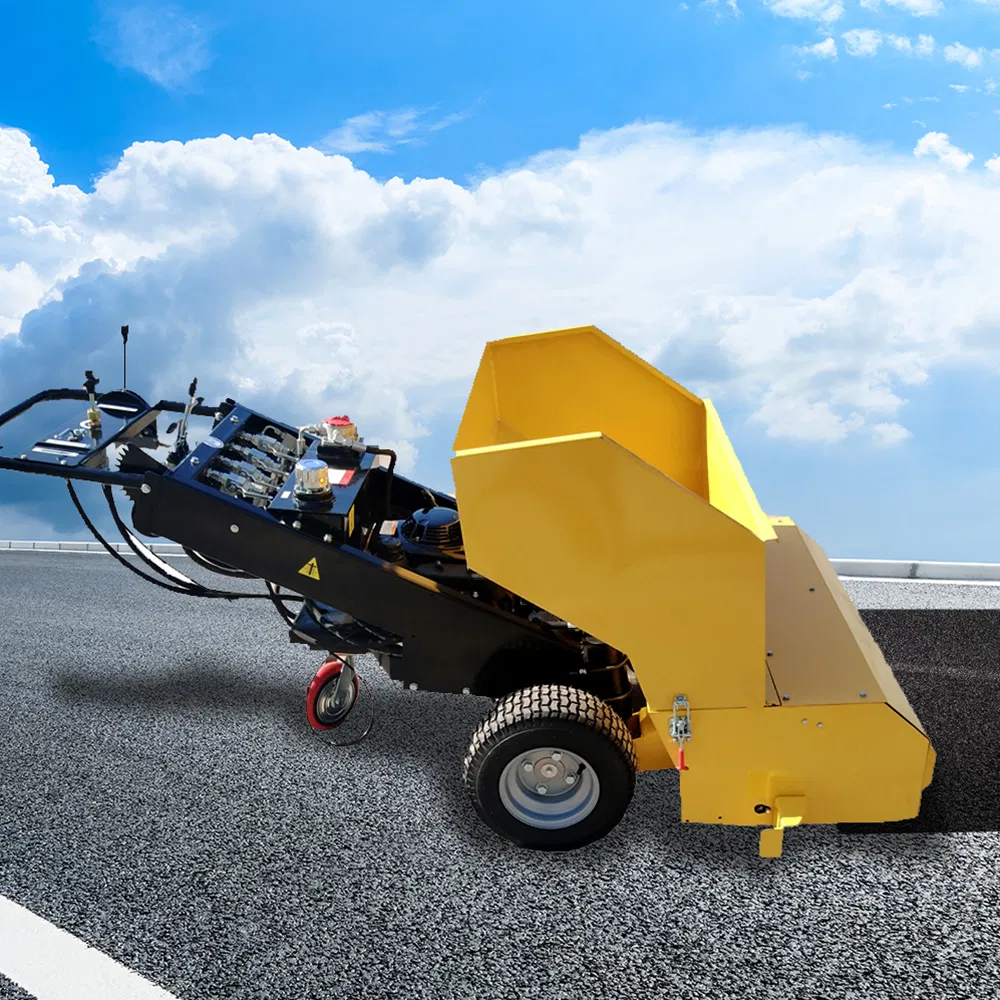

ZM-1000 Small Asphalt Paver Advantages

Main Advantages

1. Engine Power High horsepower, fuel-efficient engine with transistorized magneto ignition for easy starting.
2. Thickness Adjustment Left/right double cylinders independently control paving thickness for superior flatness.
3. Efficient Mobility Hydraulic axle two-wheel drive with universal wheels for fast turnaround.
4. Adjustable Hopper Paving widths freely adjustable between 250-1000mm.
5. Precise Control Easy handle-based forward/reverse control for flexible response.
6. Versatile Operations Ideal for garden paths, community roads, and road shoulders.

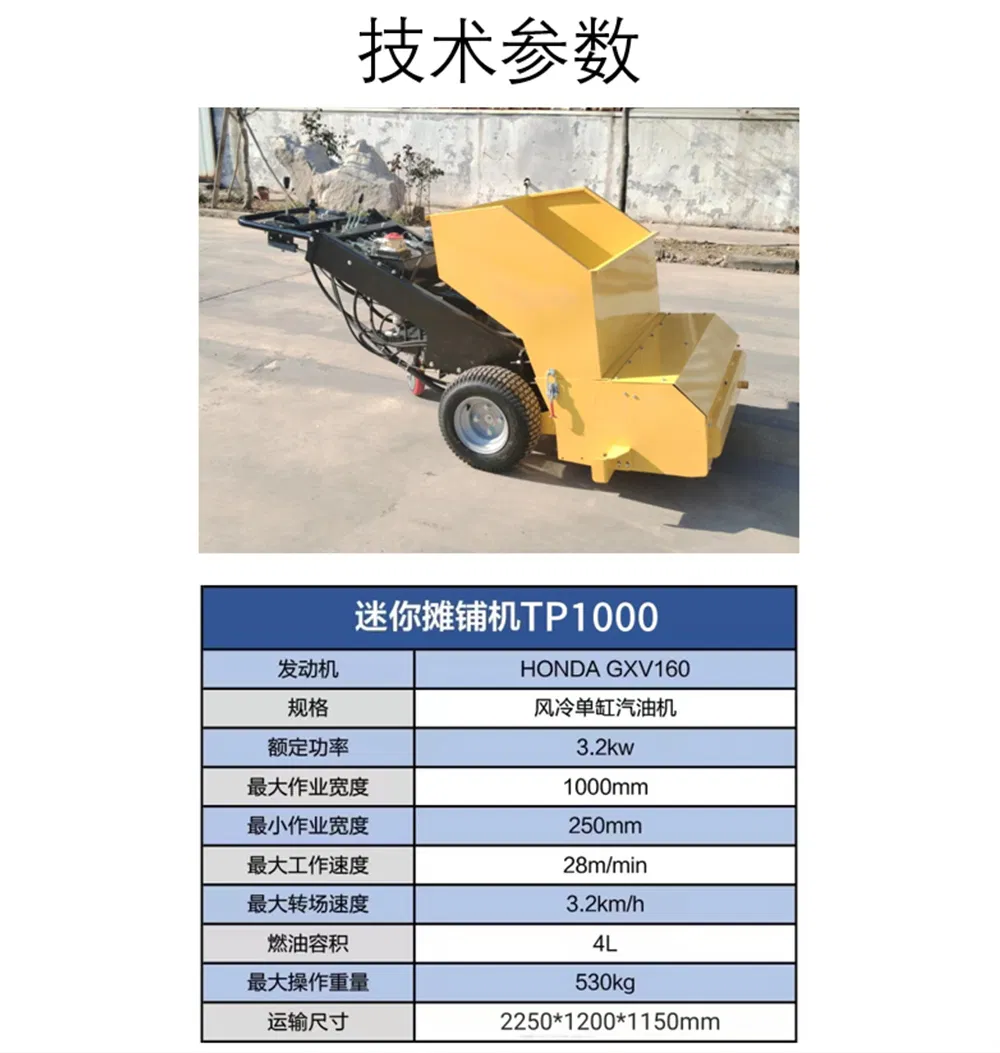

Technical Parameters

Parameter Header
Small Asphalt Paver ZM-1000 Specifications

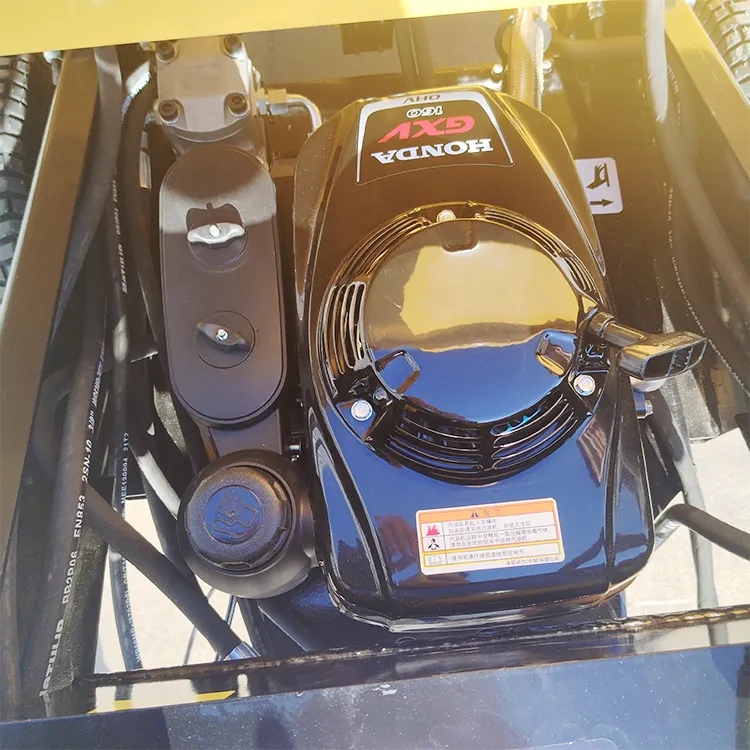

EngineHONDA GXV160
Engine SpecificationAir-cooled single cylinder gasoline
Rated Power3.2kw
Max Working Width1000mm
Min Working Width250mm
Max Working Speed28m/min
Fuel Capacity4L
Operating Weight530kg
Transport Dimensions2250x1200x1150mm
Technical Drawing/Dimension

Detailed Photos

Detail Title Banner

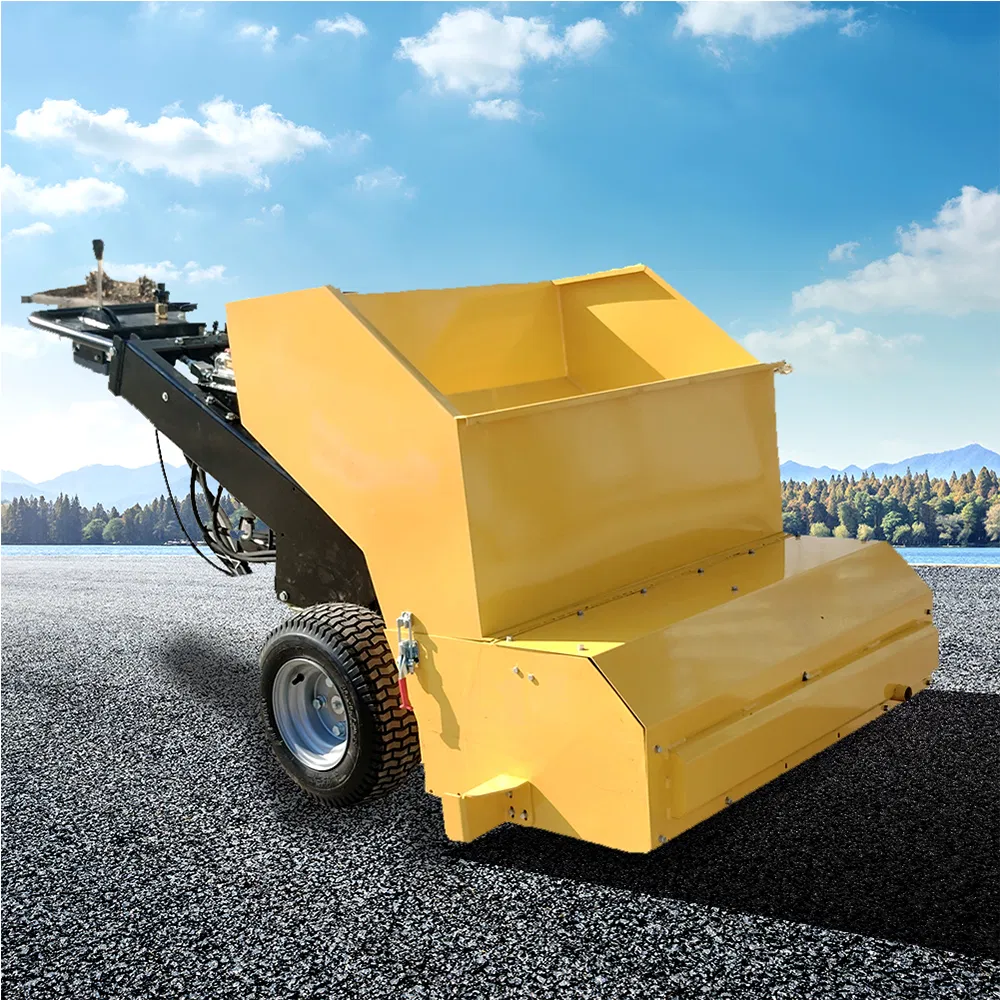

Product View 1

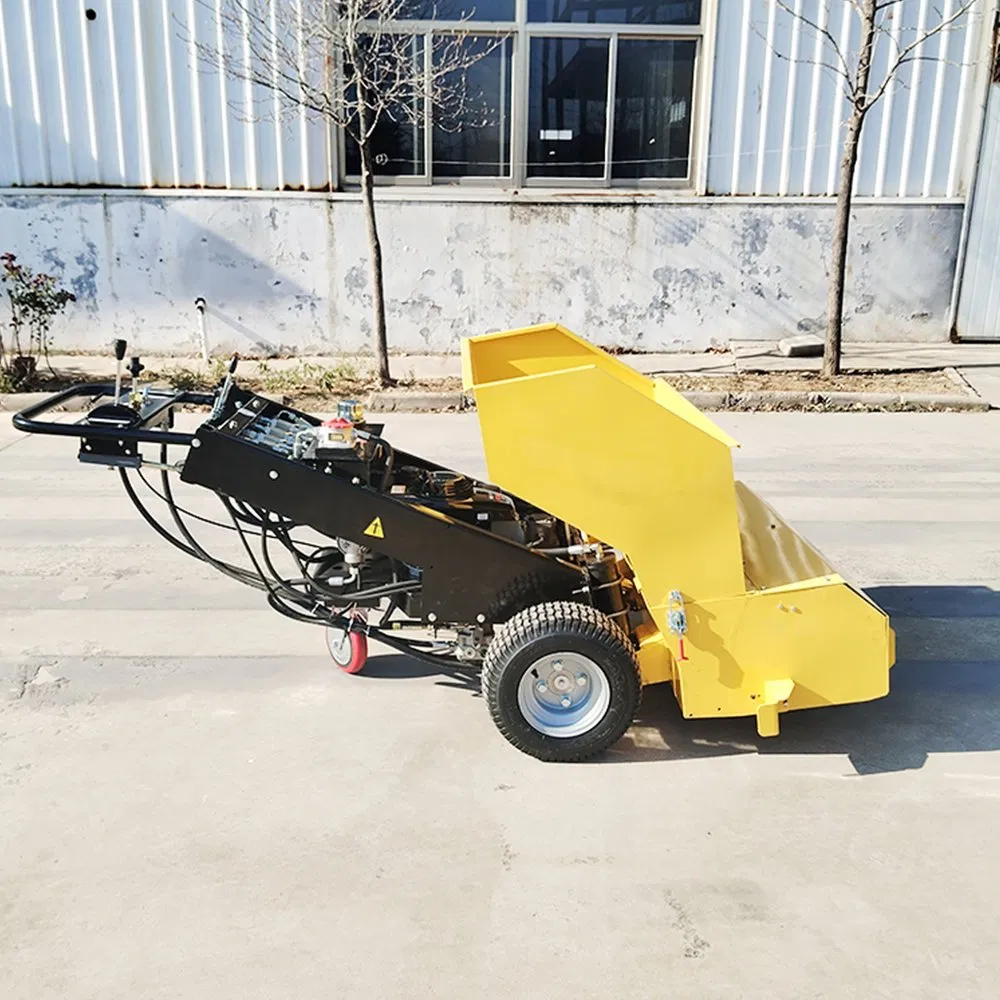

Side View

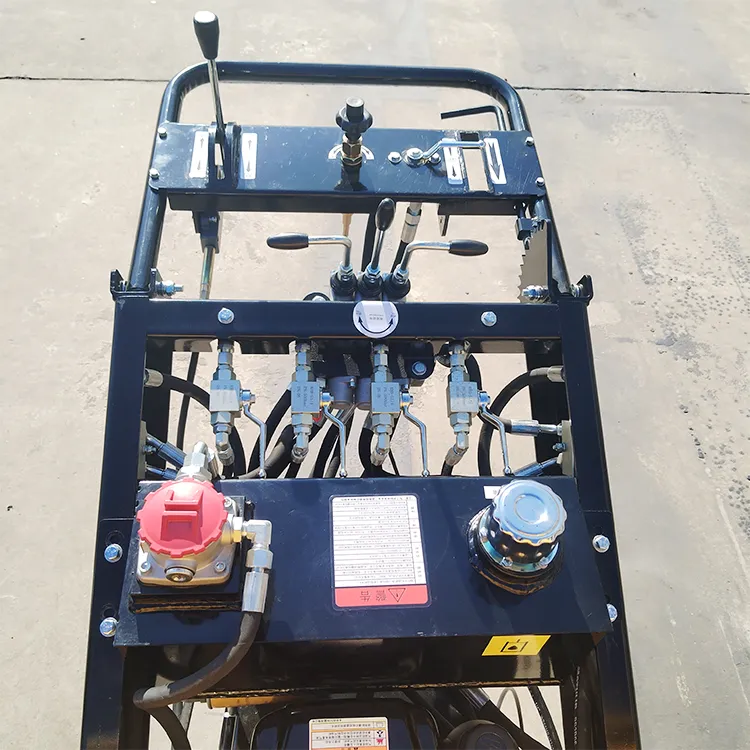

Front View
Component View 1

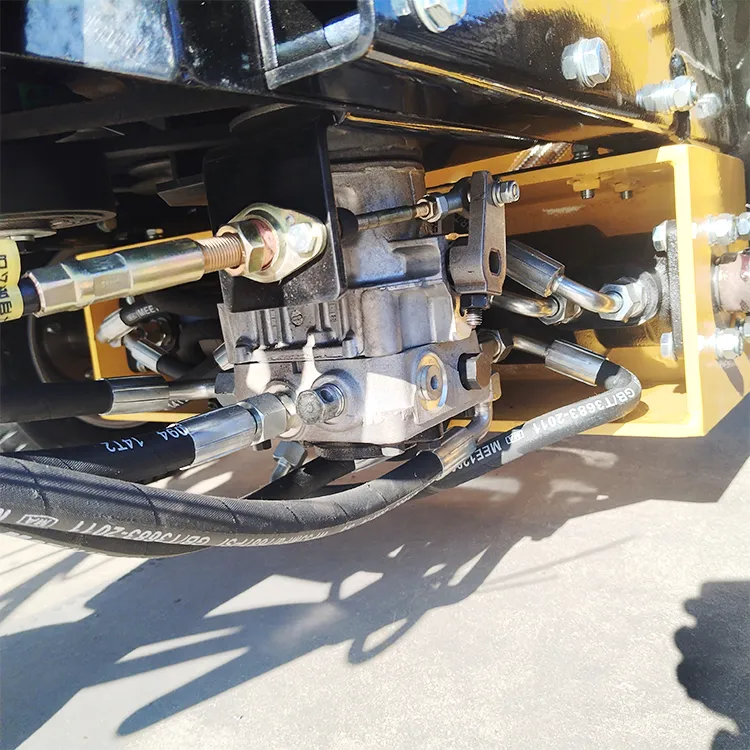

Component View 2

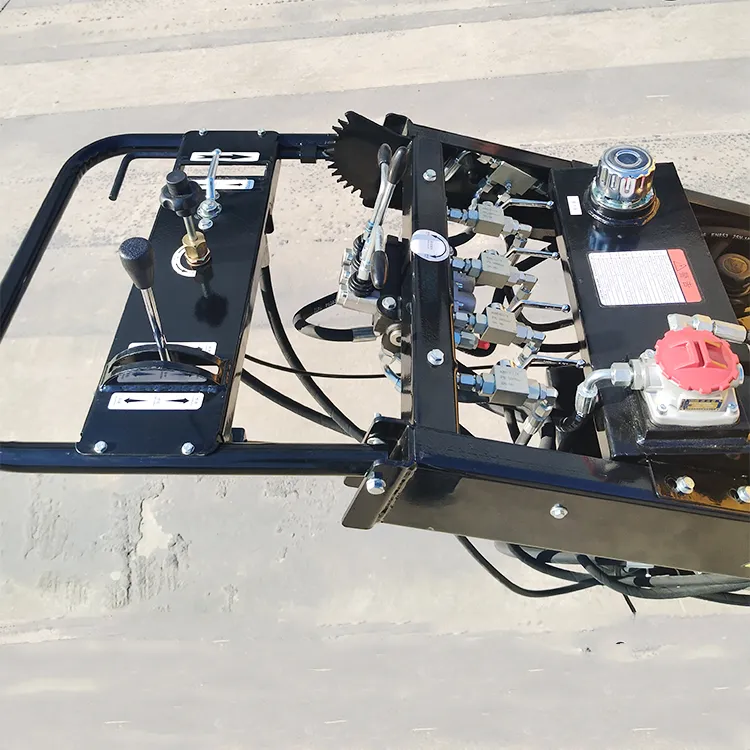

Operation Handle

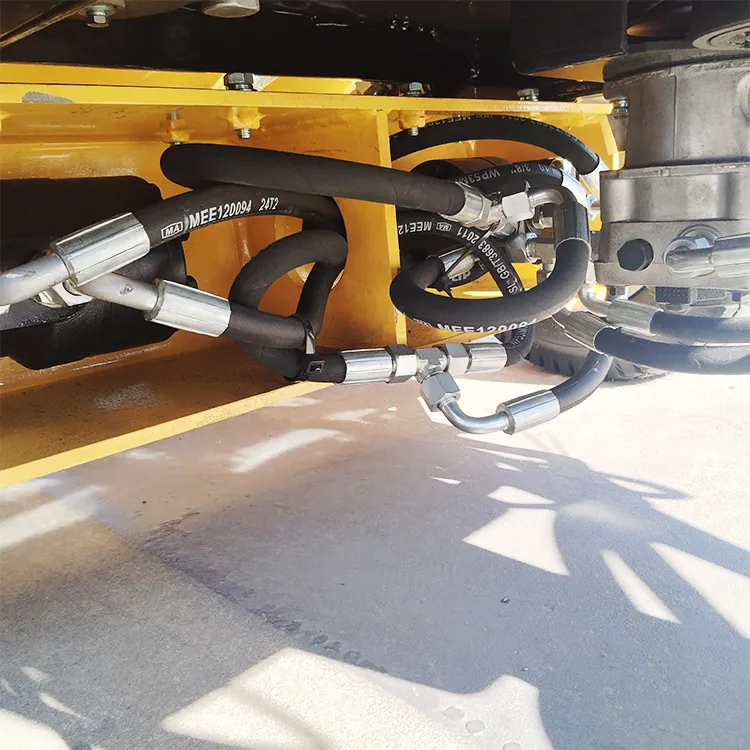

Working Mechanism

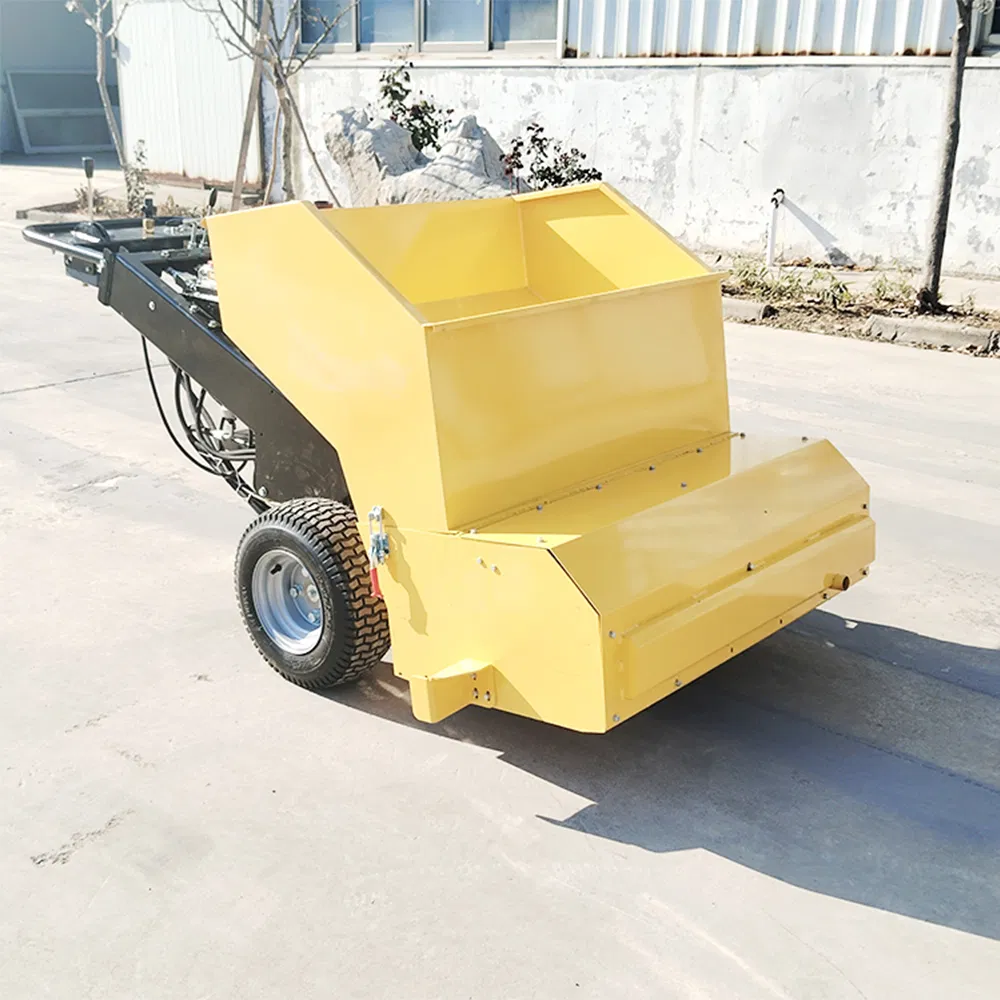

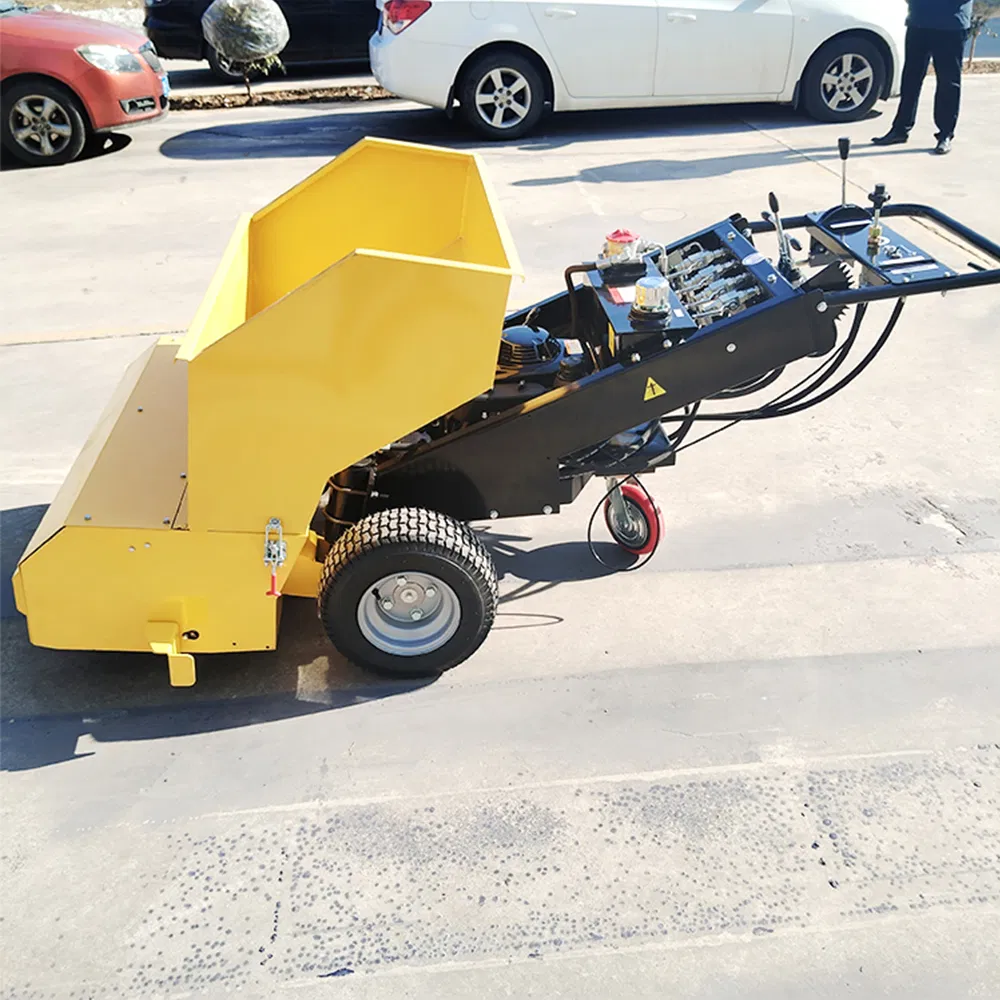

Paver Detail
Paver Detail
Paver Detail

Production Excellence

Factory Overview

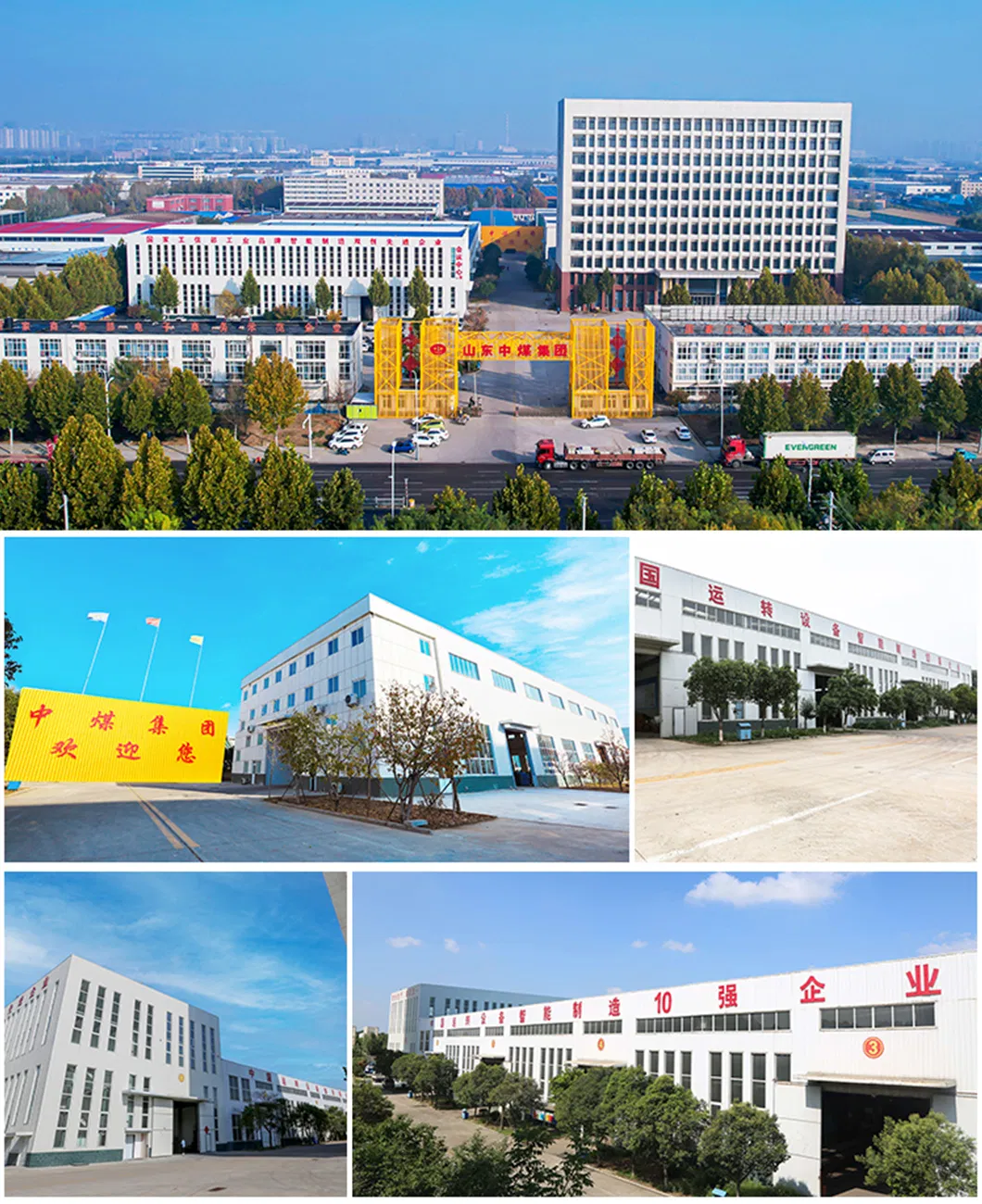

Quality Control
Testing Area
Storage
Manufacturing Standards

Frequently Asked Questions

What is the adjustable paving range of the ZM-1000?
The paving width can be freely adjusted between 250mm and 1000mm to suit different road requirements.
What type of engine is used in this asphalt paver?
It is equipped with a high-performance HONDA GXV160 air-cooled single-cylinder gasoline engine.
Is the machine suitable for narrow paths?
Yes, its compact design and flexible universal wheels make it perfect for garden paths, community walkways, and road shoulder operations.
How is the paving thickness controlled?
The machine uses a professional left and right double-cylinder system to independently control thickness, ensuring high flatness.
What is the production capacity per month?
We maintain a stable production capacity of approximately 1000 sets per month to meet market demand.
How easy is it to operate the machine?
The paver features a simple handle control system for forward and reverse movements, making it very flexible and easy to master.
