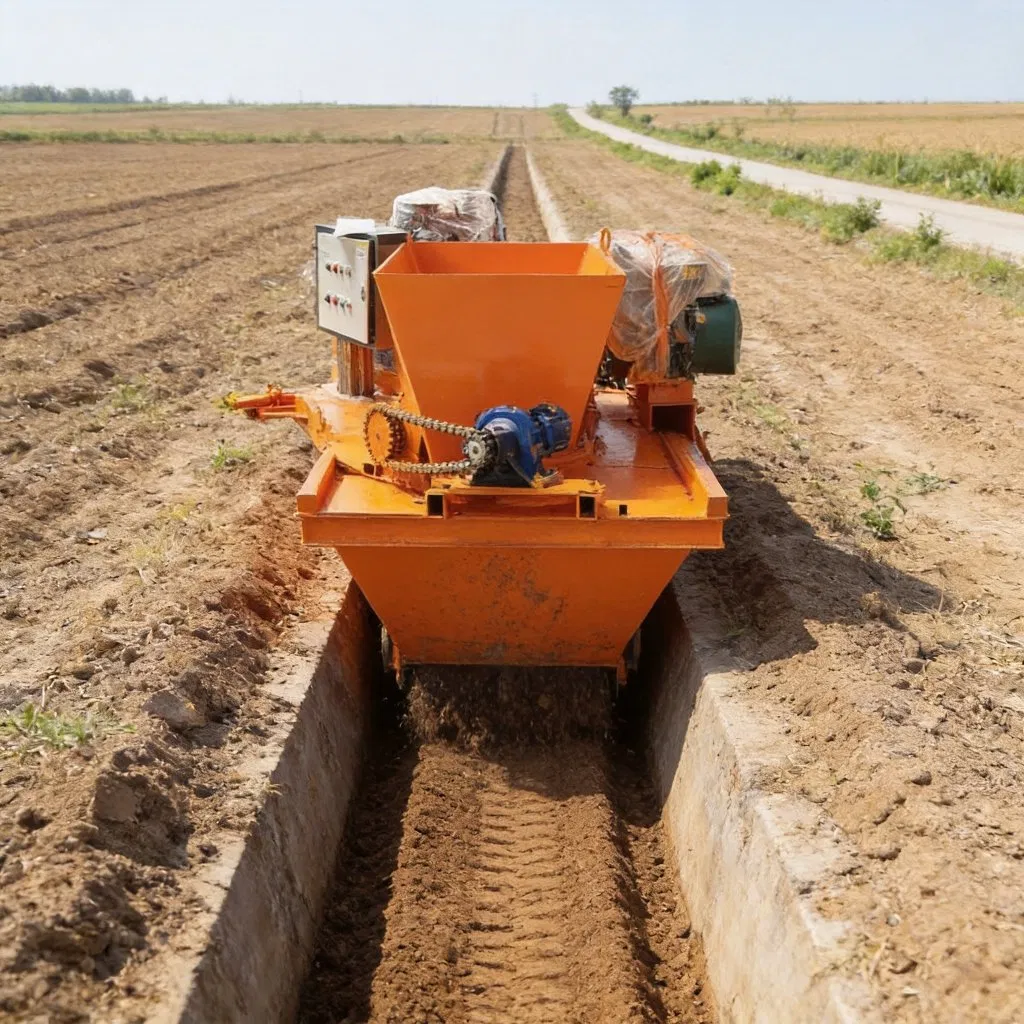

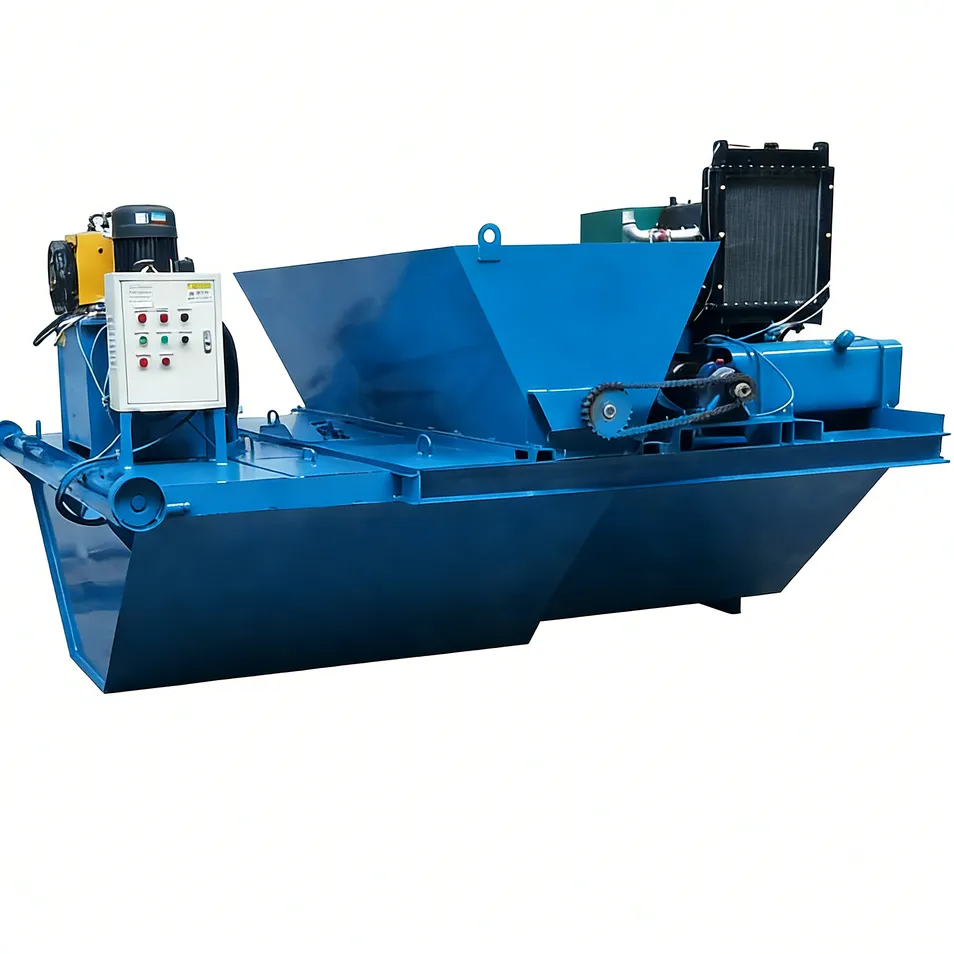

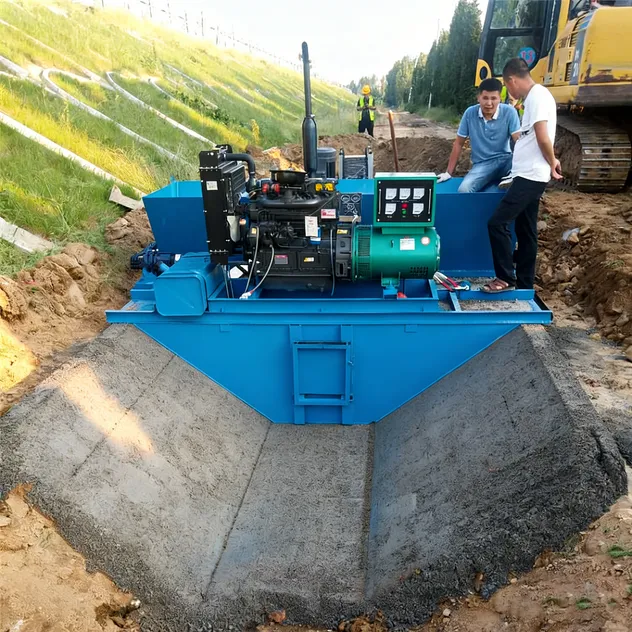

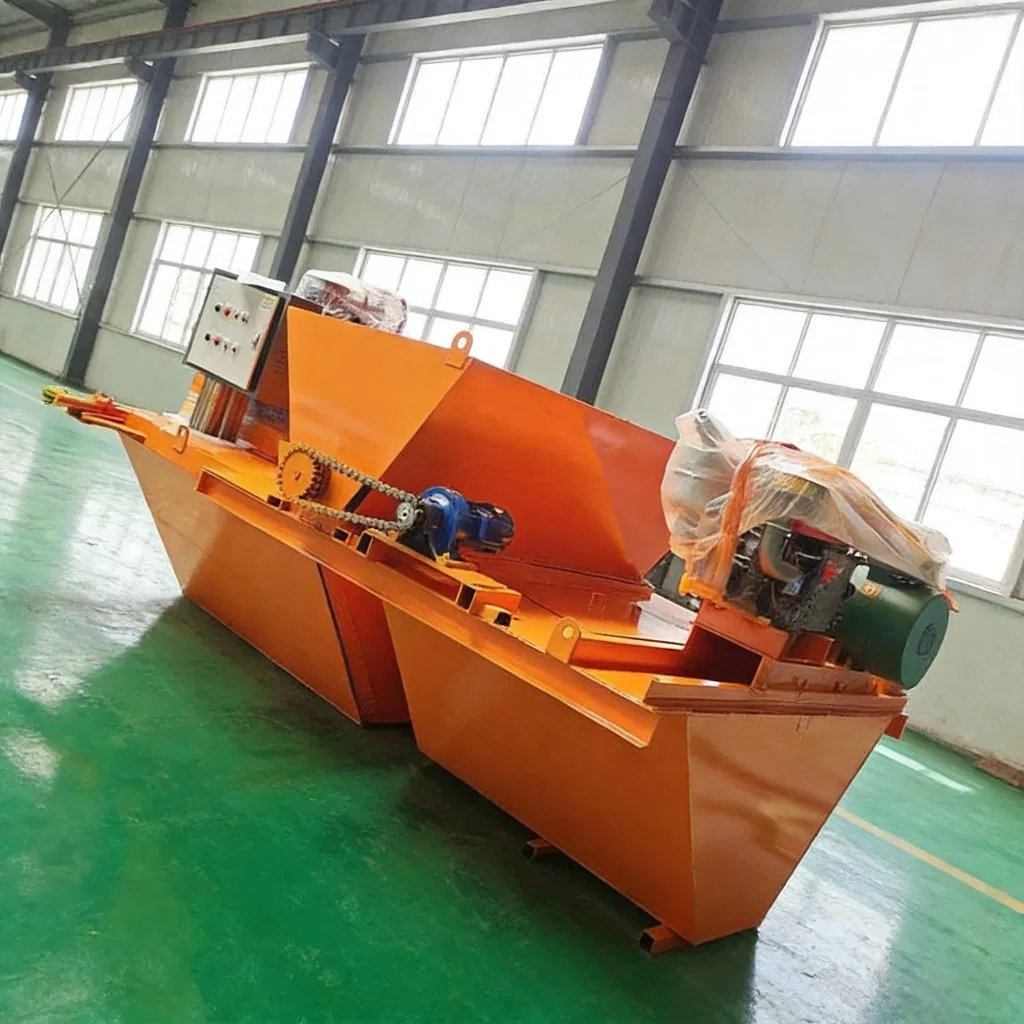

Trapezoidal channel automatic vibrating concrete lining machine U shaped concrete automatic ditch channel lining device. Main technical performance indicators Adapt to the site: the bottom of the canal, the slope of the canal, the highway, etc. can be used. Equipment specifications: According to the width of the working surface, the length of the fuselage can be customized.

The bottom lining machine consists of four parts: the feeding machine, the spreading machine, the screeding machine and the receiving frame. The loading machine is placed on the slope of the channel, the frame is connected with the booth of the spreader, and there is a walking wheel at the bottom of the frame, which does not need to be towed and automatically controls walking. The spreader, the trowel and the receiving frame are placed in parallel at the bottom of the channel and at a certain distance in the middle.

• Save a lot of money: Reducing template and labor costs, saving labor for later dredging and maintenance, effectively reducing water leakage.
• Save time: The speed can reach 40 to 50 meters per hour, far exceeding manual speed.
• Precision Forming: Continuous and one-time forming of the water channel using high-frequency vibrators for compaction.

• U-shaped groove forming machine
• Trapezoidal groove/rectangular groove forming machine
• Custom Forming Machine

• Agricultural water conservancy: Construction of high standard farmland, irrigation canals and drainage ditches.
• Transportation engineering: Slope drainage ditches and lining for highways, railways, national and provincial roads.
• Municipal and ecological engineering: Urban drainage network, river management, and photovoltaic power generation bases.

• Standard Warranty: 12 months or 2,000 operating hours.
• Extended Warranty: Optional coverage up to 36 months.
• Global Support: 24/7 technical assistance and spare parts supply.
• Training: On-site or remote operation and maintenance training.

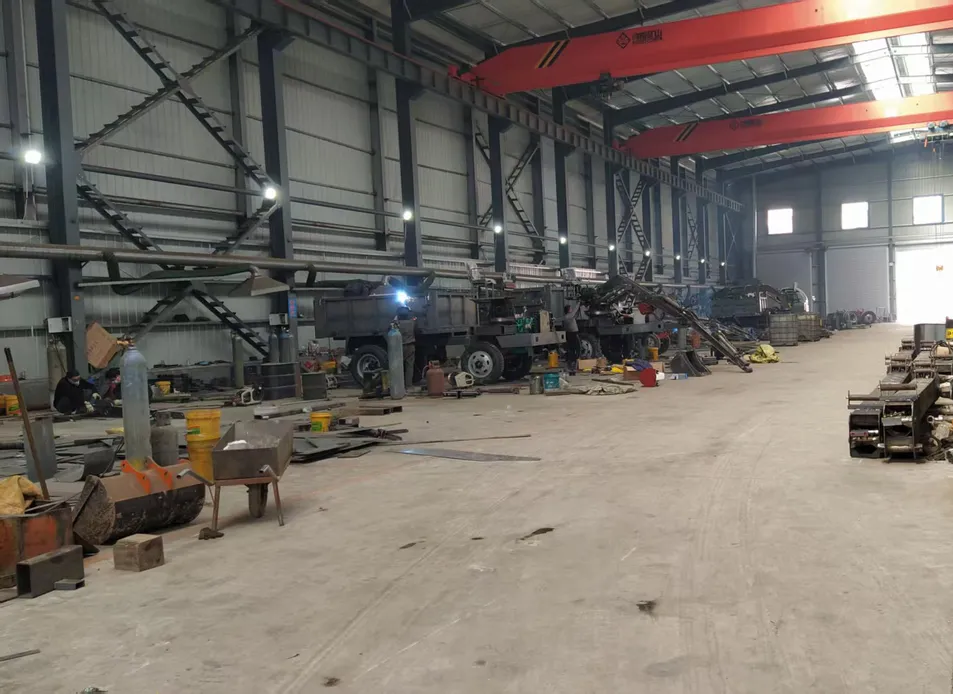

As a leading Chinese manufacturer of construction equipment with over 20 years of expertise, we are certified with ISO 9001, CE, and GOST. We export to 50+ countries, offering reliable machinery backed by R&D innovation and strict quality control.
