📋 Basic Information
| Model NO. |
Channel Lining Machine |
| Roller Diameter (mm) |
230 |
| Weight (Kg) |
3000 |
| Screw Conveyor Diameter (mm) |
260 |
| Screw Conveyor Speed |
136rpm |
| Roller Drive Mode |
Chain Drive |
| Walking Motor (Kw) |
4*2.2 |
| Lining Thickness (mm) |
100-200 |
| Traveling Mode |
Railway Walking |
| Origin |
China |
📦 Packaging & Delivery
| Package Size |
60.00cm * 100.00cm * 120.00cm |
| Package Gross Weight |
50.000kg |
| Lead Time |
31 days (1 - 1 Pieces); To be negotiated (> 1 Pieces) |
🛠️ Product Description

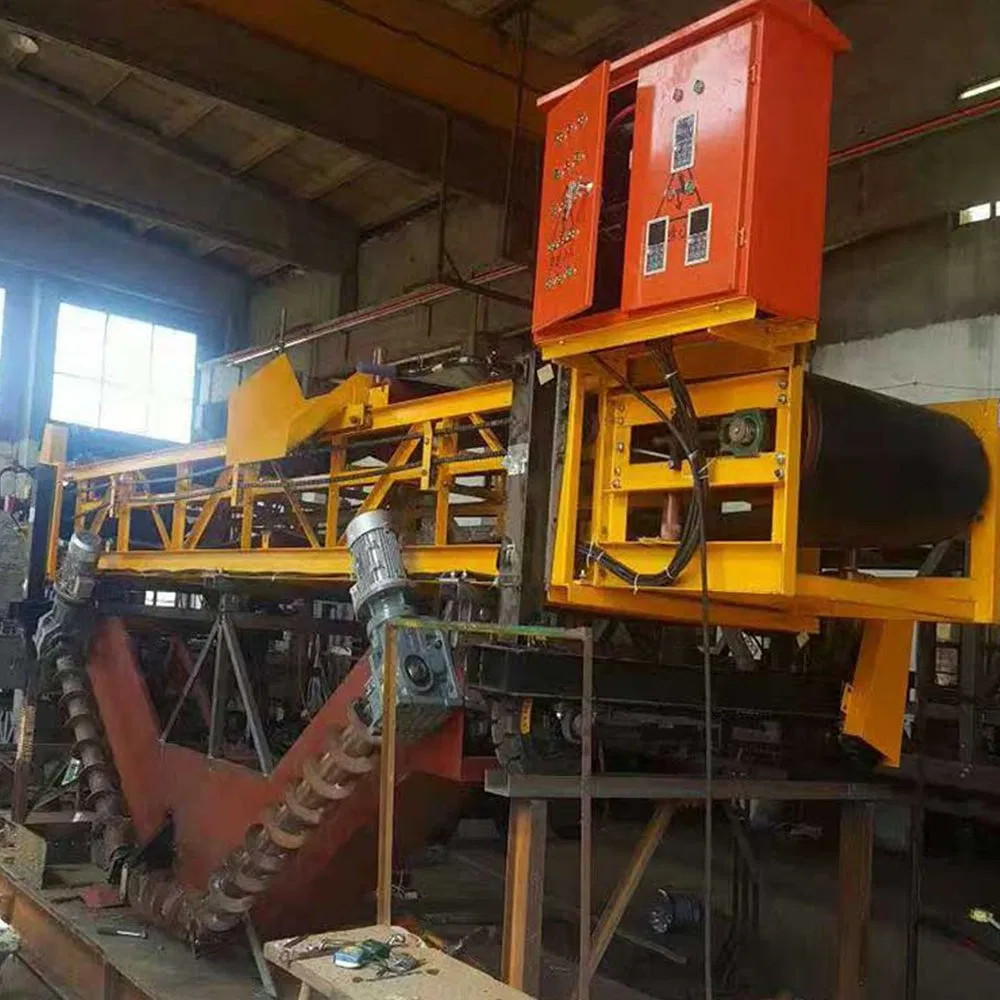

Channel lining machine is a large-scale specialized equipment used in hydraulic engineering. It uses sliding mode paving technology to continuously and efficiently pour concrete lining on the channel bed, forming a flat and impermeable protective surface, greatly improving the efficiency and durability of channel water delivery.
📊 Product Parameters
| Walking Speed |
0-1.2m/min |
| Silo Specification (mm) |
630*500*530 |
| Conveying Power |
Configured according to the slope length |
| Fine-sliding Template Length |
500mm (adjustable at the end) |
| Adaptable Slope Length |
23m (longest lining surface) |
| Efficiency |
≤1.2m/min |
| Lifting Device |
Hydraulic/Electro-mechanical lifting |
| Engine Options |
Honda 2KW / Lifan 3KW / Diesel Genset 3.8KW |
| Thermostatic Control |
SLA-5000 Intelligent Digital Controller |
| Burner |
Imported Italian Rialto 445T1 Diesel Burner |

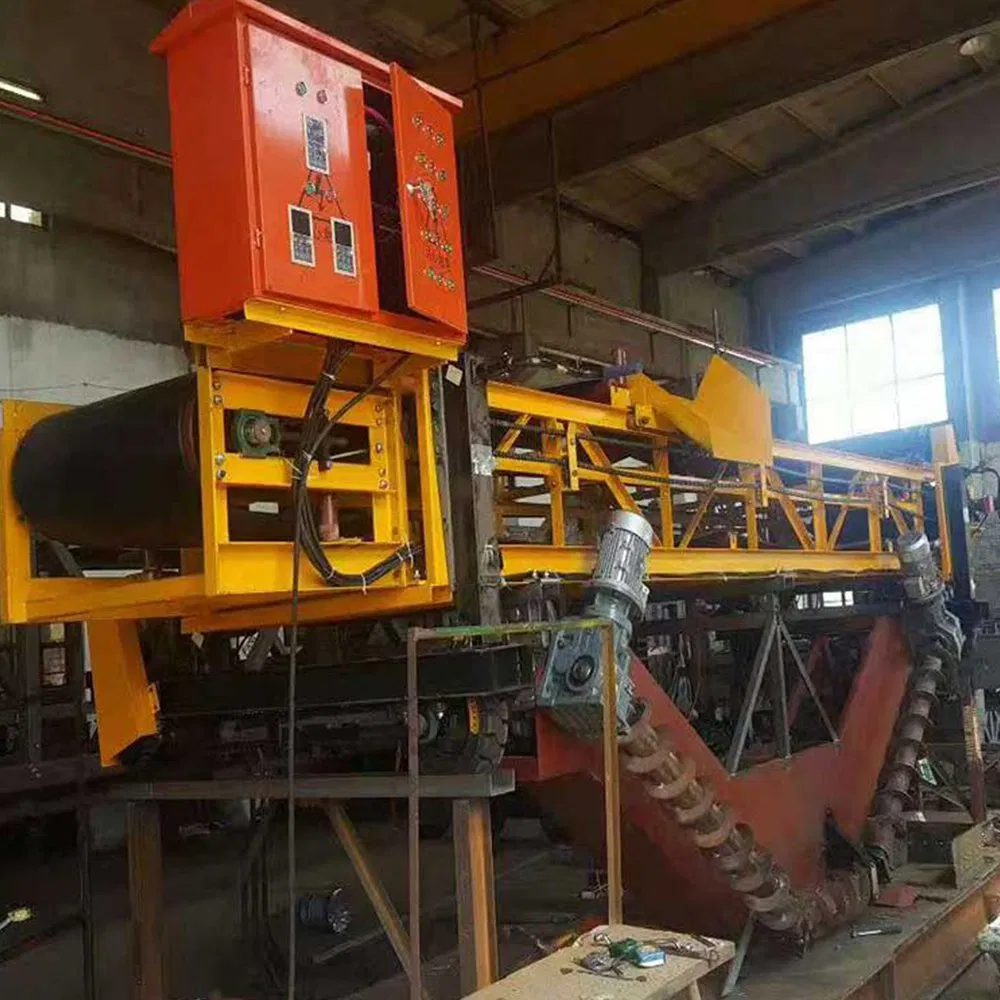

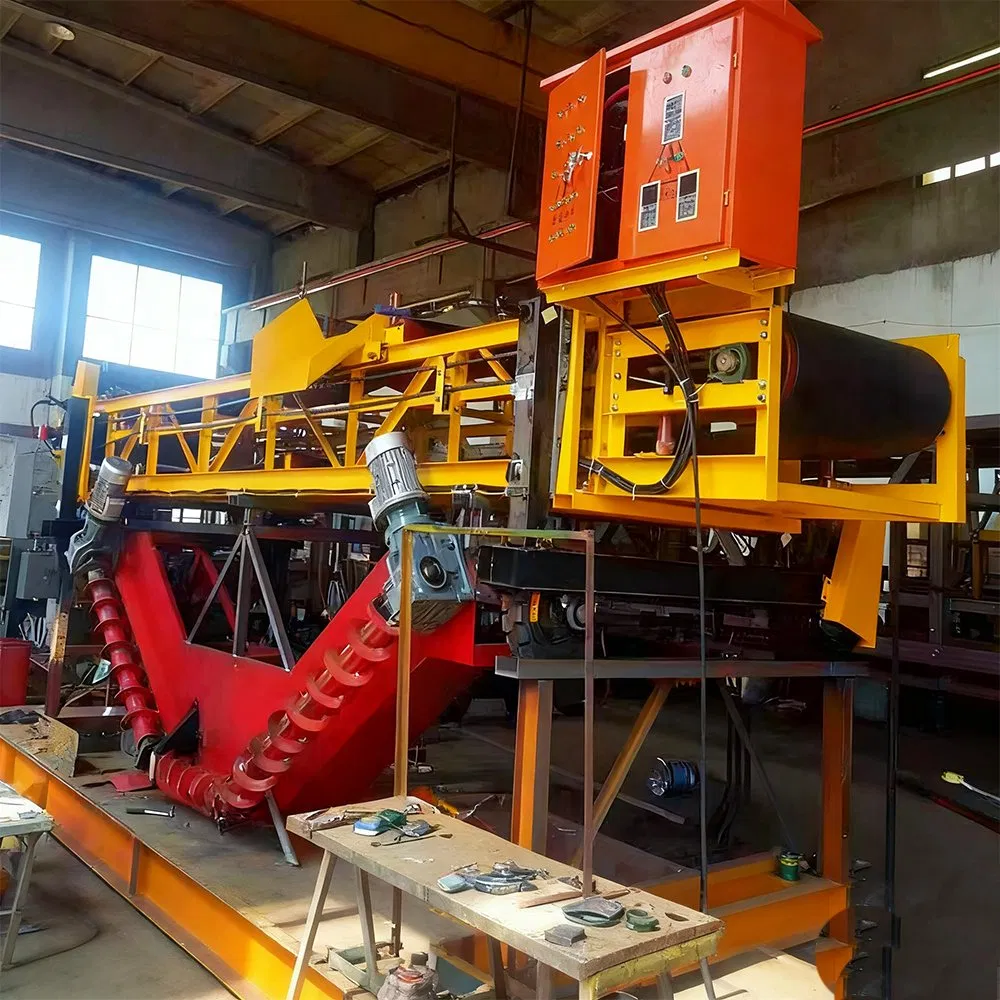

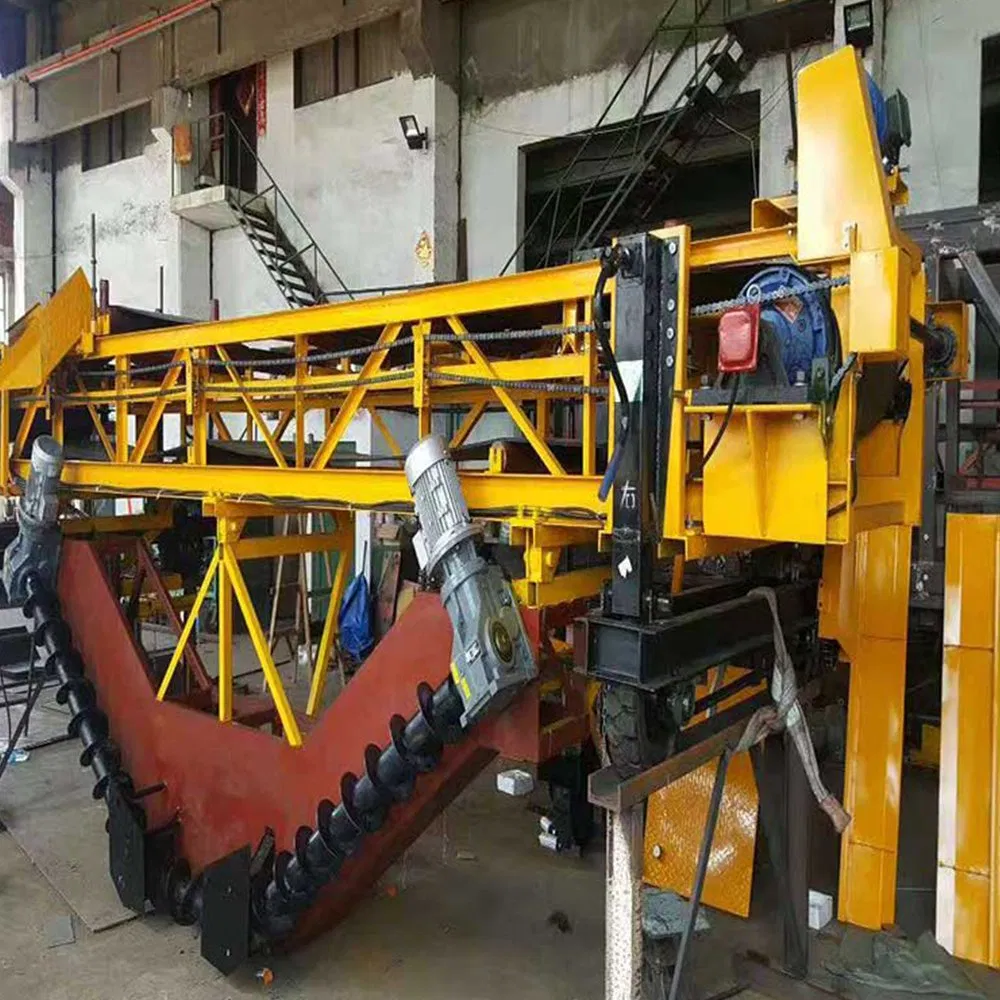

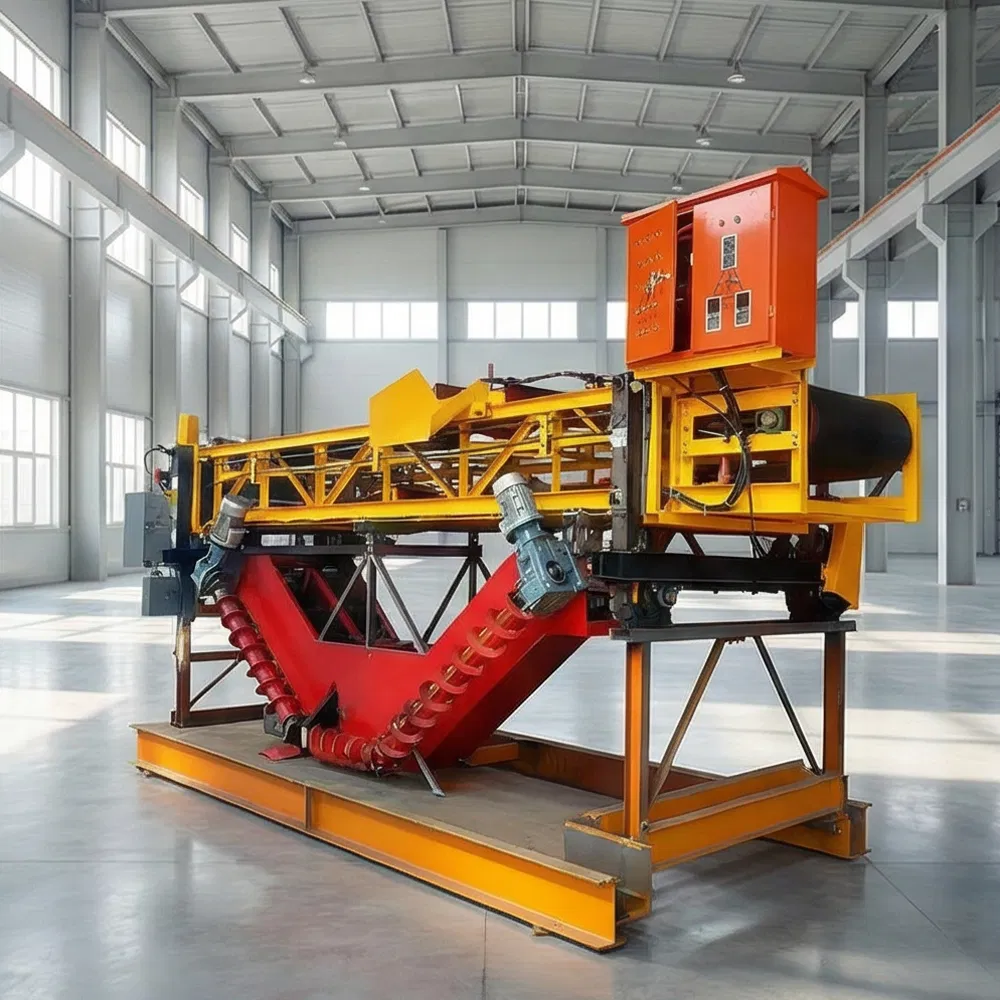

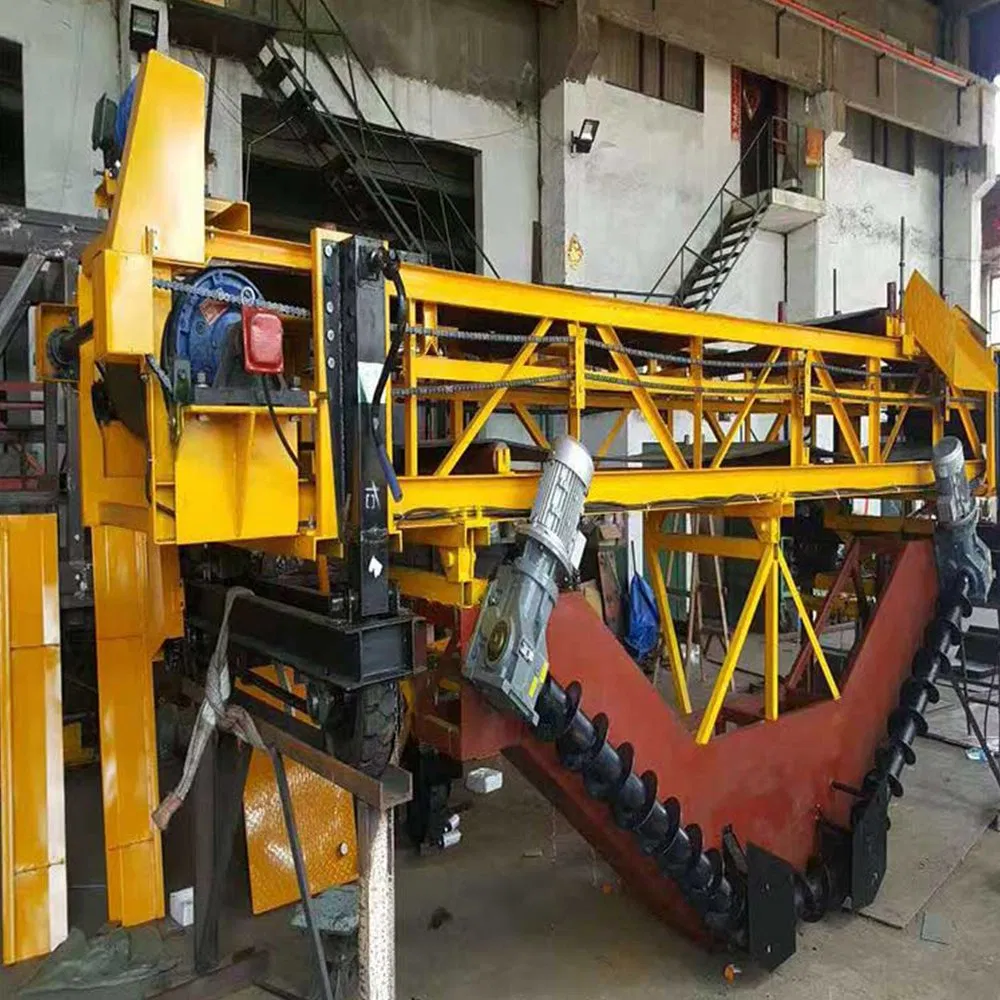

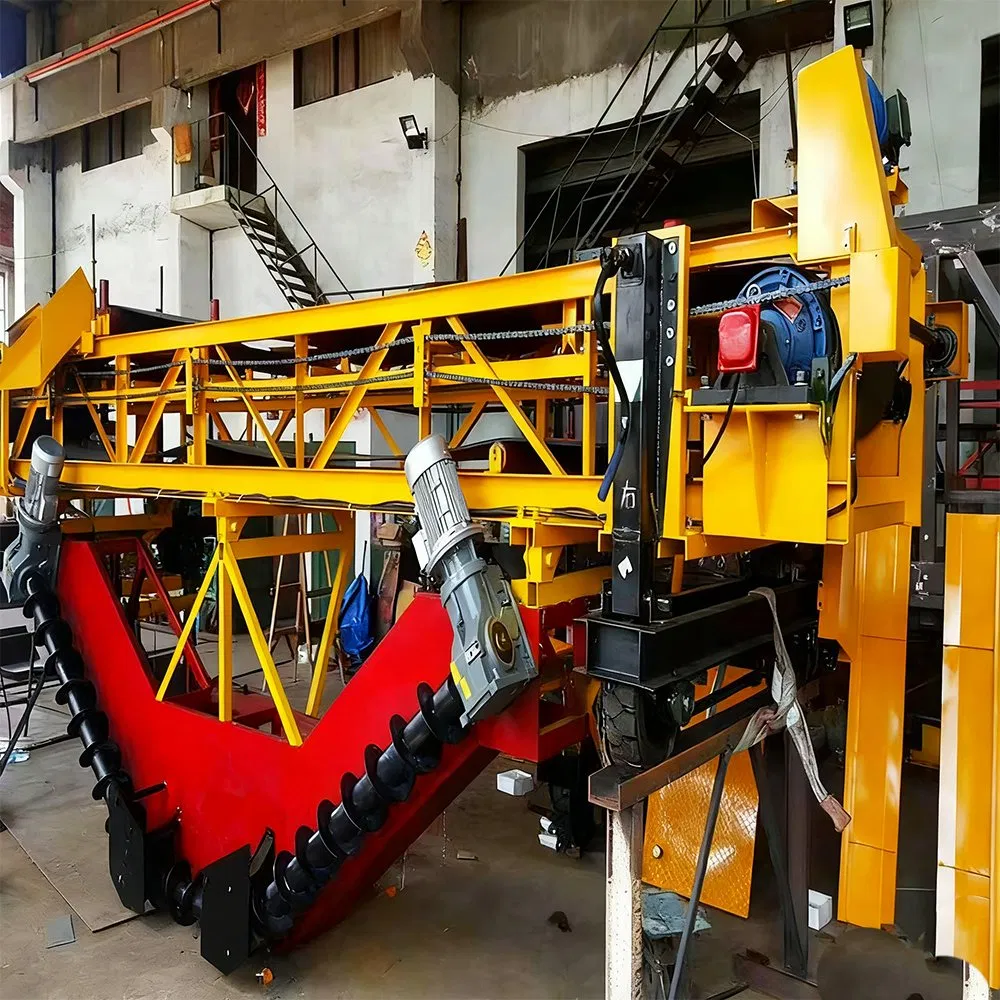

📸 Detailed Photos
Frequently Asked Questions
🔹 What is the main function of the Channel Lining Machine?
It is designed for continuous concrete pouring in hydraulic engineering projects, creating a smooth, impermeable lining for water channels and drainage ditches.
🔹 What lining thickness can the machine achieve?
The machine supports a lining thickness range of 100mm to 200mm, which is suitable for most standard canal construction requirements.
🔹 How does the machine move during operation?
It utilizes a railway walking mode, ensuring stable and precise movement along the channel path at a speed of up to 1.2 meters per minute.
🔹 Can the slope ratio be adjusted?
Yes, the machine is highly adaptable. The slope ratio can be configured according to specific project requirements and customer needs.
🔹 What power options are available for the engine?
Customers can choose between a Honda 2KW gasoline engine, a domestic Lifan 3KW engine, or a Korola 3.8KW diesel genset depending on site conditions.
🔹 Is there a temperature control system included?
Yes, it features an SLA-5000 intelligent digital temperature controller for automatic thermostatic control, which is essential for certain environmental conditions.
