Introduction to Machine

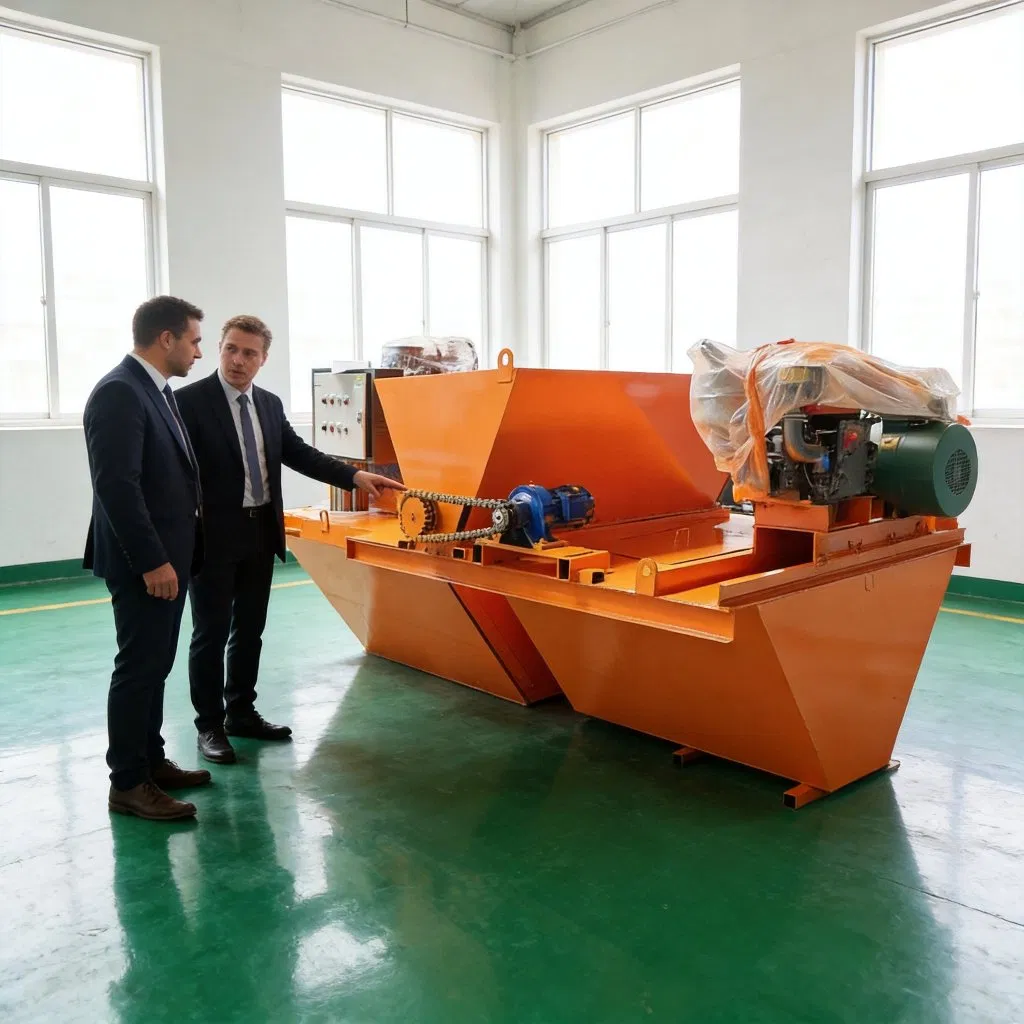

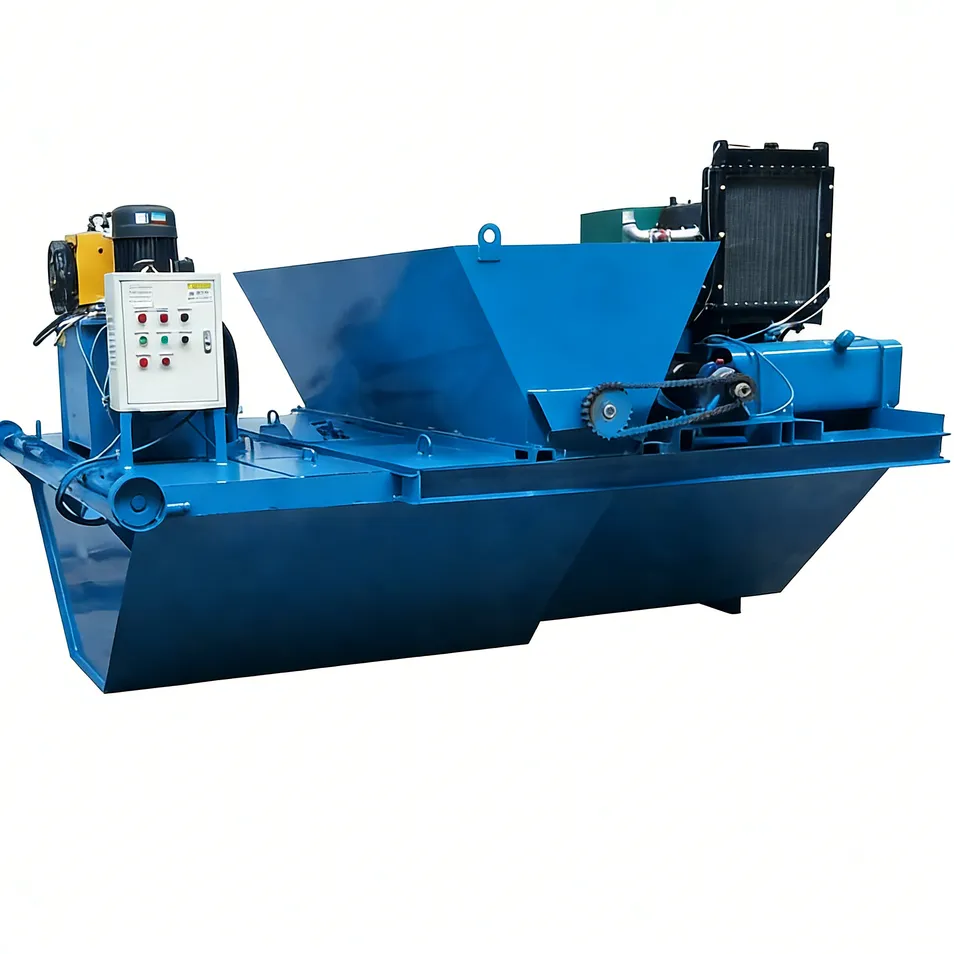

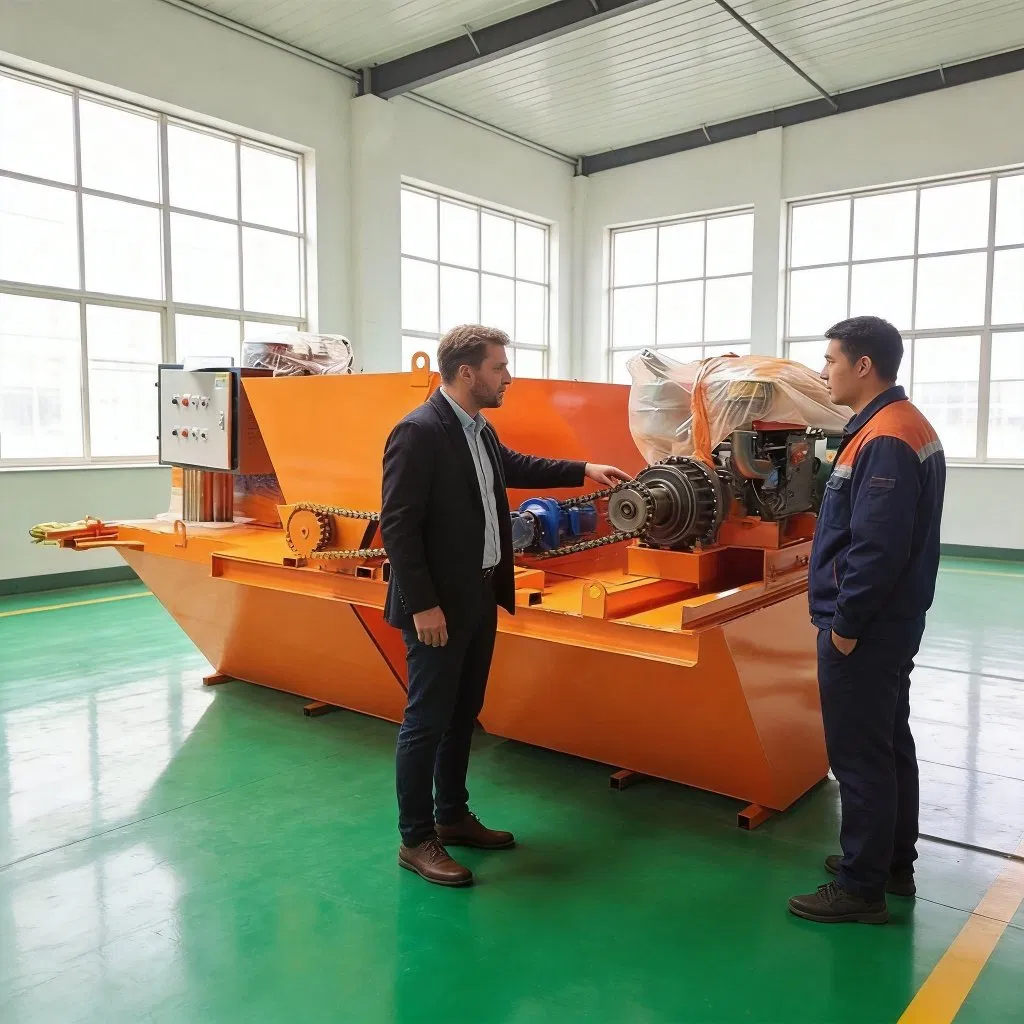

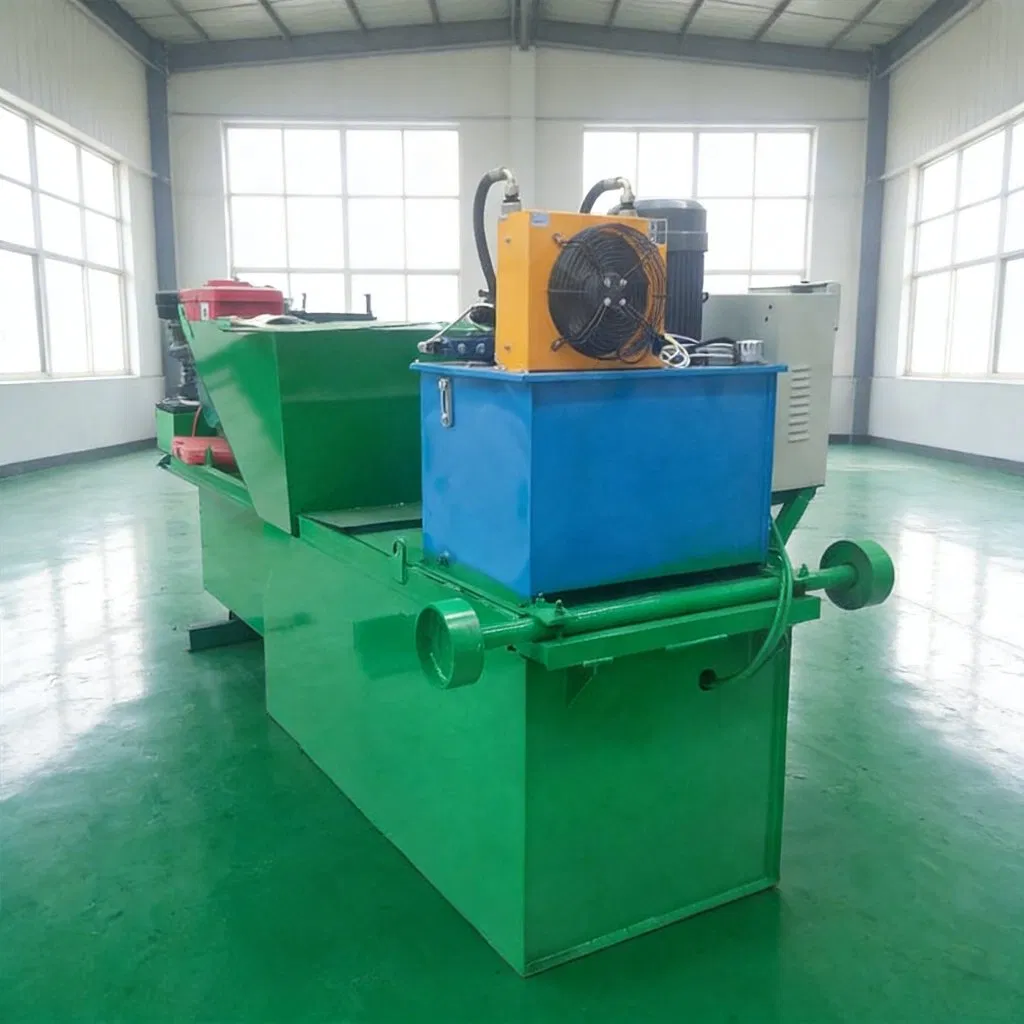

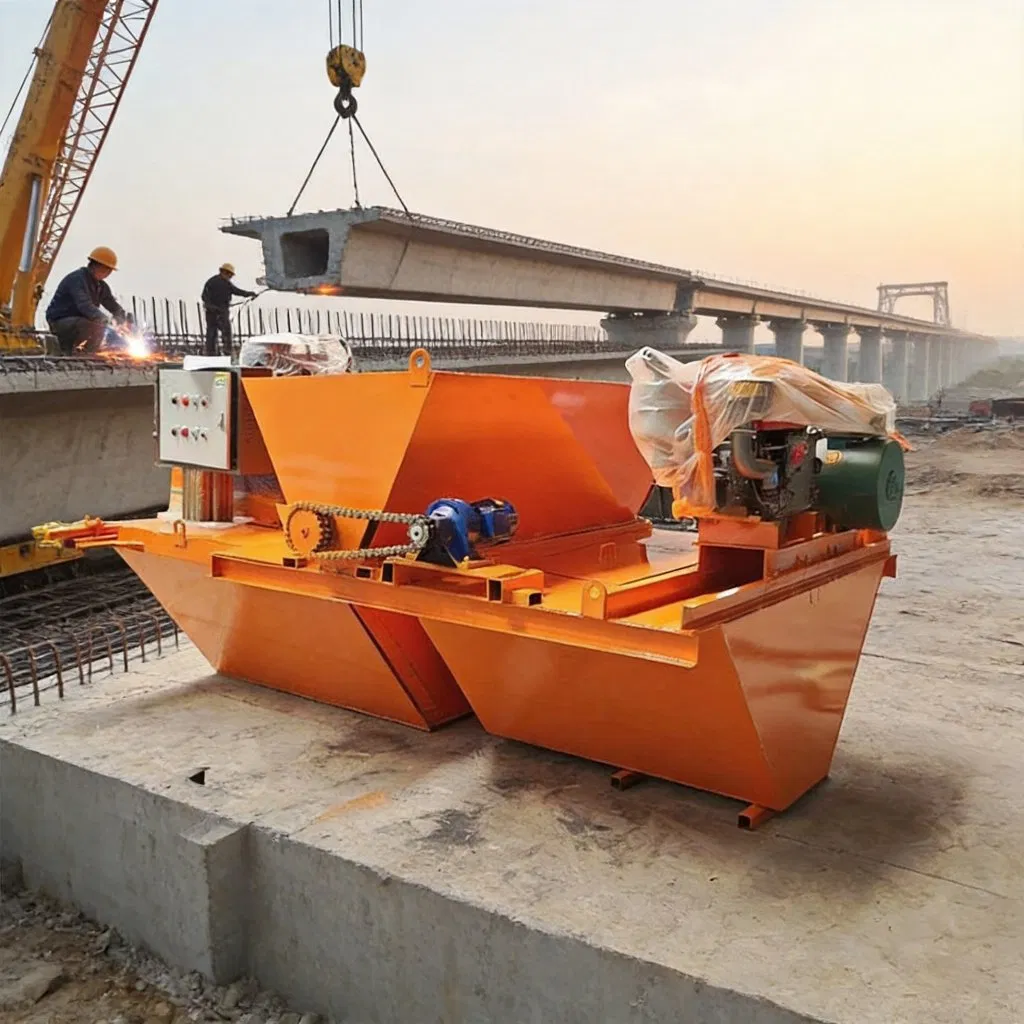

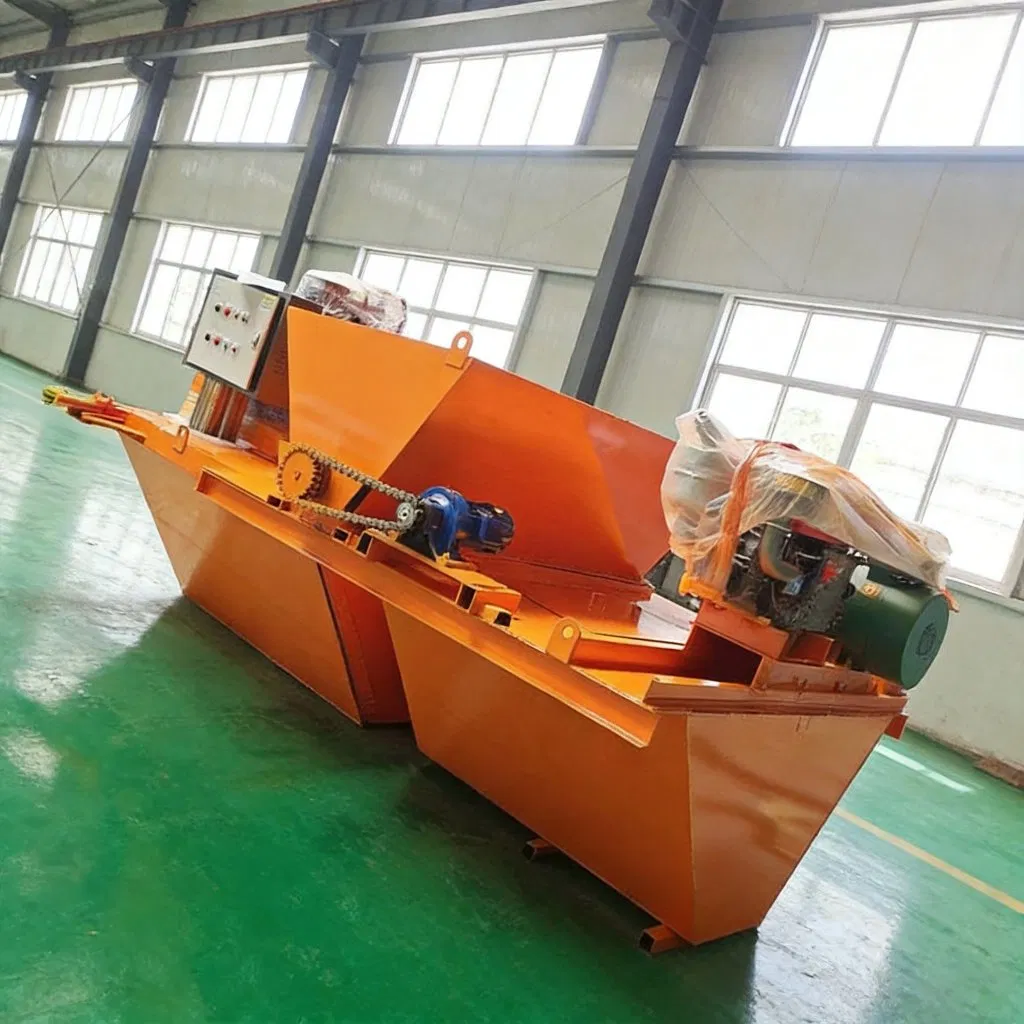

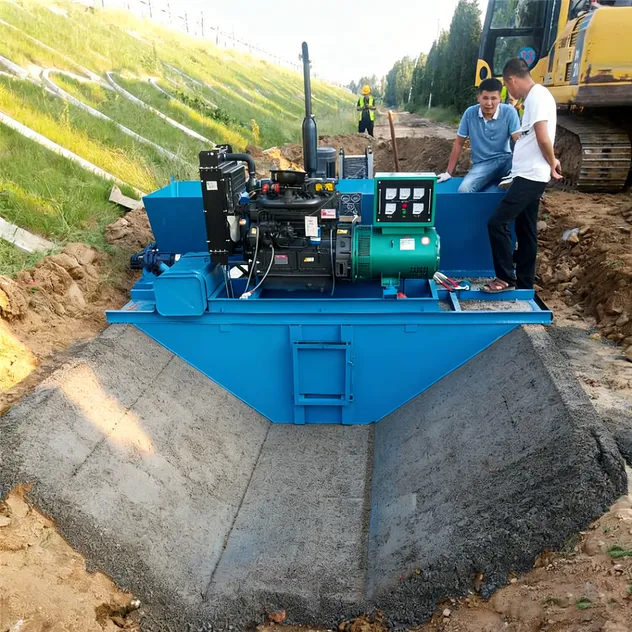

The trapezoidal channel automatic vibrating concrete lining machine is a specialized device designed for U-shaped and trapezoidal ditch formation. It adapts to various sites such as canal bottoms, slopes, and highways. The equipment consists of a feeding machine, spreading machine, screeding machine, and receiving frame, allowing for automatic control and efficient concrete placement.

Key Advantages

• Cost Efficient: Reduces template and labor costs, significantly minimizing water leakage and land usage.
• Time Saving: Construction speed reaches 40-50 meters per hour, far exceeding manual capabilities.
• One-time Forming: Uses high-frequency vibrators for compaction to achieve continuous, high-quality channel formation.
• Versatile Classification: Available for U-shaped grooves, trapezoidal/rectangular grooves, and custom shapes.

Normal Application Scope

• Agricultural Water Conservancy: High-standard farmland irrigation and drainage.
• Transportation Engineering: Slope drainage for highways, railways, and provincial roads.
• Municipal Engineering: Urban drainage networks and river management.

Technical Specifications

Standard Warranty: 12 months or 2,000 operating hours. Optional extended coverage up to 36 months is available. We provide 24/7 technical assistance, spare parts supply, and comprehensive on-site or remote training for operation and maintenance.

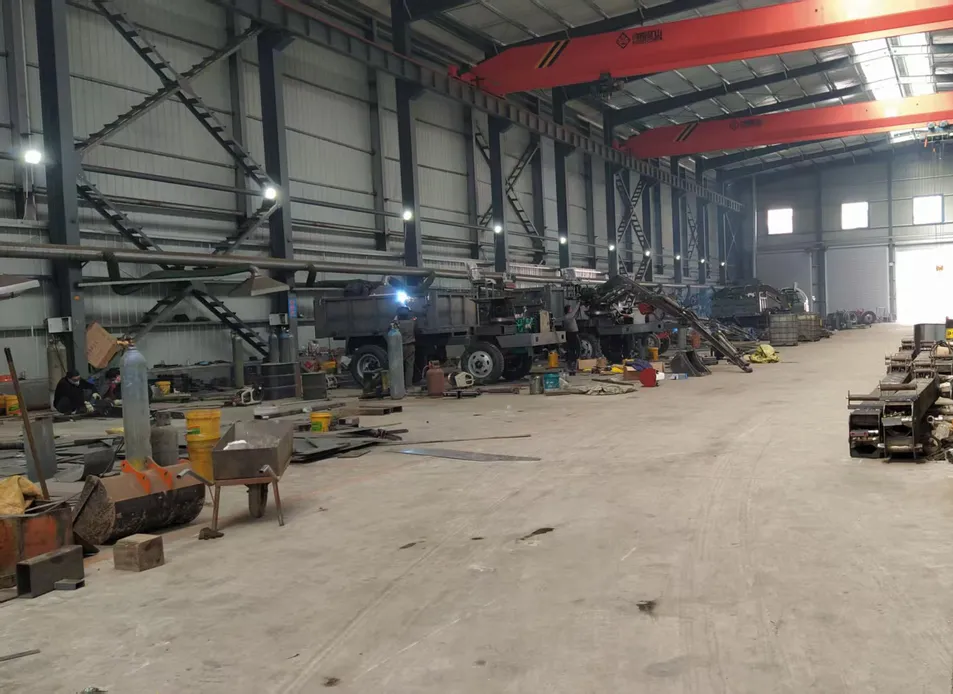

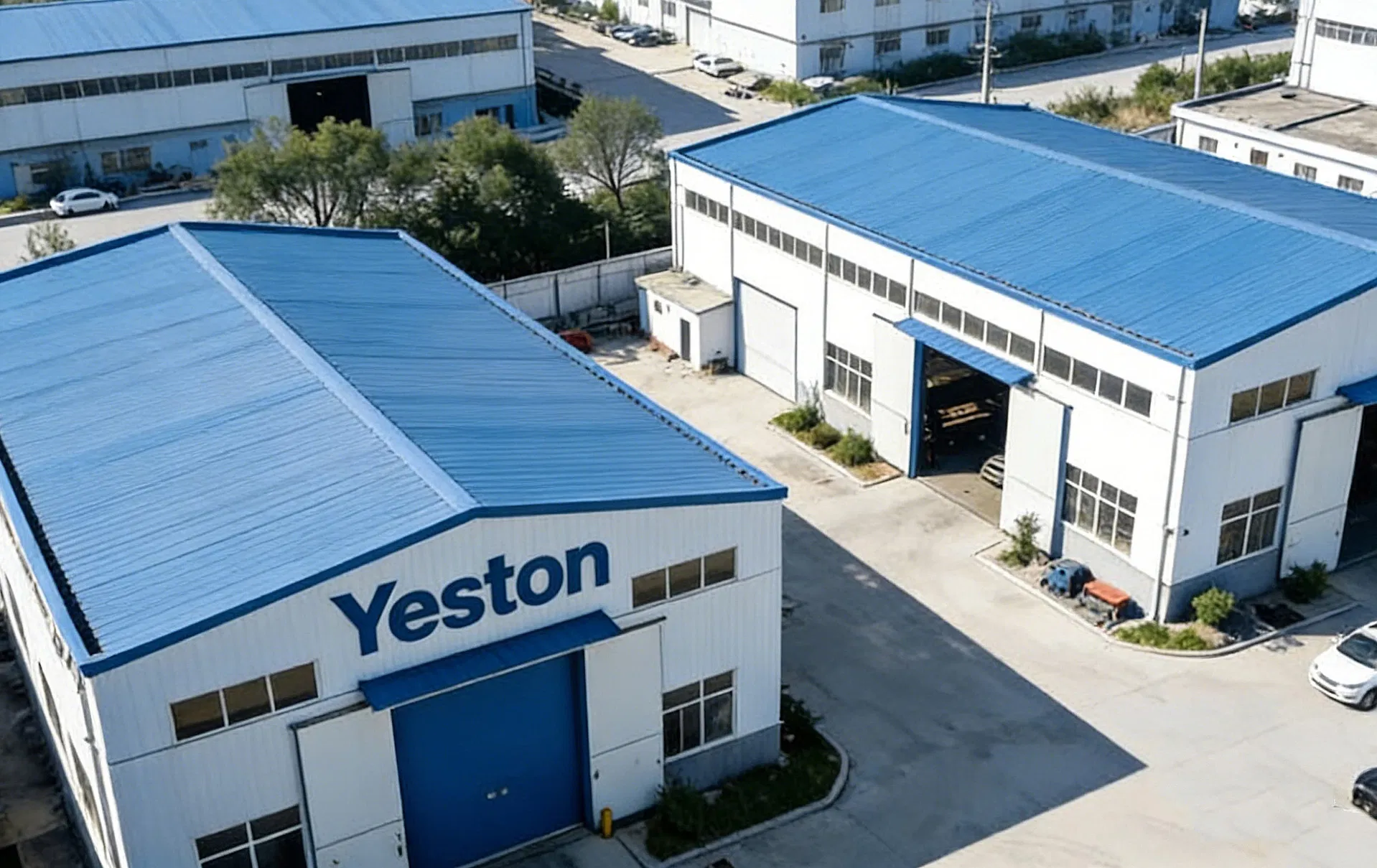

As a leading Chinese manufacturer with over 20 years of expertise, we are certified with ISO 9001, CE, and GOST. We offer reliable machinery backed by R&D innovation and strict quality control, exporting to over 50 countries worldwide.
