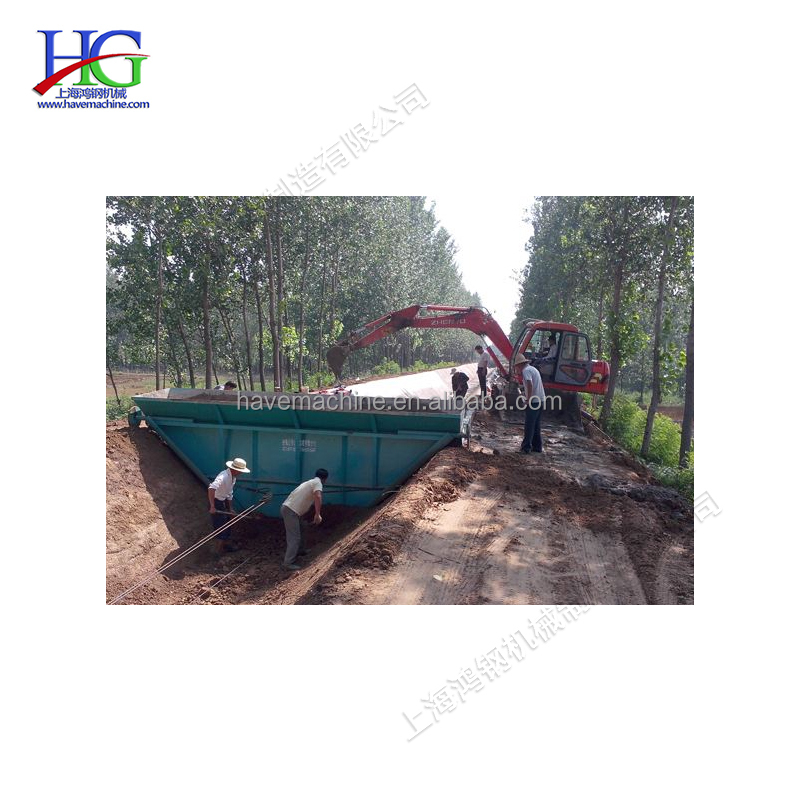

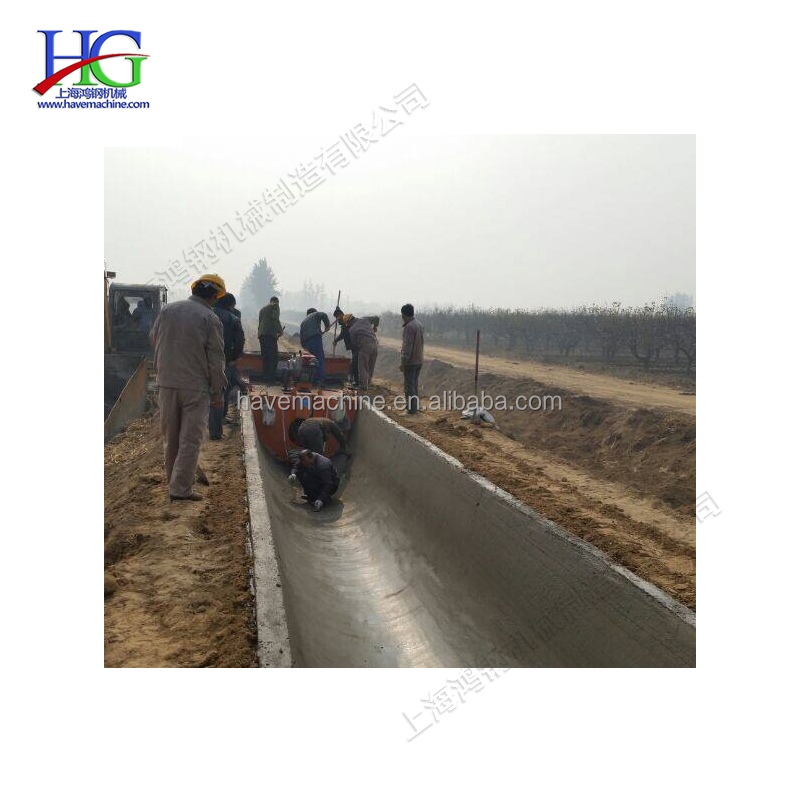

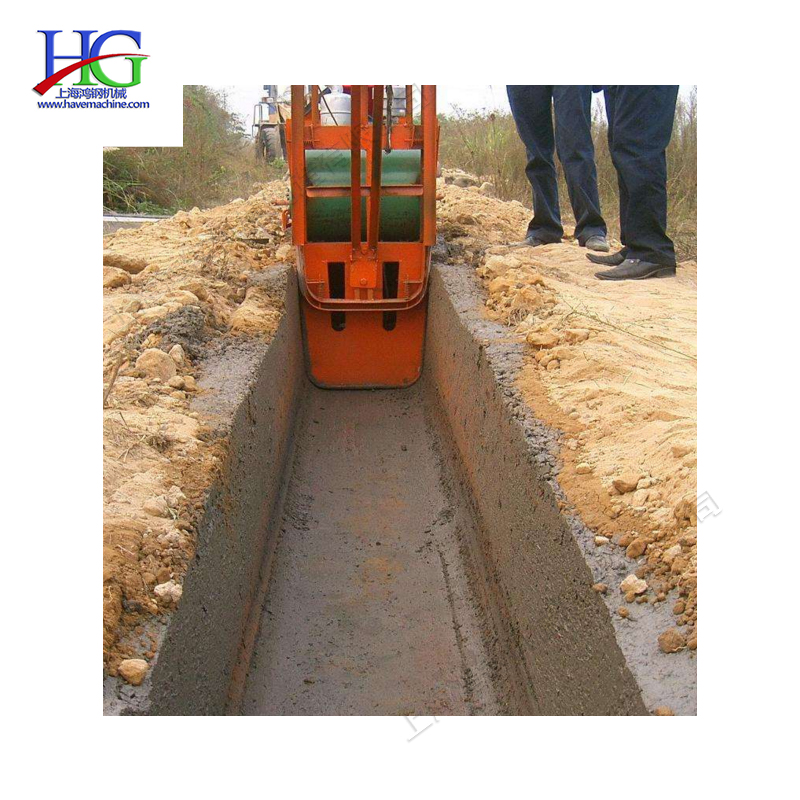

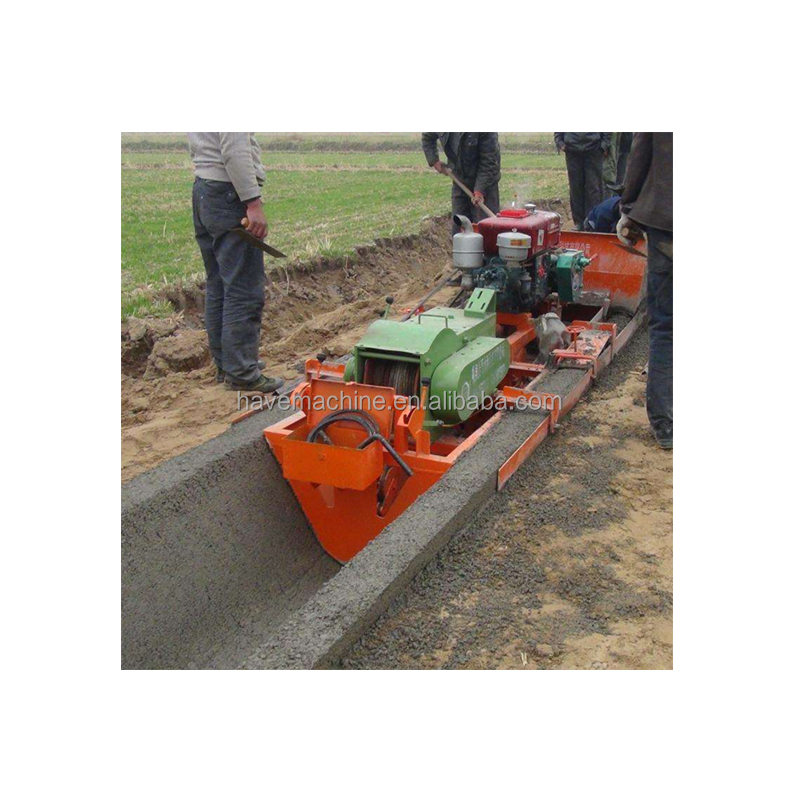

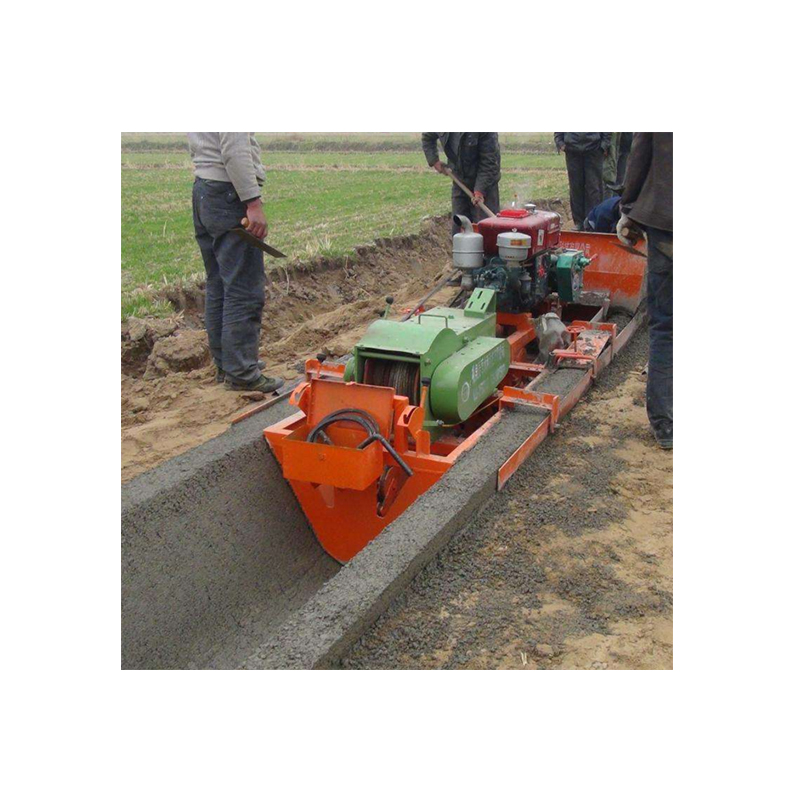

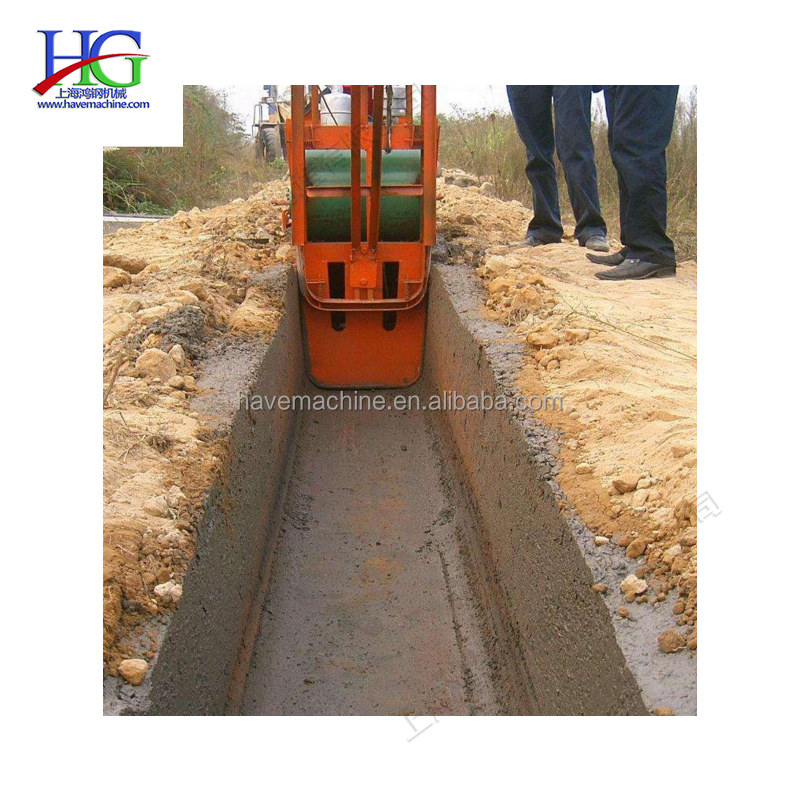

The drain bottom lining machine consists of four essential parts: loading machine, screeding machine, smoothing machine, and surface collecting frame. The loader is strategically positioned on the slope of the canal, with its frame connected to the leveling machine. Equipped with walking wheels at the bottom, the system offers automated movement control.

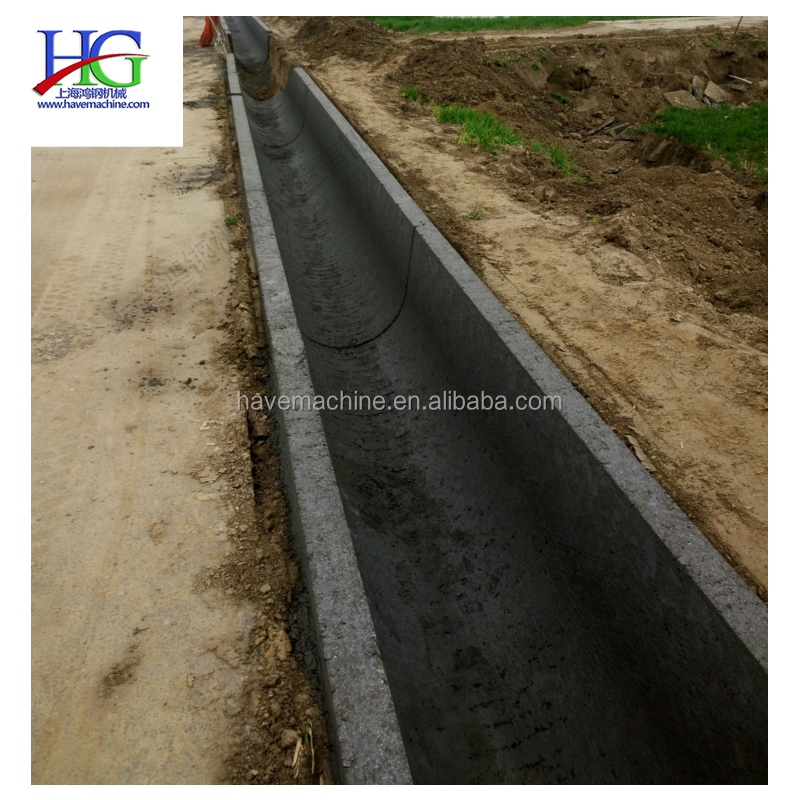

Materials are fed into the hopper via tanker and belt system, then distributed evenly by a vibration plate under the rack. Finally, the surface is smoothed and manually finished by the collecting rack, ensuring a high-quality lining for farmland drainage and side ditches.
| Specification Item | Details |
| NAME | Lining Machine |
| Other name | U-type concrete channel lining machine |
| Model | HG-CQ-70 |
| Depth | 60cm |
| Width | 60cm |
| Material speed | 1.25m/min |
| Lining travelling speed | 1.2m~1.5m/min |
| Lining speed | 5-11m/h |
| Lining thickness | 60-160mm |
| Total installed power | 70.5kw |
Packaging Details: Standard export package, wooden cases or customized as per requirements.
Major Ports: Shanghai port, Shandong port.

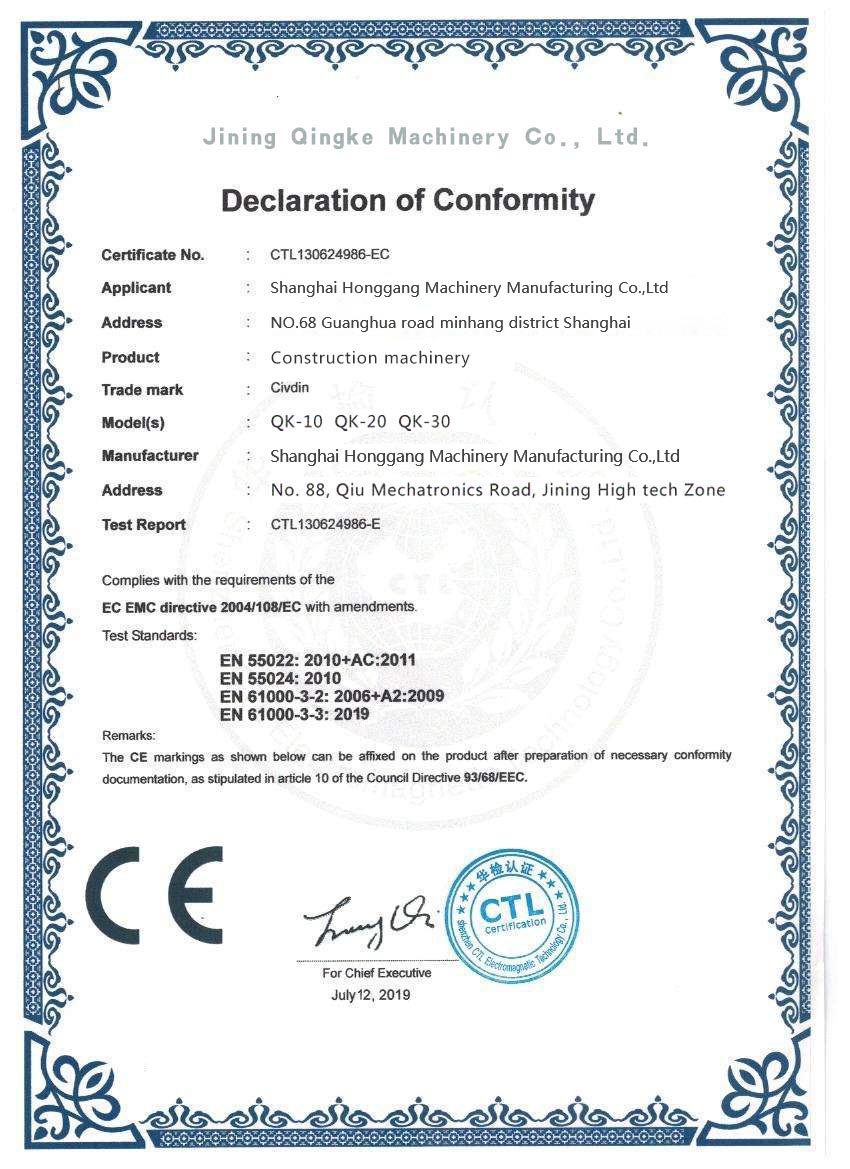

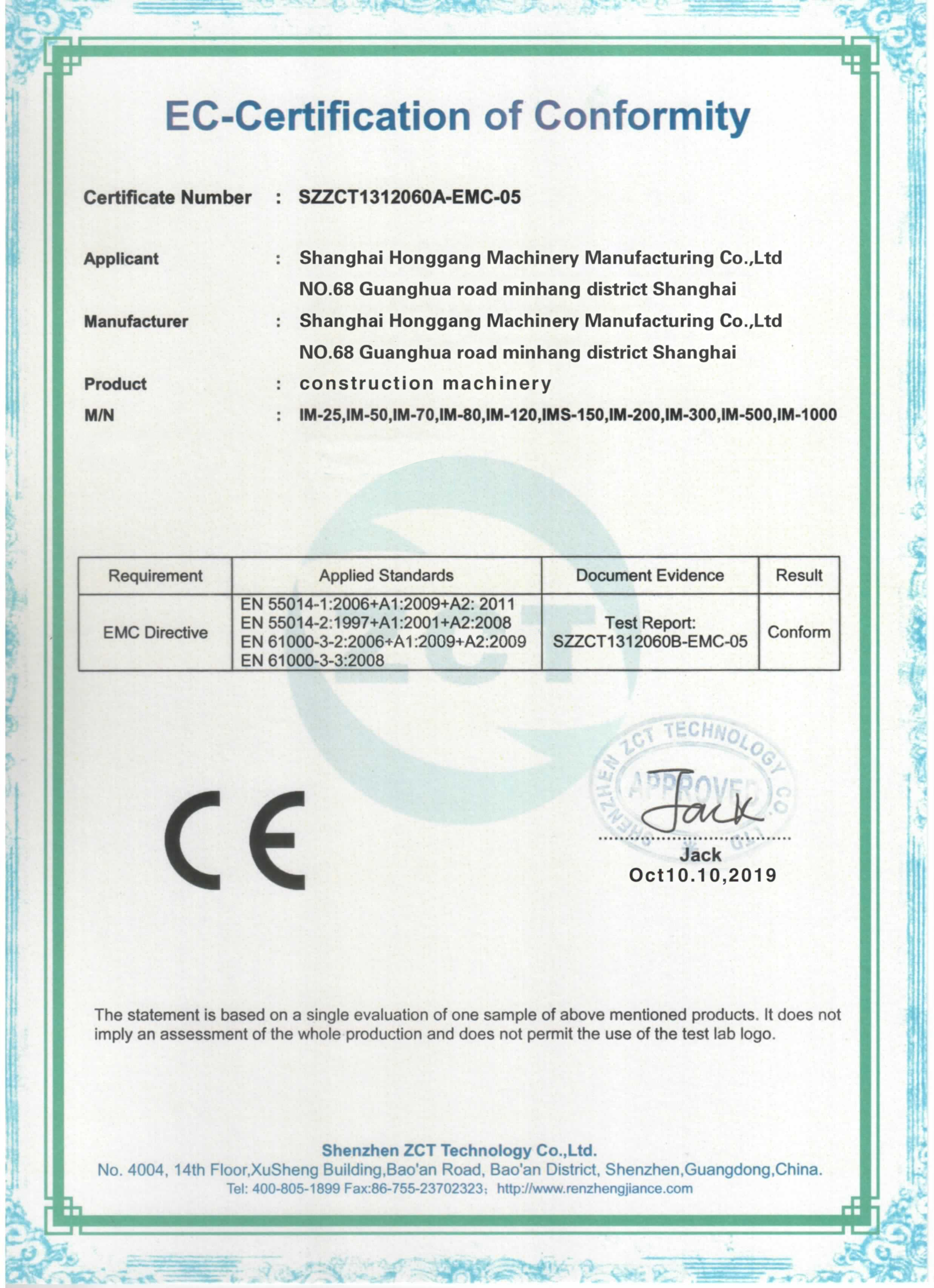

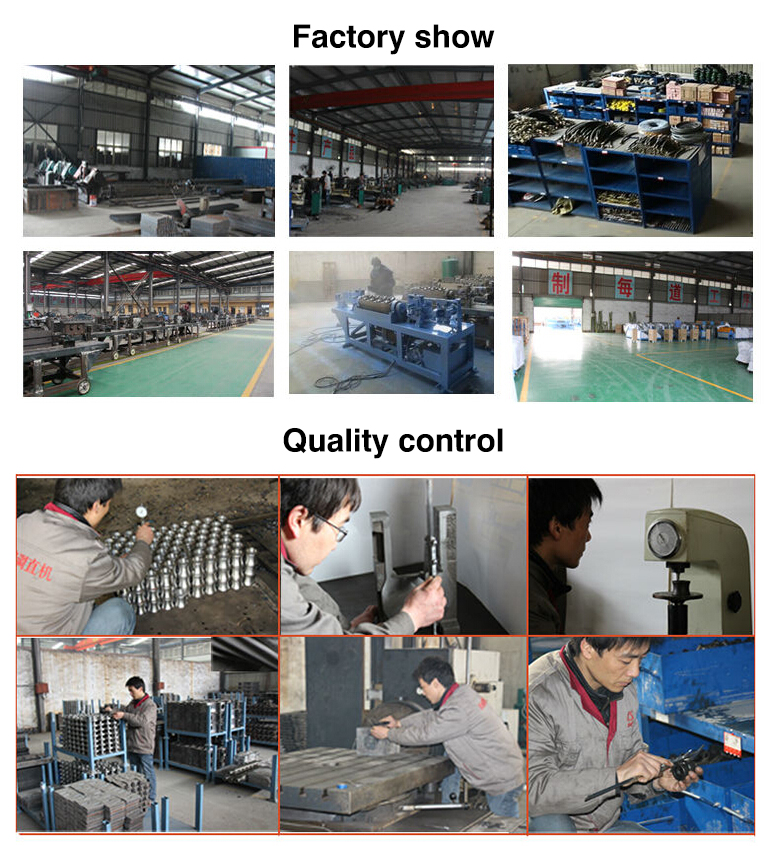

We are a professional machinery manufacturer established with a strong technical foundation. Our facility features advanced CNC machining centers, lathes, boring machines, and milling machines. We specialize in induction heaters, bending machines, construction machinery, and road equipment. Having passed the ISO9001:2000 certification, our products are exported to over 20 countries across Europe, Russia, South America, Africa, and the Middle East.
